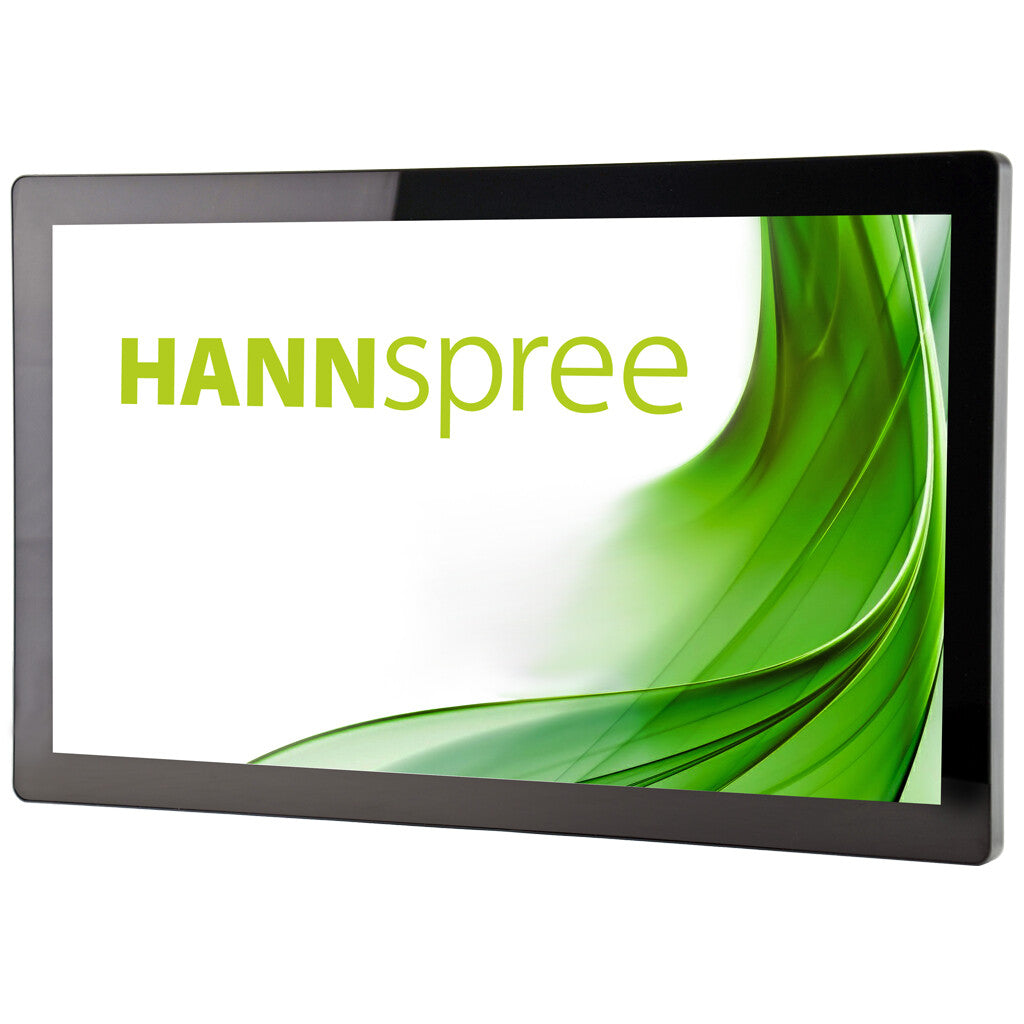

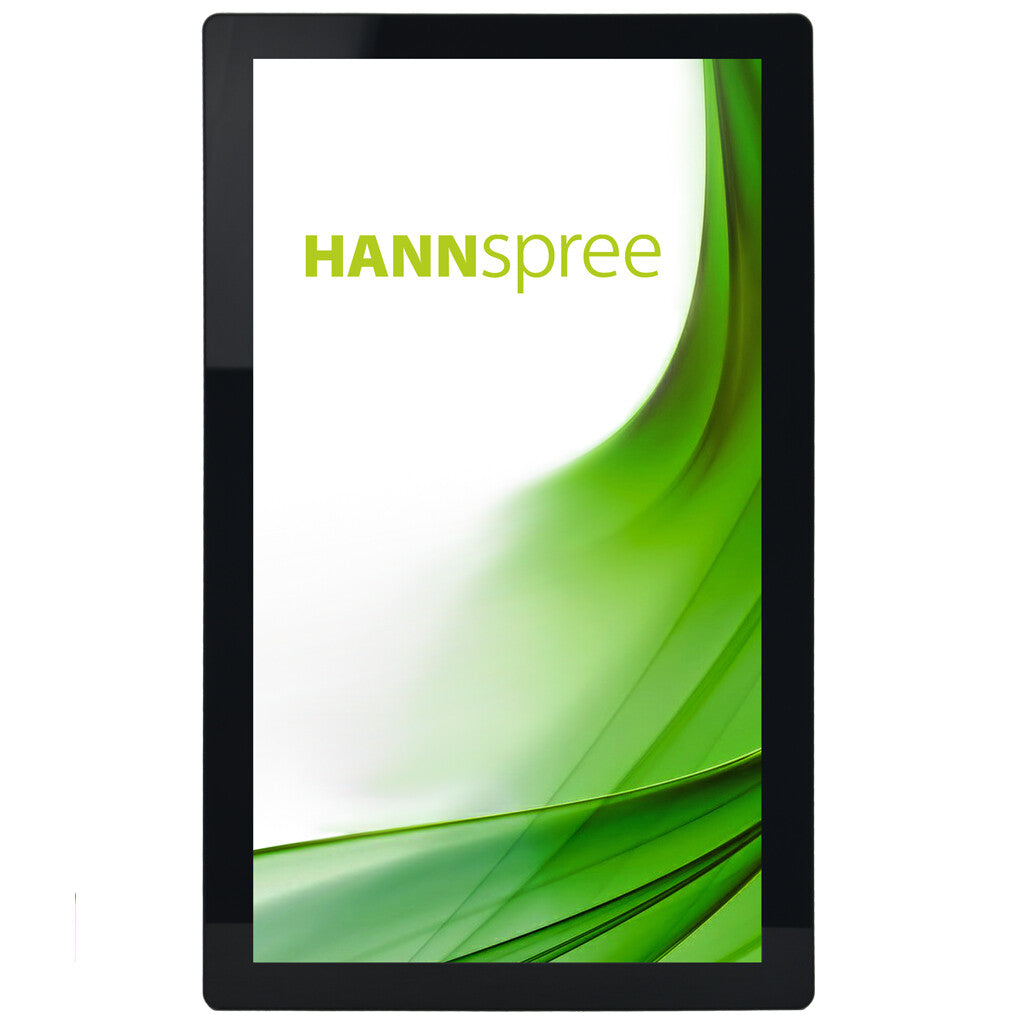

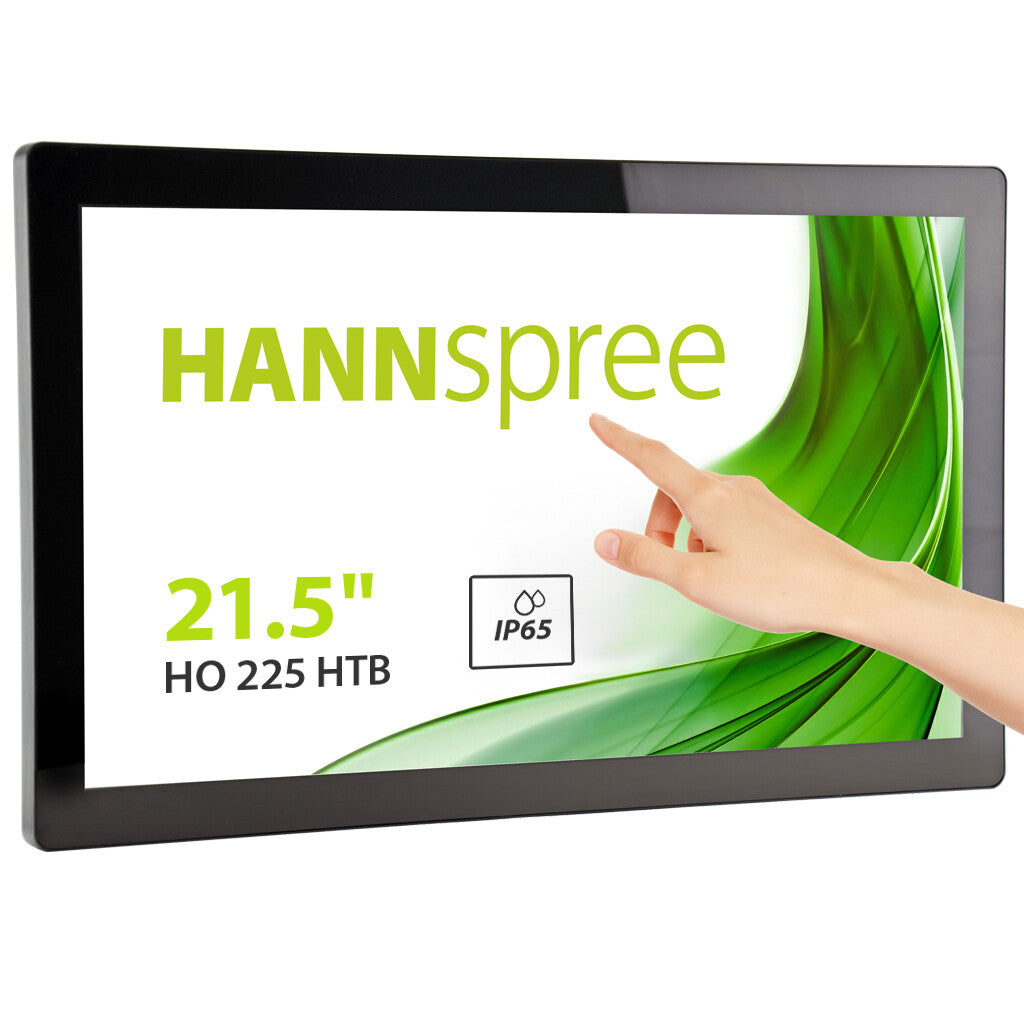

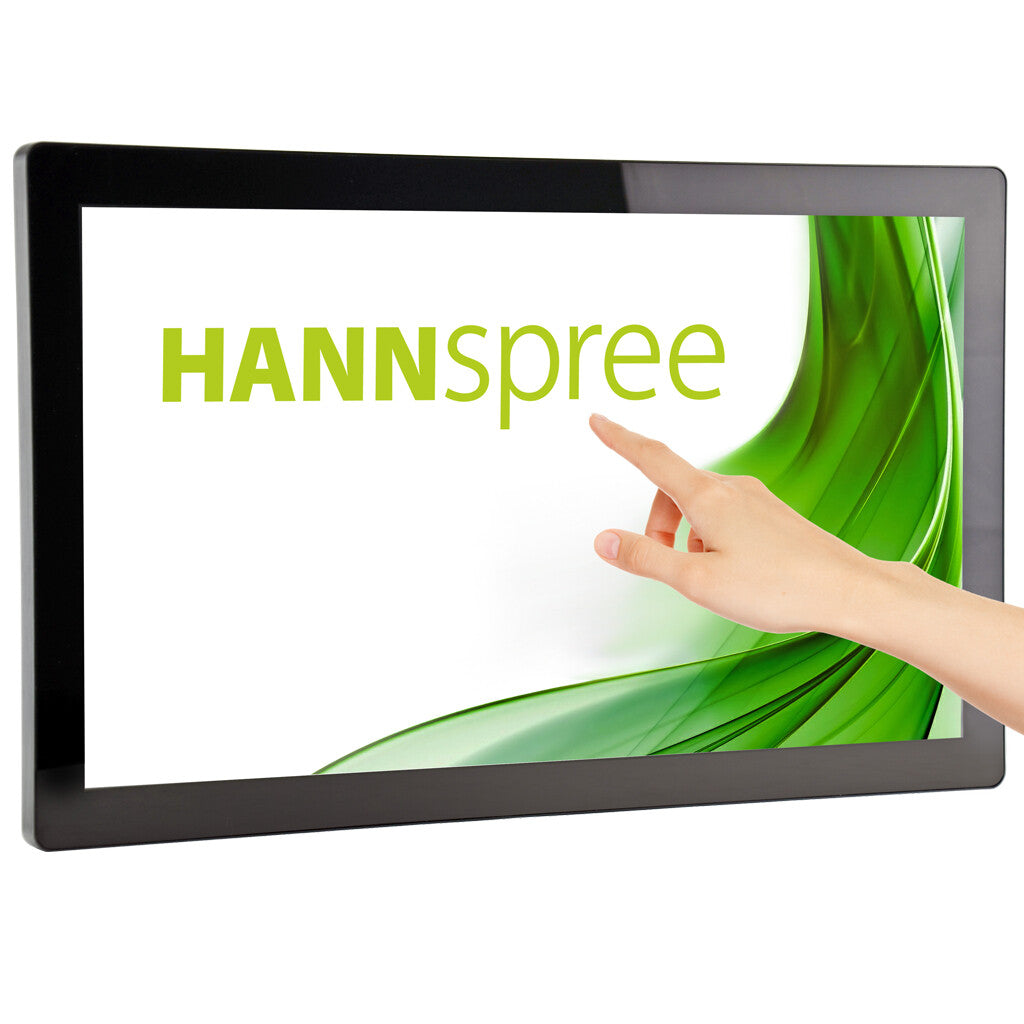

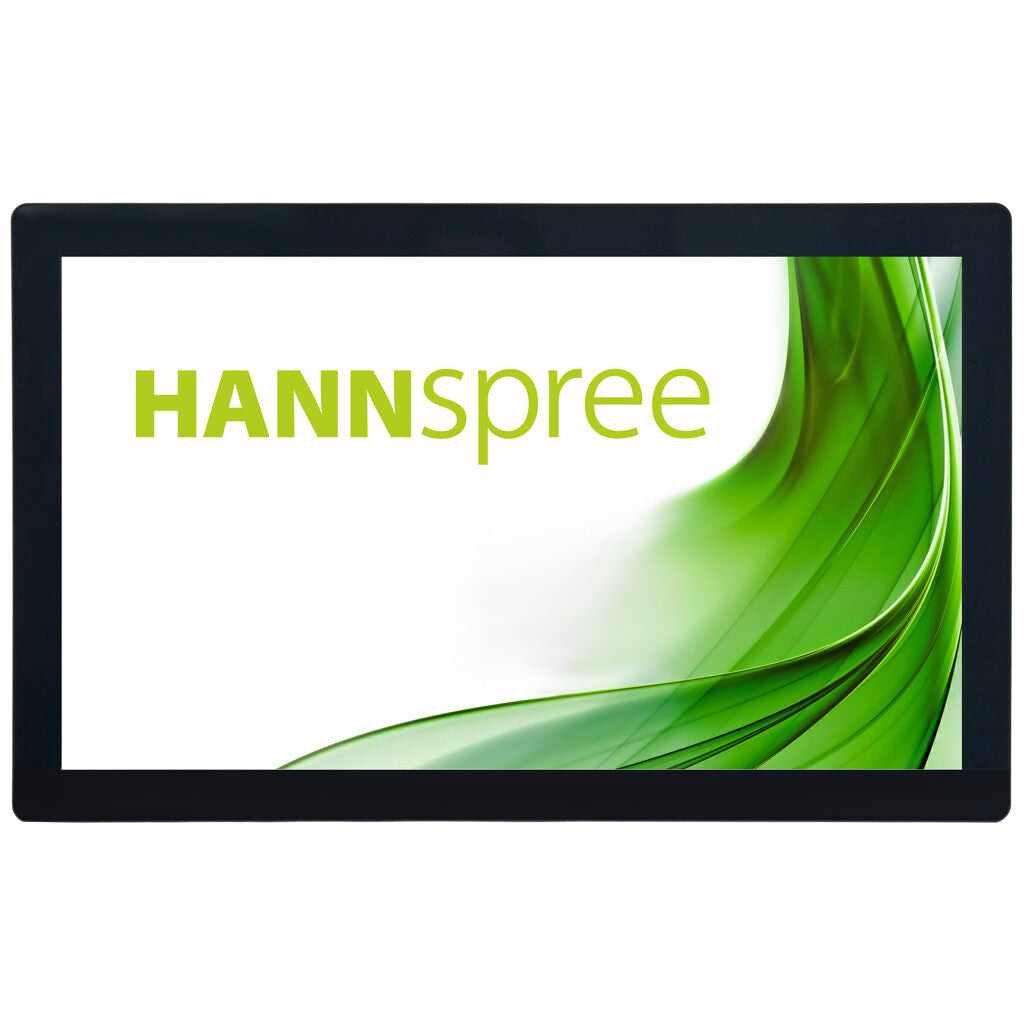

Hannspree Open Frame HO 225 HTB Totem design 54.6 cm (21.5") LED 250 cd/m² Full HD Black Touchscreen 24/7

Hannspree Open Frame HO 225 HTB Totem design 54.6 cm (21.5") LED 250 cd/m² Full HD Black Touchscreen 24/7

21.5" FHD TFT LED, Touch, 3000:1, 290 cd/m², 18 ms, 178°/178°, 24/7, HDMI, VGA, DVI, USB, PC Audio In, Earphone Jack, 12V, VESA

  • Indoor Totem design Black
  • 54.6 cm (21.5") 1920 x 1080 pixels LED 250 cd/m²
  • Touchscreen 60 Hz 18 ms
  • Built-in speaker(s) 3 W
  • SKU:4711404022661
  • GTIN/EAN:4711404022661
  • MPN:HO225HTB

You need to login to view the price.

View full details

Hannspree Open Frame HO 225 HTB. Product design: Totem design. Display diagonal: 54.6 cm (21.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Operating hours (hours/days): 24/7. Product colour: Black

- 1920 x 1080 WUXGA Resolution Full HD 1080p
- 10-Point Touch P-Cap Technology
- 178° / 178° Ultra Wide Viewing Angle
- Tripple Input; HDMI + DVI-D + VGA
- High Contrast Ratio 3000:1
- 300cd/m2 High Brightness
- 24/7 Operating
- 50000 Hours Backlight Lifetime
- 12 Volt External Power Supply
- Multiple Mounting Options
- 7H Toughened Hard Panel Surface
- Low Power Consumption & Multi-Video Modes

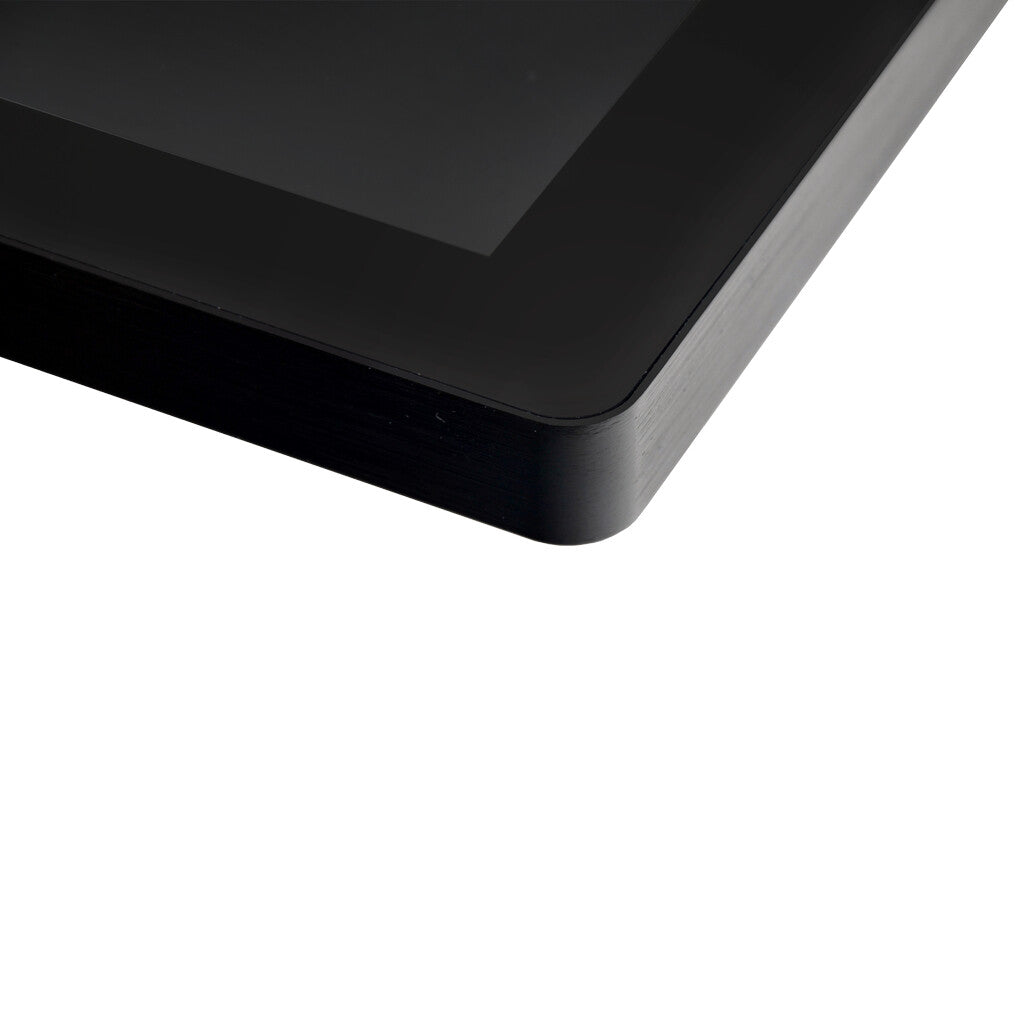

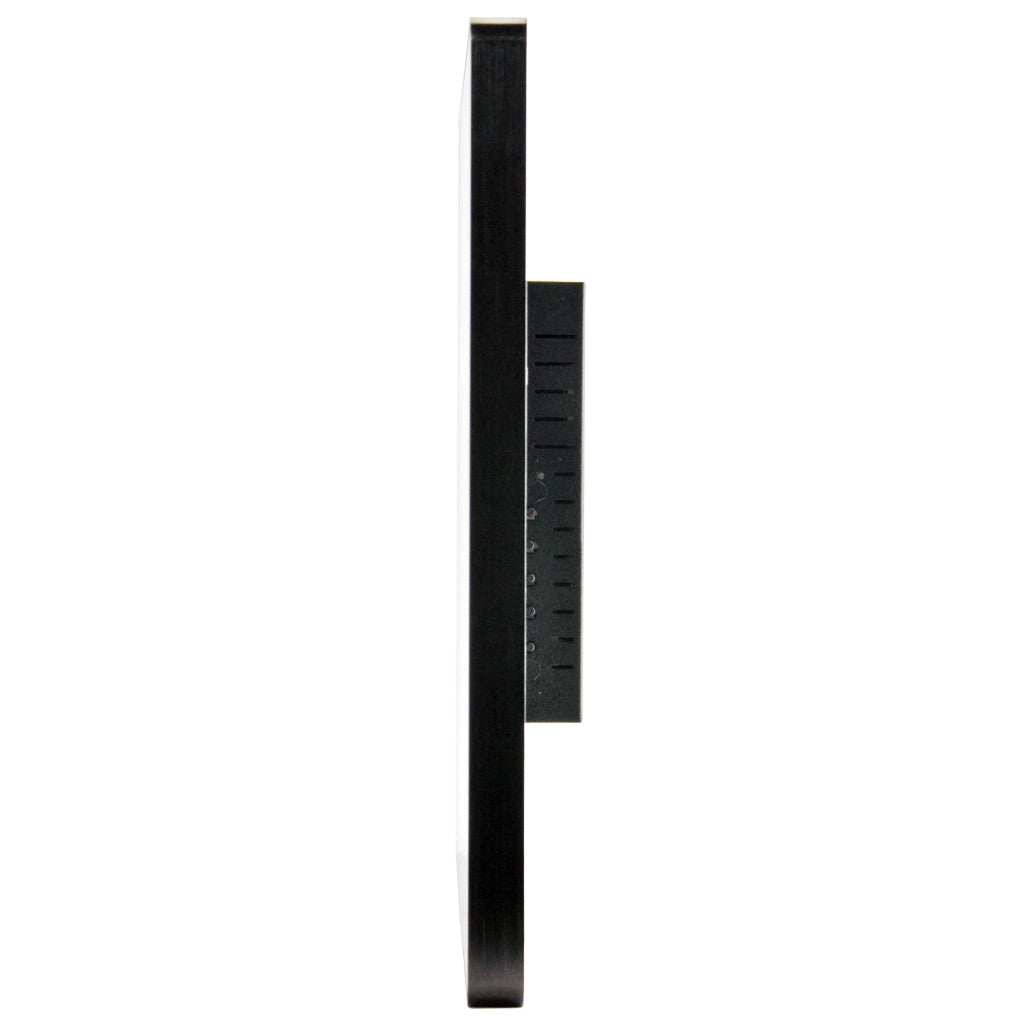

- Slim Profile with Narrow Edges

Open Frame solutions for the amusement and entertainment sectors in a variety of sizes.

With the support of highly experienced, vertical manufacturing capabilities, our Open Frame monitor business is designed to provide a cost effective, "one stop solution" for project requirements. We already supply Open Frame solutions for a number of large gaming tenders
across Europe.

Choose from standard or touch screen high performance displays ranging from 19" up to 27" and the right aspect ratio to best fit your application.

Offering a completely flexible, personal service HannsG by Hannspree delivers customised solutions to fulfil the specific demands of both OEMs and System Integrators.

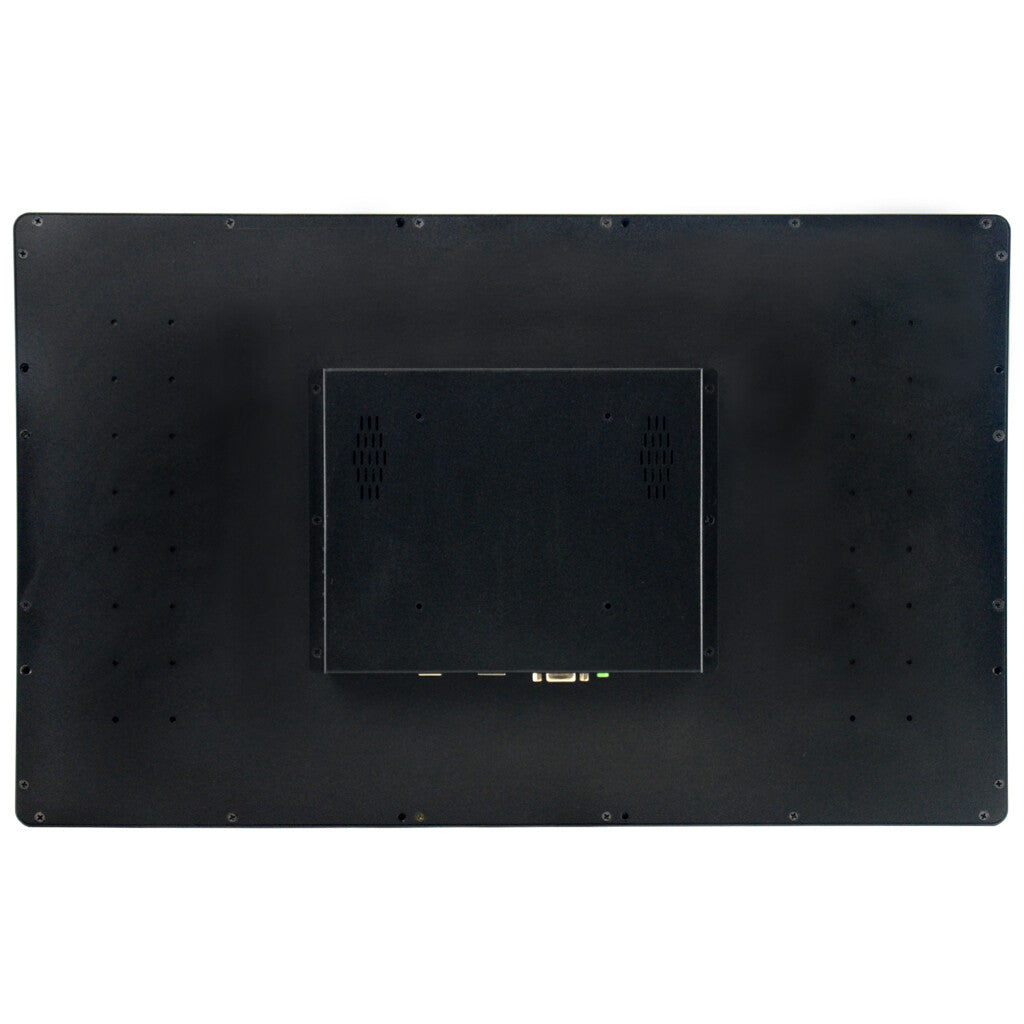

Our display supports rear and VESA mount for multiple mounting options and together with integrated brackets provides the benefits of easy installation, and flexibility for different applications.

Display
Display diagonal
54.6 cm (21.5")
Display technology
LED
Display resolution
1920 x 1080 pixels
Display brightness
250 cd/m²
HD type
Full HD
Touchscreen
Yes
Multi-touch
Yes
Number of simultaneous touchpoints
10
Native aspect ratio
16:9
Response time
18 ms
Contrast ratio (typical)
3000:1
Contrast ratio (dynamic)
10000000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.78 million colours
Pixel pitch
0.24795 x 0.24795 mm
Active display area (W x H)
476 x 268 mm
Display diagonal (metric)
54.6 cm
Panel life
30000 h
Transparency
85%
Hardness
6H
Vertical scan range
60 - 75 Hz
Horizontal scan range
31.5 - 80 kHz
Native refresh rate
60 Hz

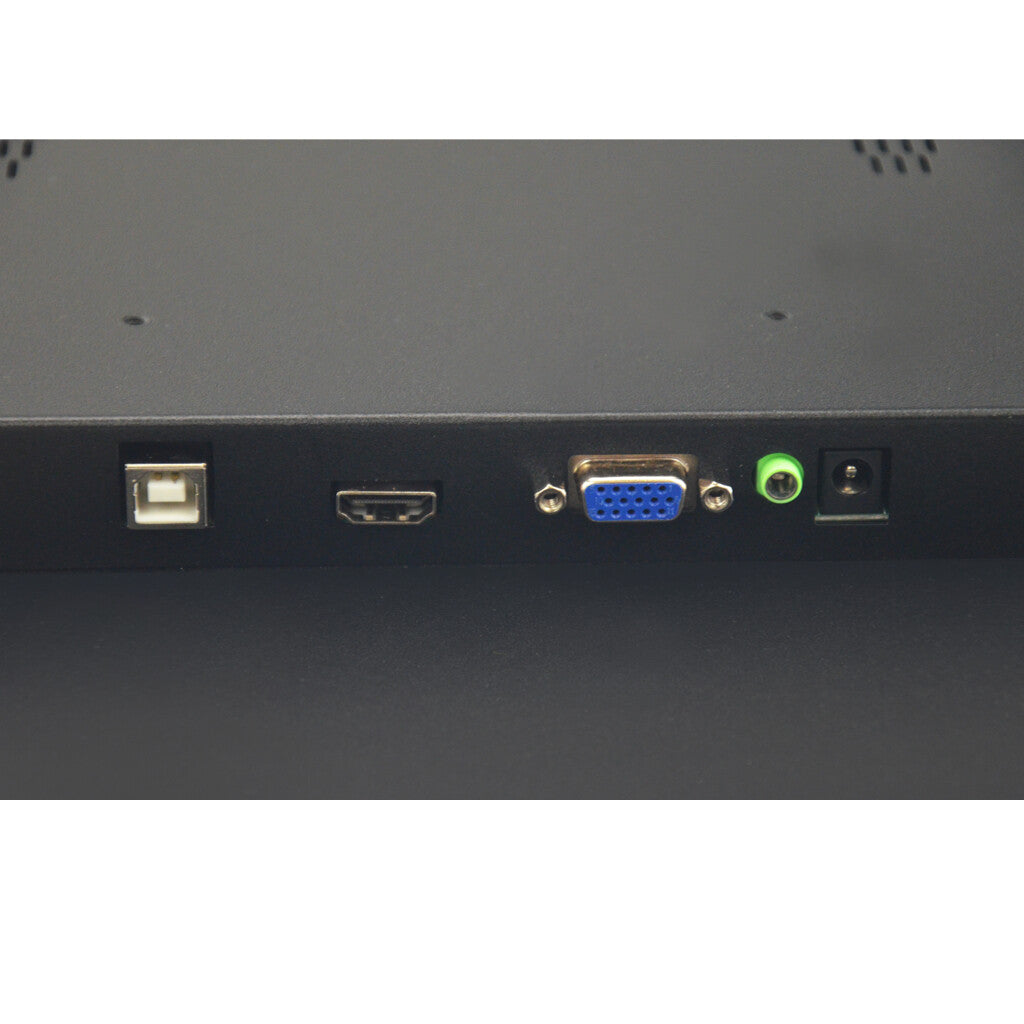

Ports & interfaces
HDMI ports quantity
1
DVI port
No
VGA (D-Sub) input ports
1
USB port
Yes
USB ports quantity
1
Ethernet LAN
No
Wi-Fi
No
PC Audio in
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
3 W
Design
Product design
Totem design
Product colour
Black
Placement supported
Indoor
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Performance
TV tuner integrated
No
Number of OSD languages
8
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
International Protection (IP) code
IP65
HDCP
No
Power
Power consumption (typical)
13.94 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
20 kWh
External power adapter
Yes
Energy efficiency scale
A to G
Computer system
Computer system
No
Built-in processor
No
Weight & dimensions
Display width
526.8 mm
Display depth
44 mm
Display height
324.6 mm
Display weight
5.1 kg
Packaging data
Package width
603 mm
Package depth
88 mm
Package height
415 mm
Package weight
6.3 kg
Packaging content
Warranty card
Yes
Cables included
AC, HDMI, USB
Certificates
Certification
CE
Algemeen
Productfamilie
Open Frame
Features
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
RoHS
Sustainability certificates
RoHS
Other features
Power supply type
External
Glass protection
Yes
Quick start guide
Yes
