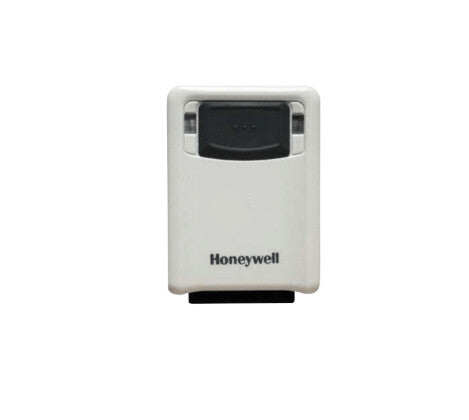

Honeywell Vuquest 3320g

Honeywell Vuquest 3320g

5 - 0.25V, 2.3W, 0lux, 838 x 640pixel, IP53

  • Decode Capabilities: 1D, PDF417, 2D
  • IP Rating: IP 53
  • Data Interface: USB
  • Scan Pattern: Omni-directional
  • SKU:POS/HO/S/3320G/USB
  • GTIN/EAN:
  • MPN:3320G-2USB-0-N
Add To Favorite

You need to login to view the price.

View full details

Honeywell Vuquest 3320g. Type: Fixed bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Code 39. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: White. Power source type: DC, Power consumption (standby): 0.45 W. Weight: 77 g, Width: 51 mm, Depth: 73 mm

The Honeywell Vuquest™ 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner’s sleek and elegant design also blends seamlessly in retail environments

Powered by Adaptus™ Imaging Technology 6.0, the Vuquest 3320g scanner delivers superior barcode scanning and digital image capture. Aggressive reading of barcodes on highly reflective surfaces, such as mobile phone screens, eliminates the need to purchase additional specialty hardware

Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners

The TotalFreedom™ 2.0 second-generation development platform expands scanner functionality by allowing decoding and formatting plug-ins to be loaded directly onto the Vuquest 3320g scanner, enabling enterprises to rapidly support proprietary or newly developed symbologies.

The ability to control the triggering of an external device such as a beeper, photo eye or illumination via external I/O capabilities allows the Vuquest 3320g scanner to enter new
markets once reserved for expensive industrial products

With its small size, ergonomically friendly thumb-activated button and clearly visible indicator LEDs, the Vuquest 3320g scanner offers a dependable handheld or wearable scanning solution. The Vuquest 3320g scanner also offers universal mounting and robust presentation
mode scan performance, making the device an ideal fixed-mount scanning solution for use in light industrial applications and kiosks.

The intelligent multi-interface design supports all popular interfaces in one device, replacing
the time-consuming process of scanning programming barcodes with automatic interface detection

TotalFreedom enables the loading and linking of multiple applications directly onto the scanner, eliminating the need for host system modifications while offering expanded
decoding and data formatting functionality.

Easily scans barcodes directly from mobile device or computer screens, almost as if they were
printed on paper.

Laser-free aiming provides an accurate scan indication, creating a customer-friendly operating environment while removing the risk of eye injury.

A flexible licensing solution allows current scanning needs to be met while protecting the option to upgrade scanning capabilities in the future by simply purchasing a license for
the appropriate feature

Scanning
Linear (1D) barcodes supported
Code 39
2D (matrix & stacked) barcodes supported
Data Matrix
Scanner type
1D/2D
Type
Fixed bar code reader
Ports & interfaces
Ethernet LAN
N
Standard interfaces
RS-232, USB
Connectivity technology
Wired
Performance
Product colour
White
Power
Power consumption (standby)
0.45 W
Power source type
DC
Weight & dimensions
Weight
77 g
Height
26 mm
Depth
73 mm
Width
51 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
