Origin Acoustics D83

The Origin Acoustics Director D83 is a premium 8-inch in-ceiling loudspeaker from the Director Collection — designed by the team credited with developing the first in-ceiling speakers over forty years ago. Engineered exclusively for architectural audio, it delivers deep, powerful bass and crisp highs in a compact footprint that rivals a standard 6-inch cutout. With an IPX6 weatherproof rating, patented tool-less Zip-Klip mounting, and a paintable magnetic grille, the D83 is a versatile choice for living rooms, home cinemas, bathrooms, covered outdoor areas, and light commercial installations where discreet, high-performance audio is required.

8-Inch Performance in a 6-Inch Footprint

The D83's 8.75" cutout diameter is comparable to what many 6-inch competitors require, yet it houses a full 8-inch IMG woofer capable of reproducing bass down to 38 Hz. In practice this means an integrator can specify genuine low-end extension in rooms where ceiling joists, structural elements or aesthetics would normally rule out a large-format driver. For the end user it translates into a noticeably fuller, more room-filling sound without any visible compromise to the ceiling — a key differentiator in residential projects where clients want performance but resist intrusive hardware.

Tool-Less Zip-Klip Mounting — Patented

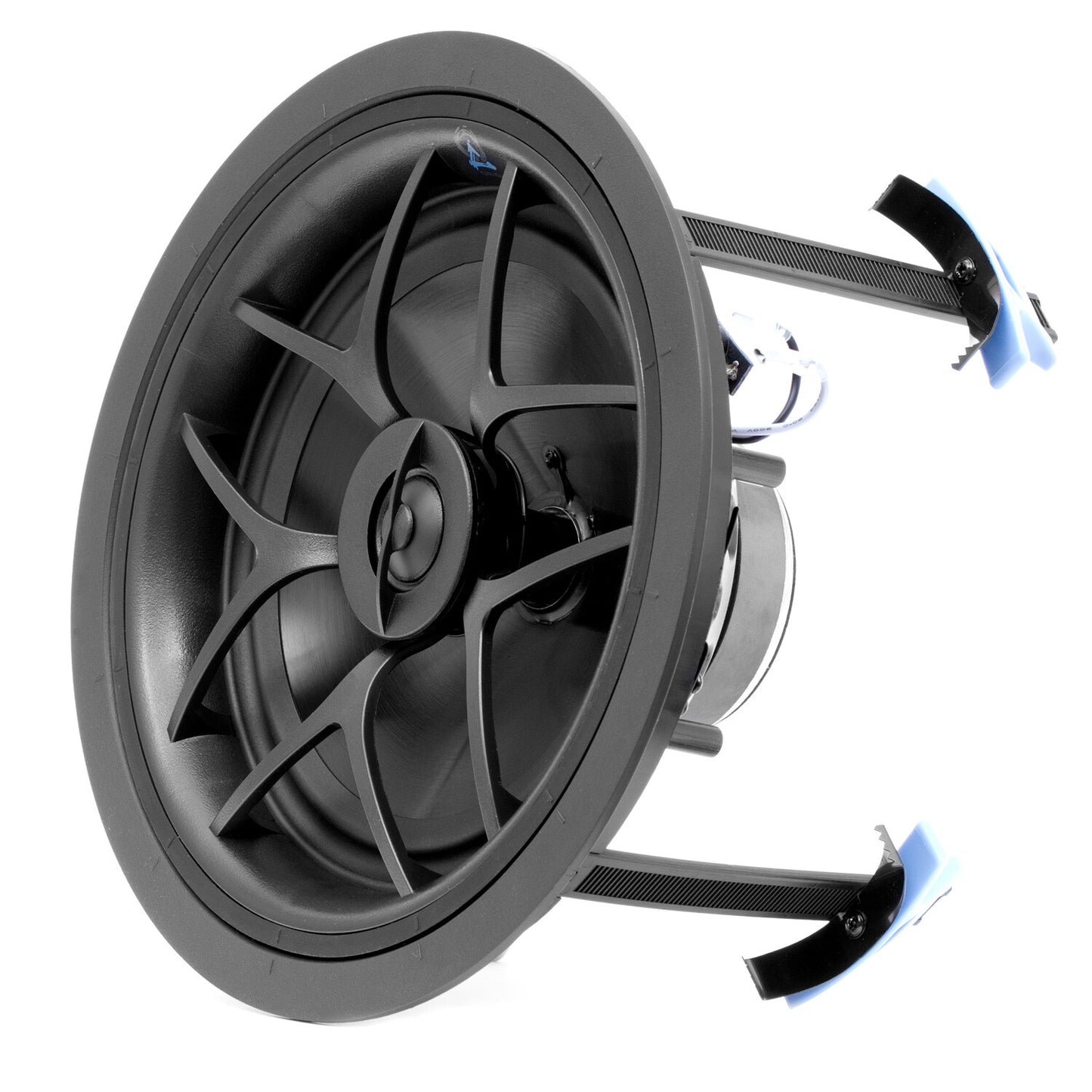

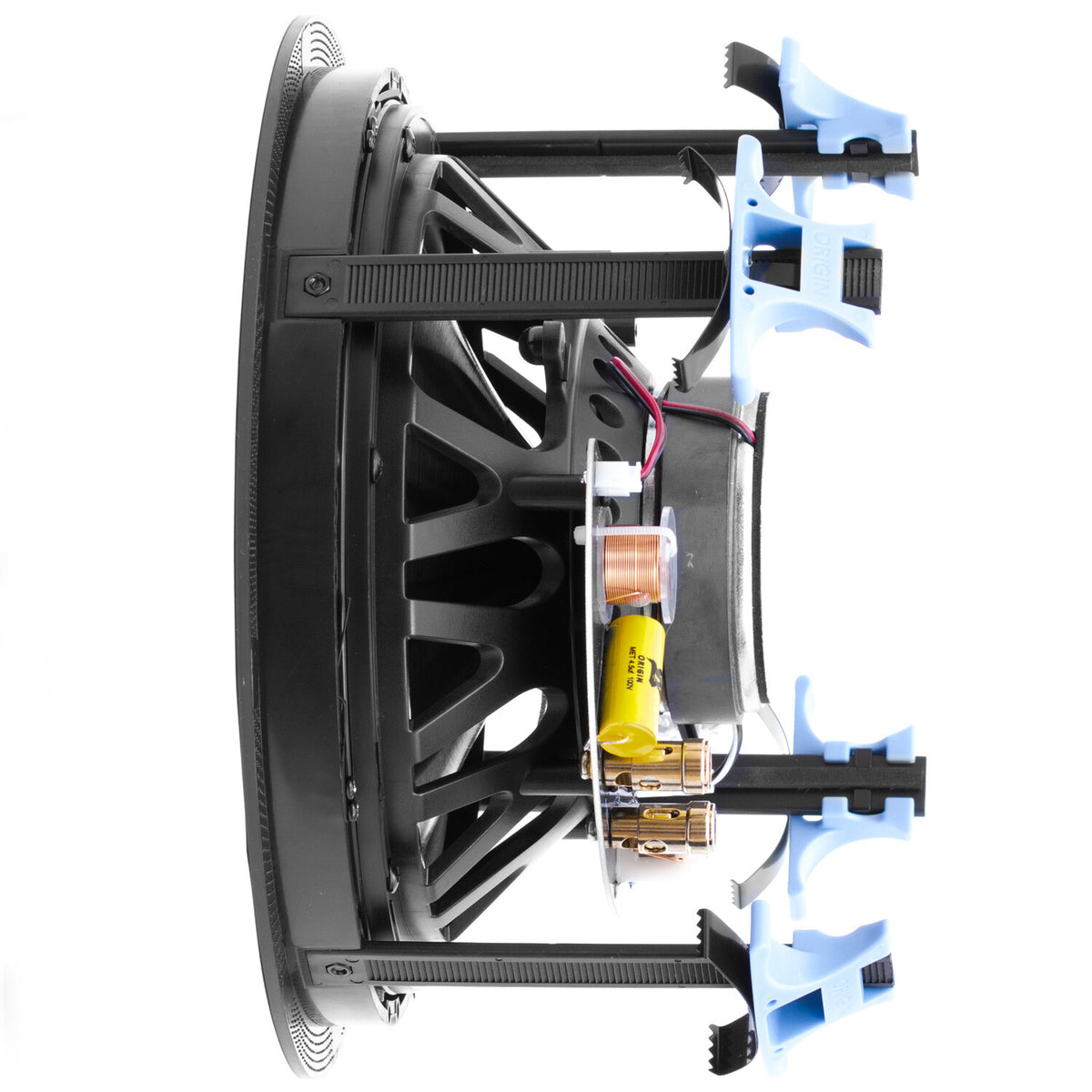

The patented Zip-Klip system (Patent #9591390) replaces traditional dog-leg clips with spring-loaded grips that engage multiple contact points around the cutout edge. Installation requires no tools — the speaker locks and unlocks by hand — and the distributed clamping force protects drywall from cracking while simultaneously reducing vibration transfer back into the structure. For installers running multi-room or multi-speaker fit-outs, the time saving per speaker is measurable. For the end user, the secure multi-point grip means the speaker stays firmly and quietly in place over years of use, with no creaks or movement even in higher-SPL listening scenarios.

8-inch bass. 6-inch cutout. Zero compromise.

IPX6 weatherproof rated · Patented Zip-Klip tool-less mounting system

IPX6 Weatherproof Rating — Wet-Room Capable

An IPX6 rating certifies the D83 against powerful water jets from any direction, making it genuinely suitable for bathrooms, steam rooms, indoor pool surrounds and covered outdoor entertainment areas — not just tolerant of occasional humidity. This broadens the D83's addressable use cases significantly compared with a standard residential in-ceiling speaker. Specifying a single weatherproof SKU across both dry and wet zones in a project also simplifies procurement and provides end-user peace of mind without requiring a second, dedicated outdoor product line.

X-Wave Surround & Compression-Molded Basket — Lower Distortion

Two proprietary woofer technologies work together to keep distortion low, especially at higher listening levels. The compression-molded woofer basket is acoustically inert, preventing the basket itself from adding coloration to the sound — a common weakness in mass-market speakers with stamped steel baskets. The X-Wave surround acts as a progressive damper: when the cone reaches its travel limit, the surround absorbs the impact gradually rather than letting rebound waves ripple back through the cone. The audible result is a cleaner, tighter bass that holds together at volume — relevant for larger rooms or home cinema use where output demands push drivers toward their limits.

Pivoting Aluminum Dome Tweeter for Precise Imaging

The 1-inch aluminum dome tweeter is mounted on a pivot that allows it to be physically aimed independently of the woofer. This is practically significant when a speaker must be positioned off-center — near a wall, above a sofa, or in a corner — because it lets the high-frequency axis be directed toward the listening position rather than firing straight down. Aluminum dome tweeters extend cleanly to 20 kHz and maintain directional control at higher frequencies better than softer dome materials. For the end user the result is a more coherent, naturally imaged soundstage even in rooms where ceiling placement is constrained.

Paintable Magnetic Grille — Discreet Aesthetics

The perforated grille snaps on and off magnetically, with no visible screws or clips, and the micro bezel minimises the visible ring around the speaker opening. The grille surface accepts standard water-based ceiling paints, allowing it to be color-matched to any ceiling finish after installation. For high-end residential projects where interior designers are involved, this level of visual discretion is often a deciding factor. Magnetic attachment also makes future access — for wiring changes, driver inspection or seasonal adjustments — fast and non-destructive.
