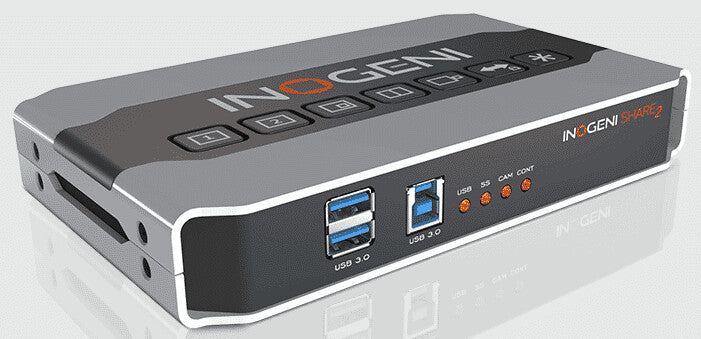

INOGENI SHARE2

INOGENI SHARE2

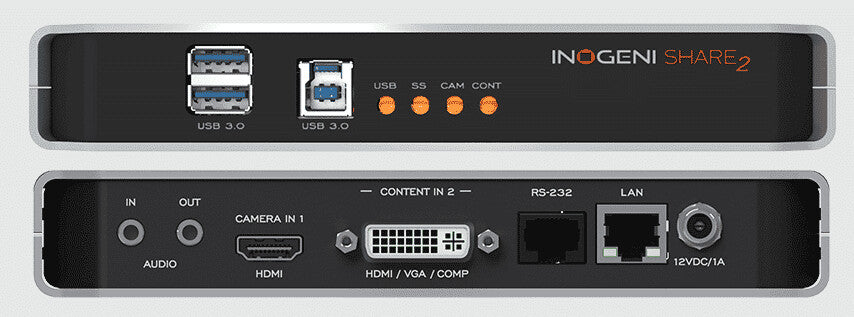

HDMI+DVI-I input, USB 3.0 output, LAN, RS-232, DC

  • Control interface: LAN, RS-232, USB
  • Local and remote keypad
  • HDMI, DVI, VGA or CVBS video input connectors; VGA and CVBS are available using an adapter
  • Unbalanced, line level stereo audio support
  • Digital Fluid technology: Internal frame buffers maximize frame rate with any host
  • Hardware-based color space and sampling conversion
  • Automatic scaling and frame rate conversion
  • Customizable video processing functions
  • Supports multiple devices on the same host
  • Device configuration via the INOGENI Control App
  • Firmware upgrade available via the INOGENI Control App
  • SKU:IM3_SHARE2
  • GTIN/EAN:40232461736
  • MPN:SHARE2

You need to login to view the price.

View full details

INOGENI SHARE2. Converter type: Active video converter, Product colour: Black, Grey, Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 x64, Windows 8,.... Maximum video resolution: 1920 x 1200 pixels, Video resolutions: 640 x 480,720 x 576,800 x 600,1024 x 768,1280 x 720,1280 x 960,1920 x 1080,1920 x 1200, Supported video modes: 480p, 576p, 720p, 1080i, 1080p. Audio output channels: 2.0 channels, Audio sampling rate: 48 kHz. Host interface: HDMI + DVI, Output interface: USB Type-A. Input voltage: 100 - 240 V, Input frequency: 50/60 Hz

The SHARE2 Dual HDMI/DVI to USB 3.0 professional camera mixer offers an array of features for a smooth and seamless experience.

Features
Converter type
Active video converter
Product colour
Black, Grey
Ethernet LAN
Yes
Windows operating systems supported
Windows 10, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Certification
FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP, NOM, TAA
Video
Maximum video resolution
1920 x 1200 pixels
Video resolutions
640 x 480,720 x 576,800 x 600,1024 x 768,1280 x 720,1280 x 960,1920 x 1080,1920 x 1200
Supported video modes
480p, 576p, 720p, 1080i, 1080p
Supported chroma subsampling
4:2:2, 4:4:4
Colour space supported
RGB
Maximum refresh rate
60 Hz
HDCP
Yes
Audio
Audio output channels
2.0 channels
Audio sampling rate
48 kHz
Ports & interfaces
Host interface
HDMI + DVI
Output interface
USB Type-A
RJ-45 ports quantity
1
DC-in jack
Yes
Power
Input frequency
50/60 Hz
Input voltage
100 - 240 V
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 105 °C
Operating relative humidity (H-H)
0 - 90%
Weight & dimensions
Width
185 mm
Depth
110 mm
Height
30 mm
Weight
520 g
Packaging data
Cables included
RS-232, USB Type-A to USB Type-B
Power supply included
Yes
Manual
Yes
Quantity
1
Logistics data
Country of origin
Canada
