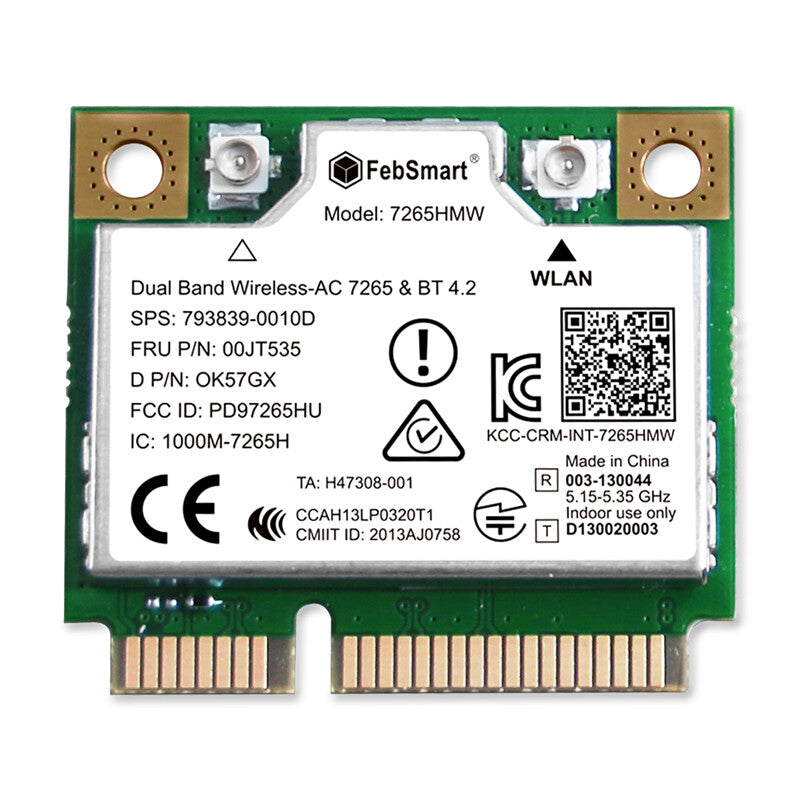

WIFI Kit - Intel 7265

WIFI Kit - Intel 7265

Intel® Dual Band Wireless-AC 7265, 2x2 AC + BT, M.2, No vPro®

  • Wireless
  • PCI Express WLAN / Bluetooth
  • 867 Mbit/s
  • Wi-Fi Dual-band (2.4 GHz / 5 GHz) Bluetooth 4.2
  • mPCIE
  • SKU:NET-IT/7265/MPCIE
  • GTIN/EAN:0735858290845
  • MPN:7265.NGWG.NVW
Add To Favorite

You need to login to view the price.

View full details

Intel 7265.NGWG.NVW. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 867 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Antenna type: 2x2, Product colour: Green, Grey

Ports & interfaces
Interface
WLAN / Bluetooth
Host interface
PCI Express
Connectivity technology
Wireless
Network
MU-MIMO
No
Bluetooth version
4.2
Bluetooth
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Wi-Fi
Yes
Ethernet LAN
No
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11w
Maximum data transfer rate
867 Mbit/s
Design
Form factor
M.2 2230, M.2 1216
Antenna type
2x2
Product colour
Green, Grey
Component for
Laptop
Internal
Yes
System requirements
Other operating systems supported
ChromeOS
Linux operating systems supported
Yes
Windows operating systems supported
Windows 10, Windows 11
Operational conditions
Operating temperature (T-T)
0 - 80 °C
Weight & dimensions
Weight
2.4 g
Other features
Product codename
Stone Peak
Product series
Intel® Wireless Products
Launch date
Q3'14
Product brief URL
http://www.intel.com/content/www/us/en/wireless-products/dual-band-wireless-ac-7265-brief.html
Status
Launched
Harmonized System (HS) code
8517620090
Interface type
Wi-Fi(PCIe), BT(USB)
Conflict-Free
Yes
Product type
Wireless
Processor family
Intel Wireless-AC Products
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G147045
Compliance
FIPS, FISMA
Maximum operating temperature
80 °C
