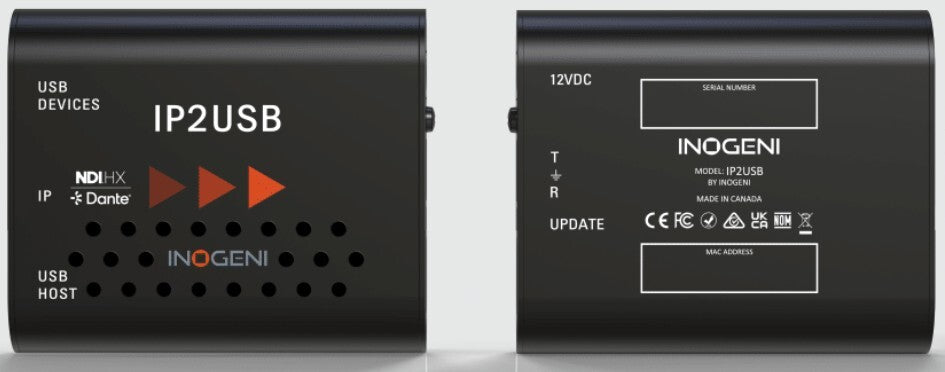

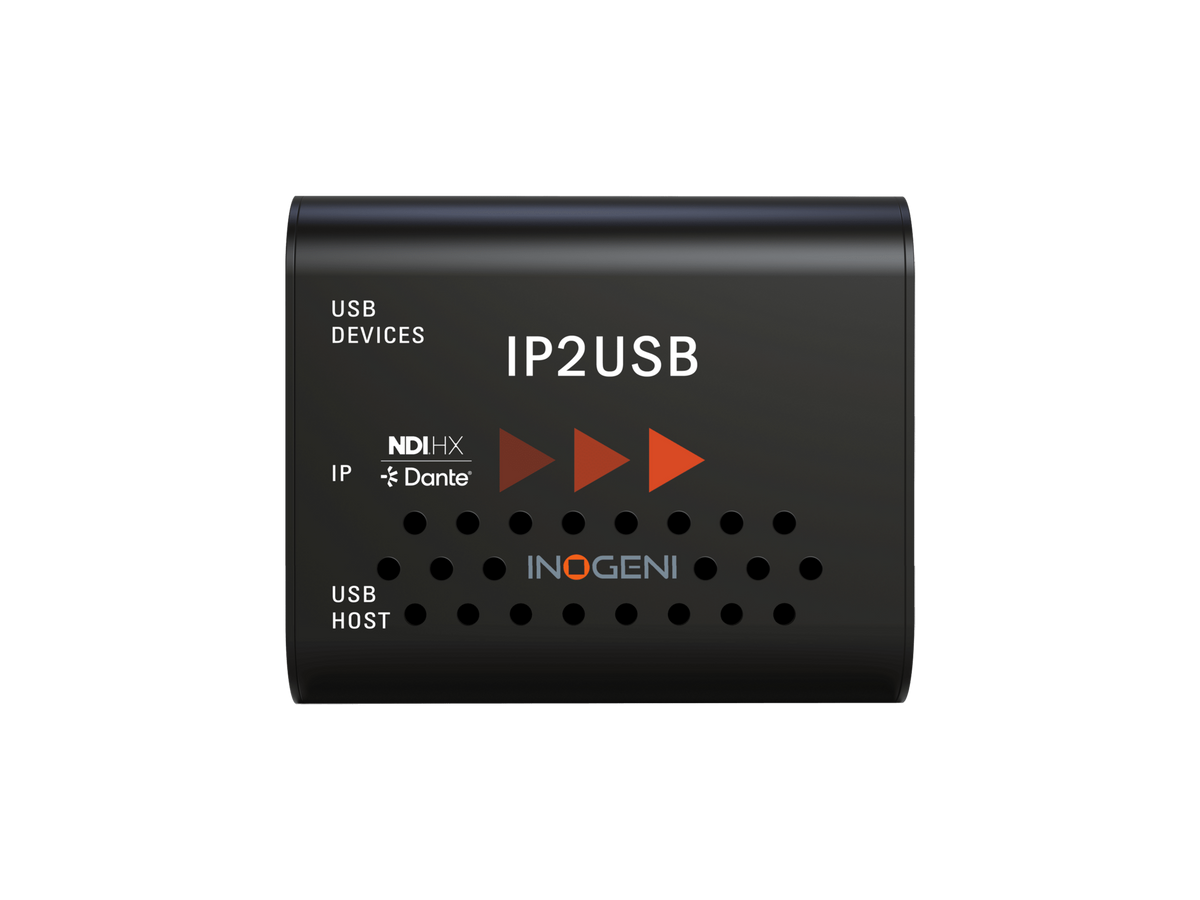

INOGENI IP2USB

The INOGENI IP2USB is a professional-grade AV-over-IP to USB bridge switcher designed for integrators deploying multi-camera AV systems in boardrooms, courtrooms, lecture halls and hybrid collaboration spaces. It accepts NDI HX, HX2, HX3 and RTSP IP camera streams alongside one supported USB-UVC camera, switches between all sources in real time, and delivers the selected feed as a standard UVC USB camera signal to any Room PC, CODEC or laptop — no driver installation required. Dante audio support enables bidirectional networked audio without traditional DSP hardware. Full PTZ control, a web-based management interface, REST API and RS-232 make it deeply integrable with Crestron, Extron and other control systems. NDI-certified, TAA-compliant and made in Canada, the IP2USB ships with a five-year warranty.

True Driverless UVC Output

The IP2USB presents itself to the host computer as a standard UVC (USB Video Class) device, consuming only one USB hub tier. Windows 10+, macOS 10.10+, and Linux (kernel 2.6.38+) all recognise it instantly — no custom drivers, no IT-department approvals, no compatibility risk during OS updates. The USB output delivers up to 1080p30 MJPEG video with UAC bidirectional audio on the same cable. In meeting rooms where software-based conferencing tools like Teams, Zoom or Webex are already running, this means any high-end NDI PTZ camera on the network is seen by the software exactly like a simple plug-and-play webcam — enabling premium camera quality without touching the PC setup or room IT policies.

Multi-Source Switching with No Black Frames

The IP2USB bridges up to 10 NDI HX, HX2, HX3 or RTSP camera streams plus one supported USB-UVC camera simultaneously, and switches between any of them without visible interruption — no black frames, no re-sync delay. Source selection is available through the built-in web interface, REST API, RS-232 serial or a connected control system (Crestron, Extron). Friendly custom source naming in the web UI simplifies operation during live events. For installations where operators need to cut rapidly between a presenter, a wide room shot and a detail camera — courtrooms, council chambers, lecture halls — this instant, glitch-free switching is critical to maintaining a professional on-screen experience for remote participants.

One USB cable. Up to 10 IP cameras. Zero drivers.

NDI Certified · TAA-Compliant · Made in Canada · 5-year warranty

Dante Audio — No DSP Hardware Required

Beyond NDI video, the IP2USB natively receives and transmits Dante audio (2-in, 2-out, 48 kHz sample rate) over the same network connection, routing it bidirectionally to USB or HDMI. Two configuration modes are available: a 2×2 audio interface for full stereo workflows or a 1×1 speakerphone mode for simpler setups. Routing is managed through the familiar Dante Controller application. For integrators, this means entire audio infrastructures — speakerphones, DSPs, ceiling microphone arrays — can be consolidated onto the IP network that the IP2USB already uses for video, removing the cost and rack space of traditional DSP hardware and simplifying commissioning and remote troubleshooting.

CAMTRACK Integration — Automated Voice-Activated Switching

The IP2USB acts as the dedicated hardware switching engine for CAMTRACK, INOGENI's Virtual Technical Director software. CAMTRACK ingests Shure microphone data and automatically routes the active speaker's camera to the USB output in real time — no operator needed. Standard CAMTRACK handles up to 8 cameras; CAMTRACK PRO extends this to 12. For permanent installations such as boardrooms, courtrooms or auditoriums where a full-time camera operator is impractical, this combination delivers broadcast-style automatic direction at a fraction of the cost — with the IP2USB providing the reliable, low-latency hardware decoding that makes automated switching trustworthy in mission-critical settings.

NDI Certified — Proven Interoperability

The IP2USB carries official NDI Certification from NewTek, confirming it has been independently tested for interoperability, performance and reliability with NDI HX, HX2 and HX3 streams encoded in H.264 or H.265 at up to 1080p60. Certification also covers NDI HQ (I-frame, 1080p30, low latency) for workflows demanding minimal processing delay. For integrators and AV managers, NDI Certification is a meaningful procurement signal: it removes guesswork when combining the IP2USB with certified PTZ cameras from Canon, Sony or AVer, and reduces the risk of hidden compatibility issues surfacing after installation.

Simultaneous 4K HDMI and USB Output

While the USB port feeds the conferencing computer, the HDMI 2.0 output simultaneously delivers the selected camera source at resolutions up to 3840×2160 at 60 fps (with 1080p50-60 and 720p also supported), including embedded audio. An automatic hardware-based video scaler handles format conversion between the IP input and both outputs independently. This allows a secondary display in the room — a confidence monitor, a recording system or a presentation screen — to show the full-resolution camera view at 4K, even though the USB feed to the CODEC is capped at 1080p30 MJPEG. Two outputs from a single compact device removes the need for an additional signal splitter.

TAA-Compliant, Made in Canada — 5-Year Warranty

The IP2USB is manufactured in Canada and fully TAA (Trade Agreements Act) compliant, making it eligible for US federal government and education procurement contracts where country-of-origin restrictions apply. Certifications include FCC, CE, RoHS, IEC62368, RCM and NOM, covering major markets across North America, Europe and Australia. INOGENI backs every unit with a five-year warranty — well above the 1-2 year industry norm for AV converters — reflecting confidence in long-term reliability. For resellers serving government, defence, healthcare or education clients, TAA compliance and the extended warranty directly reduce procurement friction and total-cost-of-ownership conversations.
