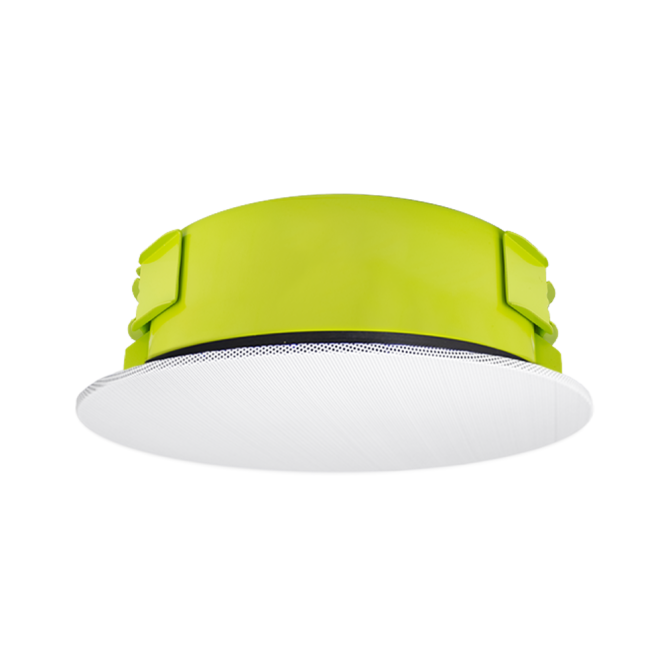

IPD-CM52s-BGM 5.25" IP-Addressable, Dante-Enabled In-Ceiling Speaker with Short Can and Seamless Magnetic White Grille.

SoundTube IPD-CM52s-BGM IP-Addressable Speaker with Micro Flange Grille

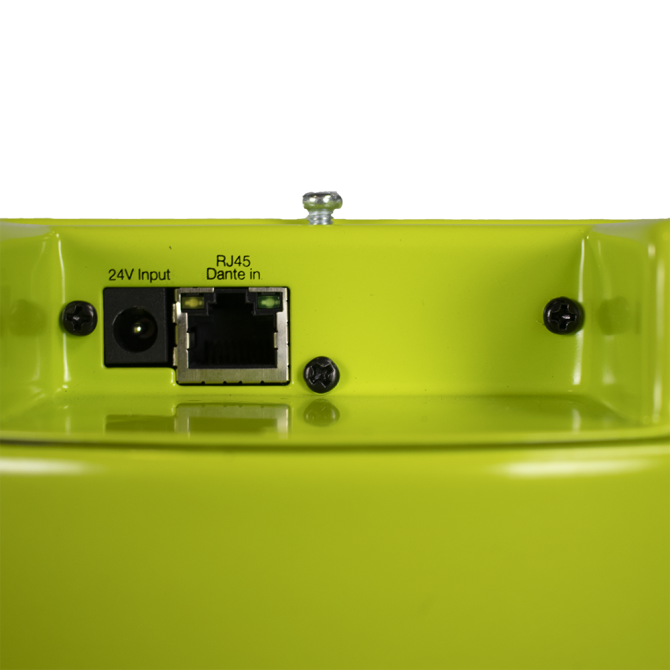

Dante®-enabled coaxial in-ceiling speaker engineered for installation in locations with small plenum space. A 3.5 inch-deep backcan incorporates one 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 65 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware is included and features SoundTube®'s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 1.6 in (40.6 mm). Color-coded tile bridge, UL listed conduit clamp and paint shield are included.

Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)

Owner's Manual | Tech Sheet | Drawing Top | Drawing Side |  GLL | Applications Guide | A&E Specs | CE Certification | UL Certificate |  STNet Control Center Software User Manual |  STNet/Dante Firmware Download
