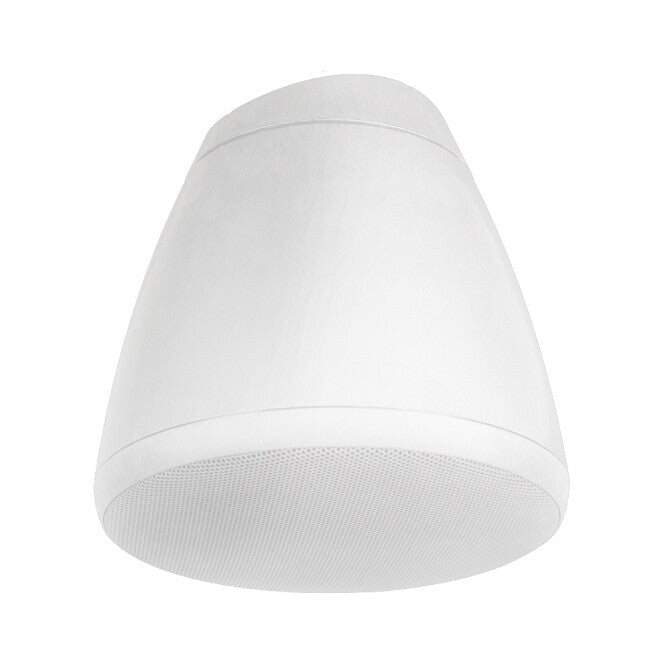

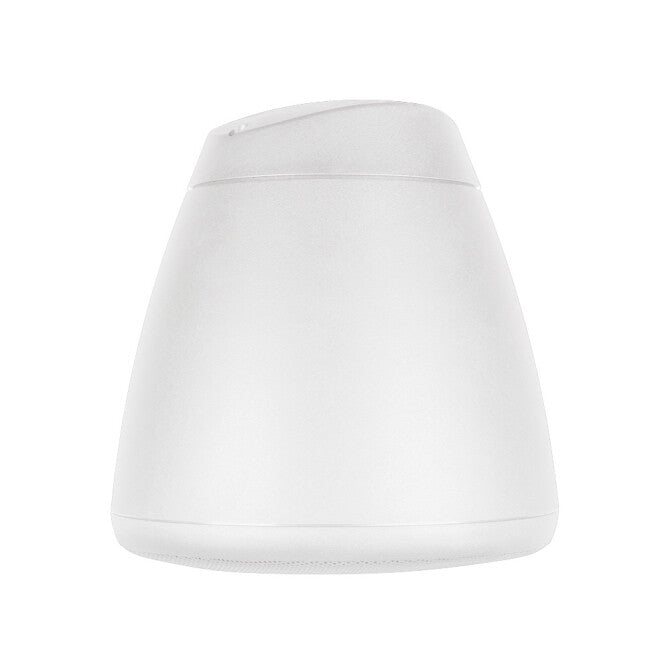

IPD-HP82-EZ-WH 8" IP-Addressable, Dante-Enabled, High Power Open Ceiling Speaker in White

SoundTube IPD-HP82-EZ IP-Addressable Speaker in White

Dante®-enabled coaxial pendant speaker incorporates one 8.0 inch (203 mm) high power coaxial driver with BroadBeamHP™ compression driver technology for long throw and smooth directivity. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. The speaker may also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. Enclosure constructed of injection molded ABS with fiberglass reinforcement for lasting durability in indoor or outdoor applications. Aluminum grille with protective powder coated finish. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.

Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)

Owner's Manual |  Tech Sheet |  Mechanical Drawing |  Revit |  Applications Guide |  STNet Control Center Software User Manual |  STNet/Dante Firmware Download
