SoundTube Entertainment IPD-SM500I-II-WH

SoundTube Entertainment IPD-SM500I-II-WH

SoundTube 5.25" IP-Addressable, Dante-enabled, Surface Mount Speaker in White

  • 86 - 22000 Hz
  • Acrylonitrile butadiene styrene (ABS)
  • White
  • SKU:IPD-SM500I-II-WH
  • GTIN/EAN:
  • MPN:IPD-SM500I-II-WH

You need to login to view the price.

View full details

SoundTube Entertainment IPD-SM500I-II-WH. Recommended usage: Universal. Connectivity technology: Wired. Frequency range: 86 - 22000 Hz, Sensitivity: 98 dB. Product colour: White

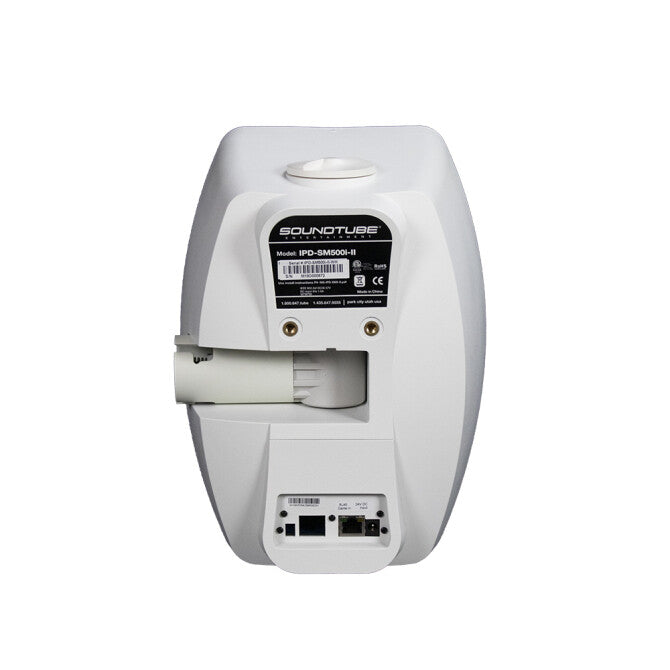

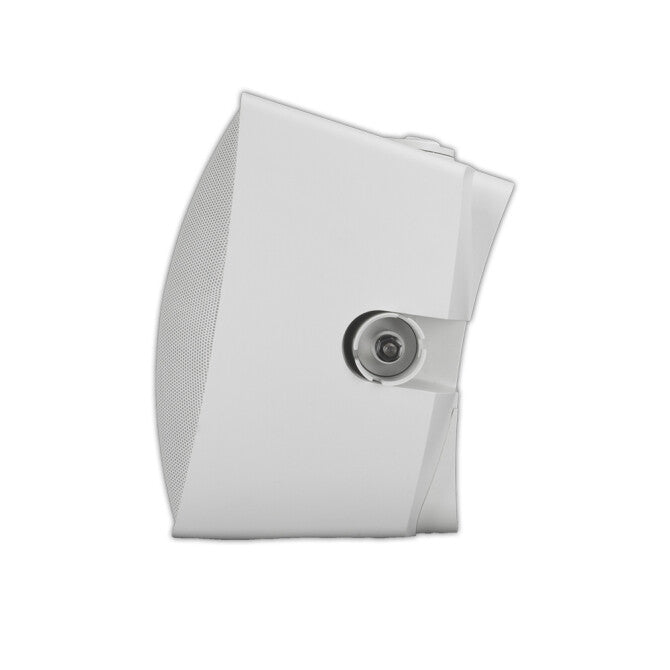

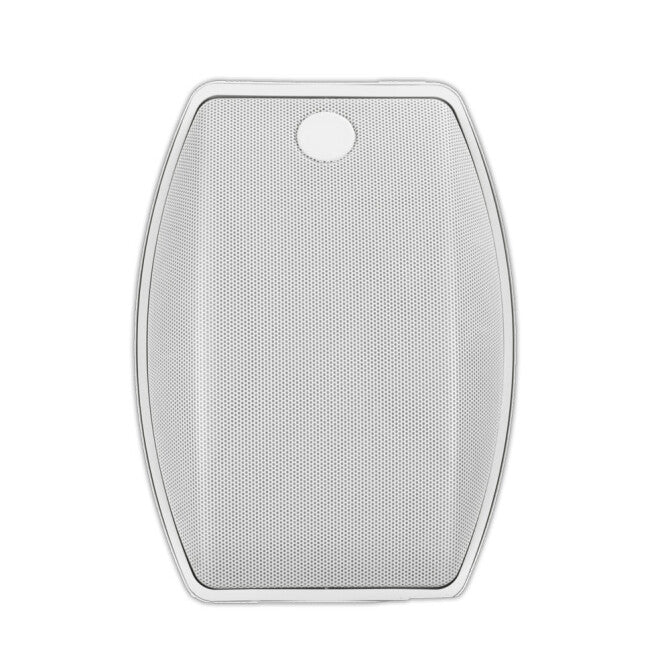

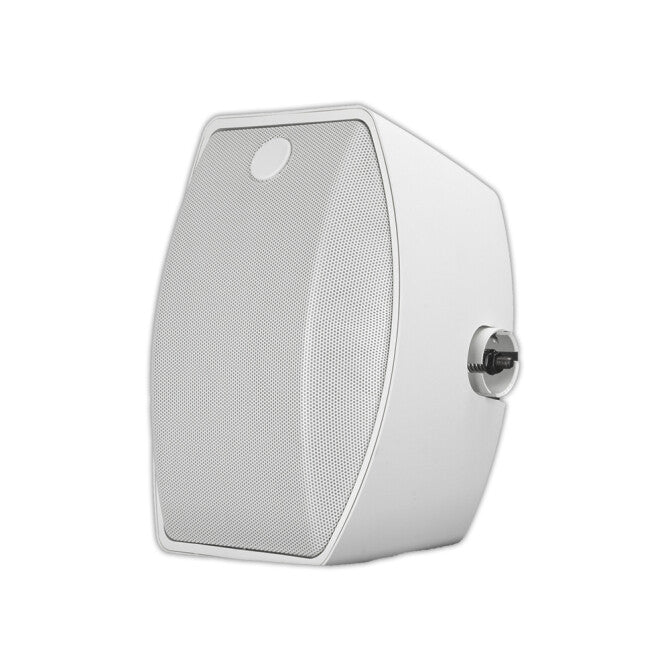

Dante®-enabled surface-mount speaker incorporating one 5.25-inch polypropylene woofer (134 mm) and one 1.0-inch (25.4 mm) convex titanium tweeter with BroadBeam® waveguide in an injection-molded, glass fiber reinforced ABS enclosure. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware for the IPD-SM500i-II is included and features SoundTube®'s proprietary Stealth™ bracket mounting system, providing unlimited directional aiming and a low profile, with a security knob to reduce tampering after placement. The system includes a detachable mounting plate designed for premounting in either wall or pole applications.

Loudspeakers
Speaker placement
Wall-mountable
Tweeter
Yes
Tweeter diameter (imperial)
2.54 cm (1")
Woofer
Yes
Woofer diameter
13.3 cm
Woofer diameter (imperial)
13.3 cm (5.25")
Audio
Frequency range
86 - 22000 Hz
Sensitivity
98 dB
Crossover frequency
3000 Hz
Performance
Product colour
White
Recommended usage
Universal
Housing material
Acrylonitrile butadiene styrene (ABS)
Certification
CE, RoHS, UL2043, UL60065
Amplifier
Amplifier
No
Ports & interfaces
Connectivity technology
Wired
Bluetooth
No
Weight & dimensions
Depth
266.3 mm
Height
289.6 mm
Diameter
21.2 cm
Packaging data
Package type
Box
Package height
311.1 mm
Package weight
4.3 kg
Packaging data
Package width
273.1 mm
Package depth
336.6 mm
Packaging content
Quantity per pack
1 pc(s)
Sustainability
Sustainability certificates
CE, RoHS
