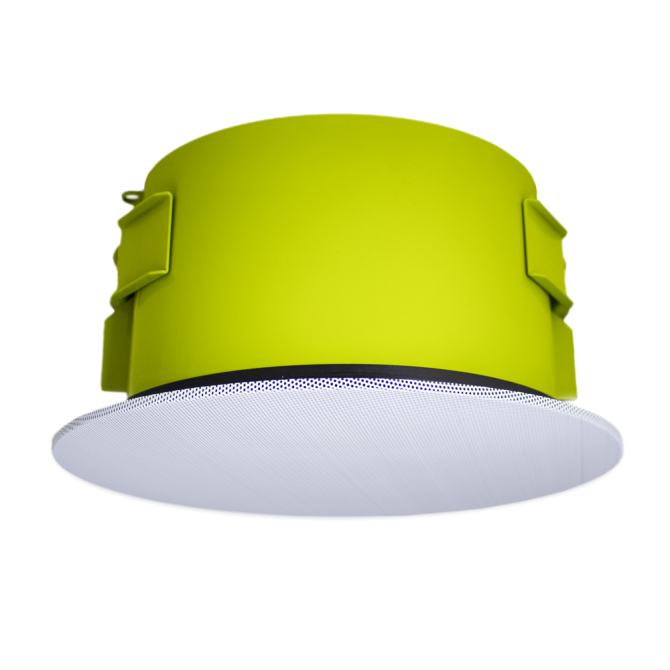

IPD4-CM62-BGM-II-WH 6" IP-Addressable, 4-Channel In-Ceiling Speaker with Seamless Magnetic Grille.

IPD4-CM62-BGM-II-WH 6" IP-Addressable, 4-Channel In-Ceiling Speaker with Seamless Magnetic Grille.

  • IP-Addressable, Dante-Enabled
  • Mounting hardware is included
  • Audio output for 3 passive speakers

You need to login to view the price.

Add To Favorite
View full details

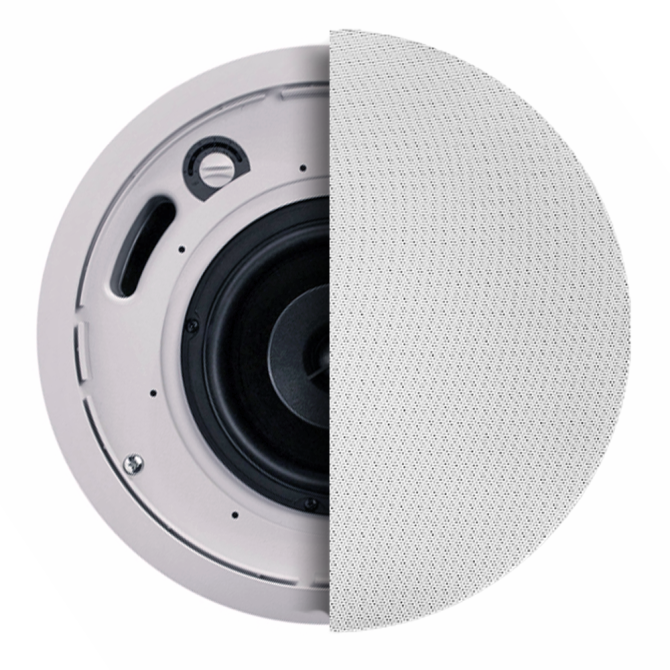

SoundTube IPD4-CM62-BGM IP-Addressable Speaker in White

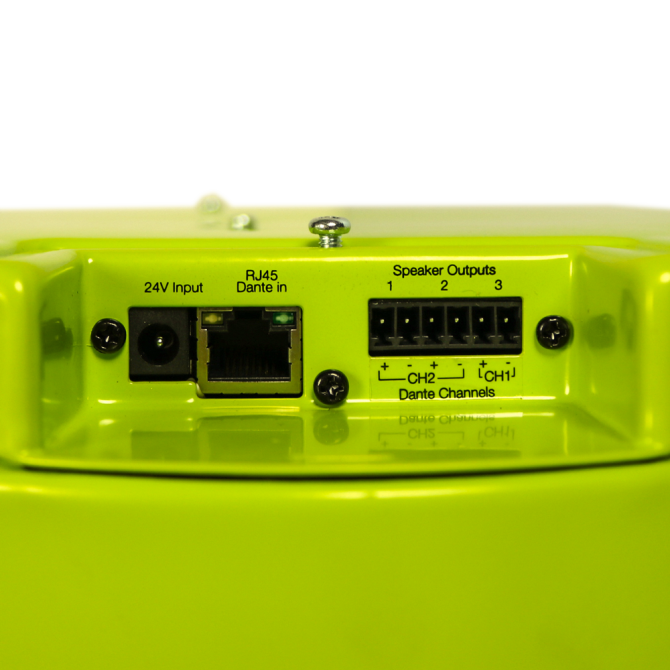

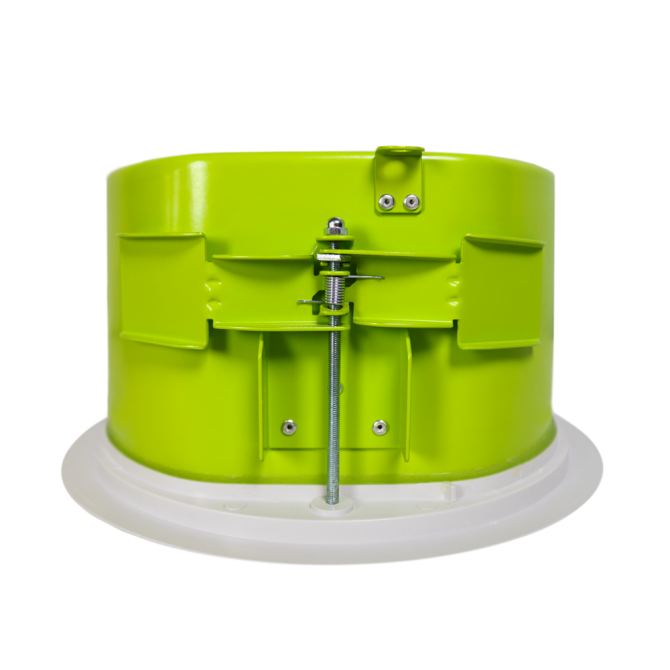

Offering an economical option for expansion of audio coverage in a digital speaker system, this Dante®-enabled coaxial in-ceiling speaker has output terminals for connection and power of up to three additional standard CM62-BGM speakers. The speaker incorporates one 6.5 inch (165 mm) polypropylene woofer with rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 60 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. When combined with standard speakers, the four-speaker cluster can be split and configured to handle two separate channels of audio. Mounting hardware is included and features SoundTube®'s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 2.38 in (60.4mm). UL 60065 and 2043 listed. Color-coded (green) tile bridge, UL listed conduit clamp and paint shield are included.

Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)

Owner's Manual |  Tech Sheet |  GLL |  Applications Guide |  A&E Specs |  CE Certification |  UL Certificate |  STNet Control Center Software User Manual |  STNet/Dante Firmware Download

6.5" Polypropylene Cone w/ Butyl Rubber Surround
1" Silk Dome w/ BroadBeam Ring®
Audio output channels
Speaker type
In-Ceiling IP/Dante
