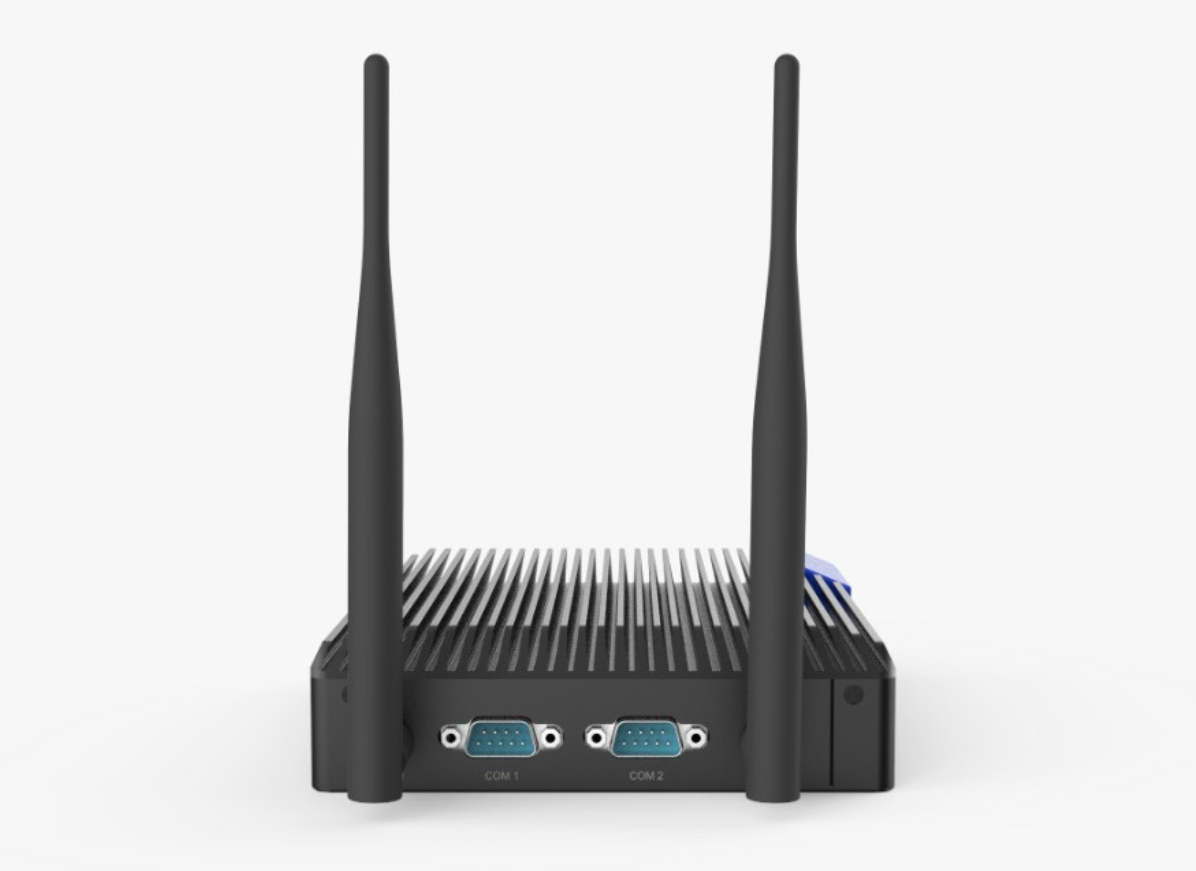

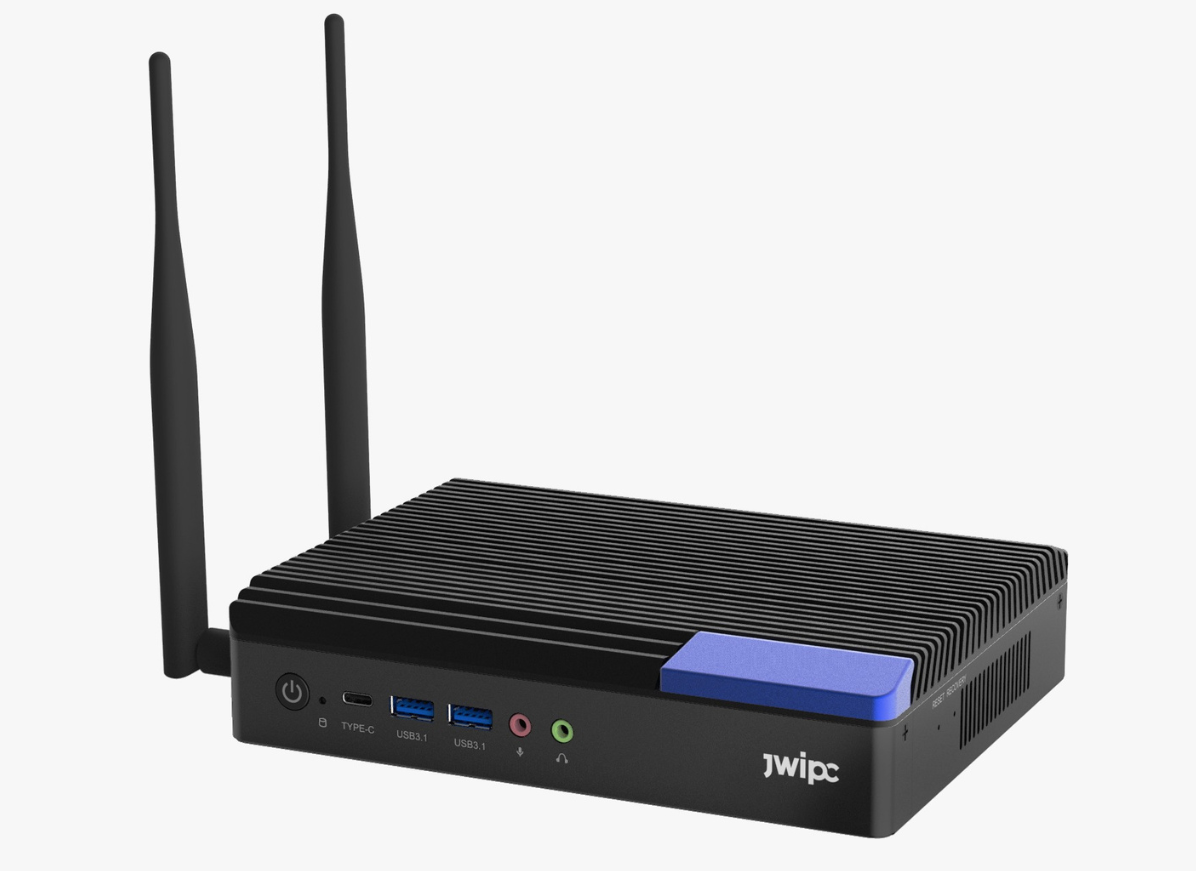

JWI H068 - Android 11 - POE
JWI H068 - Android 11 - POE
- Android 11 Player
- POE supported
- Rockchip RK3568
- 4 GB Memory
- 32 GB eMMC
- 1 x HDMI-Out 4K60Hz, 1 x DP-Out 1920x1080 @60Hz , 1 x HDMI-In 1920x1080 @60Hz
- FANLESS
- SKU:PC/JW/B/H068/W/POE
- GTIN/EAN:
- MPN:H068-RK3568/POE
POE is supported on this model
RK3568 4-Cores Processor
The ultra-compact Android player is equipped with Quad-core Cortex-A55 up to 2.0GHz processor. It supports onboard dual channels DDR4 memory, eMMC5.1 storage and dual band Wi-Fi, Bluetooth 4.2.
Dual 4K Display Outputs
One HDMI Input
Based on Rockchip integrated Mali-G52 GPU, the player supports two different video outputs via 1 x HDMI 4K@60Hz, 1 x DP and one HDMI input.
Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof.
Fast Data Transfer
Support WIFI6 and Gigabit network, to meet the different types of network data fast transmission.

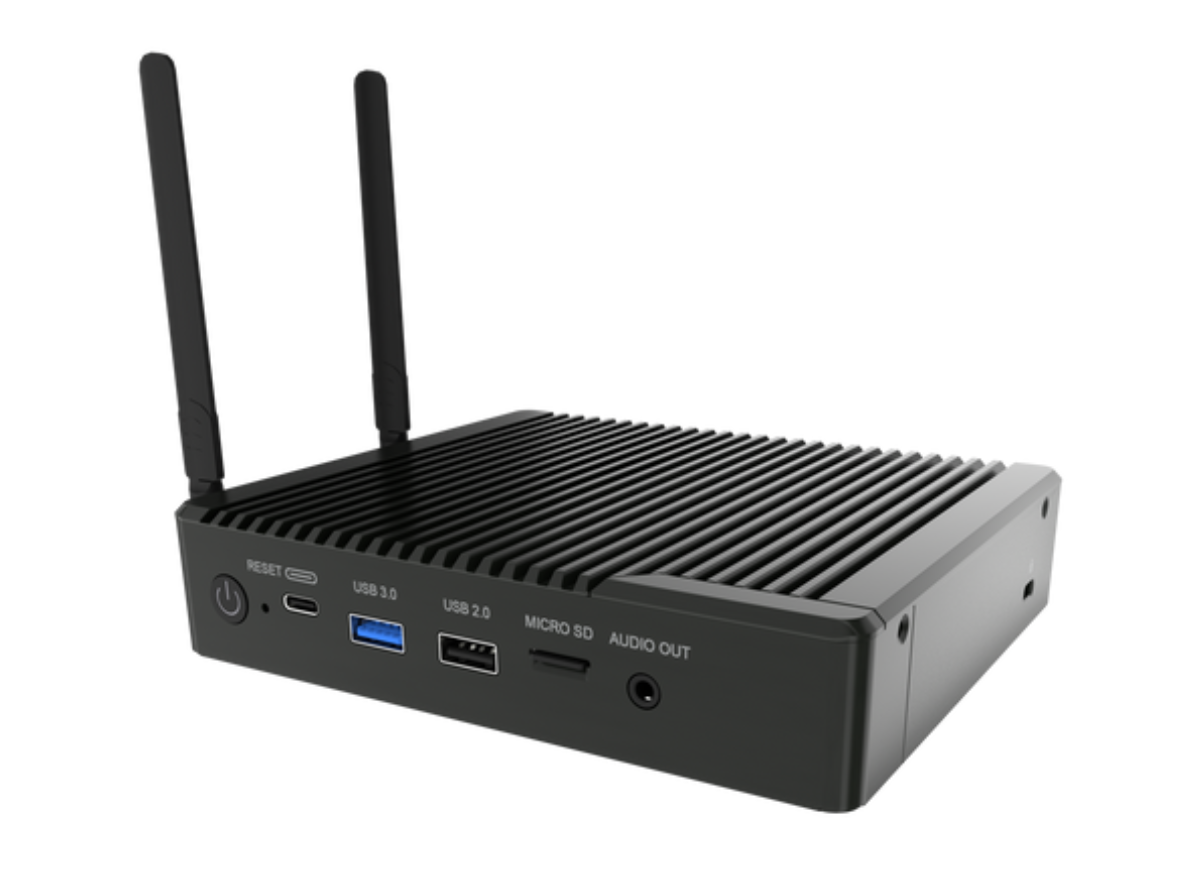

Rich Interface
Processor threads
4 Cores Cortex-A55
Processor frequency
2.0GHz
Processor model
RK3568
Internal memory
4 GB
SSD capacity
32GB eMMC
On-board graphics card model
ARM Mali-G52
Ethernet LAN
10/100/1000Mbps
Line-out
1
DisplayPorts quantity
1
HDMI ports quantity
1 in / 1 out
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
1
Operating system installed
Android 11
Weight
151 mm
Height
30 mm
Depth
129 mm
