Chief KITMC080135W

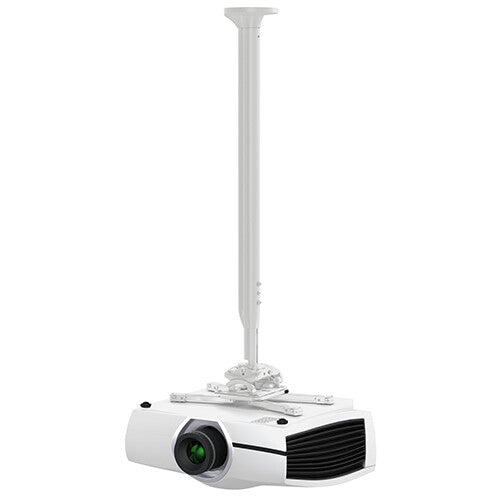

The Chief KITMC080135W is a ready-to-install ceiling projector kit that bundles every component needed for a professional overhead projector installation into a single SKU. It combines the RPMEU Mini Elite projector mount, a CPA116 flat ceiling plate, a CPA640 decorative shield ring, and an 80-135 cm telescoping extension column — all in white. Designed for AV integrators and installers, this kit eliminates the need to source individual components and ensures part compatibility out of the box. With a 22 kg load capacity, TÜV certification, and infinite height adjustment across its telescoping range, it suits lecture halls, boardrooms, classrooms, and auditoriums where precise projector positioning is required.

Complete Kit — No Component Sourcing Required

The KITMC080135W ships as a single, pre-matched bundle: RPMEU Mini Elite projector mount, CPA116 flat ceiling plate, CPA640 decorative shield ring, and the 80-135 cm telescoping column. Sourcing these parts individually risks compatibility gaps and adds procurement overhead — this kit removes that risk entirely. For the installer, every component is pre-tested to work together, reducing on-site surprises and shortening installation time. For the end user, the result is a clean, finished ceiling installation without the mismatched hardware or improvised fittings that can compromise both appearance and long-term security.

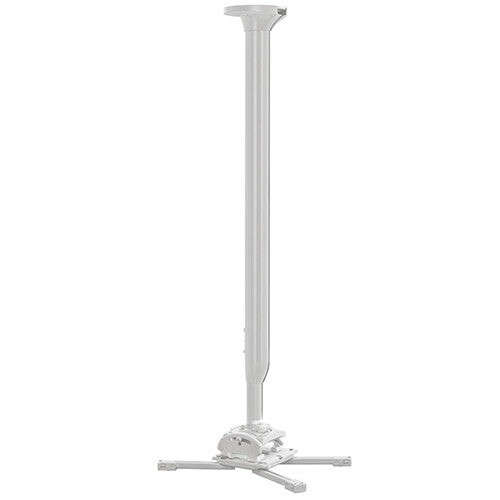

Infinite Telescoping Adjustment, 80-135 cm

The integrated telescoping column provides continuous height adjustment anywhere between 80 and 135 cm — not just at fixed notch positions. This is critical in venues where ceiling height, projector throw distance, or room geometry demands placement at an exact drop length rather than the nearest preset. Combined with 360° rotation and ±15° tilt, the installer can dial in the precise screen position without cutting custom pipes or adding adapters. For the end user, this means the projected image lands exactly where it should — centred, level, and properly sized — without post-installation corrections or compromise.

One box. Every component. Ready to mount.

TÜV-certified · 22 kg load capacity · White finish

TÜV-Certified Safety for Professional Installations

The KITMC080135W carries TÜV certification, meaning the assembly has been independently tested and verified to meet applicable load and safety standards. For installations in public-access spaces — classrooms, auditoriums, conference rooms — this certification is often a site compliance requirement and gives both the integrator and the building owner documented assurance that the mount will hold safely over time. With a 22 kg maximum load capacity, the kit comfortably covers the majority of mid-range and large-venue projectors, leaving adequate safety margin for long-term suspension without structural concern.

3° Swivel for Fast, Precise Projector Registration

Beyond the coarse adjustments provided by the column and ceiling plate, the mount incorporates a 3° swivel that allows the projector to be fine-tuned laterally after the main hardware is locked off. In practice, this means that small image-alignment corrections — getting the picture perfectly square on the screen — can be made at the projector head itself rather than by loosening and repositioning the ceiling plate. For AV installers, this dramatically speeds up commissioning. For the end user, it delivers a consistently centred, keystoning-free image even in rooms where ceiling structure made an exact first-fit impossible.
