Chief KITMC030045B

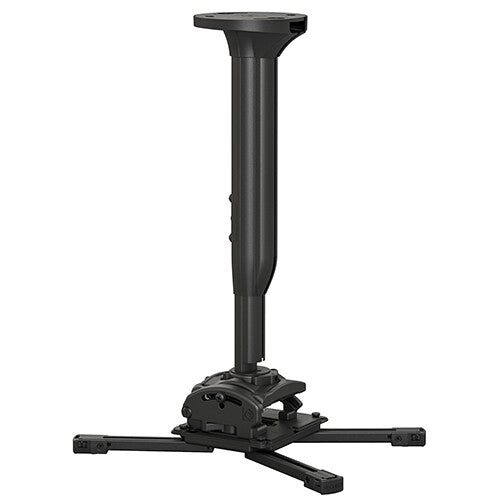

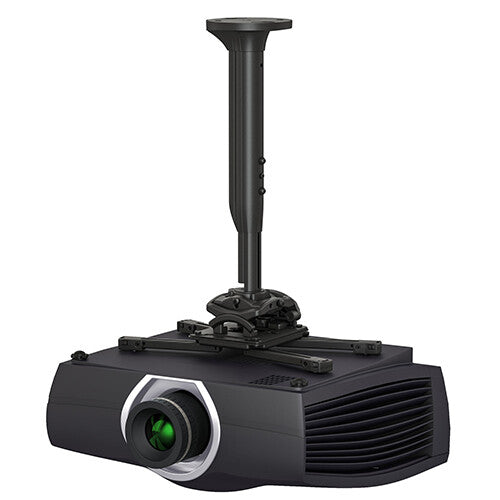

The Chief KITMC030045B is a complete universal ceiling projector mount kit designed for professional AV installations in conference rooms, classrooms, and presentation spaces. It includes everything needed for a clean, finished result straight out of the box: a Mini Elite projector mount, a flat ceiling plate, a decorative shield ring, and a 30–45 cm adjustable telescoping extension column. With a 22 kg load capacity and universal compatibility, the kit suits a wide range of projector models. Integrated security hardware and a tool-free quick-release mechanism make it equally practical for first-time installs and ongoing service visits.

Everything Included for a Clean Install

The KITMC030045B ships as a complete kit containing four matched components: the RPMEU Mini Elite Projector Mount, the CPA116 flat ceiling plate, the CPA640 decorative shield ring, and a 30–45 cm telescoping extension column. Having all parts from a single manufacturer means guaranteed compatibility and a coordinated finish — no sourcing individual components or discovering mismatched thread standards on the job. The decorative shield ring and ceiling plate cover give installations a polished, professional appearance from both below and at ceiling level, which matters in customer-facing rooms where aesthetics are part of the brief.

Infinitely Adjustable Drop, 30–45 cm

The telescoping extension column adjusts continuously anywhere between 30 and 45 cm — equivalent to 30,0–45,0 cm of drop from the ceiling plate. Unlike step-adjustable columns, the infinite positioning means the installer is never forced to accept a compromise between the ideal throw distance and the nearest fixed increment. This directly affects image quality and geometry: getting the projector to exactly the right height avoids keystone correction that degrades sharpness. The column works with 1.5" NPT threading, a standard that aligns with Chief's wider accessory ecosystem and most structural ceiling plates on the market.

One kit. Mount, plate, ring, column. Ready to install.

22 kg load capacity · Universal projector compatibility

Microzone Adjustment for Precise Image Registration

Microzone adjustment allows the projector position to be fine-tuned in very small increments after the main column height is set. In multi-projector rooms or spaces with a fixed screen border, getting the image to align exactly — without shimming or re-drilling — saves significant time and avoids the structural risk of repeatedly adjusting ceiling fixings. For end users, this translates to a sharper, correctly framed image from day one, with no visible shift or edge bleed that might otherwise be masked by overscan settings.

Q-Lock Quick Release for Effortless Servicing

The integrated Q-Lock lever lets an installer disconnect the projector from the mount without tools in seconds — the projector slides out rather than being unscrewed from height. In practice this is a meaningful benefit every time a lamp needs replacing, a firmware update requires a port connection, or a projector has to be repositioned. Reducing service time at height also reduces the need for two-person teams on routine maintenance visits, lowering the total cost of ownership over the lifetime of the installation.

Keyed Locking Security with All-Points Hardware

The kit includes an integrated key-and-lock mechanism combined with Chief's All-Points Security hardware, which secures the projector at multiple contact points rather than a single fastening. In education and hospitality environments — where projectors are accessible to the general public or unsupervised student groups — this significantly reduces theft risk without requiring additional third-party security accessories. The key system also creates an audit trail: only authorised personnel with the key can detach the projector, which supports asset management in multi-room deployments.
