Chief KITEC030045B

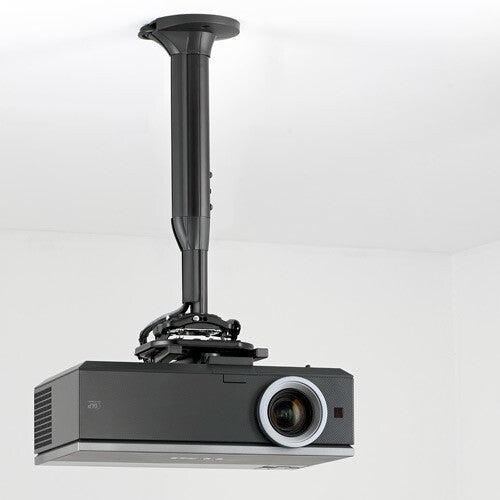

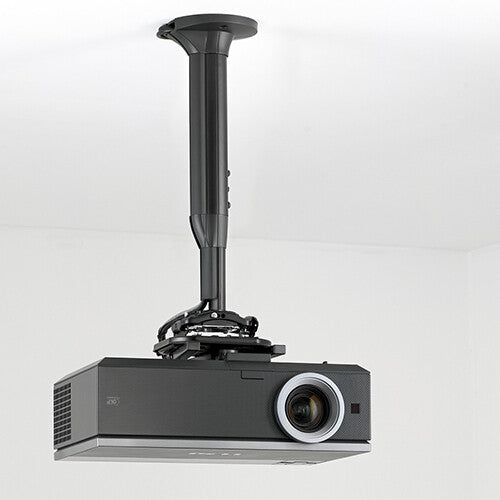

The Chief KITEC030045B is a complete ceiling projector installation kit designed for commercial and professional AV environments. It packages all the components needed for a clean, secure ceiling mount in a single SKU — eliminating the guesswork of individual part selection. The kit is finished in black and includes a universal Mini Elite projector mount, a flat ceiling plate, a decorative shield ring and a telescoping extension column adjustable from 30 to 45 cm. With a maximum load capacity of 11.3 kg and a tilt range of ±15°, it suits the vast majority of mainstream projectors in meeting rooms, classrooms and auditoriums.

Everything Included in One Kit

The KITEC030045B bundles four separate components — the RSMEU Mini Elite Projector Mount, CPA116 flat ceiling plate, CPA640 decorative shield ring and a 30–45 cm telescoping extension column — into a single part number. For installers, this removes the risk of ordering incompatible parts individually and simplifies procurement to a single line item per room. On-site, having all hardware arrive together means no delays waiting for a missing component, and the finished install looks professionally matched throughout.

Infinite Telescoping Adjustment 30–45 cm

The extension column adjusts continuously across the 30–45 cm (300–450 mm) range, rather than offering fixed step positions. This matters in practice because ceiling heights and projector throw requirements rarely fall exactly on a standard fixed-length column. Infinite adjustment means the installer can dial in the exact drop needed to hit the correct lens-to-screen distance, reducing the chance of image geometry errors and eliminating the need to re-order a different column length after hanging the mount.

One kit. Every part. Clean ceiling install.

Max load 11.3 kg · ±15° tilt · 30–45 cm adjustable drop

MicroZone Adjustments for Precise Image Registration

The MicroZone adjustment system allows fine pan, tilt and shift corrections after the projector is mounted, without disturbing the ceiling plate or column. In multi-projector or edge-blending setups this is critical: small misalignments that look minor on a test card become very visible when images must lock together at the seam. Being able to make these corrections at the projector head — without loosening structural fastenings — significantly speeds up commissioning time and allows re-alignment during routine maintenance.

Q-Lock Quick Release for Fast Servicing

The Q-Lock quick release lever lets an engineer detach the projector from the mount in seconds, without tools, and re-attach it in the same registered position. In venues where the projector lamp or filter needs regular replacement — such as classrooms or conference centres with high daily usage — this significantly reduces the time a technician needs to be on-site and minimises disruption to the space. The projector drops away cleanly and reseats accurately, maintaining image alignment between service visits.

Integrated Security: Keyed Lock and All-Points Hardware

The kit includes an integrated key-and-lock mechanism combined with All-Points Security hardware, which locks the projector to the mount at multiple contact points simultaneously. In publicly accessible spaces — auditoria, lecture theatres, hospitality venues — projector theft is a genuine risk. This multi-point locking approach makes opportunistic removal impractical without the key, providing a meaningful deterrent without requiring additional third-party security cabling or brackets.

Inlay-Style Cable Management

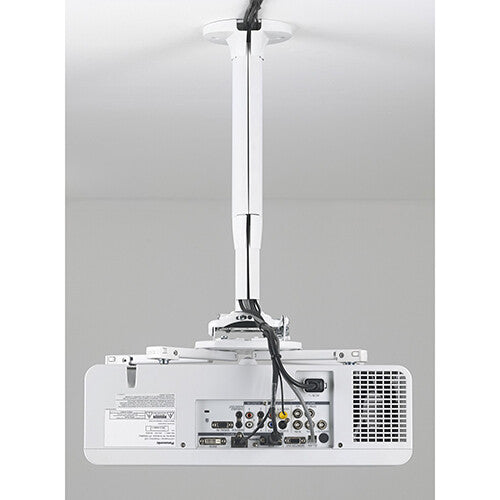

Cables are routed through an inlay-style external cable management channel built into the column and mount assembly. This keeps power and signal cables concealed and neatly dressed from the ceiling plate down to the projector, giving a clean finish that meets typical client expectations for commercial installations. It also makes future cable changes easier: cables can be re-routed without dismantling the mount, which is relevant when a venue upgrades from a fixed cable to HDBaseT or adds a separate audio feed.

Professional Finish with Matched Aesthetic Components

The CPA116 flat ceiling plate and CPA640 decorative shield ring are included specifically to give the installation a professional, finished appearance at the ceiling interface — hiding fixings and structural openings that would otherwise be visible. Both components are matched in black to the column and mount, so the complete assembly presents as a coordinated product rather than an assortment of hardware. This matters in client-facing spaces such as boardrooms and luxury venues where visible mounting hardware is considered unacceptable.
