Chief KITEC030045W

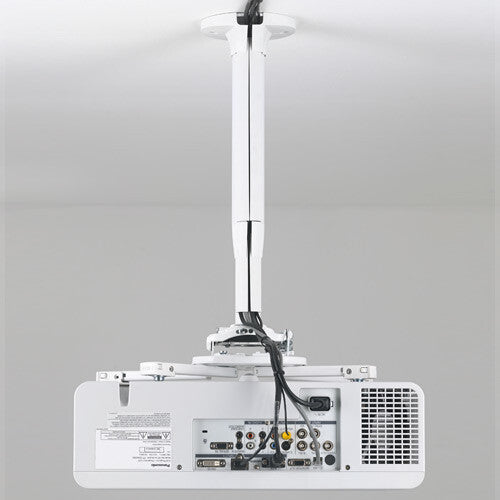

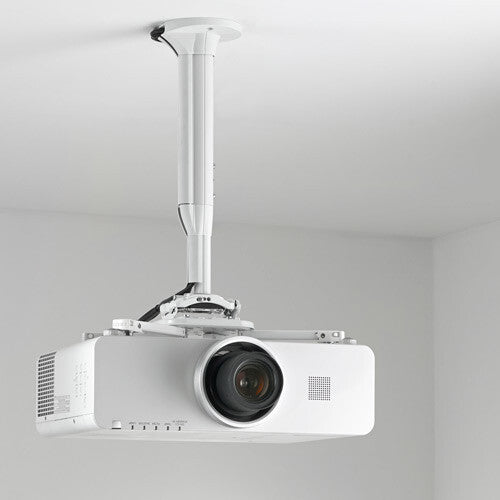

The Chief KITEC030045W is a complete ceiling projector installation kit designed for AV integrators who need a reliable, professional-grade solution out of the box. The kit bundles a RSMEUW Mini Elite Projector Mount, a CPA116W flat ceiling plate, a CPA640W decorative shield ring, and a telescoping extension column adjustable from 30 to 45 cm — covering the vast majority of standard ceiling-height scenarios. Built for both fixed and suspended ceilings, the KITEC030045W combines tool-friendly installation features such as Q-Lock quick release and Microzone fine adjustments with integrated security and clean cable routing, making it equally suited to classrooms, boardrooms, and auditoriums.

Infinite Telescoping Adjustment

The extension column adjusts continuously between 30 cm and 45 cm, with no fixed click-stop positions — the installer can dial in the exact drop height the room demands. This is especially valuable in rooms where ceiling void, beam height, or acoustic tile thickness creates unpredictable constraints. The stepless range eliminates the need to stock multiple fixed-length columns for different jobs, reducing pre-project planning time and the risk of arriving on site with the wrong part.

Microzone Fine-Tuning for Accurate Alignment

Microzone adjustment allows the projector position to be refined in small, controlled increments after the mount is installed and the projector is attached. In practice this means the image can be placed precisely on the screen without physically moving the mount or re-threading the column — a significant time saving during commissioning, and equally useful for periodic re-alignment after the room layout changes. Accurate registration from day one reduces the number of post-installation service calls.

One box. Every part. Ready to install.

Max load 11.3 kg · Fits fixed and suspended ceilings · Colour: White

Q-Lock Quick-Release for Fast Servicing

The Q-Lock lever lets a single technician detach and reattach the projector in seconds without tools. For installations where lamps need regular replacement or where the projector must occasionally be moved for deep-cleaning of a lens or filter, this dramatically cuts service time. It also reduces the mechanical stress on the mount that comes from repeatedly unthreading bolts — keeping the installation solid and accurate over years of use.

Integrated Security Against Theft

A built-in key-and-lock cylinder combined with Chief's All-Points Security hardware secures the projector to the mount and the mount to the column. In semi-public or high-traffic environments — lecture theatres, training rooms, houses of worship — this provides a meaningful deterrent without requiring a separate aftermarket security cage or cable lock. The hardware is integrated rather than bolted on, so it does not compromise the clean aesthetic of the installation.

Clean Cable Routing Built In

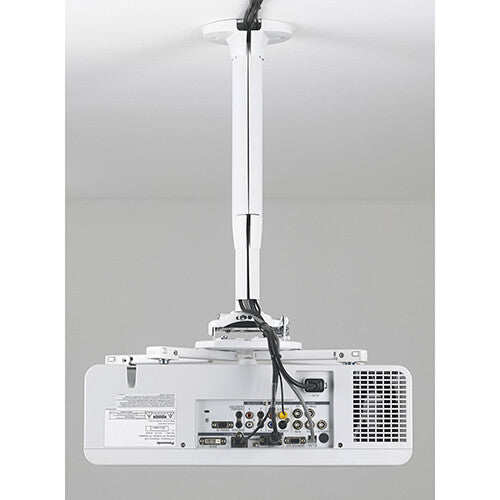

The inlay-style external cable management channel routes power and signal cables along the outside of the column in a controlled, concealed path. Cables remain visible to the installer for troubleshooting but are held neatly away from sight lines from the room below. This matters both aesthetically — especially in premium meeting rooms and presentation spaces — and practically: cables are easy to re-route or replace without dismantling the mount.

Professional Finish with Included Covers

The kit includes a CPA116W flat ceiling plate cover and a CPA640W decorative shield ring. These cosmetic components conceal the structural hardware at both the ceiling interface and the projector-mount junction, resulting in a finish that looks custom-installed rather than industrial. For installations in front-of-house areas — reception halls, boardrooms, high-end retail — this removes the need to source or fabricate additional cover plates and ensures a consistent white finish throughout.
