Chief KITMC045080B

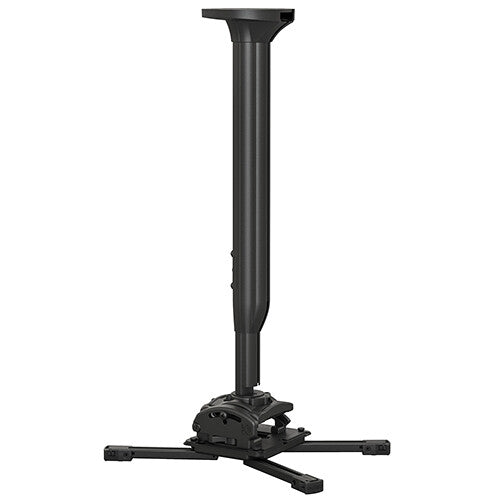

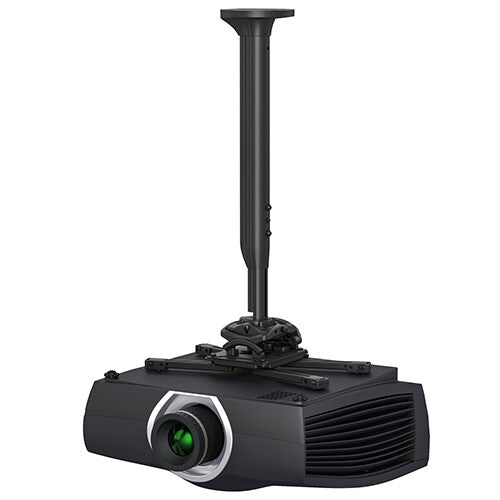

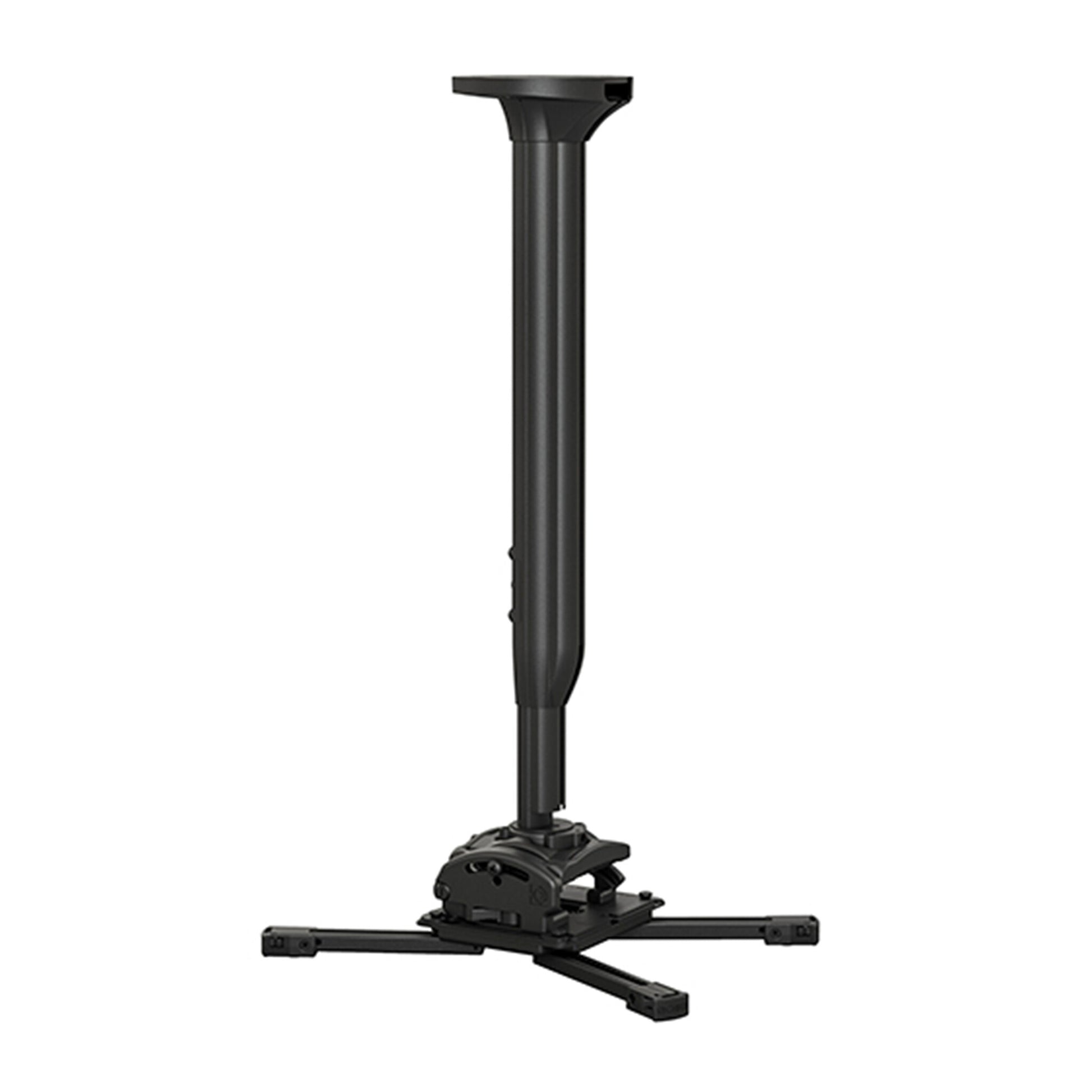

The Chief KITMC045080B is a complete all-in-one ceiling projector mounting kit designed to simplify and speed up commercial AV installations. The kit bundles everything needed for a clean, professional result: the RPMEU Mini Elite Projector Mount, a CPA116 flat ceiling plate, a CPA640 decorative shield ring, and a 45-80 cm adjustable telescoping extension column. Designed for installers who demand precision and security, the kit delivers fine-tuned projector alignment, tool-free servicing and integrated cable management. It is ideal for corporate conference rooms, classrooms, auditoriums and other commercial environments where a reliable, finished-looking ceiling mount is required.

Adjustable 45-80 cm Telescoping Column

The included telescoping extension column adjusts continuously between 45 cm and 80 cm, giving installers precise control over the projector drop distance without cutting or swapping pipes. This range covers the majority of standard commercial ceiling heights and projector throw requirements in one component. In practice, this eliminates the need to pre-measure and order a fixed-length pipe, significantly reducing the risk of returning to site for a replacement part. For the end user, it means the projector can be positioned at the exact height required for the intended screen and throw distance, ensuring optimal image geometry from day one.

Microzone Fine-Tuning for Precise Alignment

The RPMEU Mini Elite Projector Mount features Microzone adjustments that allow roll (±3°), pitch (±15°) and yaw (360°) corrections after initial installation. These incremental fine-tuning controls mean the installer can dial in a perfectly level, centred image without having to move the ceiling attachment point or adjust the projector's lens manually. For the end user — whether in a boardroom, classroom or auditorium — this translates directly into a sharp, properly framed picture that does not need constant recalibration, reducing disruption and maintenance calls over the product's lifetime.

One box. Every part. Projector up in one visit.

Supports up to 22 kg · Compatible with 1.5" NPT threaded ceilings

Q-Lock Quick Release for Fast Servicing

The Q-Lock Quick Release Lever allows the projector to be connected and disconnected from the mount without tools. When a projector needs a lamp change, filter clean or swap-out, the technician can detach the unit quickly and safely rather than dismantling the full ceiling assembly. In high-use environments such as conference centres or educational facilities, where projector maintenance is a recurring task, this mechanism significantly reduces service time and the associated labour cost — keeping downtime to a minimum for the end user.

Integrated Keyed Security System

The kit incorporates an integrated key-and-lock mechanism alongside All-Points Security hardware, securing the projector against unauthorised removal or tampering. This is particularly relevant in semi-public or multi-user environments — lecture theatres, meeting rooms and shared classrooms — where equipment theft or accidental dislodging is a genuine risk. The security system means the end user's investment is protected without requiring aftermarket security cages or additional hardware, keeping the installation clean and the projector firmly in place.

Inlay-Style Cable Management

The mount includes an inlay-style external cable management channel that routes and conceals cables along the column from the ceiling plate to the projector. A tidy cable run is not just cosmetic — it protects cables from accidental snagging during projector servicing, reduces the chance of connector damage, and meets the presentational standards expected in professional AV environments. For the end user, it means a clean, finished-looking installation that does not distract from the projected content and satisfies facilities management requirements for cable tidiness.
