Chief KITMC045080W

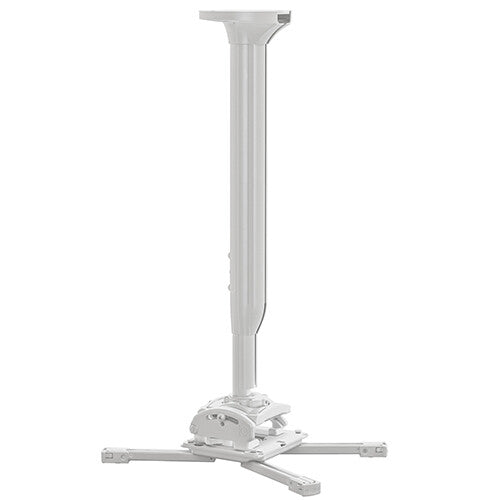

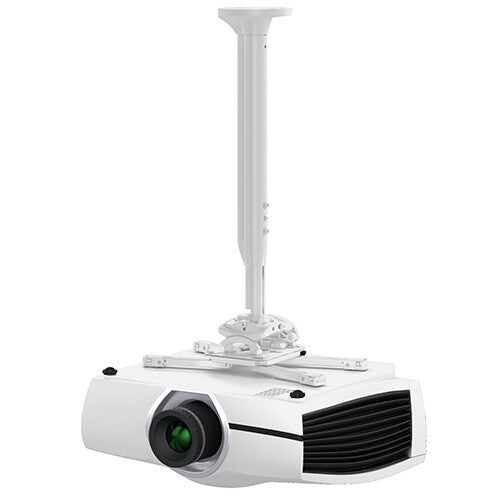

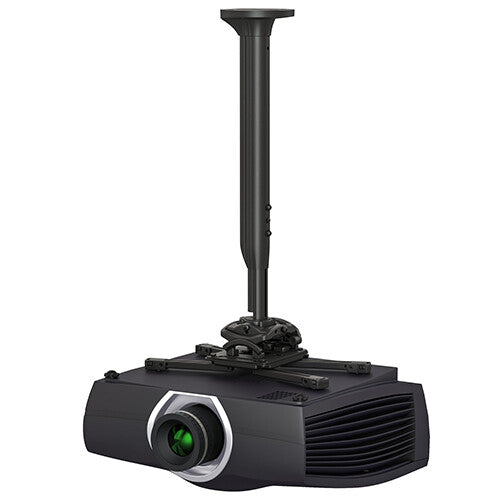

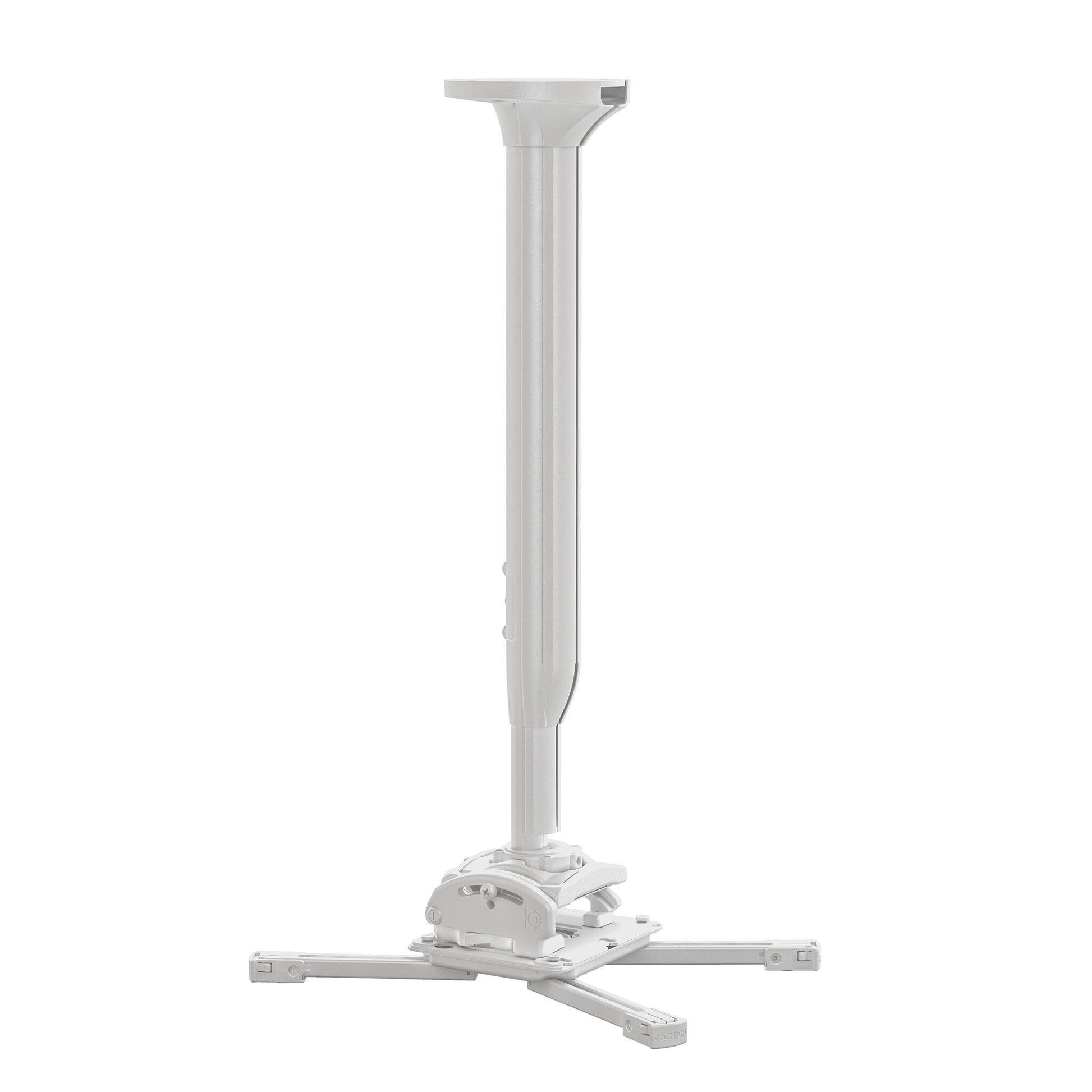

The Chief KITMC045080W is a complete, all-in-one ceiling projector mount kit designed for commercial AV installations where a clean, professional result is required straight out of the box. The kit bundles every component needed for most standard ceiling drops: an RPMEU Mini Elite projector mount head, a CPA116 flat ceiling plate, a CPA640 decorative shield ring, and a telescoping extension column adjustable between 45 and 80 cm. Finished in white, the kit suits bright, light-coloured ceilings in corporate boardrooms, classrooms, and conference spaces. Its integrated security features and tool-friendly serviceability make it a practical choice for integrators who need reliable, low-maintenance installations.

Telescoping Column: 45–80 cm Infinite Adjustment

The bundled extension column adjusts continuously between 45 and 80 cm without fixed steps, so the installer can set the projector to precisely the right throw distance regardless of ceiling height variation across the room. In practice this eliminates the need to pre-order a specific fixed-length pipe and revisit the job if the measurement was slightly off — the column simply telescopes to the exact position needed and locks in place. For the end user this means the projector image lands exactly where it should on the screen from day one, with no geometric distortion caused by a mount that is slightly too high or too low.

Microzone Adjustments for Precise Projector Registration

The RPMEU mount head provides Microzone fine-tuning of roll (±3°), pitch (±15°), and yaw (360°). After coarse positioning is complete, the installer can dial in the image with small, controlled movements rather than repeatedly loosening and retightening hardware. This is particularly valuable in rooms where the projector must hit a fixed screen or interactive whiteboard with pixel-accurate alignment. For the end user it means a perfectly rectangular, correctly centred image without keystone correction artefacts, delivered faster and with less disruption to the room.

One kit. Every part. Ready to install.

Max load 22 kg · Adjustable 45–80 cm · White finish

Q-Lock Quick Release for Fast, Safe Servicing

The Q-Lock lever lets the projector body be detached from and re-attached to the mount head without tools and without disturbing the alignment settings. When a lamp needs replacing or the projector requires a firmware update, the technician can lower the unit, service it at bench height, and click it back into the same position. This reduces service time significantly on every call and eliminates the risk of the projector being bumped out of alignment during maintenance — a tangible saving for facilities that run projectors daily.

Keyed Locking Security and All-Points Hardware

The kit includes an integrated key-and-lock system combined with Chief's All-Points Security hardware, which secures the projector at multiple contact points. In semi-public or high-traffic environments — lecture halls, hospitality venues, open-plan offices — this deters opportunistic theft and unauthorised repositioning of the projector. The keyed lock also means only authorised staff can remove the unit, reducing insurance risk and the likelihood of costly projector loss.

Inlay Cable Management for a Clean Install

An inlay-style external cable management channel routes signal and power cables neatly along the column from ceiling plate to projector. Cables are retained inside the profile rather than hanging freely, which keeps the installation looking professional in visible ceiling areas and reduces the risk of cables snagging during servicing. For facilities with strict aesthetic standards — such as corporate boardrooms or high-end hospitality — this delivers the clean, built-in appearance that would otherwise require additional conduit or labour.

Complete Kit — No Additional Components Required

The KITMC045080W ships with every element needed for a standard ceiling drop: mount head (RPMEU), flat ceiling plate (CPA116), decorative shield ring (CPA640), and the adjustable column. Integrators do not need to specify and source individual parts separately, which reduces the risk of compatibility errors, simplifies procurement, and means the job can be quoted and kitted in a single line item. For end users this translates to a faster installation and a finished result that looks like a single designed system rather than an assembly of mismatched parts.
