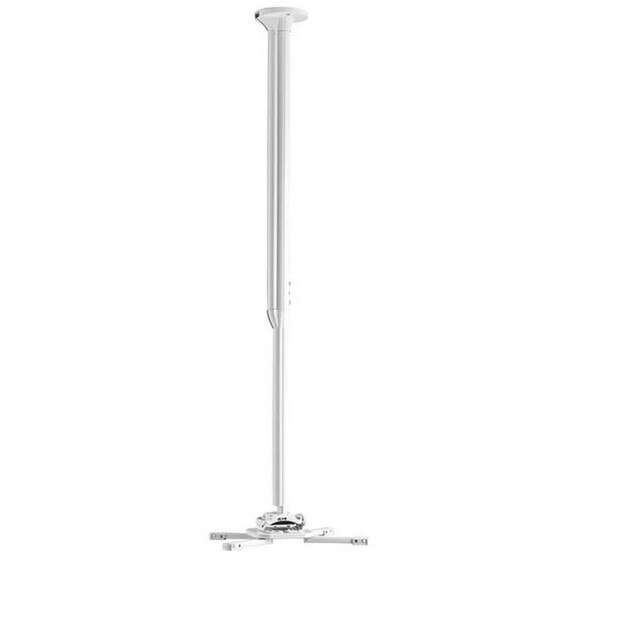

Chief KITEC080135W

The Chief KITEC080135W is a complete ceiling projector mounting kit designed for professional AV installations in corporate, educational, and presentation environments. The kit bundles every component needed for a clean, secure install: the RSMEU Mini Elite universal projector mount, a CPA116 flat ceiling plate, a CPA640 decorative shield ring, and an adjustable telescoping extension column covering 80 to 135 cm of drop distance. With a maximum load capacity of 11,34 kg and a full range of fine-tuning adjustments, the kit suits a wide variety of mid-weight projectors and ceiling heights without requiring custom hardware.

Adjustable 80–135 cm Telescoping Column

The extension column adjusts continuously between 80 and 135 cm, giving installers genuine flexibility across a wide range of ceiling heights without cutting, swapping, or sourcing a different column on site. This matters in real-world installs where the specified ceiling height and the actual measured height often differ — and where returning for a different part costs time and money. The infinite positioning means the projector image can be placed at exactly the right throw distance for the room, rather than accepting whatever a fixed-length column allows.

Everything Included — No Extra Parts Required

The KITEC080135W ships with the RSMEU Mini Elite universal projector mount, CPA116 flat ceiling plate, CPA640 decorative shield ring, and the telescoping column as a single bundle. For an installer this removes the risk of ordering incompatible components separately and means the job can be completed in a single visit. The ceiling plate and decorative ring give the finished installation a professional, product-grade appearance on both fixed and suspended ceilings — no visible raw hardware or improvised covers.

One kit. Every part. Clean install — first time.

Universal projector fit · Max load 11,34 kg · White finish

Microzone Adjustments for Precise Image Alignment

The Mini Elite projector head includes Microzone fine-tuning — small, controlled movements across pitch (±15°), roll (±3°) and full 360° yaw rotation. In practice this means the projector image can be squared perfectly to the screen after mounting, even if the ceiling is not perfectly level or the projector is slightly off-centre relative to the screen. This eliminates the need for mechanical shimming or time-consuming repositioning, which is particularly valuable in rooms with tiled suspended ceilings where precise bracket placement is not always possible.

Q-Lock Quick Release for Fast Servicing

The Q-Lock lever lets the projector be disconnected from the mount and lowered for lamp changes, filter cleaning, or input adjustments without tools and without disturbing the mount's alignment. Once servicing is done, the projector clicks back into exactly the same position. This is a meaningful operational benefit in high-use venues — classrooms, lecture theatres, conference rooms — where projector maintenance happens regularly and downtime needs to be kept to a minimum.

Keyed Locking Security and All-Points Hardware

An integrated key-and-lock system combined with Chief's All-Points Security hardware physically secures the projector to the mount, preventing unauthorised removal. This is a practical requirement in shared or semi-public spaces such as schools, training rooms, and hospitality venues where projectors are left unattended for extended periods. The security system does not add visible bulk or compromise the clean aesthetic of the installation.

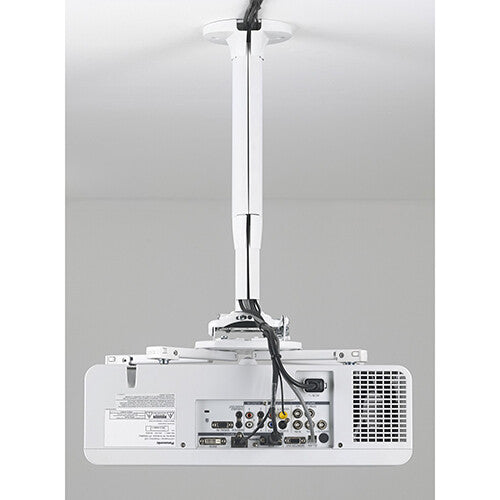

Inlay-Style Cable Management

The column includes inlay-style external cable routing channels that keep power and signal cables tidy and concealed alongside the pole rather than hanging freely. Clean cable management reduces the risk of cables being caught or pulled, simplifies future cable changes, and gives the finished installation a professional appearance that end-customers expect in meeting rooms and presentation spaces. It also speeds up the initial installation by providing a defined routing path rather than requiring improvised ties or conduit.
