Chief KITMZ006S

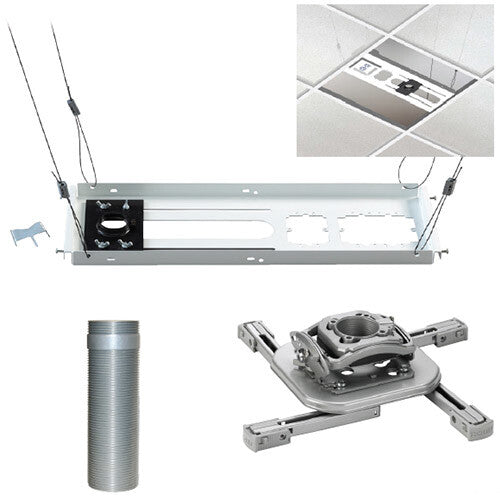

The Chief KITMZ006S is a pre-configured projector ceiling mount kit designed for suspended (drop) ceiling installations in classrooms, boardrooms, and auditoriums. It bundles three complementary Chief components — the RSMAUS Mini Elite universal projector mount, the CMSZ006S 15,2 cm fully threaded extension column, and the CMS440 lightweight suspended ceiling kit — into a single, ordered part number. This eliminates the need to source and verify compatibility between individual components, and ensures everything required for a clean, secure installation arrives together. The kit supports most projectors up to 11,3 kg and comes backed by Chief's 10-year manufacturer's warranty on all three included components.

One SKU, Three Components, Zero Compatibility Guesswork

The KITMZ006S ships as a matched set: the RSMAUS Mini Elite projector mount, the CMSZ006S 15,2 cm fully threaded extension column, and the CMS440 suspended ceiling kit. All three are designed and tested to work together by Chief, so there is no risk of mismatched threads, incompatible load ratings, or discovering on-site that a component is missing. For AV integrators, specifying a single kit SKU also simplifies procurement and reduces the chance of partial shipment delays. The end result is a faster, cleaner installation with less time spent on sourcing.

Compact Mini Elite Mount with Full-Size Functionality

The included RSMAUS is Chief's Mini RPA Elite projector mount — physically one-third smaller than the full RPA Elite but retaining 100% of its adjustability and a 11,3 kg load capacity. MicroZone independent adjustments allow precise pitch, roll, and yaw correction even in flush-mount configurations, while Centris Technology automatically balances the mount's counterforce to match the specific weight of the installed projector, enabling effortless fingertip positioning during alignment. The Q-Lock Quick Release Lever allows the projector body to be disconnected in seconds for lamp or filter changes, and re-mounts with sufficient precision that projector alignment and presets are preserved. An integrated key-lock system (four key options) protects against unauthorised removal. The compact footprint is particularly advantageous in tighter ceiling plenum spaces.

One kit. Mount, column, ceiling plate. Ready to install.

Limited 10-year manufacturer's warranty on all included components

Fully Threaded Column for Infinite Drop Adjustment

The CMSZ006S extension column is machined from aluminium and fully threaded across its entire 15,2 cm length, meaning drop height can be set anywhere within that range — not just at fixed steps. The 1.5" NPT threading at both ends is the industry standard for Chief mounting accessories, ensuring future compatibility if the column ever needs to be swapped for a shorter or longer version. An integrated cable port at one end routes signal and power cables internally through the column, keeping the installation visually clean without additional cable management accessories. Aluminium construction keeps the column lightweight compared to steel equivalents, reducing ceiling tile load and easing one-person installation.

Speed-Connect Suspended Ceiling Kit for Fast, Secure Tie-Off

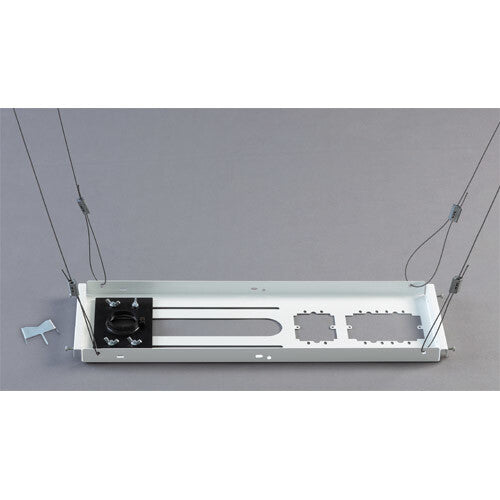

The CMS440 ceiling tile kit is engineered around speed and security. The WireVice Cable Suspension System allows wire ropes to be tied off and tensioned quickly, eliminating fiddly knot-tying in the ceiling plenum. The TwisTile Tile Cutter pierces a clean circular hole in the ceiling tile for column placement without requiring a separate tool. A continuously adjustable mounting slot provides infinite lateral positioning along the 60 cm ceiling tile grid, while single and dual electrical outlet cutouts let the column pass alongside conduit without cutting oversized openings. All-Points tamper-resistant hardware locks the column at the connection point, protecting against both accidental loosening and opportunistic removal. The kit fits standard 60 cm-wide ceiling tile grids and is 1.5" NPT compatible.

10-Year Warranty Across All Three Components

Each component in the KITMZ006S kit — the RSMAUS mount, the CMSZ006S column, and the CMS440 ceiling kit — carries Chief's limited 10-year manufacturer's warranty. For end users in long-term installations such as fixed education or corporate environments, this warranty period matches or exceeds the typical projector lifecycle, providing meaningful protection on the mounting infrastructure even after the projector itself has been replaced once or twice.
