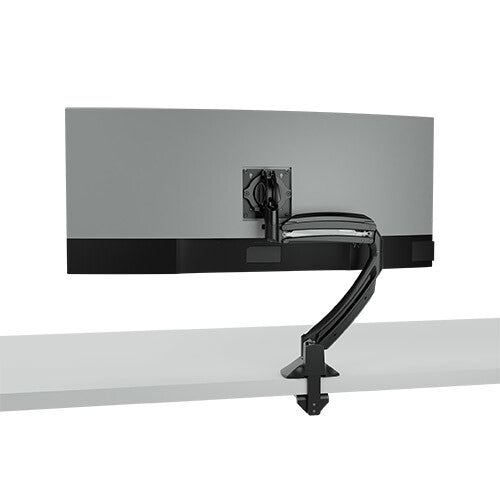

Chief K1D120B

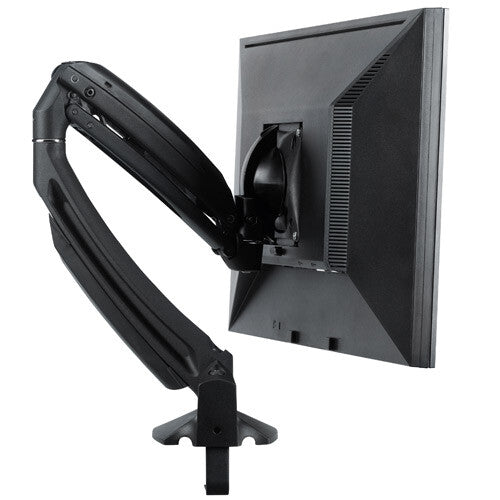

The Chief Kontour K1D120B is a dynamic height-adjustable desk clamp mount designed for single-monitor workstations in offices, healthcare facilities, and home environments. Built on Chief's patented Centris Extreme Tilt platform, it delivers smooth, fingertip-controlled monitor positioning and 33,0 cm of gas-spring height travel — keeping displays at the optimal ergonomic level whether the user is sitting or standing. The forged aluminium arm structure supports monitors from 25,4 to 76,2 cm diagonal (2,3–11,3 kg), and the integrated cable management system maintains a clean, professional appearance on any desk. Three-step installation and a quick-release monitor interface make deployment and servicing fast.

Centris Extreme Tilt for Effortless Positioning

Chief's patented Centris Extreme Tilt technology allows the monitor to be tilted +75° upward or -10° downward using light fingertip pressure alone — no knobs to loosen or levers to engage. The mechanism is tensioned to hold any angle firmly once set. In shared workspaces such as reception desks, clinical stations, or hot-desk offices, this means every user can re-angle the screen to their own eye level in seconds without tools or expertise. Combined with the 33,0 cm of smooth gas-spring height travel, the K1D120B covers virtually the full ergonomic adjustment range recommended for sit-stand working, reducing strain during long sessions.

Gas-Spring Height Adjustment — Smooth, Silent Travel

A precision gas-spring mechanism provides 33,0 cm of continuous height adjustment with a damped, controlled motion that requires no manual effort. The monitor can be raised or lowered with one hand while remaining perfectly stable at any point in the range. This is particularly valuable in environments where display height must change throughout the day — such as a standing-desk setup, a clinical workstation used by staff of different heights, or a shared office. There are no detents or fixed positions: the display settles wherever it is released and stays there, eliminating the micro-adjustments and accidental movement common in friction-based arms.

33 cm of travel. Fingertip tilt. Zero tools.

Forged aluminium · 10-year limited warranty · LEED-eligible recycled content

Versatile Desk Attachment — Clamp, Grommet or Bolt

The K1D120B ships with a complete hardware kit that accommodates three different desk-mounting methods: edge clamp (for desktops 1,3–6,4 cm thick), standard grommet hole pass-through, and bolt-hole fixing. This flexibility means the mount can be specified confidently for almost any desk type — from thin glass-topped tables to solid wooden workbenches — without ordering additional hardware. The clamp base also includes a built-in storage compartment for Allen keys and spare screws, keeping installation tools accessible for future moves or adjustments.

Broad VESA Compatibility — 75×75 and 100×100 mm

The universal VESA head is compatible with both 75×75 mm and 100×100 mm mounting patterns, which covers the vast majority of monitors in the 25,4–76,2 cm (10–30 inch) diagonal range. A weight capacity of 2,3–11,3 kg per monitor is generous enough to support premium all-in-one PCs and Apple displays alongside standard business monitors, removing the need to cross-reference multiple arm models across a fleet deployment. Portrait and landscape orientations are both supported, making the K1D120B equally suited to standard widescreen monitors and vertically oriented displays used in healthcare or signage contexts.

Tool-Free Cable Management for a Professional Finish

Integrated snap-on cable management covers run the full length of the arm and can be removed and refitted without tools. Cables are routed internally through the arm, eliminating the tangle of loose leads that typically collects behind desk-mounted monitors. In client-facing environments — reception areas, trading desks, retail counters — this contributes directly to a tidy, professional appearance that reflects well on the installation. The covers are also easily opened when cables need to be changed, avoiding the time cost of re-threading that plagues competing arm designs.

LEED-Eligible Sustainable Design

The K1D120B is manufactured with high levels of recycled content and is designed for recyclability at end of life. Chief specifically notes that the Kontour monitor arm line may contribute to LEED-CI, LEED-NC, and LEED-EB certification credits. For corporate or institutional customers pursuing green building certification — universities, hospitals, government offices — this is a directly usable specification point. It can be included in LEED documentation submitted to the project team without additional third-party verification, which simplifies the credit-earning process.
