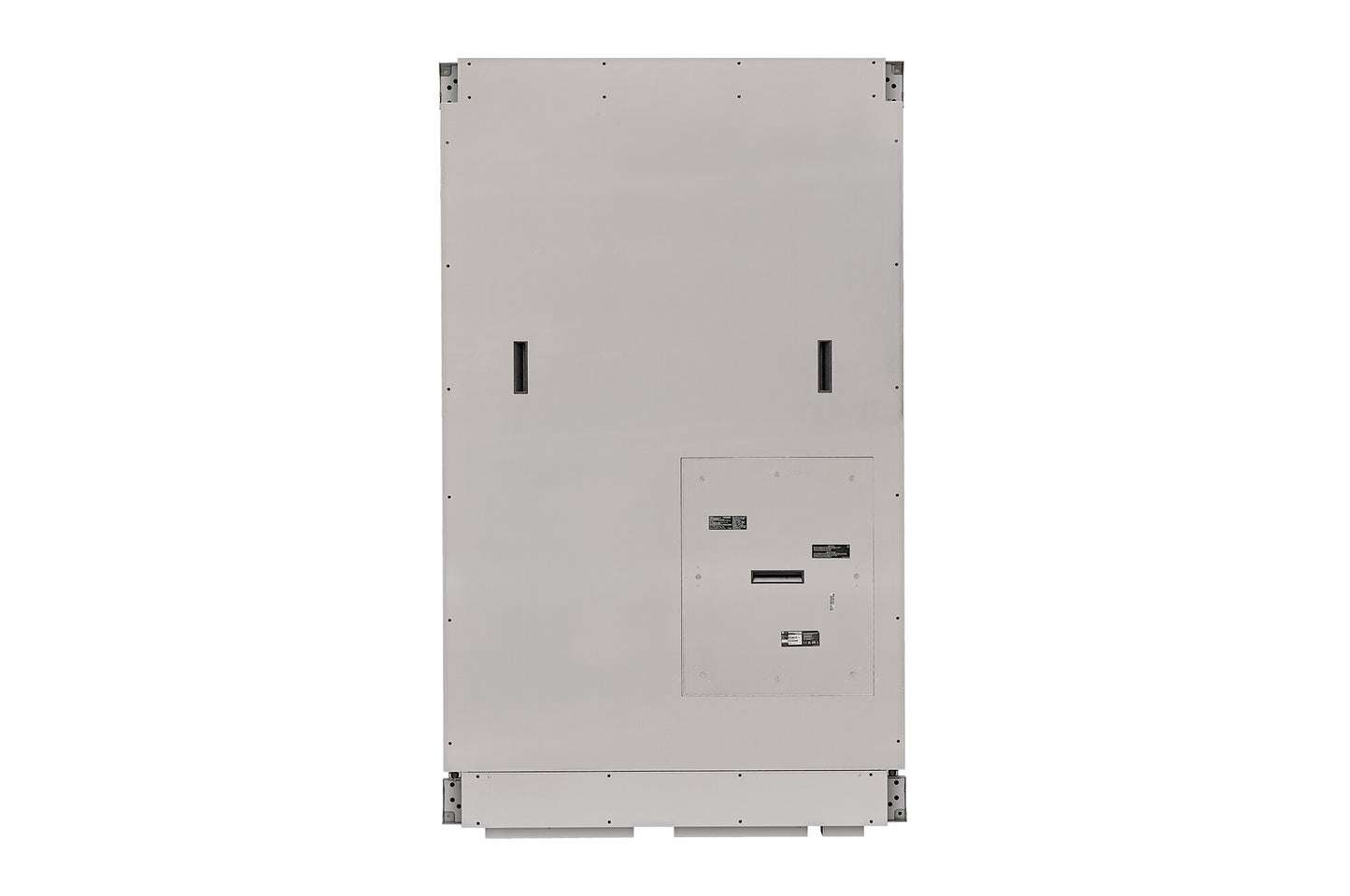

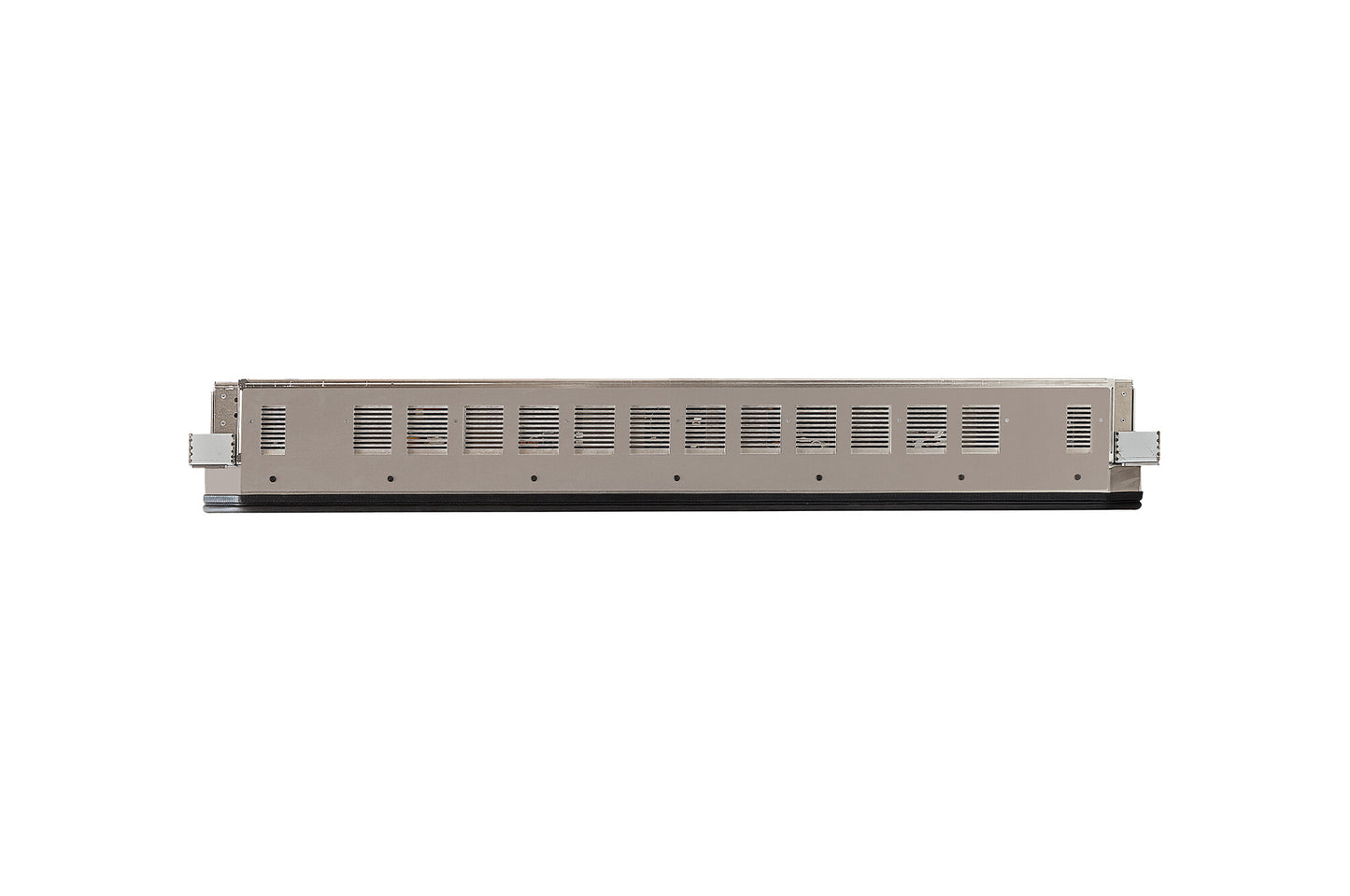

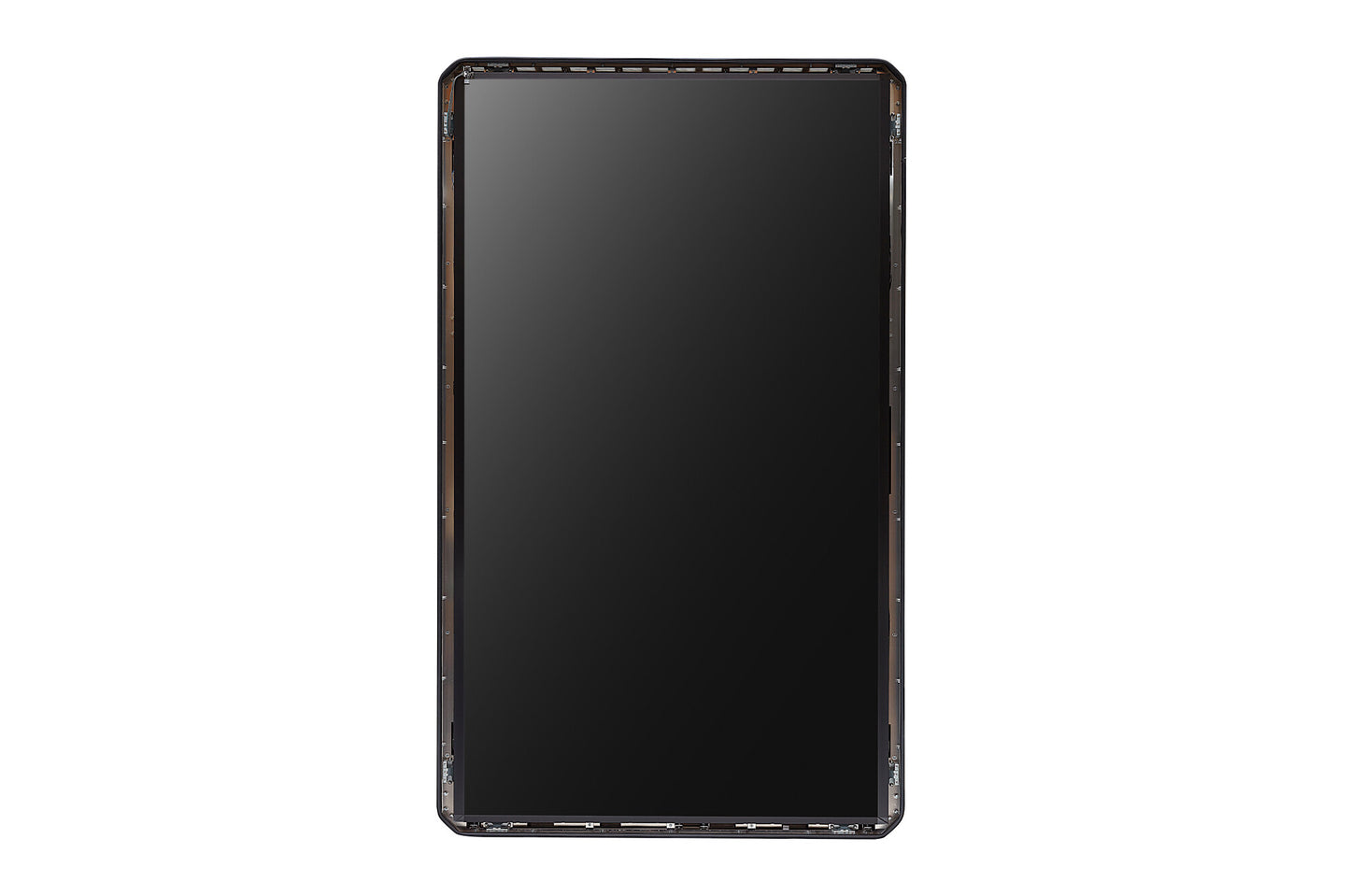

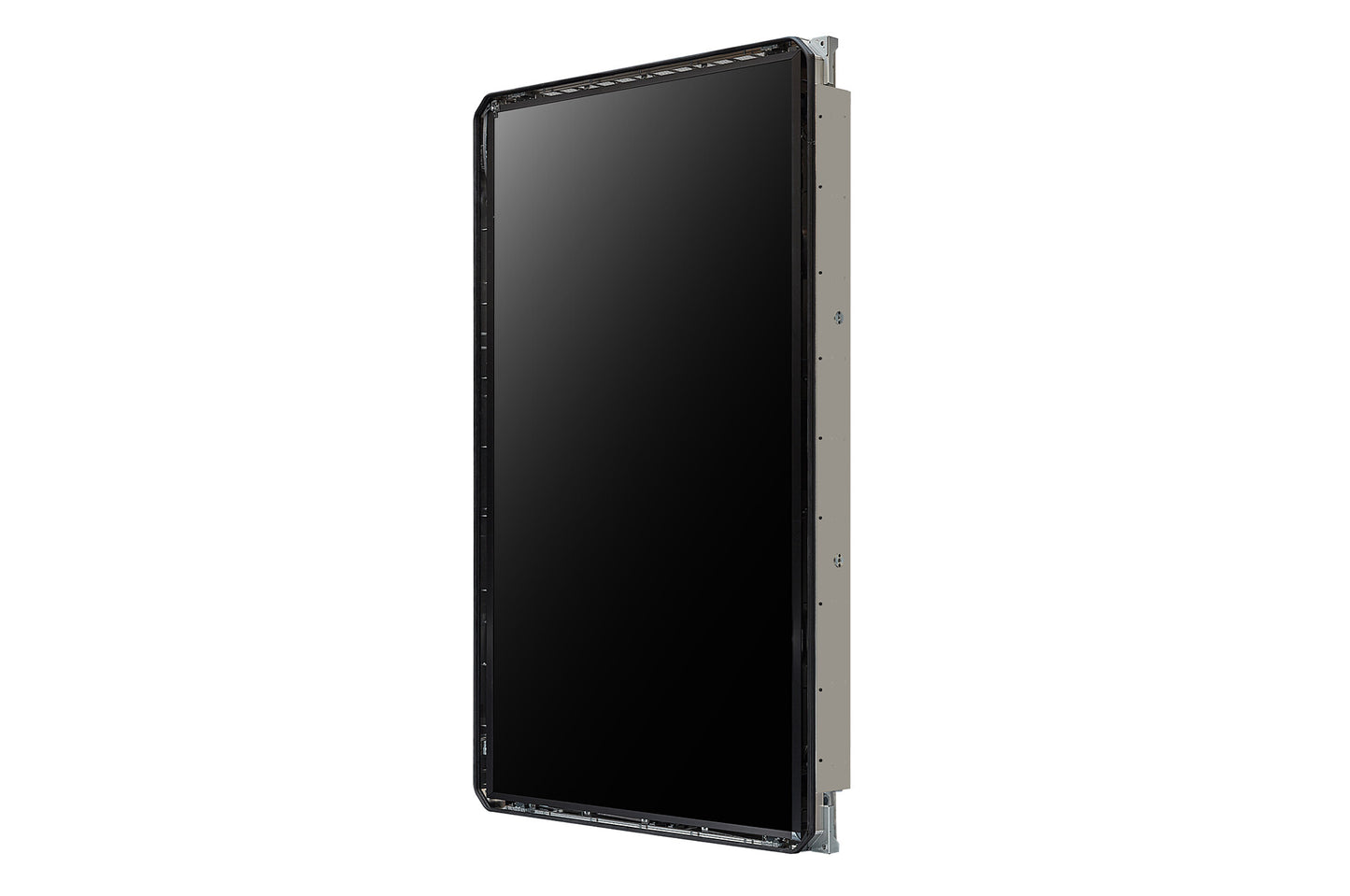

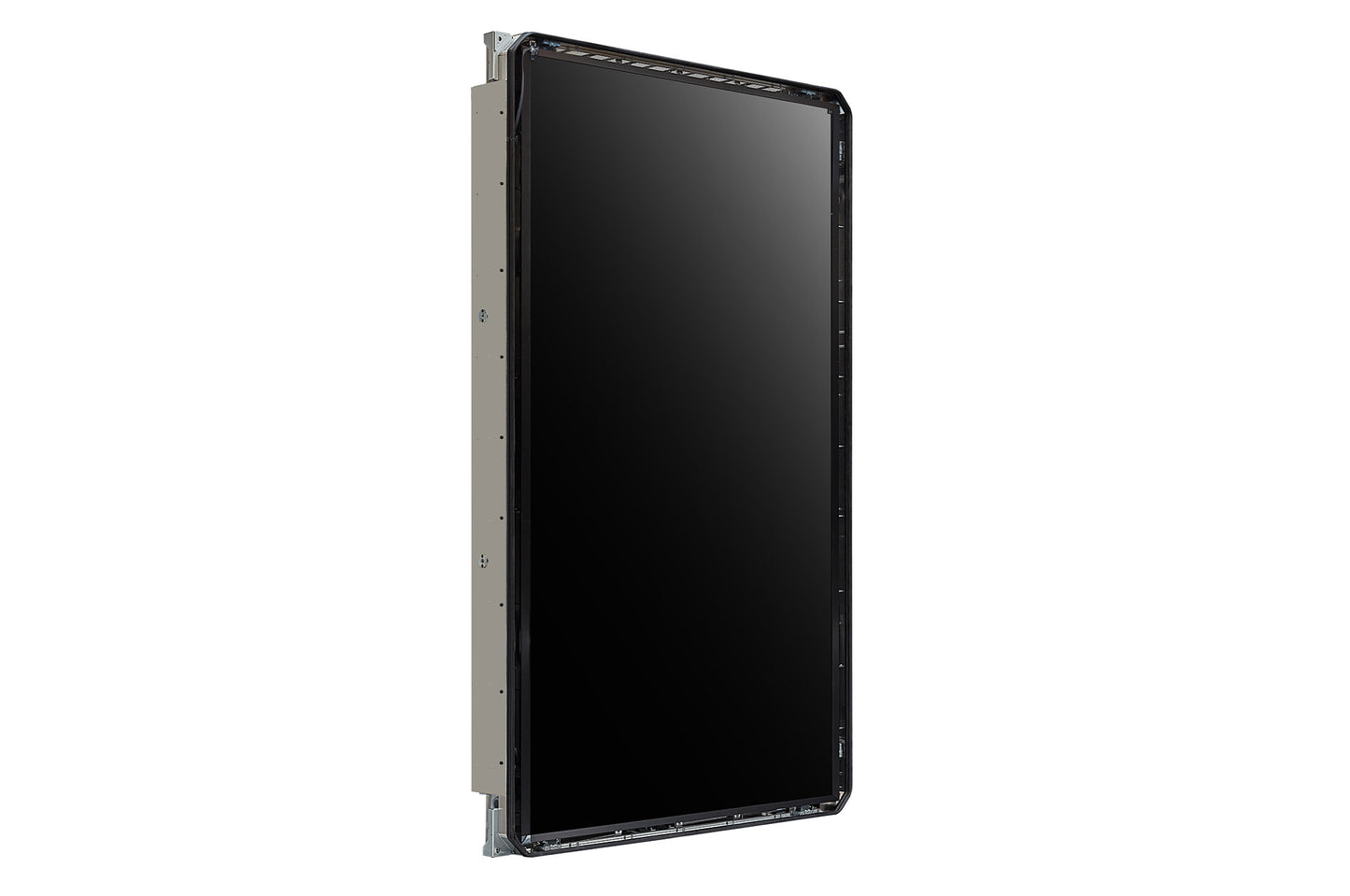

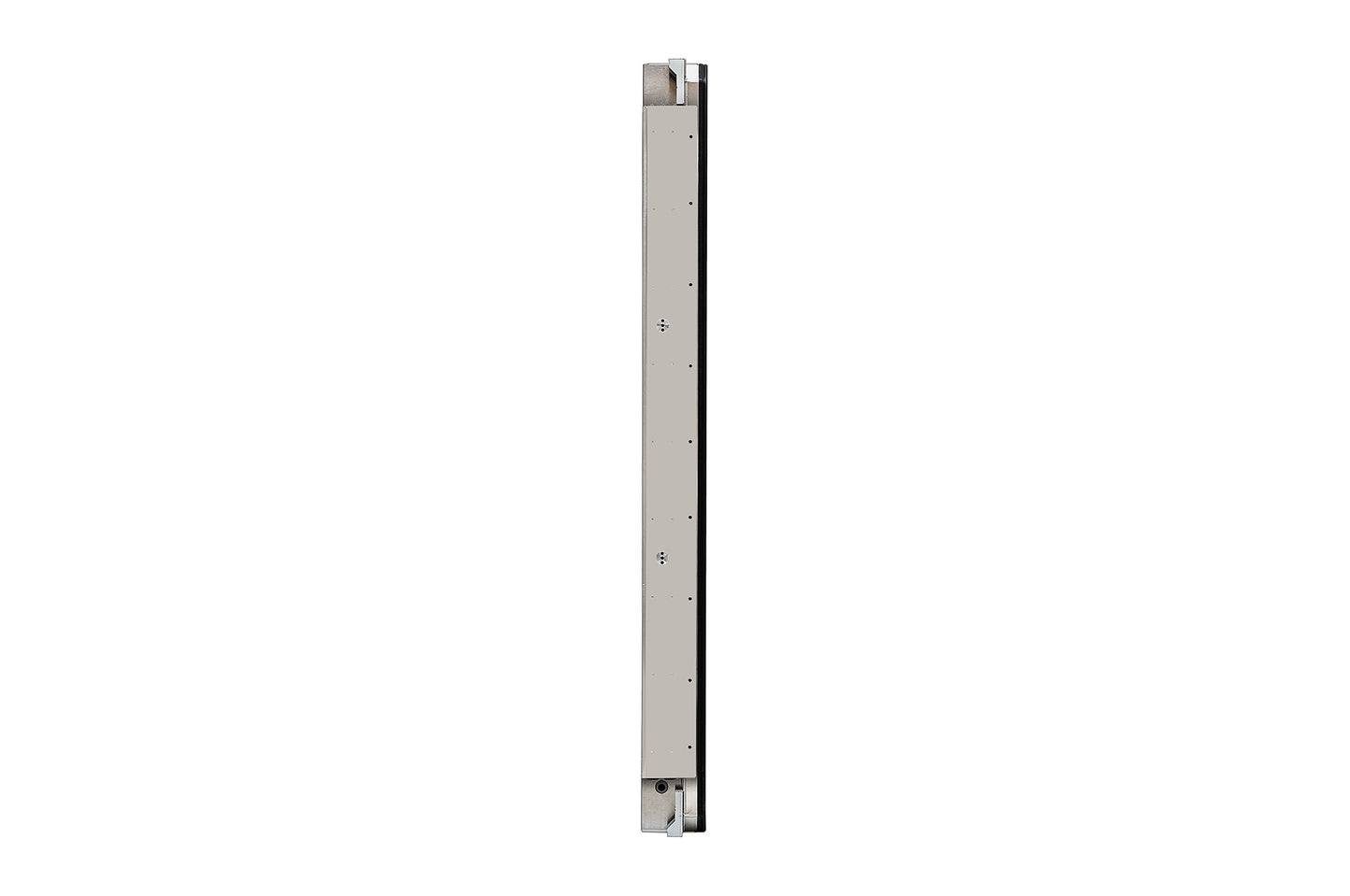

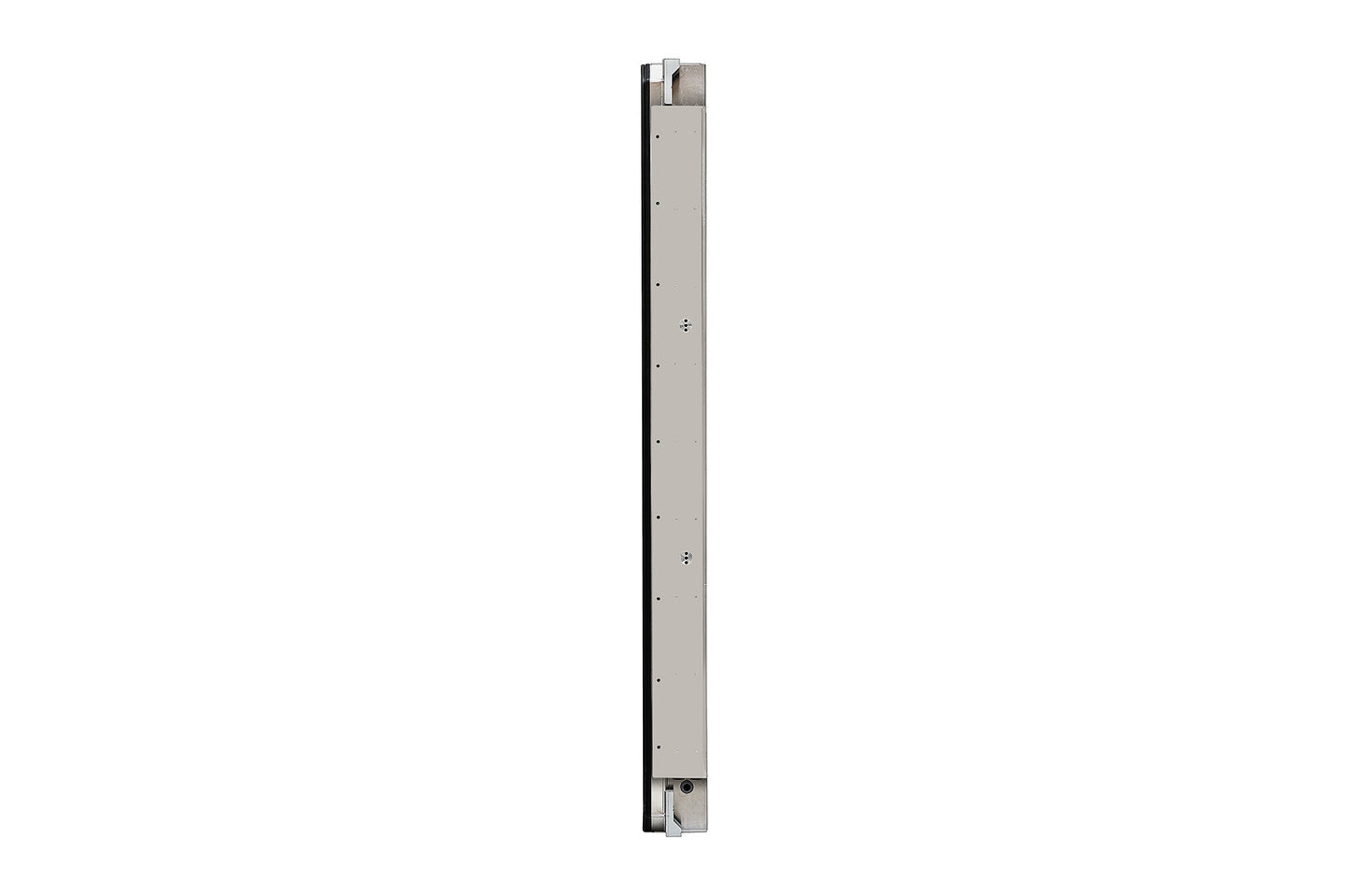

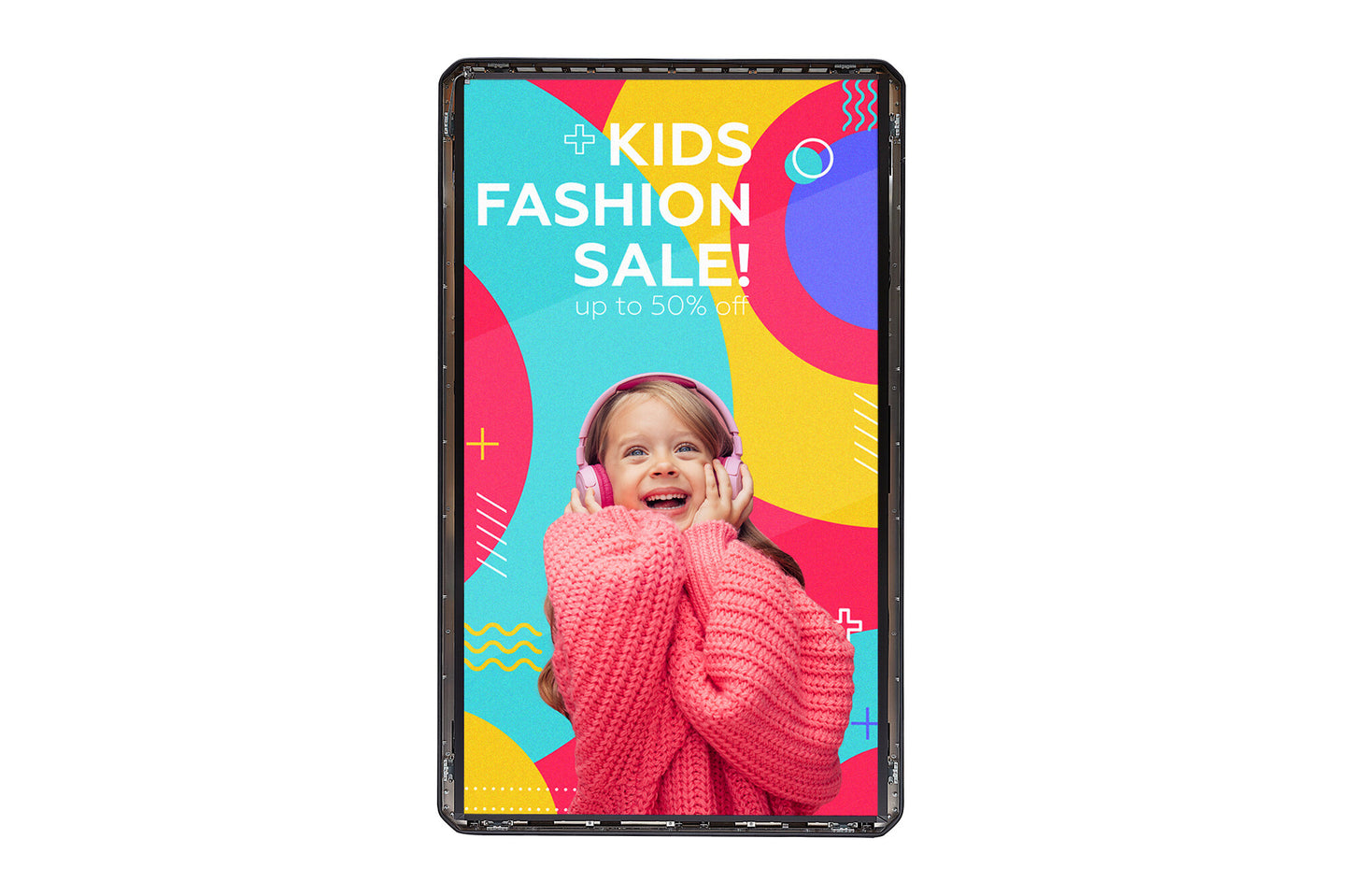

LG 86XF3SK

The LG 86XF3SK is an 86-inch open-frame high-brightness display built for large-format outdoor advertising in custom enclosures. Delivering 3,300 nits of luminance on a 4K UHD IPS panel, it remains fully legible even in direct sunlight — including for viewers wearing polarized sunglasses. Designed for integrators who need maximum flexibility in casing design, the open-frame chassis allows custom exterior colors and finishes. Running LG webOS 6.0 with built-in SoC, the display operates standalone without an external media player, while its web-based Control Manager enables remote monitoring and management from any networked device. Rated for 24-7 continuous operation, solar-tested, and equipped with conformal coating and an internal circuit breaker, it is engineered to withstand the thermal and electrical stresses of permanent outdoor deployment.

3,300 Nits Sunlight-Readable Brightness

At 3,300 nits (typ., without glass), the 86XF3SK delivers more than six times the luminance of a typical commercial display. This level of output is specifically engineered for installations where the panel faces direct or strong ambient sunlight — roadside totems, transport hubs, retail window-facing positions, and DOOH (Digital Out of Home) sites. Critically, the display also includes a Quarter Wave Plate (QWP) filter, which maintains legibility for viewers wearing polarized sunglasses — a real-world usability advantage on sunny high-streets and car-facing roadside sites. The net result is that advertising content remains vivid, detailed, and attention-grabbing even in the harshest outdoor lighting conditions.

Open-Frame Design for Custom Enclosures

The 86XF3SK ships without an external housing, giving system integrators complete freedom to design the enclosure around their project requirements — custom RAL colors, branded facades, weatherproof cabinets, or architectural totems. This is not simply a cost-saving measure: it means the display can be matched exactly to retail branding or site aesthetics without compromise. LG provides an official installation guide defining the mandatory thermal and mechanical requirements for any enclosure, ensuring that integrators designing their own casings can do so safely. For projects where visual identity is as important as performance, this flexibility is a genuine competitive differentiator.

3,300 nits. Open frame. Built for outdoor 24-7.

UL Verified for Display Anti-Discoloration · 50,000 hrs rated lifetime

World's First UL-Verified Anti-Discoloration Technology

Screen yellowing is a well-known long-term failure mode for high-brightness outdoor displays exposed to UV radiation and high temperatures. LG has developed and obtained the world's first UL Verification for Display Anti-Discoloration Characteristics (verifiable at verify.ul.com/verifications/1382), providing third-party confirmation that the panel maintains colour accuracy and appearance stability over its service life. For operators running premium advertising content — where colour fidelity directly affects brand perception and advertising revenue — this certification removes a common long-term risk from the equation, and supports stronger service-level commitments.

Built-in webOS 6.0 for Standalone Operation

The 86XF3SK runs LG webOS 6.0 on an integrated System-on-Chip, eliminating the need for an external media player. Content scheduling, group management, USB Plug & Play playback, failover, gapless playback, and screen rotation are all handled natively. The platform also supports SI Server integration for third-party CMS solutions, and is compatible with LG SuperSign Cloud and LG ConnectedCare for centralised fleet management. Removing the external player box reduces installation complexity, eliminates a potential point of failure, and simplifies the hardware footprint inside the enclosure — particularly relevant given the thermal constraints of outdoor cabinet design.

Web-Based Remote Monitoring and Control

The integrated Control Manager provides browser-based access to the display from any networked mobile phone or PC. Operators can monitor status, push settings changes, adjust brightness, and diagnose issues in real time without a site visit. The display also supports SNMP, RS-232C sync, local network sync, Status Mailing, and Wake on LAN — giving facilities and operations teams multiple integration paths into existing monitoring infrastructure. For large outdoor advertising networks where each site visit carries significant cost, this remote visibility directly reduces maintenance overhead and minimises downtime.

Smart Brightness Control and Power Protection

An onboard ambient light sensor automatically raises screen brightness in strong daylight for maximum impact and reduces it after dark for energy efficiency — all without operator intervention. A dedicated BLU (Back Light Unit) sensor continuously measures actual panel brightness and compensates automatically for any reduction that develops over operational life, preserving consistency across a multi-unit installation. Additionally, an internal circuit breaker cuts current if abnormal electrical conditions are detected, protecting the display from damage caused by power surges or wiring faults — a meaningful safety measure in outdoor cabinet environments.

Conformal Coating and Wide Operating Temperature

The circuit board and power board are protected by conformal coating — thin protective films and breathing membranes that prevent water vapour and humidity from causing corrosion, even in salty coastal or high-humidity environments. The display is LG-internally tested to IEC 60068-2-5, MIL-STD-810G, and TTA standards, including a solar test simulating the thermal energy of direct sunlight. Operating range is 0–40°C in direct sunlight conditions and 0–50°C with a cooling system in the enclosure. This breadth of environmental tolerance significantly reduces the engineering burden when specifying enclosure cooling, and extends viable deployment locations to coastal, tropical, and high-heat climates.
