LG LASA136

The LG MAGNIT Essential LASA136 is a 136-inch all-in-one direct-view LED display built on COB (Chip-on-Board) Micro LED technology, targeting corporate meeting rooms, retail environments, auditoriums, and premium indoor venues. Unlike conventional LED video wall systems, the LASA136 integrates its controller, webOS smart platform, and speakers into a single turnkey unit — eliminating the external controller boxes, complex module configuration, and multi-cable runs that typically add cost and installation time. The result is a large-format display experience that can be deployed by a small team in a fraction of the time of traditional LED walls, with full front-service access ensuring long-term maintainability even in tight spaces.

COB Micro LED for Deeper Black and Better Contrast

COB (Chip-on-Board) Micro LED bonds microscopic LED chips directly to the circuit board rather than mounting pre-packaged SMD components. This tighter integration reduces the air gaps and reflective surfaces between pixels, resulting in less ambient light scatter and a measurably deeper black level. The LASA136 achieves a 15,000:1 contrast ratio at 10 lux — a figure that makes a visible difference in mixed-light meeting rooms and retail environments where dark backgrounds must stay truly dark. For end users, the practical result is content that looks vivid and punchy without the washed-out appearance that plagues lower-contrast LED walls in moderately lit rooms.

True All-in-One: Controller, Audio and OS Built In

The LASA136 ships with its webOS signage controller, Wi-Fi, Bluetooth, and a 9W+9W stereo speaker system embedded inside the display chassis. This is genuinely different from most commercial LED walls, which require a separate media player, signal processor, audio amplifier, and often a dedicated rack. Removing those external boxes means fewer failure points, less cabling behind the display, and a far shorter equipment list for the integrator to specify and support. For the end user, it means the display can go live as soon as it is mounted and connected to mains power — with content management, wireless screen sharing, and audio all handled from one unit.

One cable. 136 inches. Zero external controllers.

COB Micro LED · webOS embedded · 150,000 h LED lifetime

Three-Step Installation — No LED Expertise Required

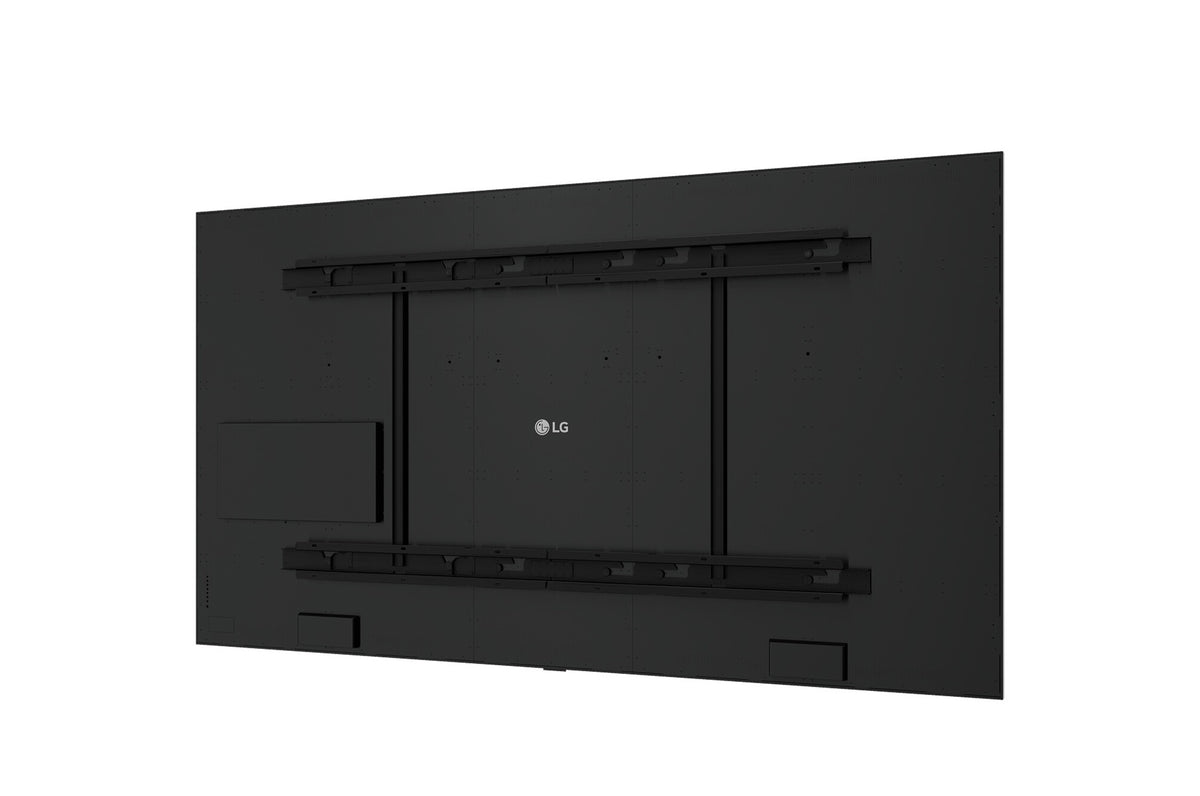

Traditional LED video walls demand specialist knowledge: signal distribution, controller commissioning, module mapping, and careful seam alignment that can take a skilled crew days. The LASA136 reduces this to three steps — secure the three rear frames included in the kit, click the 100 magnetic LED modules into position, and plug in the single AC power cable. No module configuration software is needed, and no controller wiring is required. For organisations deploying in meeting rooms or retail units without dedicated AV engineers on staff, this dramatically lowers the barrier to entry and reduces labour cost on day one.

Full Front Serviceability — No Rear Access Needed

LED modules on the LASA136 are magnetically attached and can be individually removed from the front face using the included suction cup tool. If a module or the system board develops a fault, a technician can swap it out without moving the display away from the wall or requiring access behind it. This is a decisive advantage in permanent wall installations — conference rooms, lobbies, and retail units where the display is flush-mounted or positioned against a partition. Downtime is reduced to the time it takes to swap one 300×168.75 mm module, rather than the hours involved in dismounting a traditional LED wall for rear access.

Scalable Multi-Screen Video Wall via DP Daisy Chain

A single LASA136 delivers 136 inches at Full HD. When more screen area is needed, up to four units can be tiled in 1×2, 2×1, or 2×2 arrangements using DisplayPort daisy chain — a single signal cable from one source feeds all screens in sequence without a separate splitter or scaler. In a 2×2 configuration, the combined output reaches 4K resolution, making it suitable for large auditoriums, broadcast backdrops, or high-impact retail walls. The expansion kit (sold separately) handles the mechanical alignment between cabinets. Note that stand-type installations do not support multi-screen expansion.

HDR10 and HDR10 Pro with 16-bit Processing

The LASA136 processes content at 16-bit depth and is certified for both HDR10 and HDR10 Pro, the extended LG format that supports dynamic tone mapping frame by frame. On a display with a 15,000:1 native contrast ratio, HDR10 Pro produces a genuine perceptible difference: highlights remain controlled, shadow detail is retained, and the full colour intent of HDR-graded content is delivered. For users running premium retail presentations, brand films, or architectural visualisations, this means the content is shown exactly as its creator intended — without the clipping and compression artefacts common on lower-grade commercial displays.

High-Altitude Operation up to 5,000 m

Most commercial displays are rated for operation at sea level or modest elevations. The LASA136 is engineered for reliable operation at altitudes up to 5,000 metres above sea level, achieved by upgrading the power supply units on the power board from 20W SMT to 45W units capable of performing in the lower air pressure and reduced cooling efficiency found at extreme altitude. This makes the display suitable for installations in highland cities across South America, Central Asia, and high-elevation corporate or hospitality venues — markets where standard commercial AV equipment frequently fails prematurely or requires derating.

webOS Smart Signage Platform with Wi-Fi and Wireless Sharing

The embedded Quad Core SoC running LG webOS provides native signage playback, an HTML5-capable browser, and access to LG's SuperSign CMS and Business Cloud for remote content management — without any external player hardware. Wi-Fi and Bluetooth are built in, enabling wireless screen sharing (compatible with LG One:Quick Share) so meeting participants can cast presentations from laptops or mobile devices without plugging in. For corporate and education environments, this turns the LASA136 into an immediately practical collaboration tool as well as a signage platform, without requiring additional infrastructure.
