LG 105BM5P-B

The LG 105BM5P-B is a large-format 105-inch stretch signage display designed for corporate meeting rooms, conference halls, lobbies, and premium collaboration environments. Its ultra-wide 21:9 aspect ratio delivers a native 5K (5,120×2,160) canvas that accommodates widescreen videoconferencing layouts and multi-source presentations far more naturally than any 16:9 display of comparable size. Running Android 13 out of the box, it operates standalone at 16 hours-a-day, 7 days-a-week duty rating, while the integrated OPS slot lets integrators drop in a Windows PC for full desktop functionality without external hardware. Wireless screen sharing via LG CreateBoard Share supports up to nine simultaneous participants, and USB Type-C simplifies laptop connections with 100W power delivery over a single cable.

21:9 Extended Wide Format for Collaboration

The 105BM5P-B uses a 21:9 aspect ratio rather than the standard 16:9, delivering a display that is dramatically wider relative to its height. At 105 inches diagonal, this translates to a physical width of nearly 2.5 metres — enough to show a full widescreen videoconference layout (speaker, gallery and shared content side by side) without any cropping, letterboxing or UI compromise. In a meeting room context this means participants always see the complete picture, eliminating the awkward cropping and zoom adjustments that occur when wide content is forced onto a 16:9 screen. The specialised format also suits dual-app or split-source presentations natively.

True 5K Resolution — 4× the Detail of Full HD

With 5,120 × 2,160 pixels across a 105-inch IPS (ADS) panel, the pixel density is high enough that text, spreadsheet data and presentation slides remain sharp and easy to read even from the back of a large conference room. The panel delivers 10-bit colour depth (8-bit + FRC), a 1,200:1 native contrast ratio and NTSC 72% colour gamut, so charts and imagery look vivid rather than washed out. For integrators specifying a display for executive boardrooms or broadcast-style environments where image quality is non-negotiable, this specification eliminates the need for any external scaler or upconverter — 5K source content is displayed pixel-perfect.

105 inches. 21:9. 5K. One screen that changes the room.

16-7 duty rated · Energy Star certified · CB / NRTL (cULus) / FCC / CE

Portrait and Landscape Orientation Flexibility

The 105BM5P-B supports both horizontal (landscape) and vertical (portrait) installation, giving system designers genuine flexibility. In landscape, the 21:9 panel functions as a dominant meeting-room centrepiece. Rotated to portrait, its tall narrow footprint suits digital signage applications in lobbies, corridor walls or retail environments where vertical real estate is plentiful. Orientation must be set manually during installation — there is no motorised rotation — but VESA 1,000 × 600 mm compatibility means the display works with a wide range of professional wall-mount solutions. This dual-orientation capability means a single SKU can address multiple project types in a reseller's portfolio.

Wireless ScreenShare — Up to 9 Simultaneous Sources

Via the LG CreateBoard Share app, up to nine participants can share their screens simultaneously on the single display — a capability that turns a large meeting into a genuinely collaborative session rather than a one-presenter-at-a-time format. The 21:9 canvas is wide enough to tile multiple shared windows without making any source unreadably small. App-less sharing for PCs via a browser on the same network is also supported, reducing the friction for guests or contractors who cannot install software. Files can also be pushed from the host to all connected devices through the app, replacing the usual USB-stick shuffle.

USB Type-C with 100W Power Delivery

A single USB Type-C cable (sold separately) handles video input via DisplayPort Alt Mode, USB data and up to 100W of laptop charging simultaneously. In a meeting room this eliminates the tangle of separate power adapters and HDMI cables on the conference table. Participants connect a single cable and are immediately on-screen and charging — a meaningful quality-of-life improvement that reduces setup friction and the cable clutter that tends to accumulate around meeting-room tables over time. The port complements the four HDMI inputs (including one HDMI 2.1 and three HDMI 2.0) and the DisplayPort input for full legacy compatibility.

Integrated OPS Slot for Windows PC Functionality

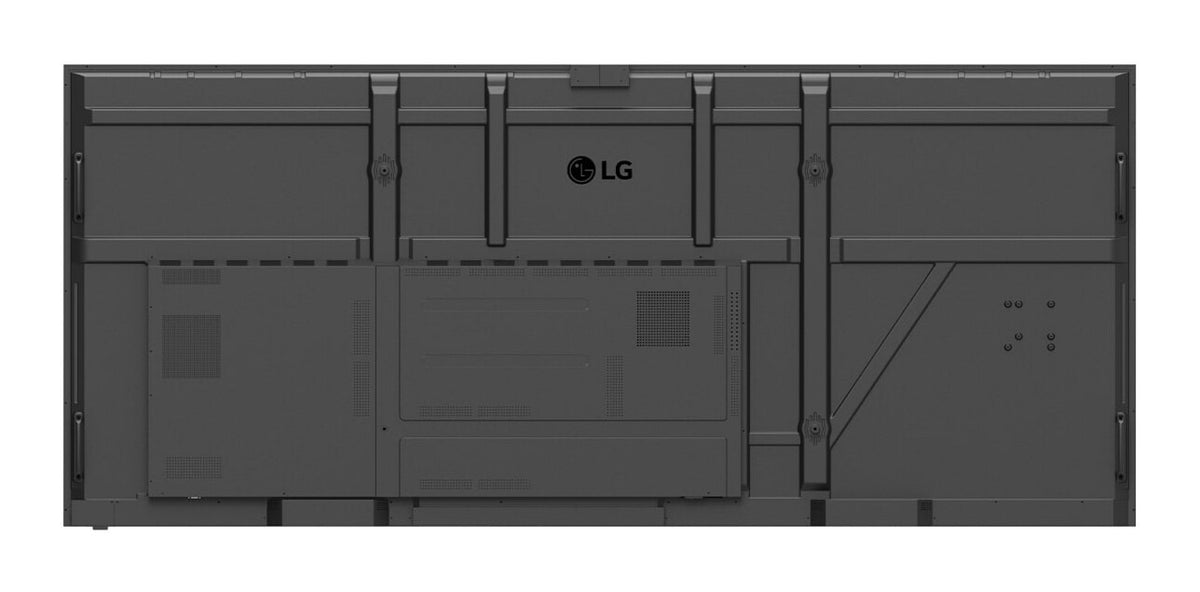

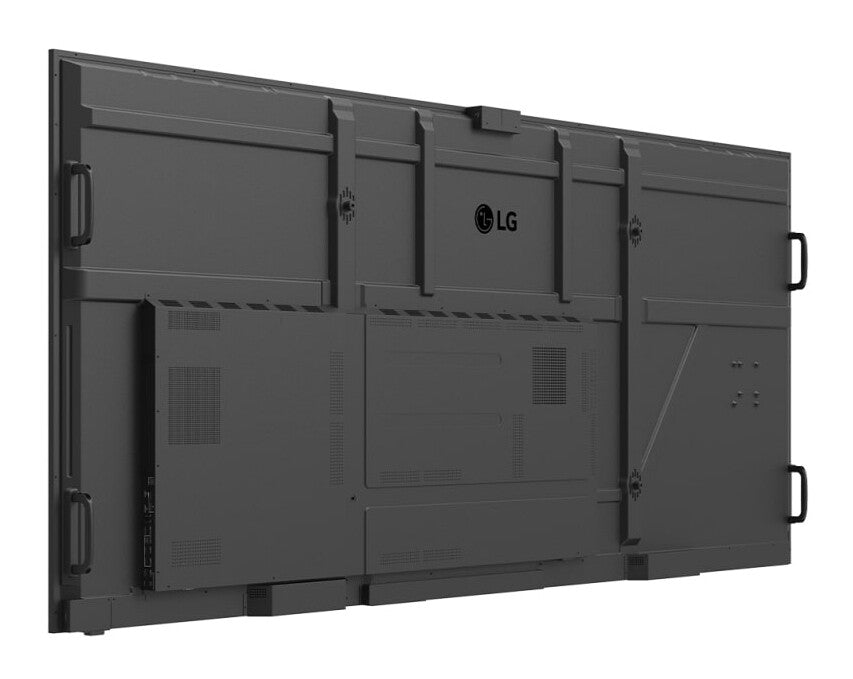

The OPS (Open Pluggable Specification) slot built into the rear of the 105BM5P-B accepts a compatible OPS module — such as LG's optional OPSJ-5LDJA (4K) — transforming the display into a full Windows computing workstation without any external PC, cable routing or desk clutter. For integrators this dramatically simplifies installation: one mounting bracket, one power connection, zero external boxes. For the end user it means access to the full Windows software ecosystem — including specialised meeting-room or digital-signage applications — directly from the display itself, with the OPS unit hidden behind the panel and powered by the display's built-in OPS power supply.

Android 13 Built-in with Wi-Fi 6 and Remote Management

The integrated SoC (ARM Cortex-A76 × 4 + A55 × 4, Mali-G610 MP4 GPU) runs Android 13 (AOSP) with 8 GB RAM and 64 GB internal storage, making the display fully standalone for signage and collaboration applications without an OPS module. Wi-Fi 6 (802.11ax) and Gigabit LAN provide fast, reliable network connectivity, and Bluetooth 5.2 is available for peripherals. LG ConnectedCare DMS cloud management (purchased separately) allows IT teams to remotely monitor, update settings, push content and trigger alert messages across a fleet of deployed units — without physically visiting each site. Fail Over input switching and Wake on LAN round out the remote-operations feature set, supporting stable 16-7 deployments.

Slim 77mm Depth and 18mm Uniform Bezel

At only 77 mm deep and with an 18 mm bezel on all four sides, the 105BM5P-B installs flush against a wall with a clean, architectural profile. The uniform bezel width means the display looks intentional rather than utilitarian, which matters in executive or client-facing environments. The reduced depth also simplifies cable management behind the panel. At 54.1 kg (head only) professional installation with two people is recommended, but the integrated handle and VESA 1,000 × 600 mm pattern ensure compatibility with standard commercial mounting solutions.
