LG 55XF3E-B

The LG 55XF3E-B is a 55-inch open-frame outdoor digital signage display engineered for demanding high-brightness environments such as shop-window installations, outdoor kiosks, and sun-exposed public spaces. Delivering 3,000 nits of brightness and featuring a QWP surface treatment for visibility through polarized sunglasses, it keeps content legible even in direct sunlight. The built-in webOS 3.0 platform with quad-core SoC eliminates the need for an external media player, while the fanless design and conformal-coated circuitry ensure quiet, resilient 24-7 operation. Compatible with LG SuperSign CMS for centralized content and device management.

3,000 Nits for Full-Sun Readability

The 55XF3E-B delivers 3,000 cd/m² of brightness from its IPS M+ (WRGB) panel — roughly six times what a typical indoor commercial display produces. At that level, content remains clearly legible even in shop-window or outdoor-facing installations where direct sunlight hits the screen. Combined with the QWP (quarter-wave plate) anti-glare surface treatment, the display also stays visible to viewers wearing polarized sunglasses — a detail that matters enormously in sunny retail and transport environments where a significant share of passersby wear tinted lenses. The smart ambient light sensor automatically scales brightness up in bright conditions and down in darkness, reducing power draw during off-peak hours without any manual intervention.

Built-In webOS 3.0 — Standalone Signage Operation

The display integrates a quad-core SoC running webOS 3.0, which means it can fetch, schedule and play signage content without any external media player or PC. For installers this removes a hardware box, its cabling and a potential failure point. For the end operator, the platform supports LG SuperSign CMS for centralised remote management of playlists, schedules and device health across multiple screens from a single dashboard. The intuitive webOS UI also makes on-site adjustments straightforward for non-technical staff. App development support is built in, giving operators flexibility to build custom workflows over time.

3,000 nits. Open frame. Full sun. Zero compromise.

50,000-hour panel lifetime · 3-year conditional limited warranty

Fanless Design for Silent, Reliable Operation

By eliminating the cooling fan entirely, the 55XF3E-B is rated to operate below 25 dB — quiet enough for premium retail shop-windows, hotel lobbies and any environment where fan noise would be intrusive. Beyond comfort, the absence of moving parts reduces mechanical failure risk and means no fan filters to clean or replace. The display is specified for operation up to 50°C (without direct sunlight, or with an active cooling system in direct-sun scenarios), making it suitable for enclosed cabinet installs that naturally trap heat. This combination of silent operation and thermal resilience significantly lowers maintenance workload over the product's 50,000-hour rated panel life.

Conformal Coating for Harsh Environments

Every major circuit board inside the 55XF3E-B is treated with a conformal coating that shields electronics against dust, iron powder and humidity. This is directly relevant for open-frame deployments where the display is built into a kiosk, vending unit or architectural surround that may not be fully sealed — and where maintenance access could expose internals to particles. The coating eliminates corrosion and short-circuit risks from environmental ingress without requiring the display itself to carry a full IP rating. Combined with the AGLR (anti-glare, low-reflection) surface treatment with 3% haze, the panel resists fingerprints and surface damage under frequent public exposure.

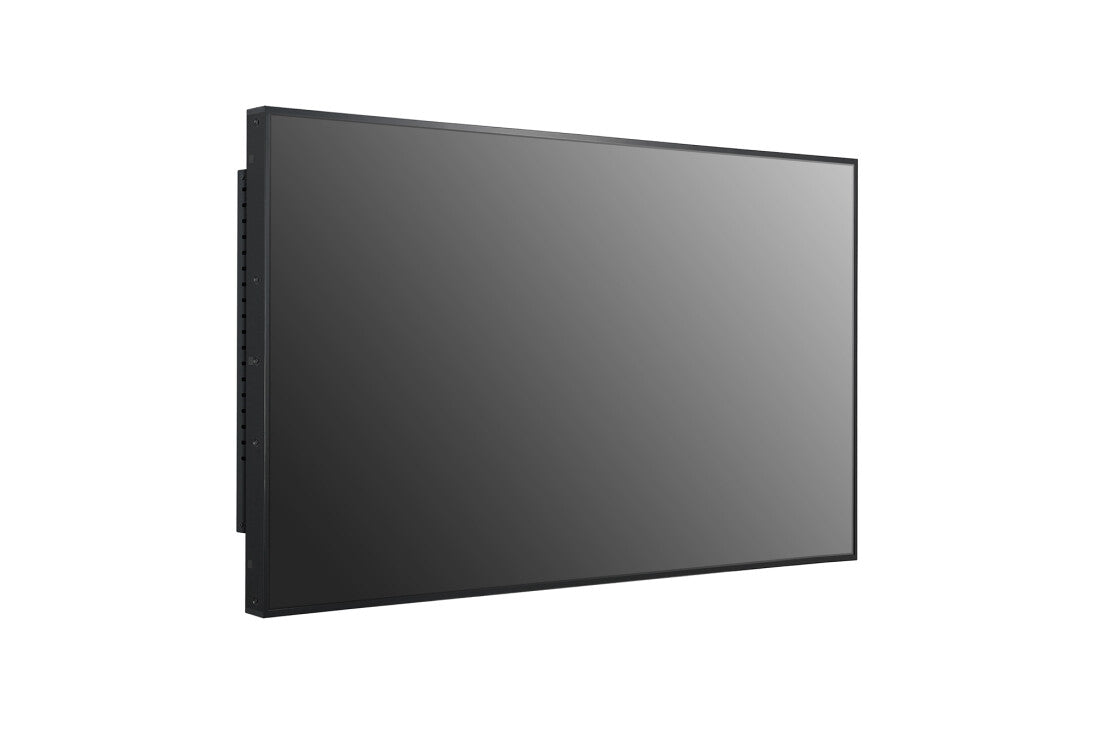

Open-Frame Format for Kiosk and Fixture Integration

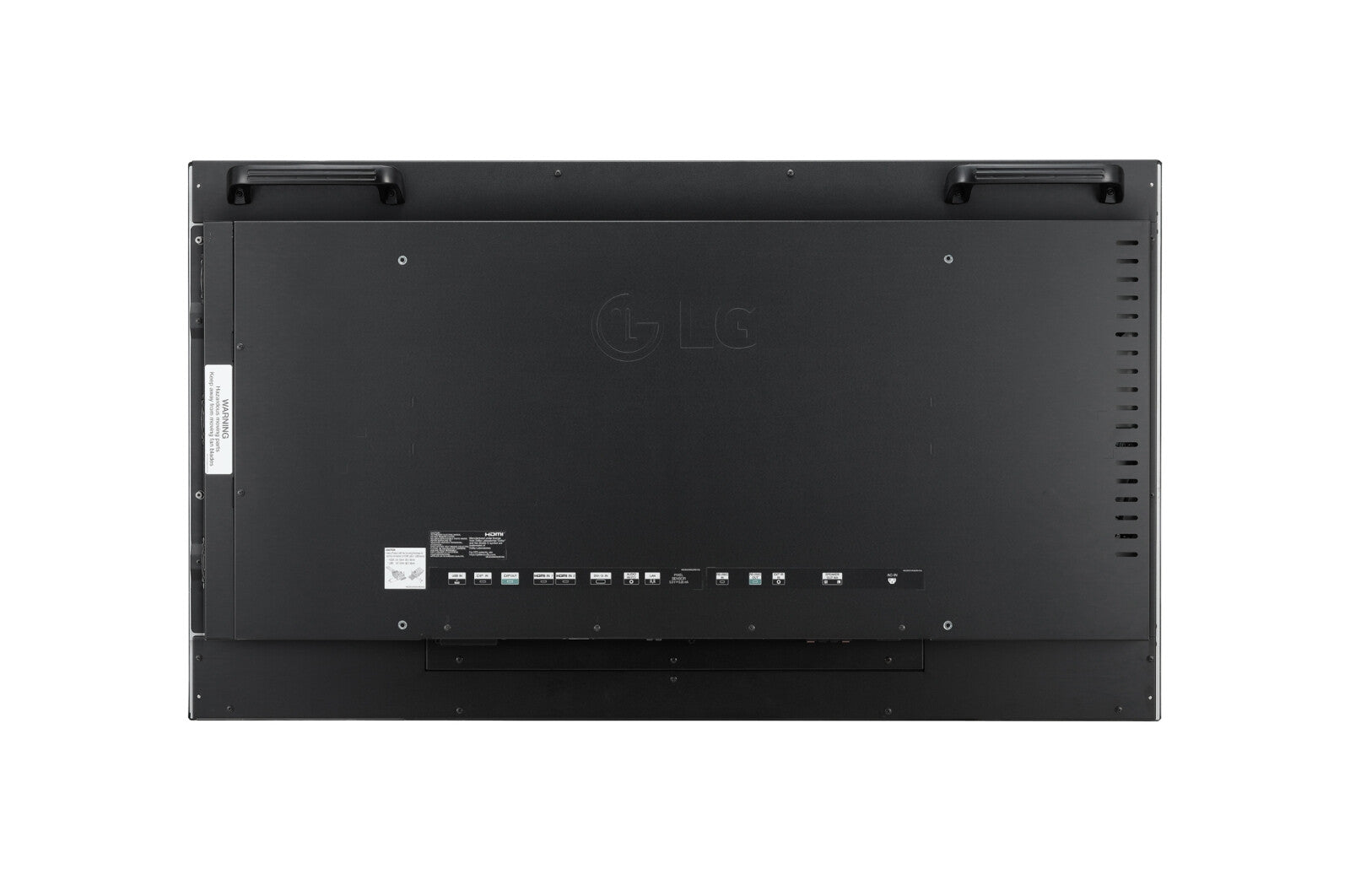

The 55XF3E-B ships as a bare open-frame panel — 1,235.5 × 709.4 × 106.8 mm, 26.5 kg — designed to be built directly into custom enclosures, digital kiosks, vending machines or architectural display frames. The slim 106.8 mm depth eases fitment in shallow cabinets. VESA 600 × 400 mm mounting is supported, and the display accepts landscape or portrait orientation, giving integrators full flexibility in how they mount it. Connectivity covers dual HDMI inputs, DisplayPort in and out, DVI-D, RS232C serial control in and out, RJ45, IR receiver, USB and external speaker output — a broad I-O set that suits almost any signal source or control system without requiring adapters.

24-7 Rated with 50,000-Hour Panel Lifetime

The 55XF3E-B carries a full 24-hours-a-day, 7-days-a-week operation rating and a 50,000-hour panel lifetime — roughly 5.7 years of continuous unattended running before brightness is expected to halve. For transport hubs, 24-hour retail, petrol forecourts or any deployment where screens must never go dark, this rating removes uncertainty about duty-cycle limitations. The 100–240 V universal power supply with built-in PSU means no external power brick and straightforward installation in any region. Typical power consumption is 250 W (max 300 W), with a Smart Energy Saving mode dropping to approximately 120 W in low-ambient conditions.
