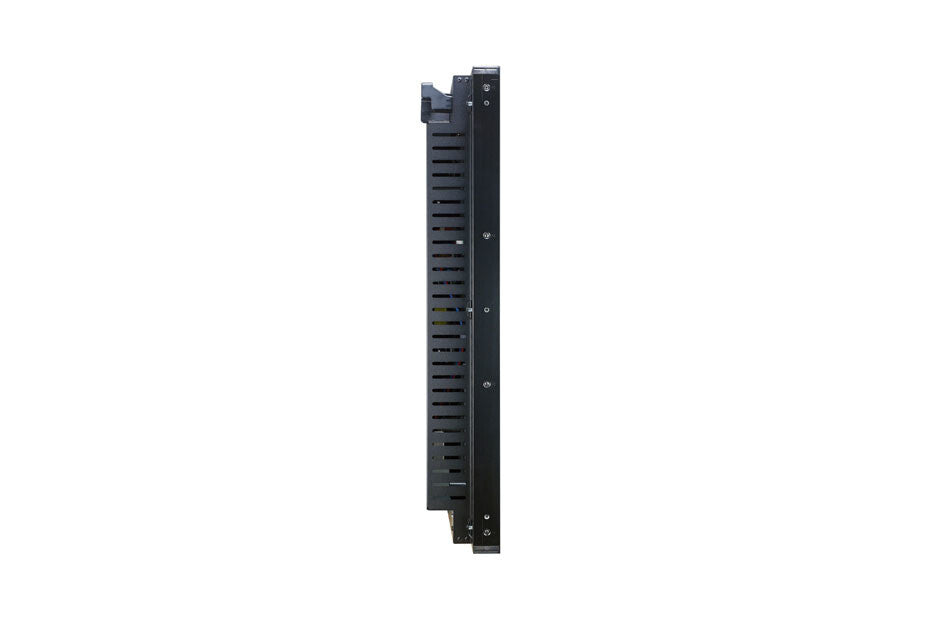

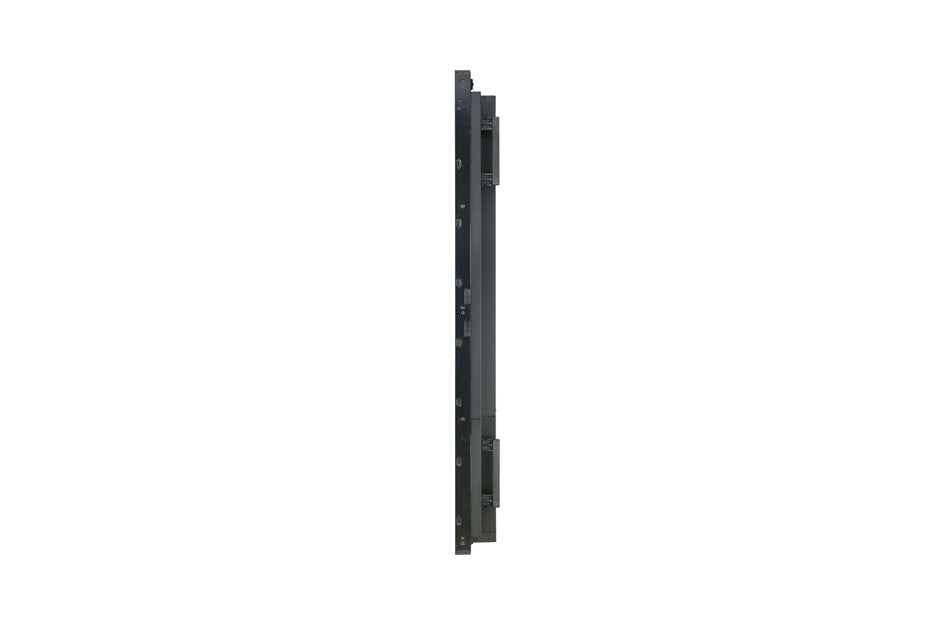

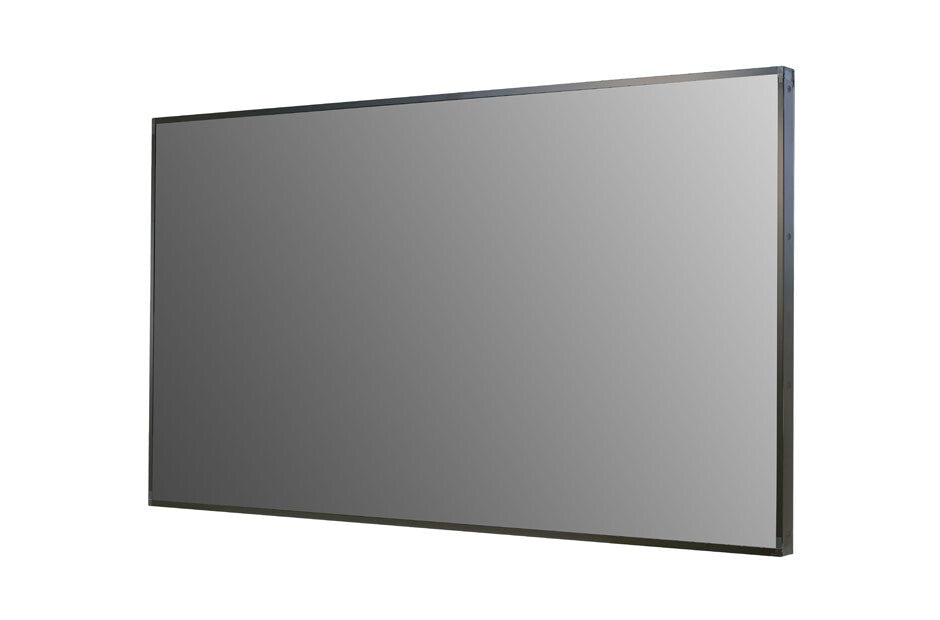

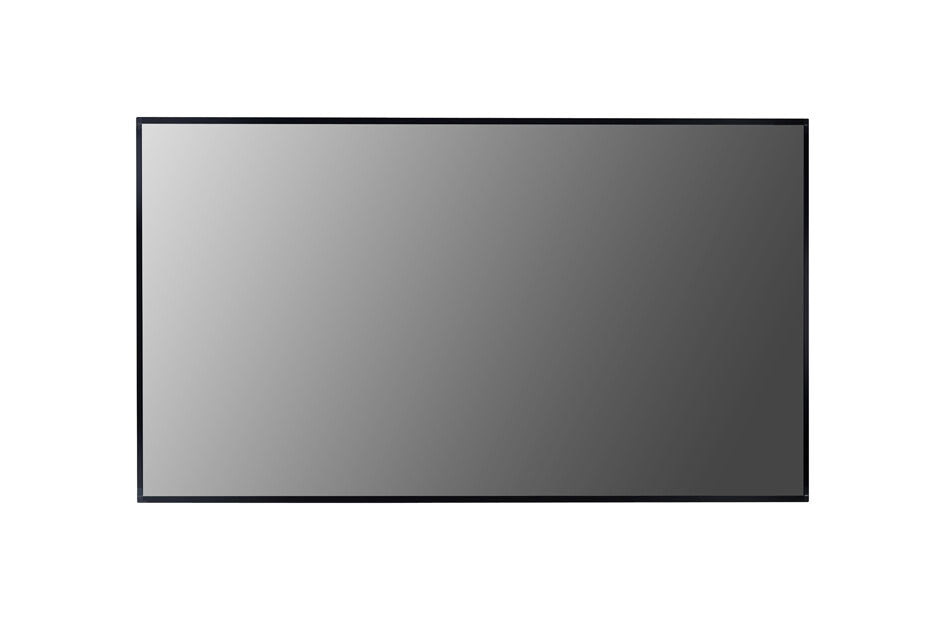

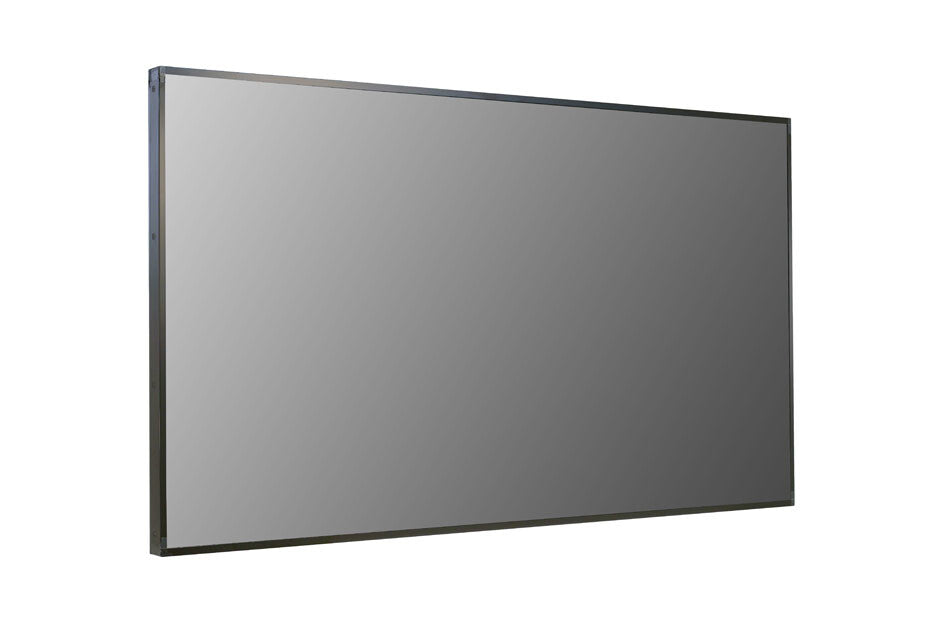

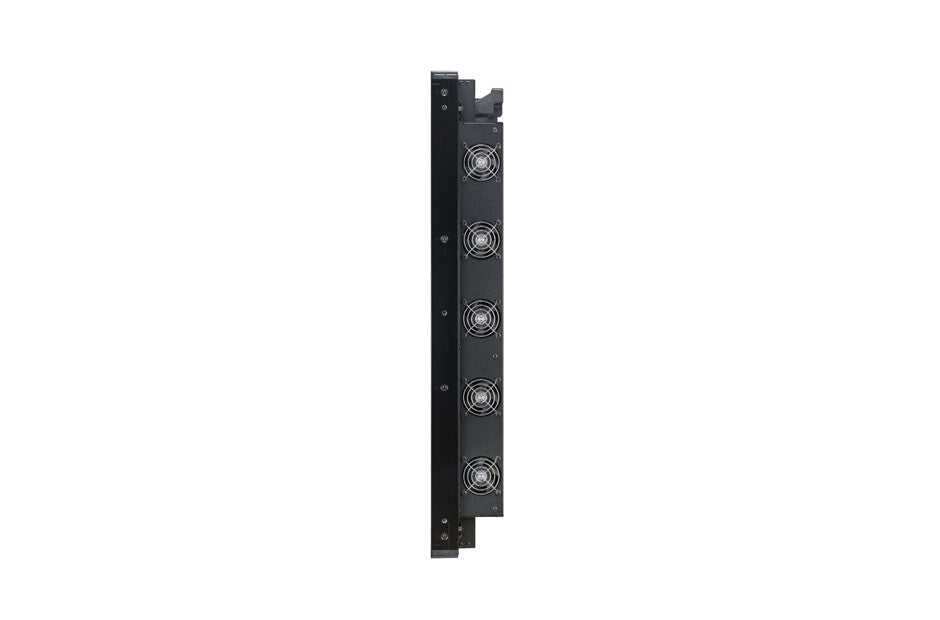

LG 75XF3C-B

LG 75XF3C-B

75", UHD 3840 x 2160 px, 3000 cd/m2, 50000 h, HDMI, DP, DVI-D, USB, RS232C, LAN, webOS 1.0, 750 W

  • Digital signage flat panel Black
  • 190.5 cm (75") 3840 x 2160 pixels LED 3000 cd/m²
  • 8 ms
  • Ethernet LAN
  • SKU:8806087857405
  • GTIN/EAN:8806087857405
  • MPN:75XF3C-B

You need to login to view the price.

Add To Favorite
View full details

High Operationing Temperature
Its high reliability under high operating temperatures reduces the material costs of the enclosure.

Dust & Humidity Protection
The conformal coating enhances circuit board reliability by protecting it from dust, iron shavings, humidity and other harsh conditions.

Increased Brightness
The brightness has been increased to 3,000 cd/m2 compared to previous models

Wide Viewing Angle
IPS technology provides better control of the liquid crystals which allows the screen to be viewed from virtually any angle.

Color Accuracy
IPS technology displays accurate color for each pixel closest to the original image and reproduces the original color without distortion.

No Blackening Effect
Even under direct sunlight exposure, LG commercial monitors remain free of blackening defects under 110°C and provide superior quality for outdoor usage.

Low Power Consumption Using The M+ Panel
The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by 30 compared to conventional RGB panels.

Smart Brightness Control
The auto-brightness sensor and preset time scheduler save power whenever possible.

Slimmer Depth
The slimmer depth saves space for installation and makes the enclosure design slimmer.

Real-Time Remote Monitoring
When an alarm occurs, an email notification is sent through the SNMP using the SuperSign C or SI software. In case a malfunction or error occurs, real-time remote care is available.

Saving System Log Files
The XF3C supports log file back-up for fault clarification when the display fails. This allows you to conveniently check when an error has occurred.

Display
Horizontal scan range
30 - 135 kHz
Vertical scan range
30 - 60.3 Hz
Panel life
50000 h
Display diagonal (metric)
189 cm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1000:1
Response time
8 ms
Native aspect ratio
16:9
Touchscreen
No
HD type
4K Ultra HD
Display brightness
3000 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
LED
Display diagonal
190.5 cm (75")
Ports & interfaces
Compatible memory cards
SD
Card reader integrated
Yes
RS-232C
Yes
RS-232 interface
Yes
Audio (L/R) out
1
Audio (L/R) in
1
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB port
Yes
DisplayPorts quantity
2
DVI-D ports quantity
1
DVI port
Yes
HDMI ports quantity
2
Audio
Built-in speaker(s)
No
Design
Bezel width (bottom)
1.28 cm
Bezel width (side)
1.18 cm
Bezel width (top)
1.18 cm
Panel mounting interface
600 x 400 mm
VESA mounting
Yes
Orientation
Horizontal/Vertical
Product colour
Black
Product design
Digital signage flat panel
Performance
Operating hours (hours/days)
24/7
TV tuner integrated
No
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (standby)
0.5 W
Power consumption (typical)
750 W
Weight & dimensions
Weight
36.7 kg
Height
953.6 mm
Depth
123.9 mm
Width
1675.2 mm
Packaging content
Cables included
AC, DVI, DisplayPort, HDMI, IR sensor
Remote control included
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Features
Harmonized System (HS) code
85285210
Other features
Manual
Yes
RS-232 input ports
1
RS-232 output ports
1
