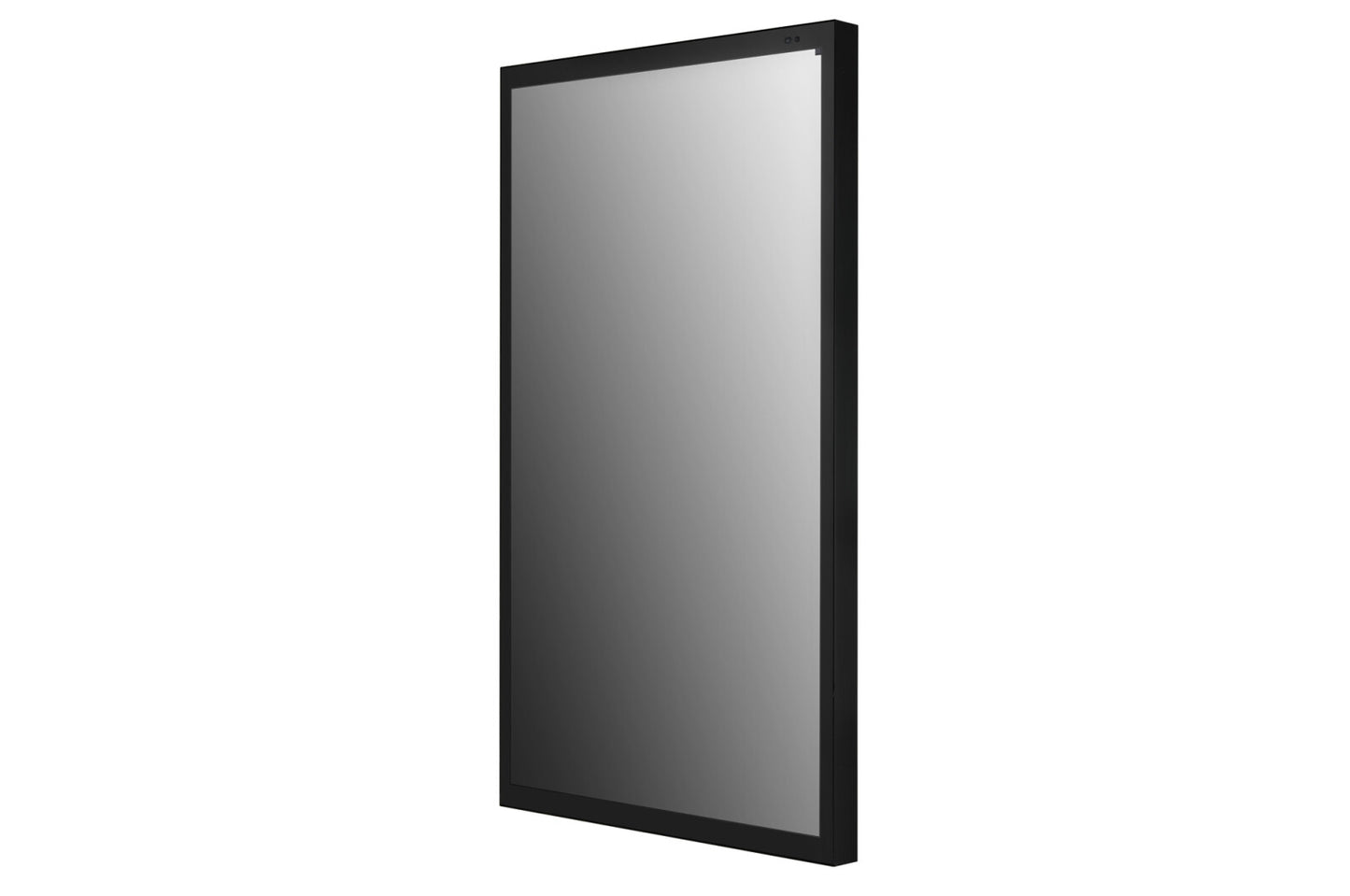

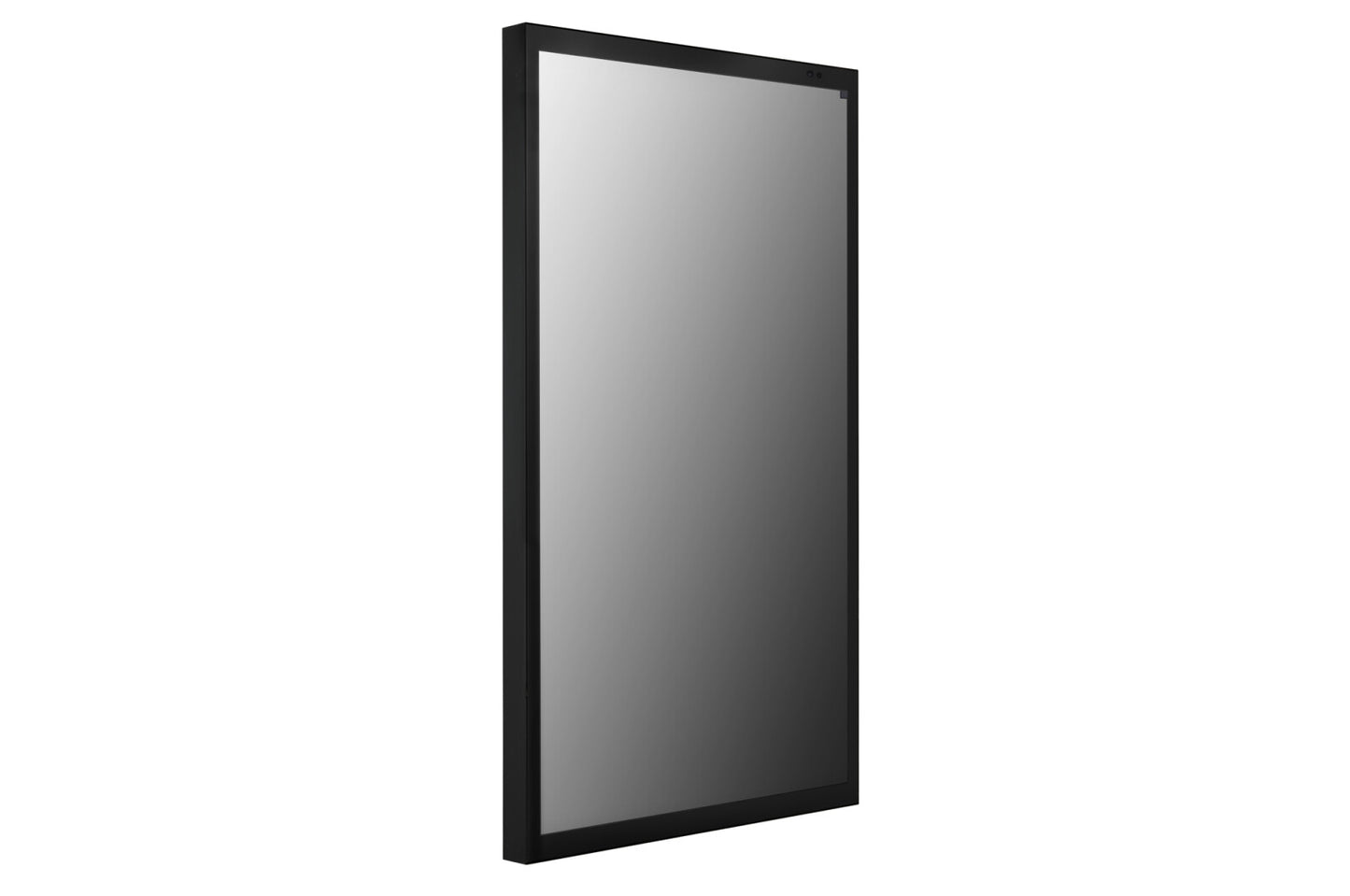

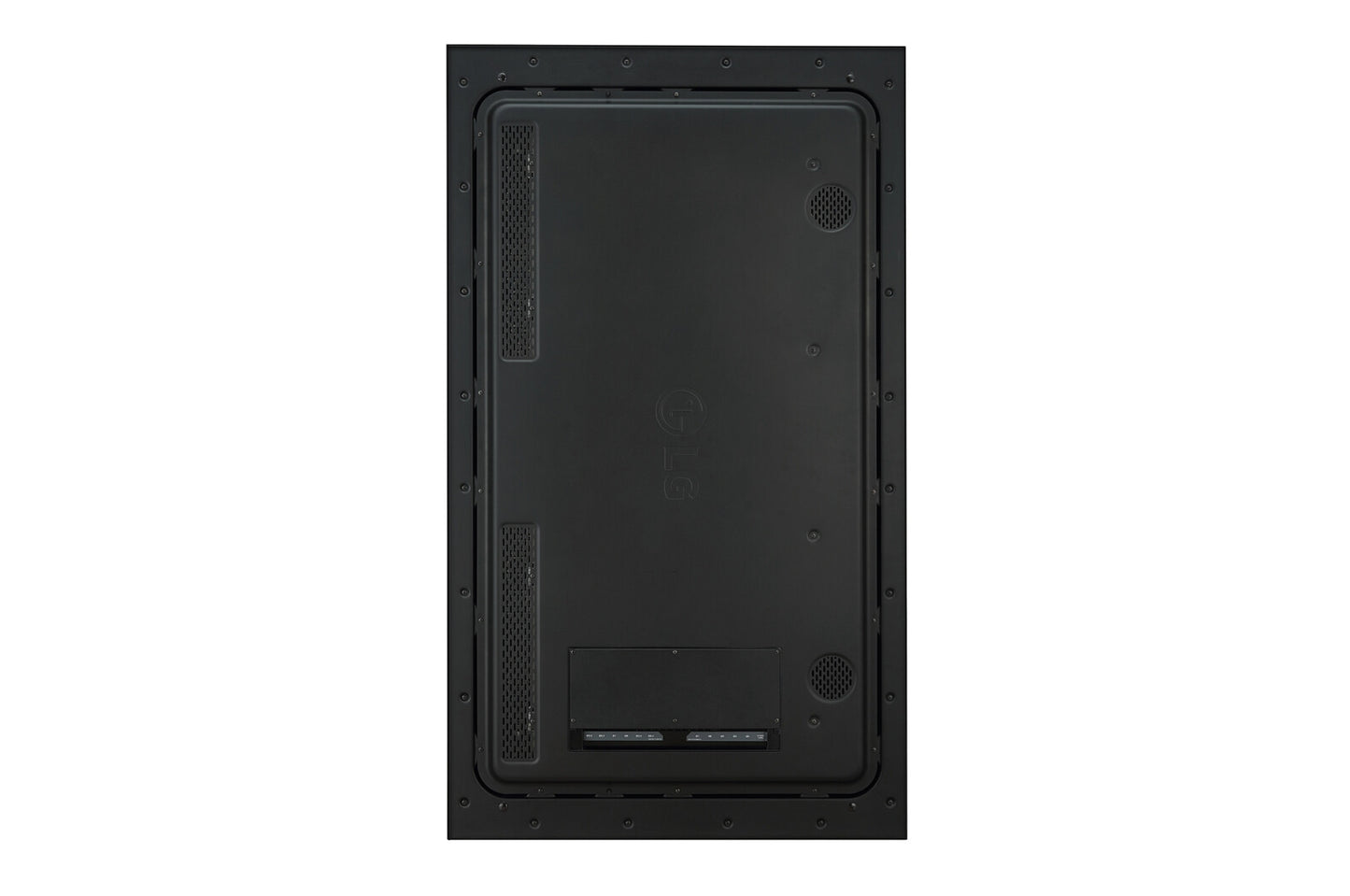

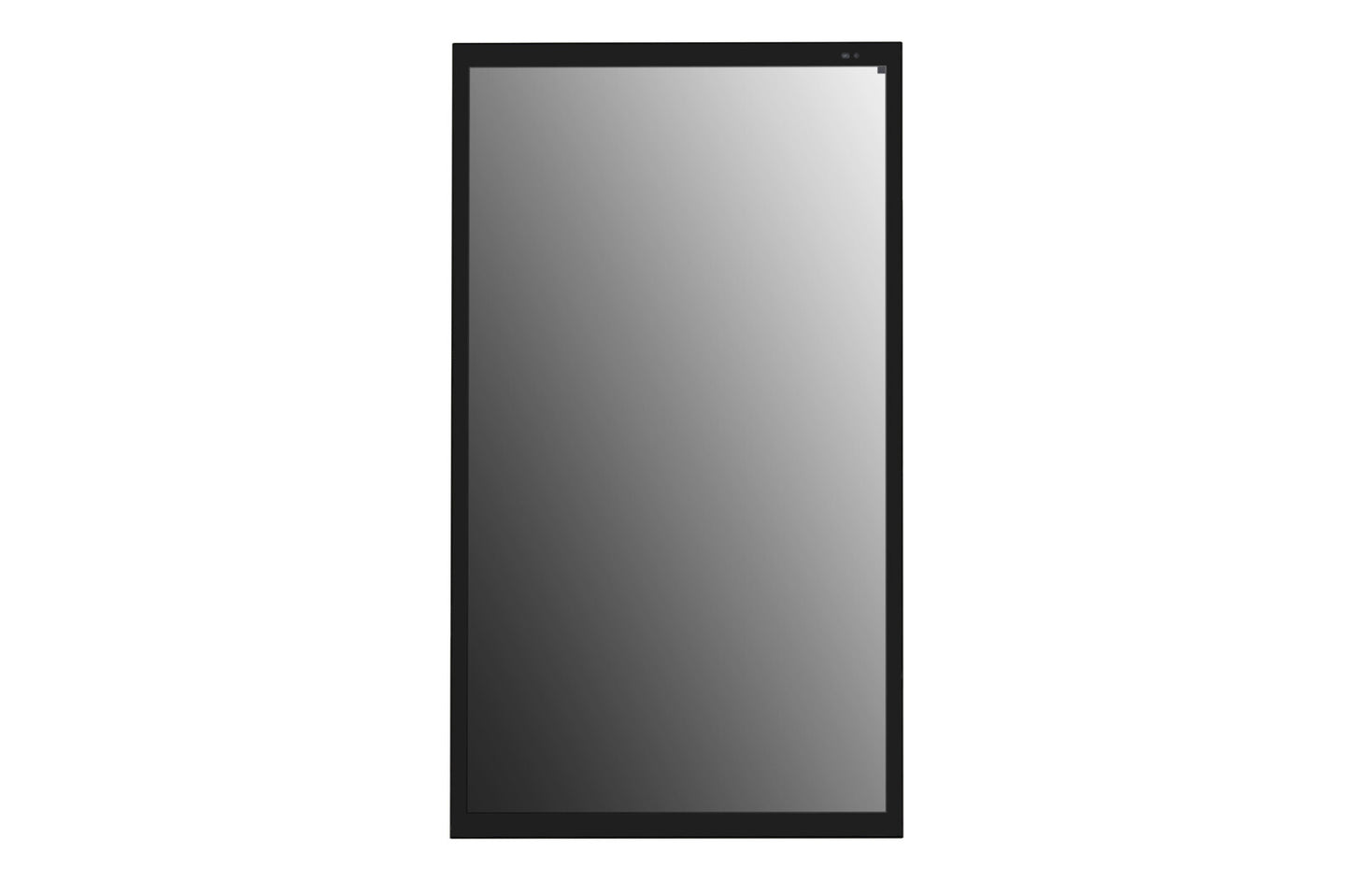

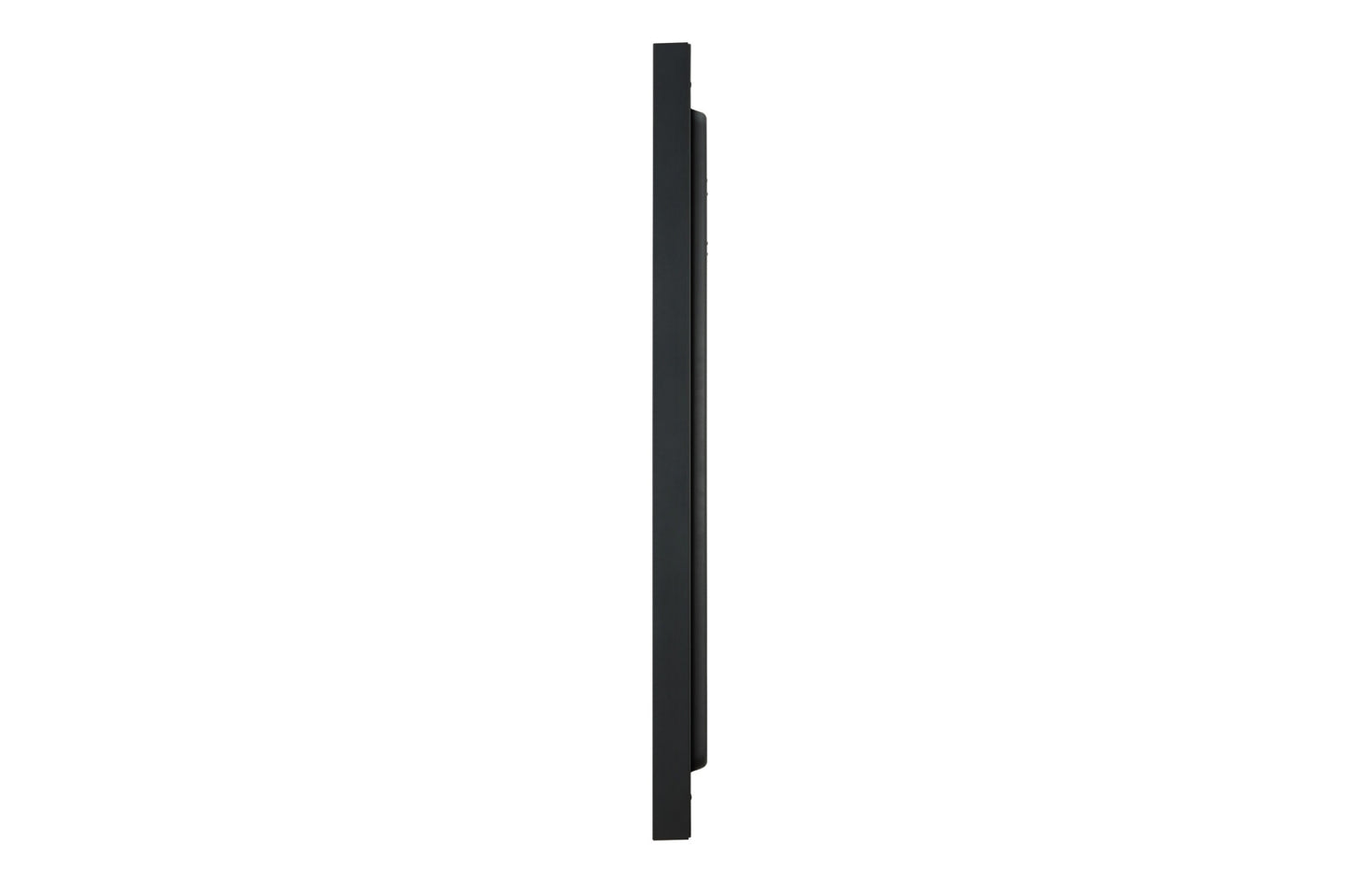

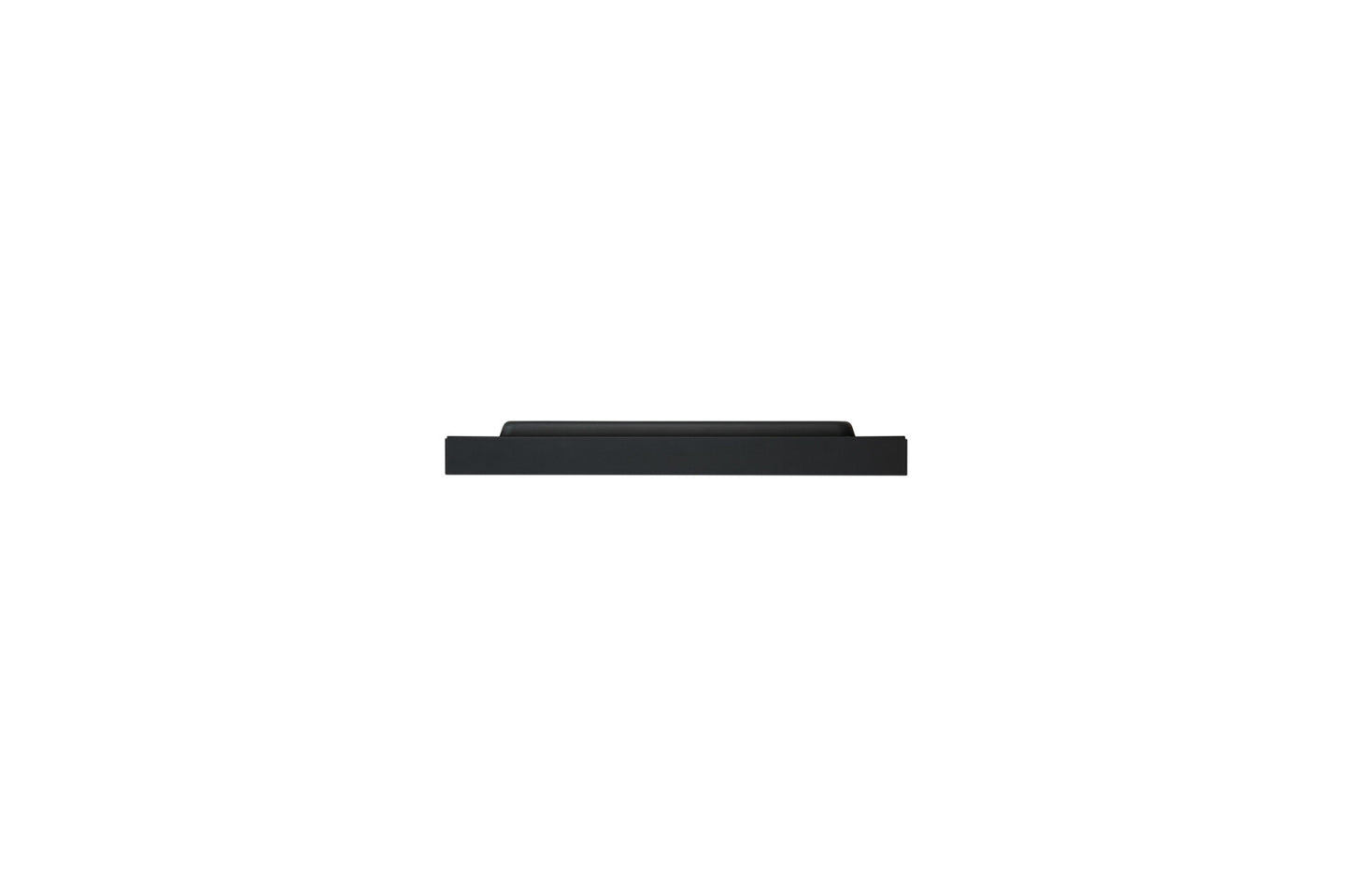

LG 55XE4F-M

LG 55XE4F-M

55", IPS, 1920x1080, 16:9. HDMI, DP, HDBaseT, USB, RS-232C, RJ-45, 737.4x1292.5x88 mm

  • Brightness(Typ.) : 4,000 cd/m²
  • Bezel : 38.4 mm (T/B), 26.0 mm (L/R)
  • Interface : HDMI/ DP/HDBaseT/USB/ Audio/ RS232C/ RJ45
  • Anti-Reflection Coating
  • IP56 Design, IK10 Protective Glass
  • SKU:8806098537037
  • GTIN/EAN:8806098537037
  • MPN:55XE4F-M

You need to login to view the price.

Add To Favorite
View full details

LG 55XE4F-M Digital signage display 139.7 cm (55') IPS 4000 cd/m² Full HD Black 24/7. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: IPS, Display resolution: 1920 x 1080 pixels, Display brightness: 4000 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Product colour: Black

Slim & Robust Design with Outstanding Visibility
With a slim & robust design, XE4F series can be easily installed to meet the customer’s needs in external environments that require complex installation conditions. And upgraded brightness captures the attention of customers even under strong and direct sunlight.

SLIM & ROBUST DESIGN
Slim & Light Design
XE4F series is composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.

SLIM & ROBUST DESIGN
Easy integration for partner’s customized design
The XE4F series is lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series is also mountable and optimized for customers, based on the industry purpose and use.

OUTSTANDING VISIBILITY
Bright & Brilliant
The XE4F series possesses powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.

OUTSTANDING VISIBILITY
Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

OUTSTANDING VISIBILITY
Long Lasting Brightness
By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.

OUTSTANDING VISIBILITY
Visible with Polarized Sunglasses
QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.

RELIABILITY FOR OUTDOOR USAGE
Secured Protection with IP56 Design
The display is sealed with IP56 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.

RELIABILITY FOR OUTDOOR USAGE
Protective Glass (IK10 Certified)
The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.

EASY MAINTENANCE
Support HDBaseT ™
The XE4F Series supports HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installation and maintenance costs.

EASY MAINTENANCE
Web Monitoring
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

Warranty: 2 year

Display
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
500000:1
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
Touchscreen
N
HD type
Full HD
Display brightness
4000 cd/m²
Display resolution
1920 x 1080 pixels
LED backlighting type
Direct-LED
Display technology
IPS
Display diagonal
139.7 cm (55")
Ports & interfaces
RS-232C
Y
Wi-Fi
N
Ethernet LAN
Y
USB ports quantity
2
USB port
Y
DisplayPorts in
1
DisplayPorts quantity
1
DVI port
N
HDMI input ports quantity
2
HDMI ports quantity
2
Audio
Built-in speaker(s)
N
Design
Bezel width (bottom)
3.84 cm
Bezel width (side)
2.6 cm
Bezel width (top)
3.84 cm
Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
Mean time between failures (MTBF)
50000 h
International Protection (IP) code
IP56
Operating hours (hours/days)
24/7
Purpose
Universal
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (typical)
310 W
Computer system
Built-in processor
N
Computer system
N
Weight & dimensions
Weight
40 kg
Height
1292.5 mm
Depth
88 mm
Width
737.4 mm
Packaging data
Package weight
45 kg
Package height
890 mm
Package depth
207 mm
Package width
1446 mm
Packaging content
Cables included
AC, HDMI
Remote control included
Y
Operational conditions
Operating relative humidity (H-H)
5 - 100%
Operating temperature (T-T)
-30 - 50 °C
Certificates
Certification
IEC 60950-1 / EN 60950-1 / UL 60950-1FCC "A" / CE / KCCErP
Features
Harmonized System (HS) code
85285210
Other features
Manual
Y
HDBaseT port
Y
