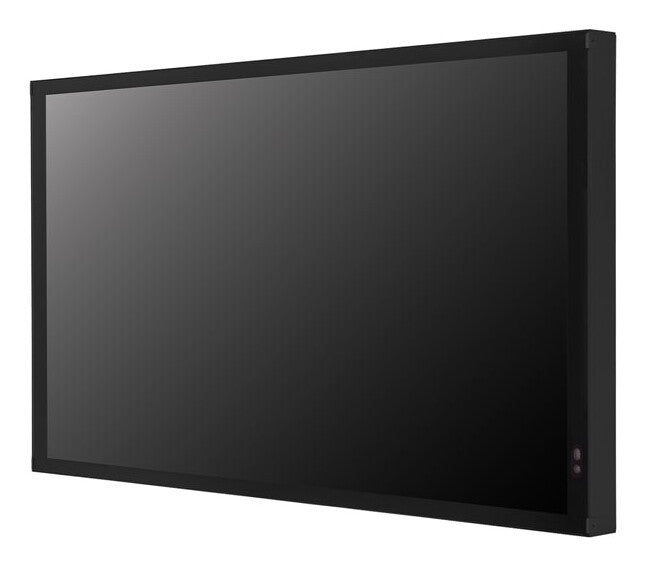

LG 55XE4P-B

The LG 55XE4P-B is a 55-inch Full HD outdoor digital signage display engineered for demanding environments such as drive-throughs, transit hubs, amusement parks, and retail forecourts. Built around an IPS M+ panel capable of 4,000 nits peak brightness, it remains fully legible in direct sunlight. The display carries IP56 dust and water resistance, IK10 impact-rated tempered protective glass, and an operating temperature range of -30°C to 50°C. Running LG webOS 6.1 as a standalone SoC, it delivers reliable content playback without an external media player, while built-in Wi-Fi, Bluetooth, and wired LAN provide flexible connectivity for remote management and content distribution.

4,000-Nit Sunlight-Readable IPS Display

The 55XE4P-B uses a Direct-LED IPS M+ panel rated at 4,000 nits typical brightness (3,200 nits minimum), with a quarter-wave plate (QWP) to suppress reflections and a 3% haze anti-reflective surface treatment. At this luminance level, content remains legible even when the display faces direct sunlight — eliminating the need for sunshades or enclosures that add cost and restrict viewing angles. The 178°×178° IPS viewing angle means the image holds its colour and contrast for approaching pedestrians at sharp off-axis positions, which is critical in drive-through lanes or busy forecourts. Auto-brightness and BLU sensors continuously tune output to ambient conditions, keeping visuals vivid without overdriving power in darker periods.

IP56 and IK10 Weather and Impact Protection

IP56 certification means the 55XE4P-B is fully protected against dust ingress and water jets from any direction — meeting the baseline requirement for exposed outdoor installations without an additional weatherproof housing. The front glass is IK10-rated tempered, laminated and shatter-proof: it can absorb the highest standardised impact force without shattering into dangerous fragments, significantly reducing the risk of costly LCD module replacements after vandalism or accidental impacts. Conformal coating on both the circuit board and power board adds a further layer of defence against humidity, salt spray, iron powder, and other airborne contaminants that typically shorten the life of electronics in outdoor environments. Together these protections mean lower total maintenance cost and fewer unplanned service calls over the display's lifetime.

4,000 nits. IP56 sealed. Zero compromise outdoors.

UL Verified Anti-Discoloration · IP56 · IK10 · 24-7 rated · webOS 6.1

World-First UL-Verified Anti-Discoloration Technology

Screen yellowing and the formation of dark circles are the most common — and most difficult to reverse — failure modes for outdoor displays subjected to prolonged heat and UV exposure. LG has developed a proprietary enhanced thermal solution specifically to address both phenomena, and has obtained the world's first UL Verification for Display Anti-Discoloration Characteristics (verifiable at verify.ul.com/verifications/1382). For an operator running a 24-7 outdoor installation, this translates directly to a longer window before the panel needs replacement and sustained brand-quality image output throughout the display's rated 50,000-hour lifetime. It also removes a major objection in the sales process: prospective customers with prior bad experiences of yellowing panels now have independent third-party validation to point to.

Standalone webOS 6.1 SoC with Fail-Over

The 55XE4P-B runs LG webOS 6.1 on an upgraded system-on-chip with 16 GB eMMC storage, enabling fully standalone operation without an external media player. The platform supports local content scheduling, USB Plug & Play, screen rotation, tile mode (up to 15×15), gapless playback, and content delivery via URL — covering the majority of signage use cases without additional hardware cost. A built-in fail-over function detects if the primary source signal drops and automatically switches to the last active content, so the screen never goes dark due to a player disconnection. For multi-screen installations in a 1×N row, Backlight Sync lets operators lock brightness uniformity across all units from a single menu setting — eliminating visible brightness steps between adjacent panels.

Vandalism Alert with Gyro Sensor

A built-in acceleration and gyro sensor continuously monitors physical impact force and tilt angle. If either exceeds a configured threshold — whether from deliberate vandalism or an accidental collision — the display immediately sends an alert to the administrator via the LG Control Manager or ConnectedCare platform. This gives security and facilities teams real-time awareness of events at remote or unmanned sites, enabling rapid response before damage escalates. The same gyro data can also flag if a wall or pole mount has shifted over time, allowing pro-active remedial action before the display is at risk of falling. For high-footfall retail or transit environments, this closes a significant gap in outdoor asset protection.

Extreme Operating Temperature Range

The 55XE4P-B is specified for continuous operation from -30°C to 50°C (without direct sunlight), and from -30°C to 40°C under direct sunlight — a range that encompasses virtually every outdoor climate worldwide. A built-in fan system manages internal heat dissipation, and a dedicated temperature sensor feeds real-time data to the management platform. This means the display can be deployed in Scandinavian winter conditions as readily as in Mediterranean summer heat, without requiring additional heating or cooling accessories that would add bulk and maintenance points. The conformal-coated electronics and humidity sensor further ensure the unit copes with condensation cycles during large temperature swings.

Built-In Wi-Fi, Bluetooth and Beacon

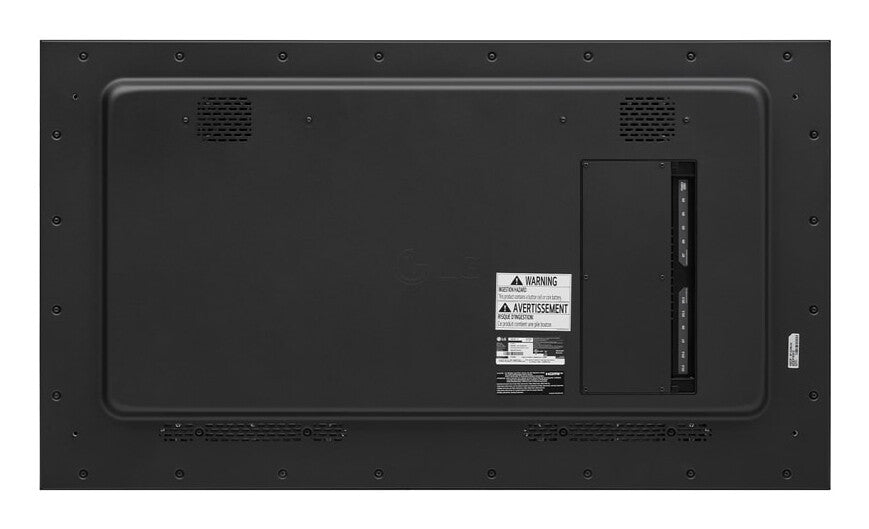

The 55XE4P-B includes dual-band Wi-Fi and Bluetooth as standard, removing the need for a separate wireless adapter in installations where running a LAN cable to every display is impractical or prohibitively expensive. Content can be pushed wirelessly and the display participates in LG's encrypted network to prevent data interception. The integrated Bluetooth beacon functionality enables location-based content delivery — for example, a retail operator can trigger contextually relevant promotions when a customer's app detects proximity to a specific display. Two RJ45 ports (LAN in and LAN out) allow daisy-chaining of wired network connections across multiple units, reducing cable runs in multi-display rows.

Landscape and Portrait Orientation Support

The 55XE4P-B supports both landscape and portrait mounting orientations, with on-screen and software-level rotation (External Input Rotation) to match. This flexibility matters in drive-through menu board configurations — where a tall portrait format maximises readable menu area — as well as in horizontal landscape arrays at ticket counters or race tracks. The display also supports a +15° face-down tilt and includes a built-in self-leveler tool that simplifies getting the unit perfectly horizontal or vertical during installation, reducing the time and skill required on-site.
