55UH5Q-E

55-inch 4K UHD (3840x2160) ADS commercial signage display rated for 24-7 operation, 500 nits brightness, webOS 8.0 with built-in SoC, LG Shield security, and 11.4 mm even bezel.

  • 4K UHD (3840x2160) ADS panel with 500 nits brightness and 178-degree wide viewing angle
  • Rated for 24-7 continuous operation with up to 50,000-hour panel lifetime
  • Built-in webOS 8.0 SoC eliminates the need for an external media player
  • LG Shield five-tier security protects at server, app, OS, system and hardware levels
  • Even 11.4 mm slim bezel with hidden cable management for close-to-wall installation
  • IP5X dust protection and conformal coating for reliable operation in challenging environments
  • SKU:8806096522172
  • GTIN:8806096522172
  • MPN:55UH5Q-E

You need to login to view the price.

View full details
BRIGHTNESS500 nitsTypical
RUNTIME24/724 h x 7 days
VESA MOUNT300 x 300 mmVESA
ORIENTAIONLands./PortraitMounting
BEZEL WIDTH11.4 mmAll sides

55-inch 4K UHD webOS signage display

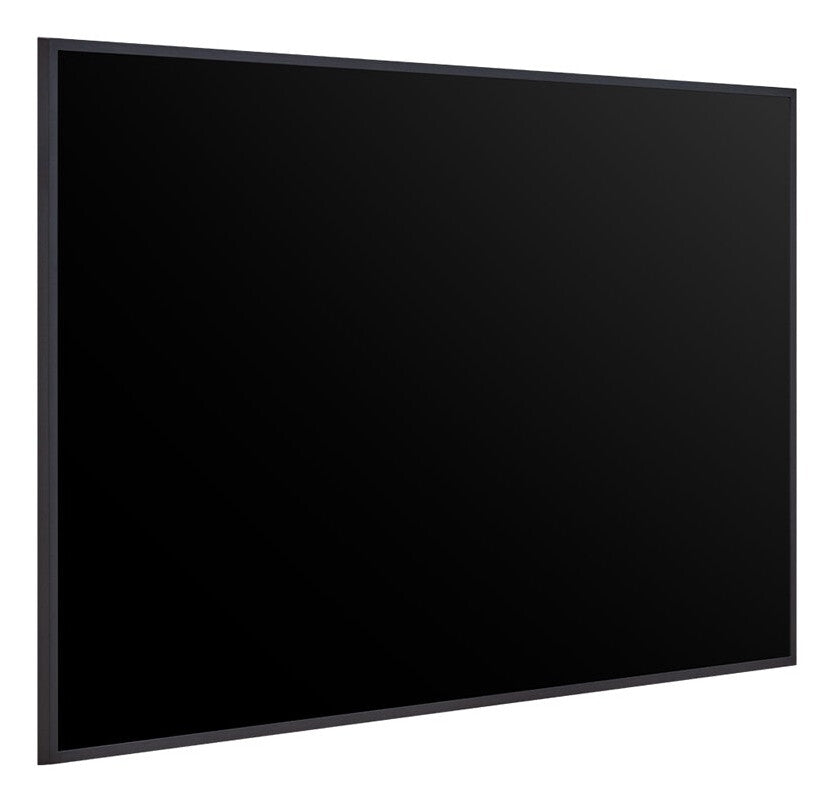

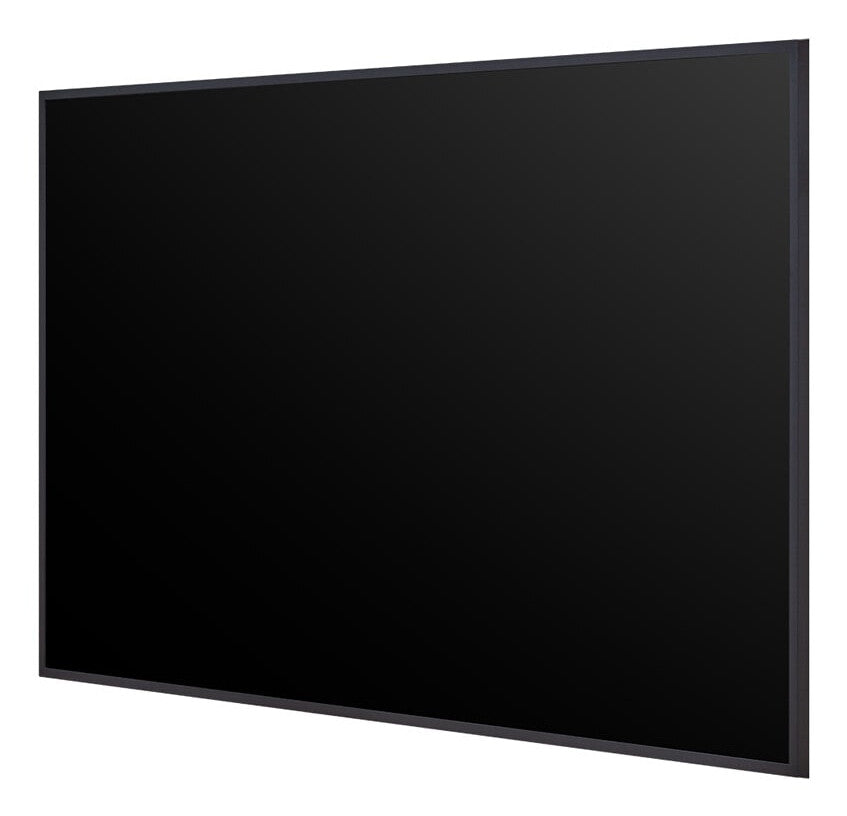

LG 55UH5Q-E

The LG 55UH5Q-E is a 55-inch UHD signage display from LG's UH5Q series, designed for retail stores, restaurants, receptions and corporate spaces that need sharp, always-on messaging. Its built-in webOS system-on-chip plays scheduled content on its own, so many installations need no external media player behind the screen. Slim, even bezels and hidden power inlets let it sit close to the wall in either landscape or portrait orientation. The display is built for continuous use in commercial settings, with dust protection, a coated power board and shock monitoring. LG Shield security and support for the SuperSign content management suite make it a good fit for both single screens and centrally managed networks.

Built-in webOS Player, No External Box

Built-in webOS Player, No External Box

The 55UH5Q-E runs webOS 8.0 on an integrated SoC with 16 GB internal memory, Wi-Fi and Bluetooth. Content can be scheduled locally, played from USB with plug-and-play, opened via URL or delivered through LG SuperSign. Gapless playback, Video Tag and local network sync are also supported. Because the display handles playback itself, a typical menu board or lobby screen needs no separate media player: you have less hardware to buy, mount, power and maintain, fewer cables to manage and one less device that can fail. Failover, a custom boot logo and a no-signal image mean that if a source drops out, viewers still see branded content rather than an error screen.

Rated for 24-7 Operation

Rated for 24-7 Operation

The panel is specified for 24/7 use with a minimum lifetime of 50,000 hours. That makes it suitable for airports, transit hubs, 24-hour retail and info screens that never switch off, which is exactly where consumer TVs fail early and void their warranty. The 3-year limited warranty listed in the LG datasheet backs this up. In practice, the owner can leave content running around the clock without having to plan switch-off cycles or deal with early panel replacements.

4K. 500 nits. 24-7. No media player required.

IP5X dust protection · webOS 8.0 · 3-year limited warranty

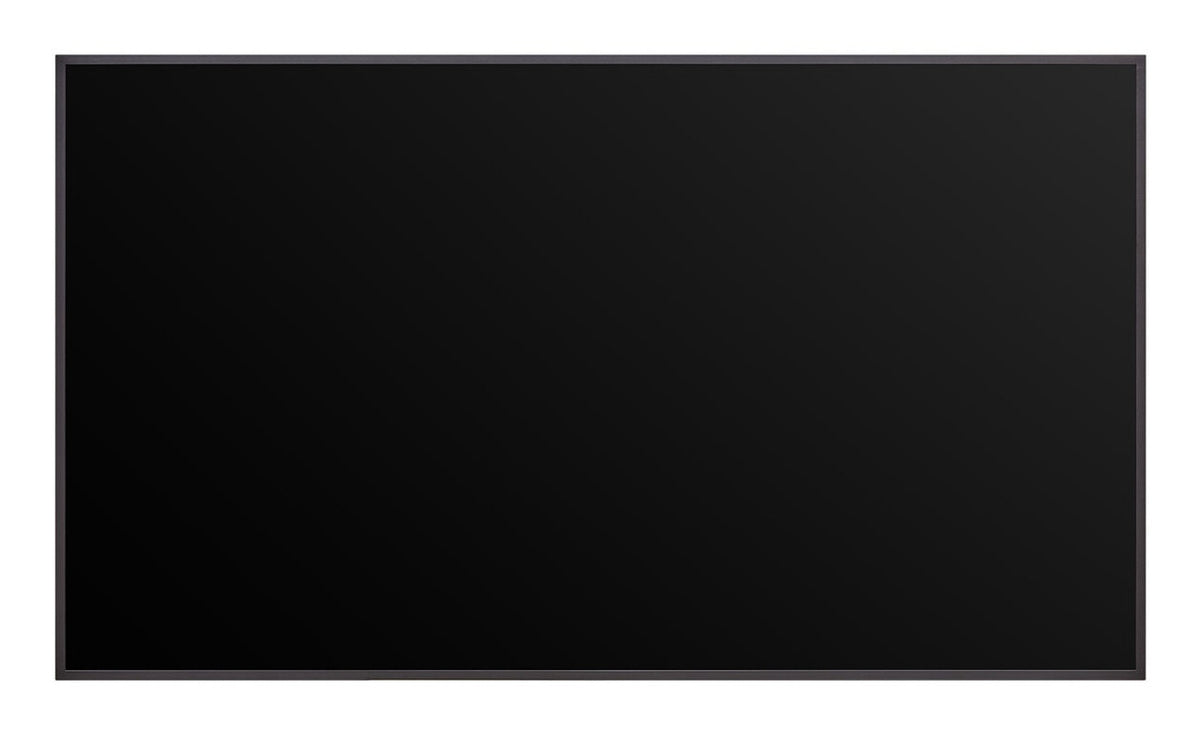

Even 11.4 mm Bezel, Close-to-Wall Fit

Even 11.4 mm Bezel, Close-to-Wall Fit

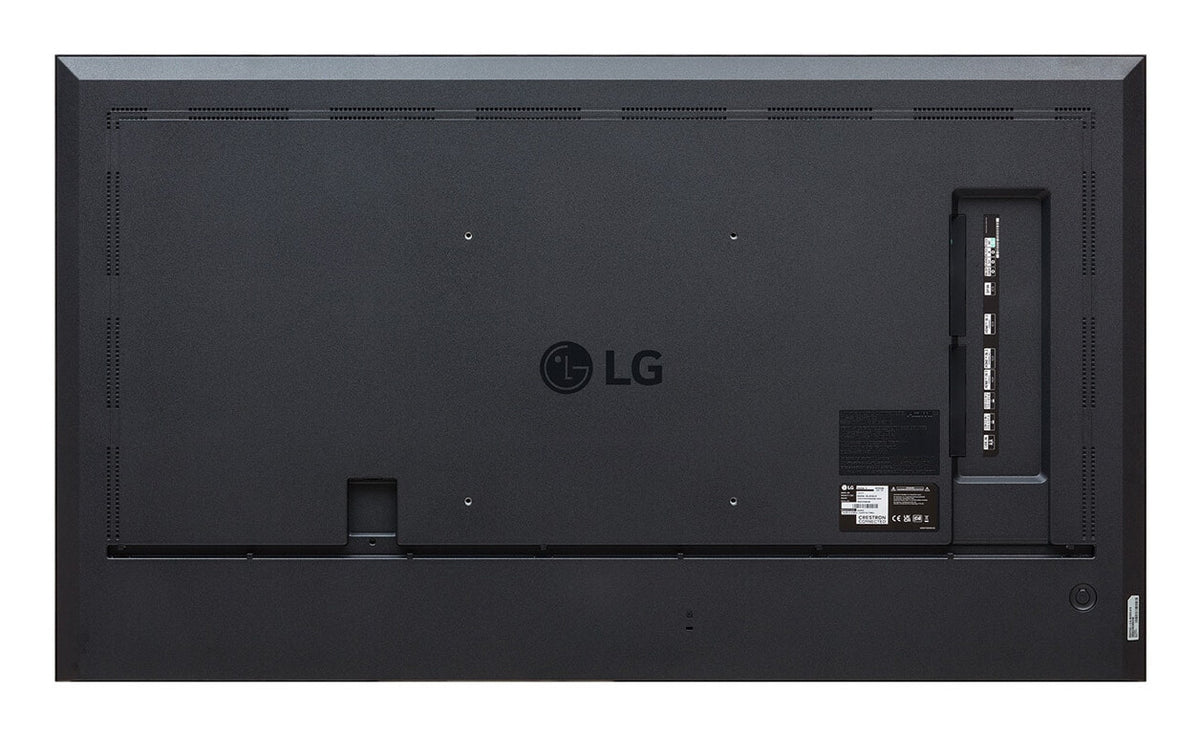

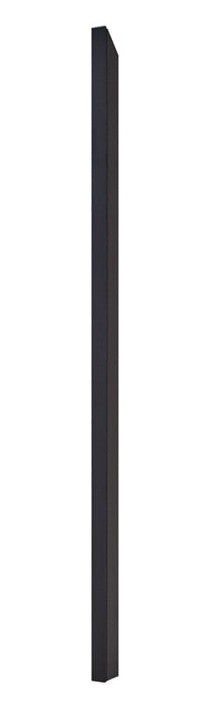

The bezel is the same 11.4 mm width on all four sides, so the screen looks balanced in both landscape and portrait mode, and tiled layouts (tile mode up to 15 x 15) stay visually consistent. Hidden power inlets and simple cable management let the display sit only about 13.5 mm from the wall with LG's slim bracket. With a 29.7 mm deep cabinet and a 300 x 300 mm VESA pattern, it fits neatly into shop fit-outs and corridors where a protruding screen would look out of place or get in the way.

IP5X Dust Protection and Coated Power Board

IP5X Dust Protection and Coated Power Board

The UH5Q is rated IP5X for dust protection, and its power board has partial conformal coating that guards against salt, dust, iron powder and humidity. That matters in places like kitchens, workshops, warehouses, coastal shops and transport hubs, where airborne particles and moisture build up inside standard displays and cause early failures. Shock Monitoring adds an extra layer of protection: if the display takes a physical hit, the administrator gets an alert through the media controller, so damage or tampering is spotted quickly rather than reported days later.

LG Shield Multi-Layer Security

LG Shield Multi-Layer Security

LG Shield protects webOS Signage with five independent layers, covering the server, application, operating system, system and hardware. The webOS platform also supports ETSI EN 303 645, the European baseline cybersecurity standard for consumer IoT devices. For networked screens in corporate offices, banks or public buildings, this makes IT approval easier and reduces the risk of a display being hijacked to show unauthorised content or used as a way into the network.

Remote Management and Control Integration

Remote Management and Control Integration

The display works with SuperSign CMS, SuperSign Cloud, SuperSign Control+, Mobile CMS and LG ConnectedCare (sold separately; availability varies by region). It also supports SNMP, status mailing, Wake on LAN, setting data cloning and auto set ID. It is Crestron Connected and has RS-232C in and out with IR daisy-chaining. Operators can therefore monitor, configure and update a whole fleet from one location, and it fits into existing room-control systems in meeting rooms or venues without extra gateways. Cloning settings across multiple units also cuts commissioning time on larger rollouts.

500-Nit UHD Panel with Matte Finish

500-Nit UHD Panel with Matte Finish

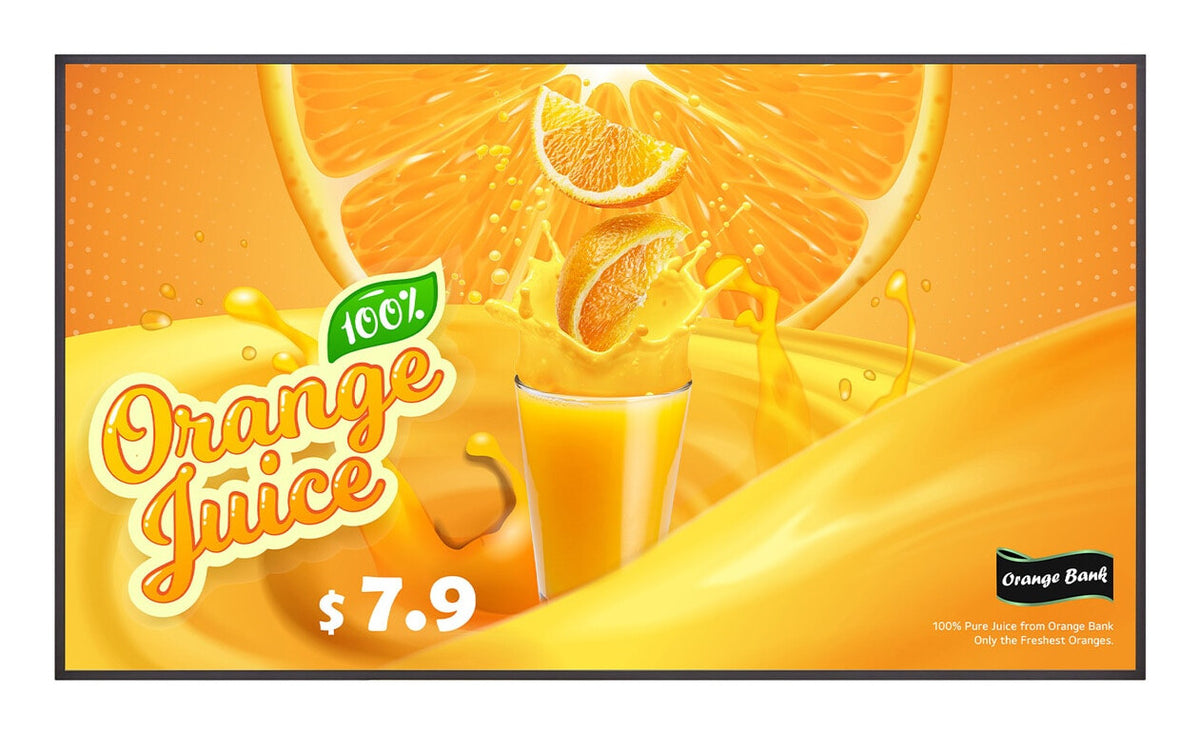

The 55-inch ADS panel delivers 3840 x 2160 resolution at up to 500 nits, with a 1,200:1 static contrast ratio, 178-degree viewing angles and HDR support. A 25% haze surface treatment cuts reflections from shop lighting and windows. This brightness level is well above a typical office monitor, which keeps menus, prices and fine text readable in brightly lit indoor spaces and from off-angle positions, such as above a counter or along a corridor. It is designed for indoor use rather than direct sunlight in shop windows.

Display27 specifications
Display diagonal139.7 cm (55")
Brightness500 nit (Typ.)
Native resolution3,840 x 2,160 (4K UHD)
Panel technologyADS
Back light typeEdge
Aspect ratio16:9
Refresh rate60 Hz
Contrast ratio (typical)1,200:1
Dynamic contrast ratio1,000,000:1
Colour gamutBT709 95%
Viewing angle (H x V)178 × 178
Number of colours1.07 billion colours
Colour depth1.07G (8bits + FRC)
Response time8 m (G to G)
Surface treatment (haze)25% (Typ.)
Display surfaceMatte (anti-glare)
Life time (min.)50,000 Hrs
Operation hours (hours/day)24/7
Portrait orientationYes
Landscape orientationYes
Display technologyLCD
Backlight typeEdge LED
HD type4K Ultra HD
HDR supportYes
Panel lifetime (min.)50,000 h
TouchscreenNo
TV tunerNo

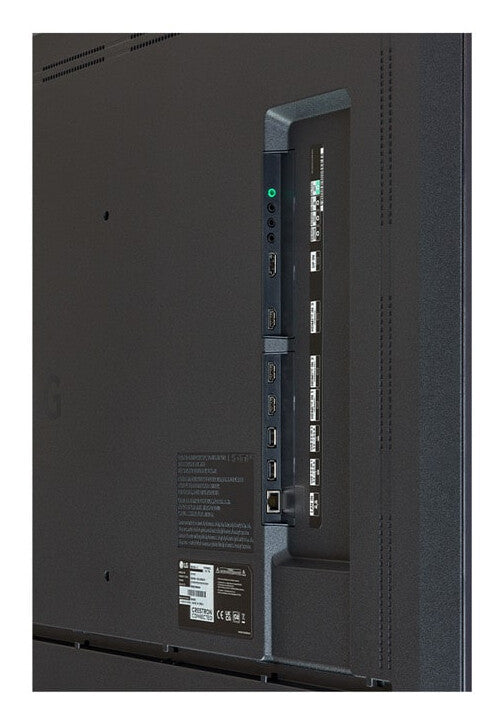

Ports & interfaces16 specifications
HDMI inputs3 (3840 x 2160 @ 60 Hz, HDCP 2.2/1.4)
DisplayPort inputs1 (3840 x 2160 @ 60 Hz)
DisplayPort HDCP version2.2/1.4
RS-232C input1 (4-pin phone jack)
RS-232C output1 (4-pin phone jack)
RJ45 (LAN) input1
USB 2.0 Type-A ports2
IR inputYes (5 pin phone jack, supports internal IR)
IR outputNo (IR daisy chain via RS-232C in/out)
Audio outputYes
HDMI-CECYes
OPS Type CompatibleNo
OPS power built inNo
DisplayPort outputNo
USB port power5 V 0.5 A
NFCNo
Audio4 specifications
Built-in speakersYes
Speaker output power10 W × 2
Speaker configurationStereo (2-channel)
Built-in microphoneNo
Design8 specifications
Product colourBlack
Bezel colourBlack
Bezel width11.4 mm (Even)
HandleNo
Cable lock slotKensington standard slot
Conformal coating (power board)Yes (Partial Space Coating)
Wall clearance with slim bracketAbout 13.5 mm
Product placementIndoor
Computer system37 specifications
Operating systemwebOS 8.0
Internal memory (eMMC)16 GB
Temperature sensorYes
Auto brightness sensorYes (built-in for Europe only, sold separately in other regions)
Acceleration (gyro) sensorYes
Local key operationYes
Local contents schedulingYes
Group managerYes
USB plug & playYes
Fail overYes
Booting logo imageYes
No signal imageYes
PIP (picture-in-picture)Yes
PBP (picture-by-picture)Yes (4)
Screen shareYes
Video tagYes (4)
Play via URLYes
Screen rotationYes
External input rotationYes
Gapless playbackYes
Tile mode settingYes (max. 15 x 15)
Setting data cloningYes
ISM methodYes
Auto set IDYes
Status mailingYes
Control managerYes
Crestron ConnectedYes
Smart energy savingYes
PM modeYes
BeaconYes
SI server settingYes
webRTCYes
Pro:IdiomYes
Compatible softwareSuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare
Security platformLG Shield; ETSI EN 303 645 support
OSD languagesEnglish, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski
Cisco certificationYes
Network8 specifications
Ethernet LANYes (RJ45, 1)
Wi-FiYes (built-in)
BluetoothYes (built-in)
Wake on LANYes
SNMPYes
Network readyYes
Local network syncYes
RS-232C syncYes
Power16 specifications
Power supplyAC 100-240 V ~, 50/60 Hz
Power typeBuilt-in power
Power consumption (typical)103 W
Power consumption (max.)154 W
Power consumption (Smart Energy Saving 70%)72 W
Power consumption (DPM)0.5 W
Power consumption (off)0.5 W
Heat dissipation (typical)351 BTU/Hr
Heat dissipation (max.)525 BTU/Hr
Energy efficiency classG
Energy efficiency scaleA to G
Energy consumption103 kWh / 1000 h
Energy consumption (standby)0.5 W
Input current1.6 A
Power supply typeInternal
Heat dissipation (max)525 BTU/h
Weight & dimensions6 specifications
Monitor dimensions (W x H x D)1,240.1 × 711.9 × 29.7 mm
Weight (head)14.3 kg
VESA mounting300 × 300 mm
Width1240.1 mm
Height711.9 mm
Wall mount screwM6, max. length 14 mm
Packaging data4 specifications
Carton dimensions (W x H x D)1,360 × 810 × 152 mm
Packed weight18.1 kg
Package width1360 mm
Package height810 mm
Packaging content9 specifications
Remote controlYes (with batteries)
Power cordYes
QSGYes
Regulation bookYes
Phone to RS232C GenderYes
Cable holder (for power cord)Yes
IR/Light Sensor Receiver (EU/EK Only)Yes (EU/EK only)
Magnetic sheet2 (EU/EK only)
Optional accessoriesSlim wall mount WB21LMA/B, normal wall mount OLW480A/B, IR/light sensor receiver ACC-L
Operational conditions3 specifications
Operating temperature0 °C to 40 °C
Operating humidity10 % to 80 %
Tilt (face up or face down)No
Certificates6 specifications
SafetyCB / NRTL
EMCFCC Class "B" / CE / KC
ErPYes
ENERGY STARYes
EPEAT (US only)Yes (Carbon "Reducing CO2")
IP ratingIP5X
Other features3 specifications
Shock monitoringYes (alert via media controller)
Warranty3-year limited
EAN8806096522172

Specifications are checked against the manufacturer's documentation where available.
