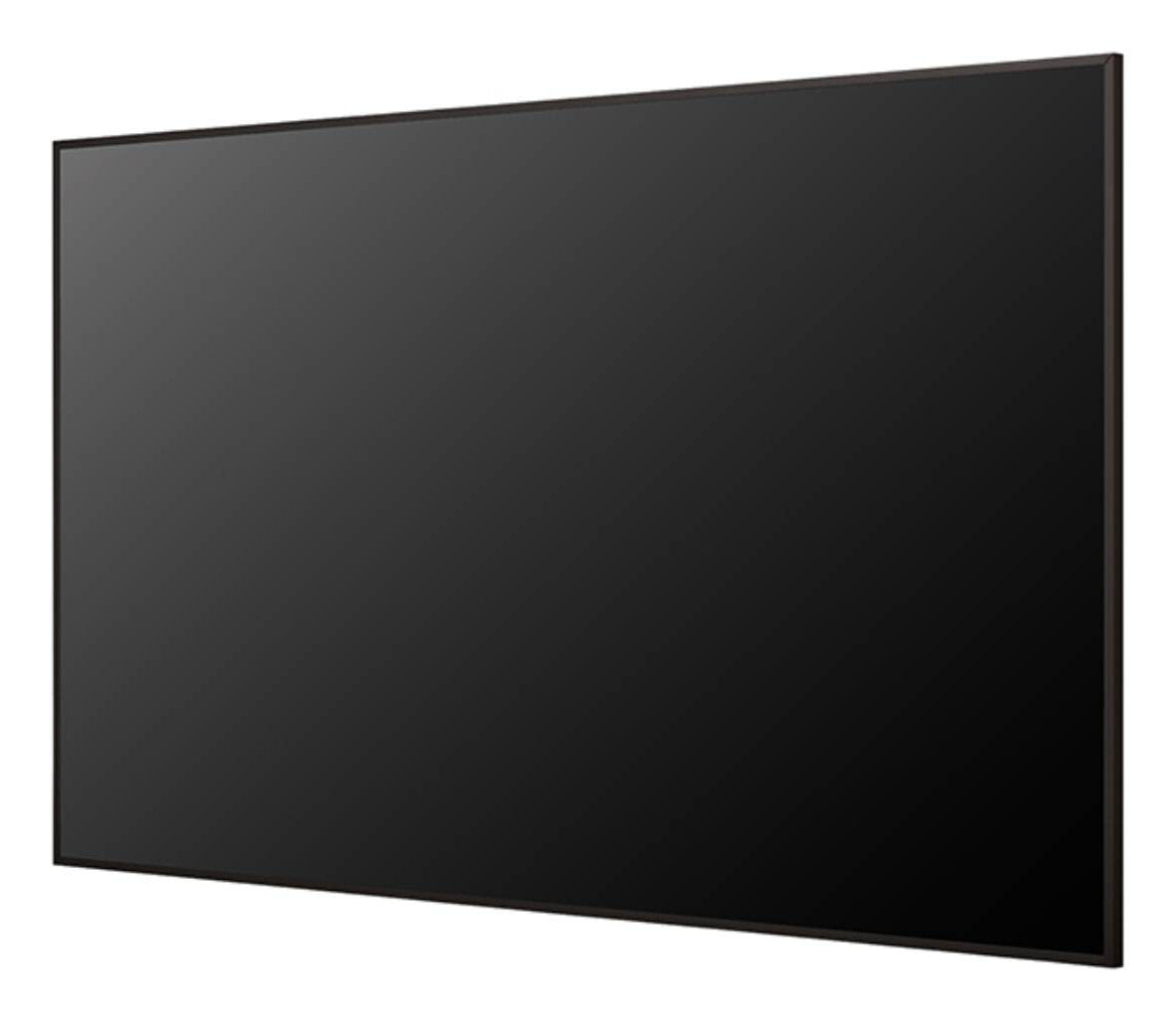

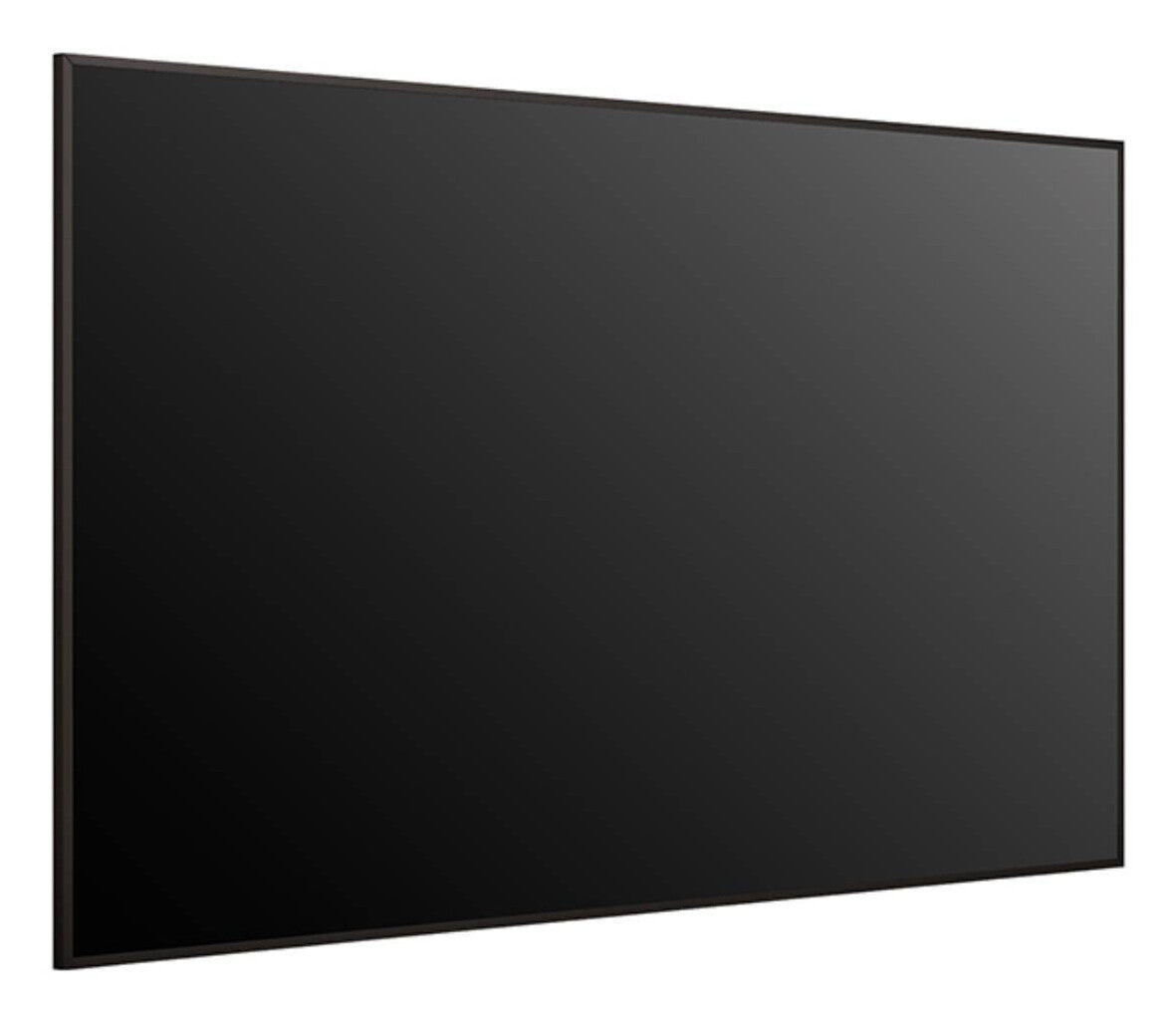

LG 75UH5Q-E Signage Display Digital signage flat panel 190.5 cm (75") Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7

LG 75UH5Q-E Signage Display Digital signage flat panel 190.5 cm (75") Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7

75", 4K 3840 x 2160 (UHD), 8ms (G to G), ADS, 60Hz, BT709 95%, 500nit, 16:9, 178º x 178º, 1200:1, 1.07 B, 50000H, 24/7, 16GB eMMC, SoC, 3x HDMI, RJ-45, HDCP 2.2/1.4, 2x USB 2.0 Type-A, RS232C, 10W x 2, Wi-Fi/BT, 0 °C to 40 °C, 100 - 240V, 50/60Hz, 160W, Black

  • Resolution : 3,840 × 2,160 (UHD)
  • Brightness : 500 nits (Typ.)
  • Bezel Width : 12.9 mm (Even)
  • webOS Smart Platform
  • LG Shield
  • SKU:8806096688724
  • GTIN/EAN:8806096688724
  • MPN:75UH5Q-E

You need to login to view the price.

View full details

LG 75UH5Q-E. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black

Large UHD Signage Display with LG webOS Platform and Advanced Security

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.

Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also, the webOS platform supports ETSI EN 303 645.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Display
Display diagonal
190.5 cm (75")
LED backlight
Yes
LED backlighting type
Edge-LED
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Touchscreen
No
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Contrast ratio (dynamic)
1000000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Panel life
50000 h
Supported video modes
2160p
Supported graphics resolutions
3840 x 2160
Native refresh rate
60 Hz
Panel type
ADS
Haze rate
25%
Colour gamut
95%
Ports & interfaces
HDMI ports quantity
3
Consumer Electronics Control (CEC)
Yes
DVI port
No
DisplayPorts quantity
1
USB port
Yes
USB ports quantity
2
USB version
2.0
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
RS-232C
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design
Digital signage flat panel
Product colour
Black
Placement supported
Indoor
Orientation
Horizontal/Vertical
Screen shape
Flat
VESA mounting
Yes
Panel mounting interface
600 x 400 mm
Bezel colour
Black
Bezel width (top)
1.29 cm
Bezel width (side)
1.29 cm
Bezel width (bottom)
1.29 cm
Mounting type
Wall
Performance
Purpose
Commercial
Digital Rights Management (DRM) type
Pro:Idiom
Picture-in-Picture
Yes
On Screen Display (OSD) languages
Multi
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
webRTC support
Yes
Automatic brightness control
Yes
International Protection (IP) code
IP5X
HDCP version
1.4/2.2
HDCP
Yes
Power
Power consumption (typical)
160 W
Power consumption (max)
247 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Heat generation (typical)
546 BTU/h
Heat generation (max)
843 BTU/h
Computer system
Computer system
Yes
Computer system type
System on Chip (SoC)
Internal memory
16 GB
Operating system installed
WebOS
Operating system version
8.0
Weight & dimensions
Display width
1679.5 mm
Display depth
29.7 mm
Display height
958.7 mm
Display weight
35.7 kg
Packaging data
Package width
1820 mm
Package depth
200 mm
Package height
1115 mm
Package weight
44 kg
Packaging content
Remote control included
Yes
Cables included
Power
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Brand-specific features
LG technologies (AV/TV)
Control Manager, Gapless Playback, ISM Method, SI Server Setting, Local Contents Scheduling, Booting Logo Image, Auto Set ID, Group Manager, No Signal Image, Setting Data Cloning, Status Mailing, Smart Energy Saving
Sensors
Gyroscope
Yes
Temperature sensor
Yes
Network
Security algorithms
SNMP
Wake-on-LAN
Yes
Technical details
Compliance certificates
CB, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), CE, KC
Other features
Power consumption (PowerSave)
112 W
Bluetooth
Yes
USB connector type
USB Type-A
Quick start guide
Yes
Plug and Play
Yes
