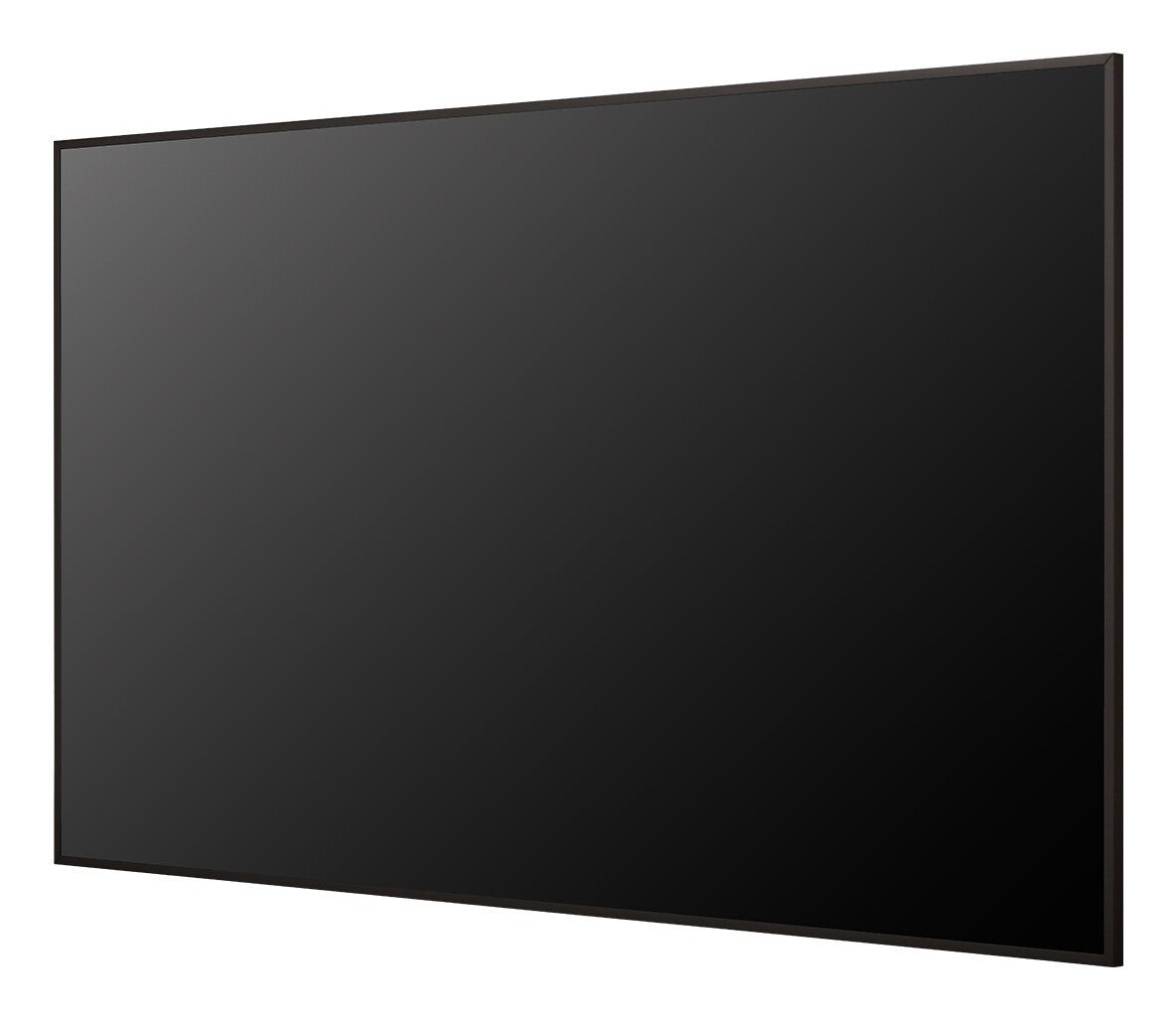

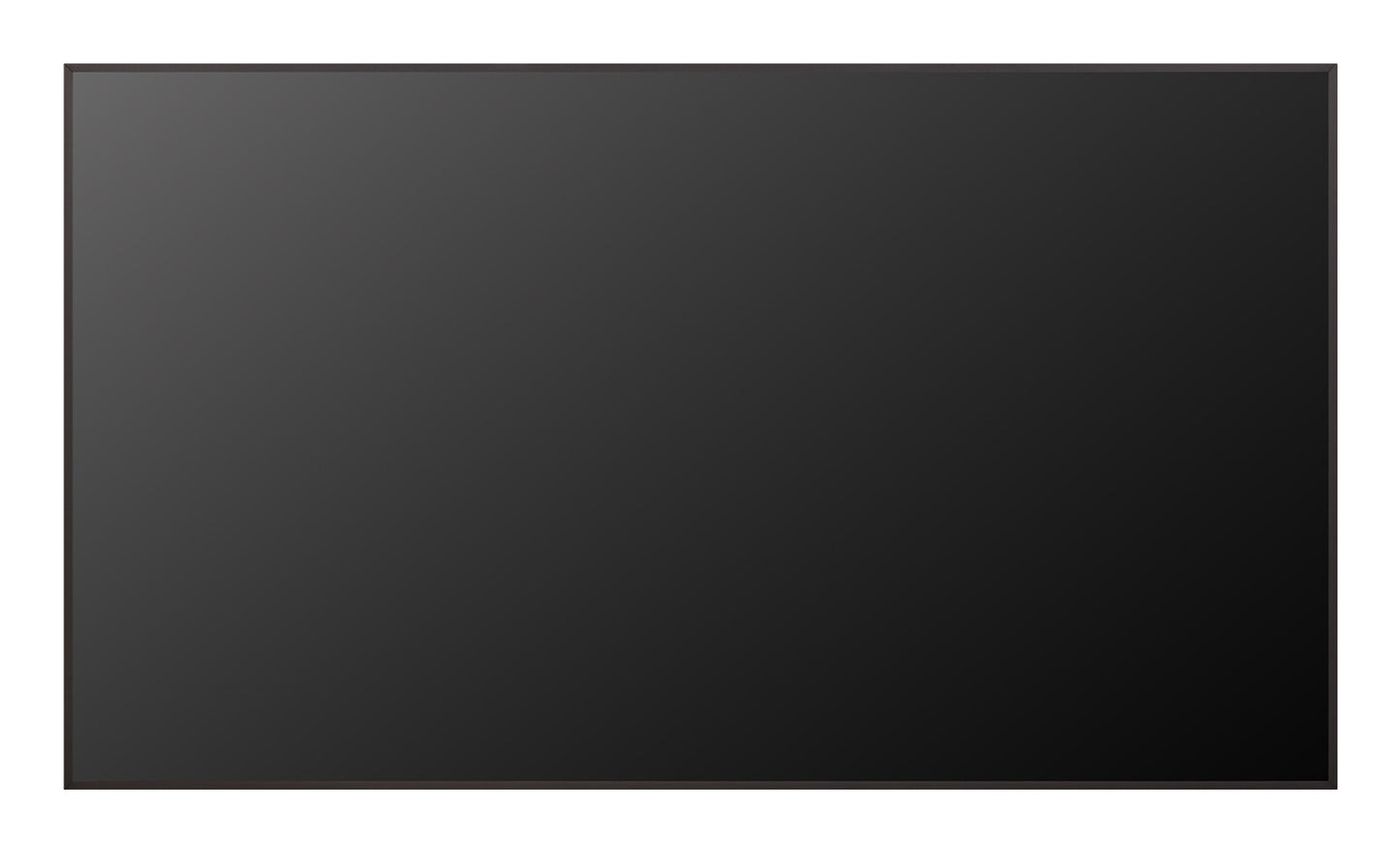

LG 86UH7Q-E

The LG 86UH7Q-E is a large-format 86-inch 4K UHD commercial signage display designed for demanding business environments such as retail stores, corporate lobbies, stadiums, and transportation hubs. Rated for continuous 24-7 operation and delivering 700 nits of brightness, it keeps content vivid even under strong ambient lighting. The built-in webOS 8.0 platform with a high-performance SoC eliminates the need for an external media player, while the integrated LG Shield five-layer security framework ensures robust protection at every level of the system. With a slim 13.4 mm even bezel and support for both landscape and portrait orientations, the 86UH7Q-E is equally suited to standalone installations and multi-screen configurations.

webOS 8.0 Built-In Media Platform

The 86UH7Q-E integrates a high-performance System-on-Chip running webOS 8.0, so the display operates as a fully self-contained signage player without requiring an external media box. The platform supports local content scheduling, USB plug-and-play playback, Play via URL, PIP and PBP layouts, screen rotation, gapless playback, and tile mode up to 15×15. An open SDK and an ecosystem of webOS partner apps make it straightforward for system integrators to develop and deploy custom solutions. In practice, this means a simpler installation with fewer points of failure, lower hardware cost, and remote management via LG SuperSign CMS, SuperSign Cloud, or ConnectedCare — all without adding a rack-mount player that needs its own power, cabling and maintenance cycle.

700-Nit Brightness for Bright Environments

At 700 nits typical brightness, the UH7Q-E maintains clear, readable content in retail stores, airport concourses, and other high-ambient-light environments where standard commercial displays at 300–450 nits would appear washed out. The ADS panel technology also provides a 178°×178° viewing angle, so content stays colour-accurate and contrast-rich whether viewers are standing directly in front or approaching from the side. An auto brightness sensor and Smart Energy Saving mode mean the display adjusts output intelligently — protecting power consumption while keeping content visible, which also extends backlight life over years of continuous 24-7 operation.

700 nits. 24-7 rated. webOS 8.0 built in.

3-year limited warranty · IP5X dust protection · Cisco & Crestron Connected certified

True 24-7 Operation, 50,000-Hour Rated Panel

The 86UH7Q-E is officially rated for 24 hours a day, 7 days a week continuous operation, with a minimum panel lifetime of 50,000 hours. For deployments such as transportation hubs, casinos, control rooms, or any venue that cannot afford scheduled downtime, this rating is a baseline selection criterion — not a marketing claim. The display also includes a temperature sensor and conformal partial coating on the power board, protecting internal electronics against humidity, dust, salt, and iron particles. An IP5X ingress rating adds front-panel dust protection. Together these features reduce the risk of unplanned failures and lower the total cost of ownership over a multi-year installation.

LG Shield — Five-Layer Security Architecture

LG Shield operates across five independent security layers: server, application, operating system, system firmware, and hardware. Each layer is compartmentalised so that a breach at one level does not automatically compromise the others. The platform also carries ETSI EN 303 645 compliance — the European standard for cybersecurity in consumer IoT devices — which is increasingly required in enterprise procurement and public-sector tenders. For end users managing networks of displays in retail or corporate environments, this architecture significantly reduces exposure to unauthorised content injection, network intrusion, and data leakage, without requiring additional third-party security appliances.

Portrait and Landscape Flexibility with Even Bezel

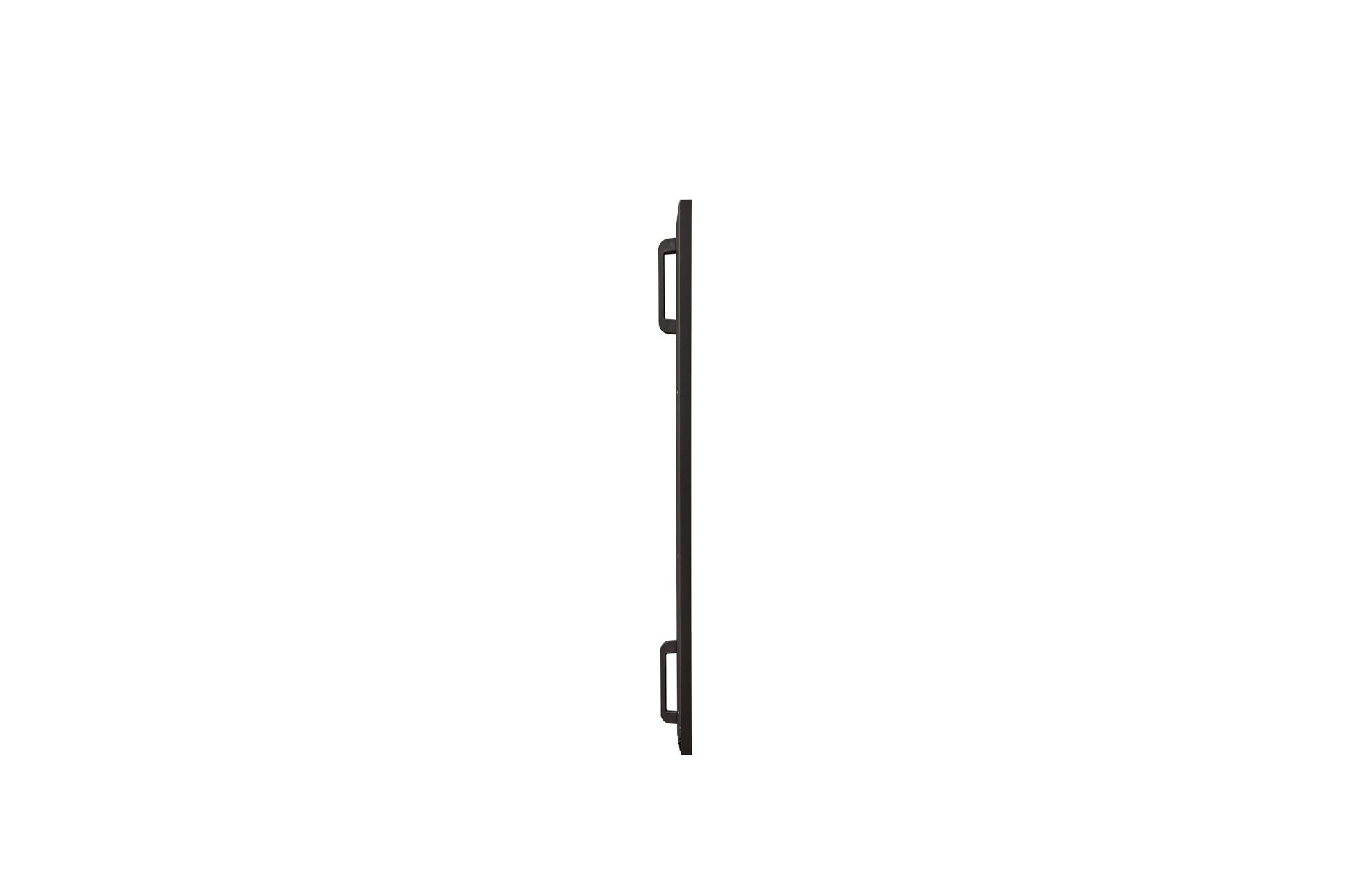

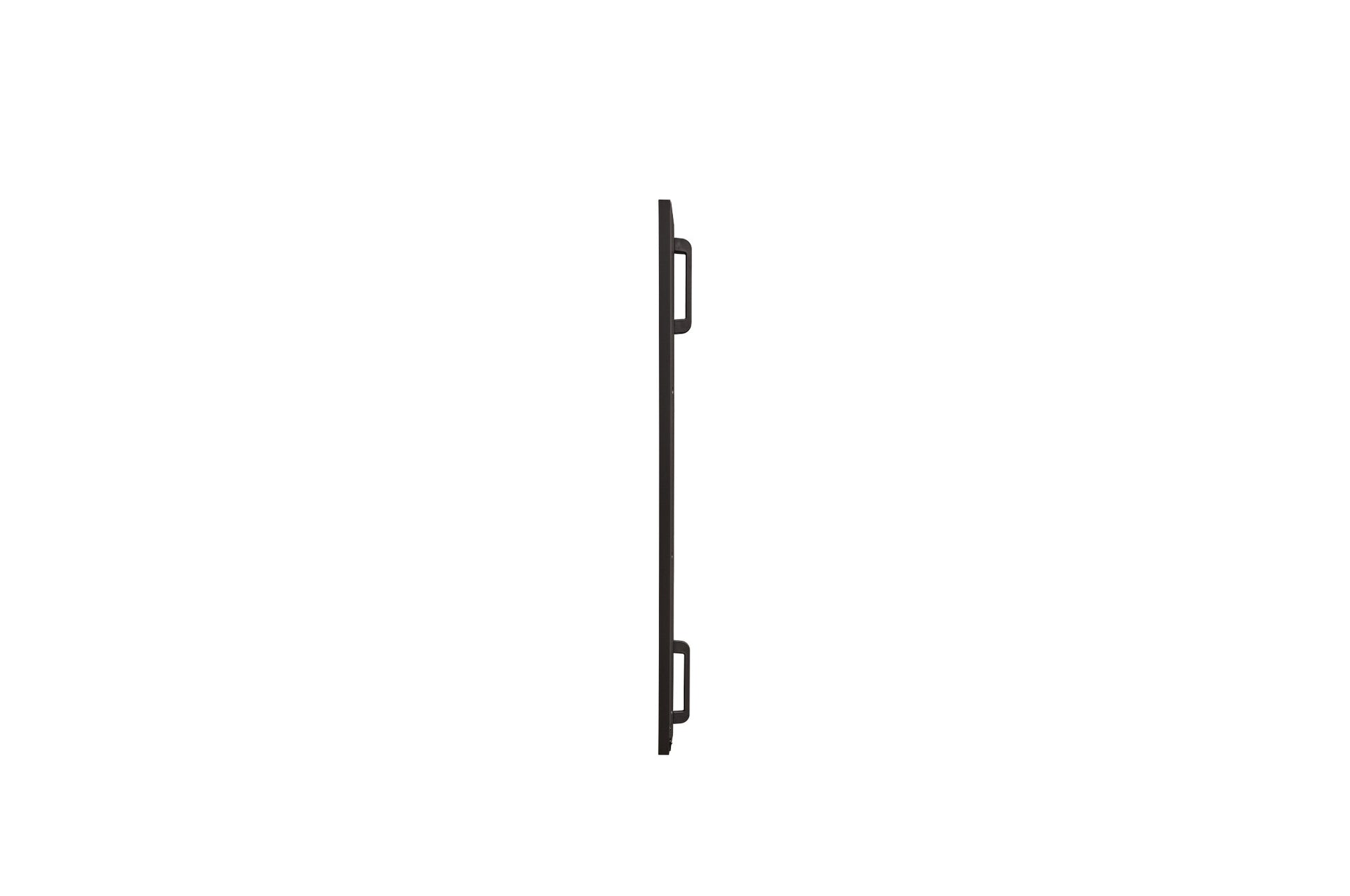

The 86UH7Q-E supports both landscape and portrait orientations with an even 13.4 mm bezel on all four sides. The uniform bezel width is particularly important for portrait installations — a display with an asymmetric bezel rotated 90° would show a visibly thicker edge on one side, which undermines the professional appearance of the installation. The built-in gyroscope (acceleration) sensor can automatically detect rotation, allowing the display to adjust the OS interface accordingly. The unit also supports tile mode up to 15×15 screens, so it can function as a building block in large video walls while maintaining a consistent bezel gap throughout the array.

Crestron Connected and Cisco Certified

The 86UH7Q-E carries both Crestron Connected and Cisco certification, confirming verified interoperability with two of the most widely deployed AV control and enterprise network ecosystems. Crestron Connected certification means the display can be discovered, controlled, and monitored by Crestron control systems without custom drivers or workarounds — a significant time-saver on integration projects and a reliable argument for AV system designers specifying a control ecosystem. Cisco certification provides assurance to IT administrators that the display meets Cisco's security and network compatibility standards for enterprise LAN environments.

Automatic Failover for Continuous Uptime

The 86UH7Q-E includes a built-in failover function that automatically switches to a backup input source if the primary source signal is lost. For mission-critical deployments — departure boards, emergency information displays, QSR menu boards — this eliminates blank screens caused by a lost feed without requiring manual intervention or a dedicated failover controller. The display also supports a 'No Signal Image' fallback, which can display a static image when no live source is present, and 'Booting Logo Image' for a branded startup experience — both manageable via SuperSign or over the network.

Built-In Wi-Fi, Bluetooth, and Wired LAN

The display ships with built-in Wi-Fi and Bluetooth alongside a wired RJ45 LAN port, giving installers genuine flexibility to connect the display to the site's network infrastructure without running additional Ethernet cabling. Wi-Fi and Bluetooth also enable features such as Beacon broadcasting and wireless screen share, which can be useful in corporate lobbies or retail environments where a physical connection is difficult to route. For installations where network reliability is paramount, the wired LAN remains the recommended path — the wireless options then serve as a fallback or for secondary features rather than as the primary signage link.
