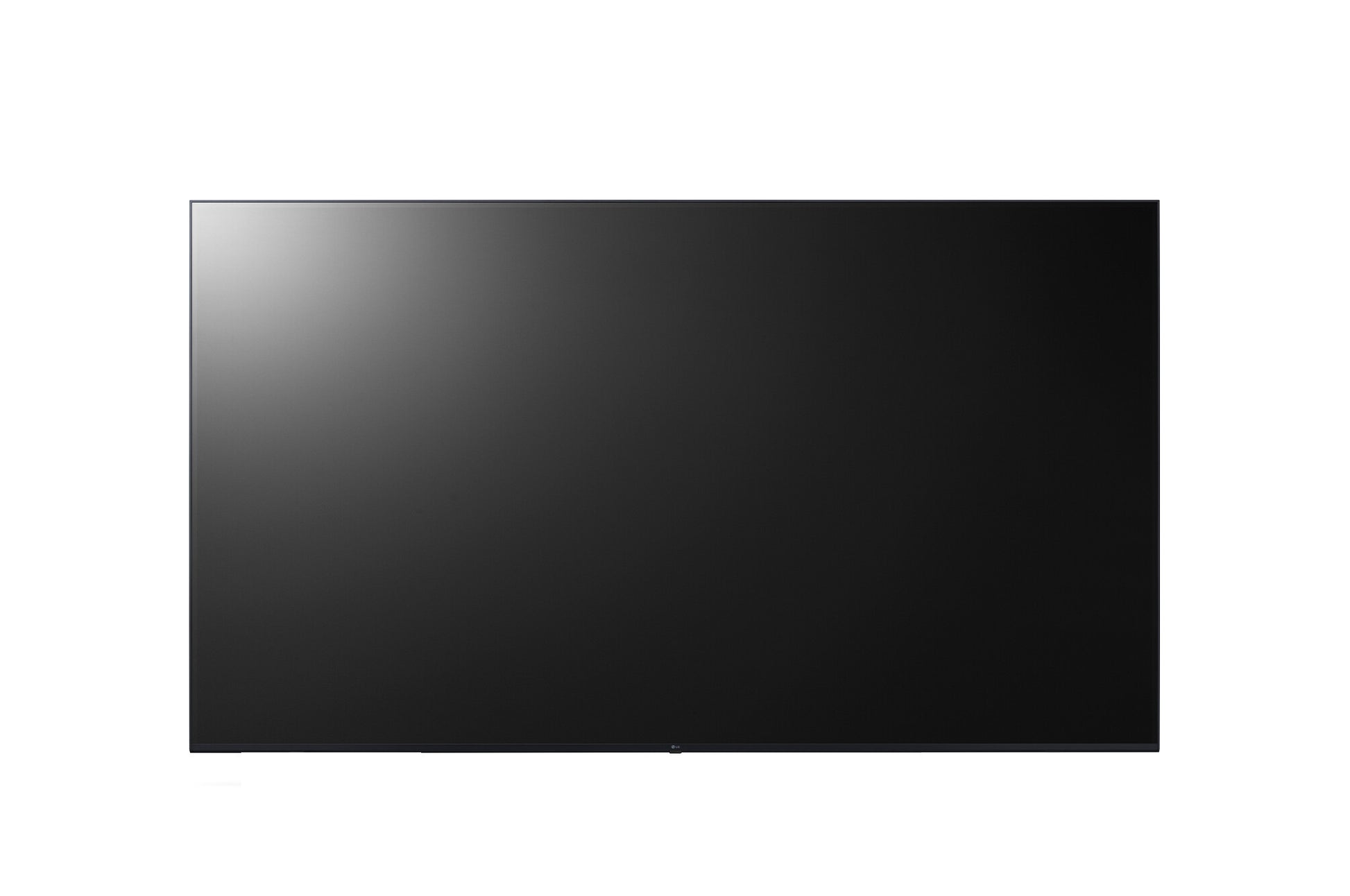

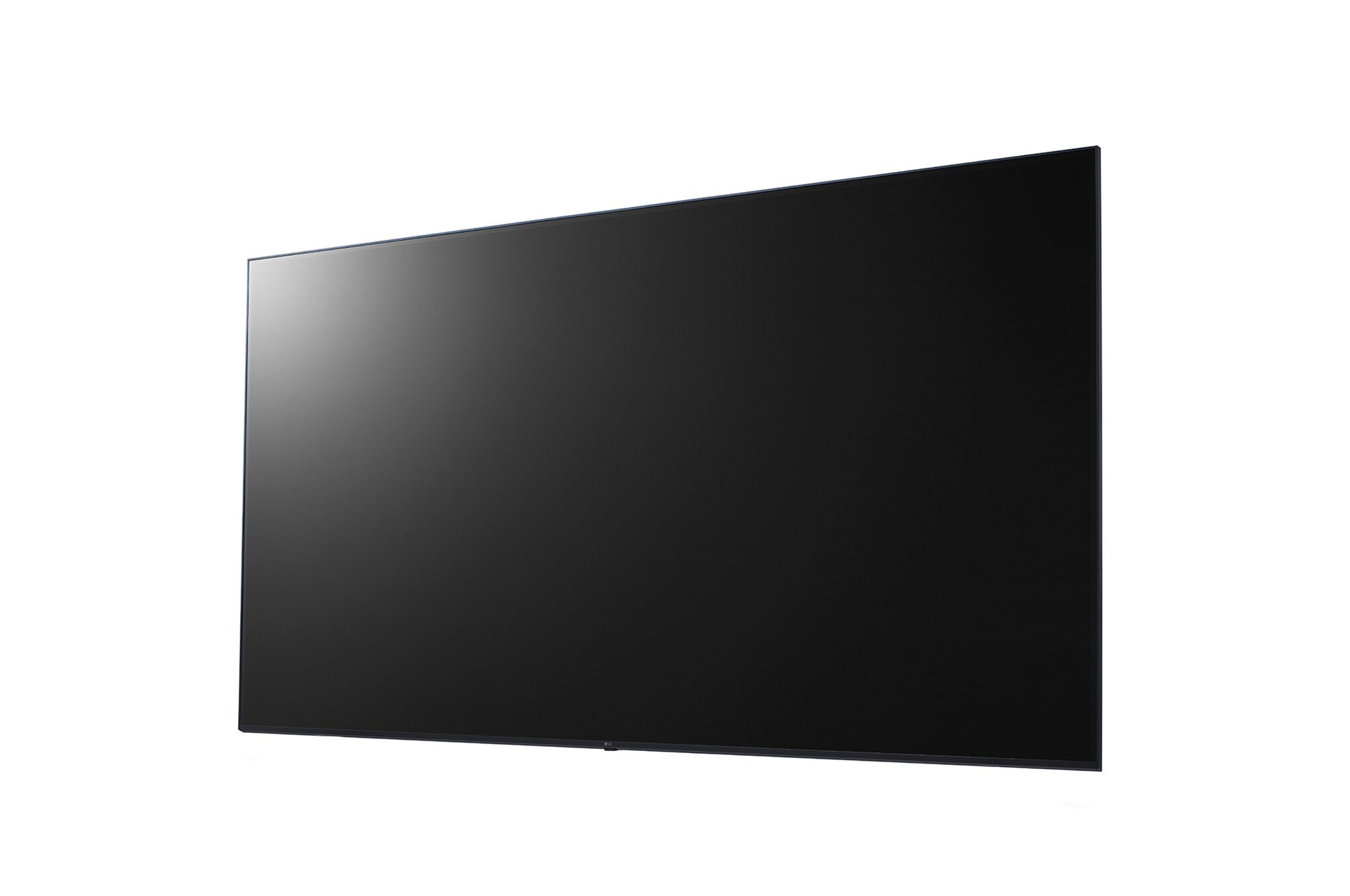

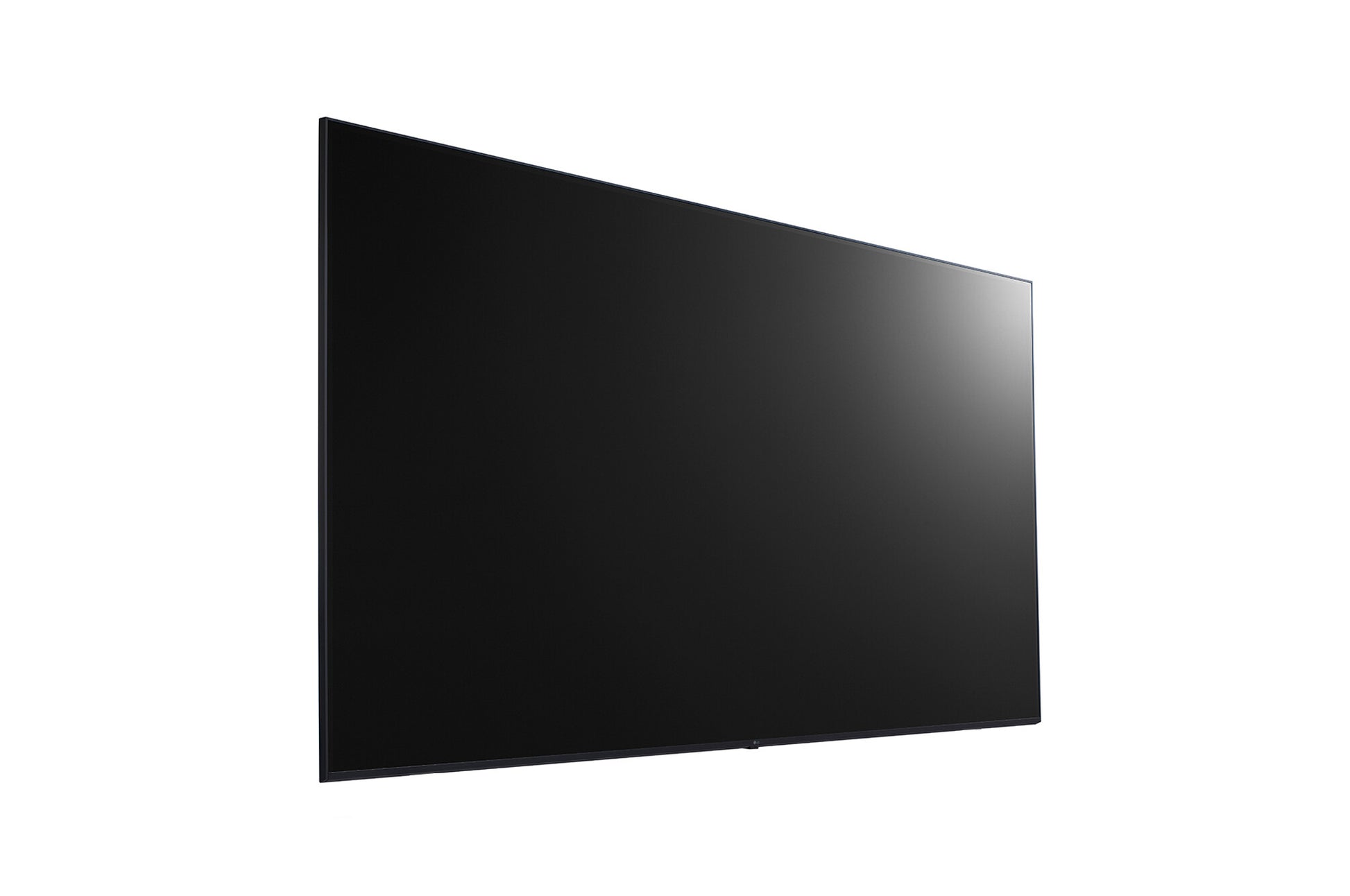

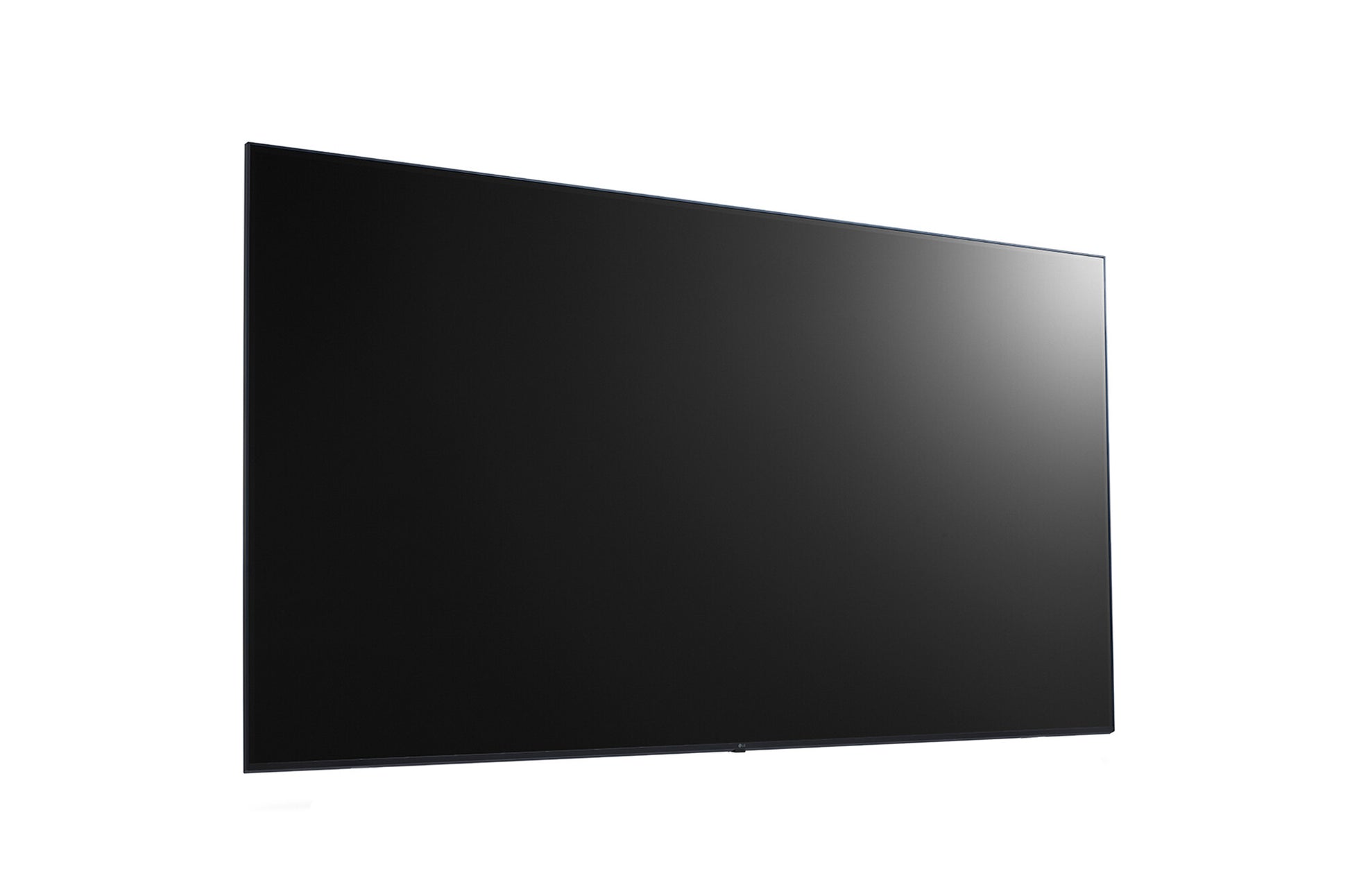

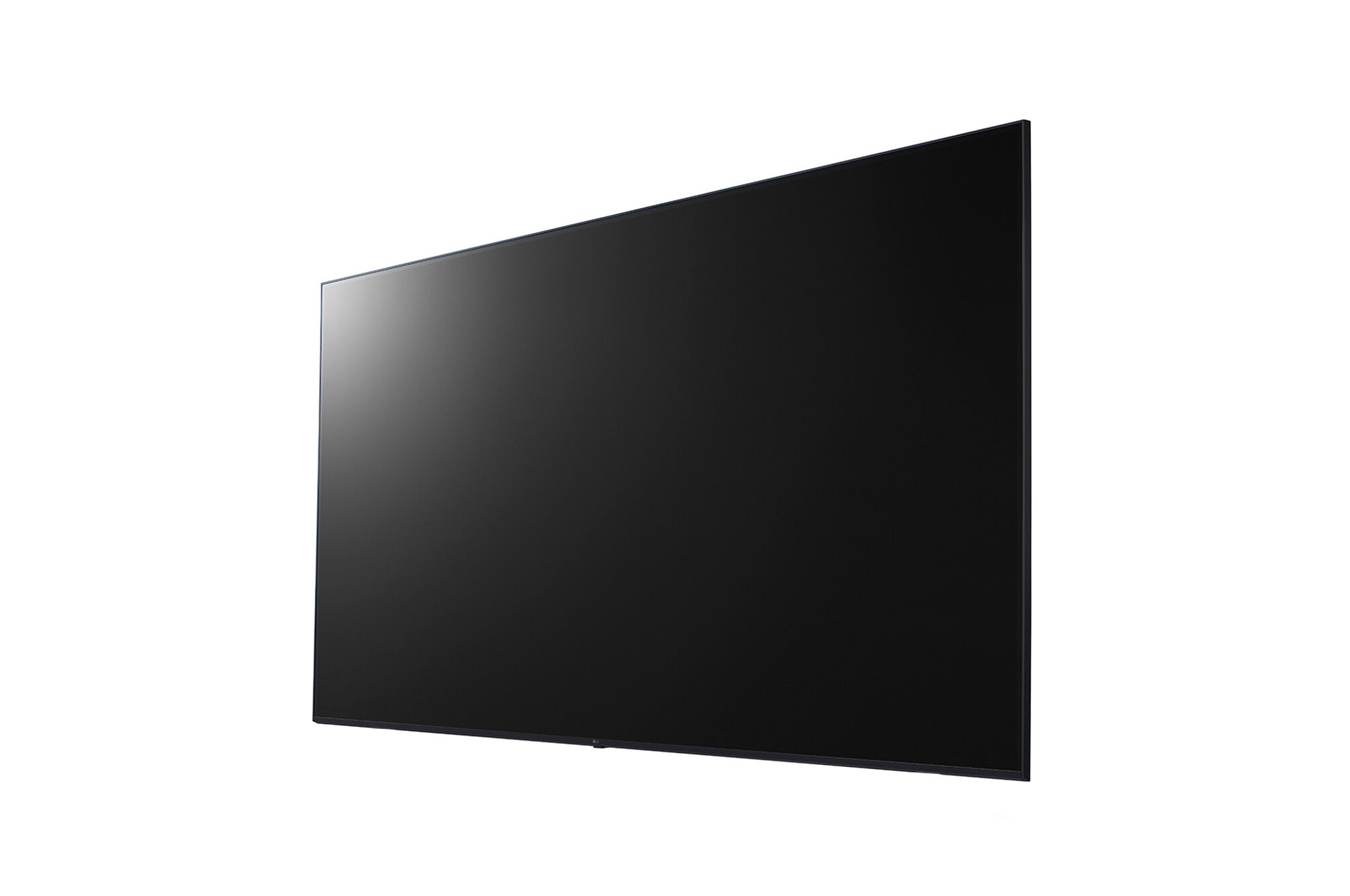

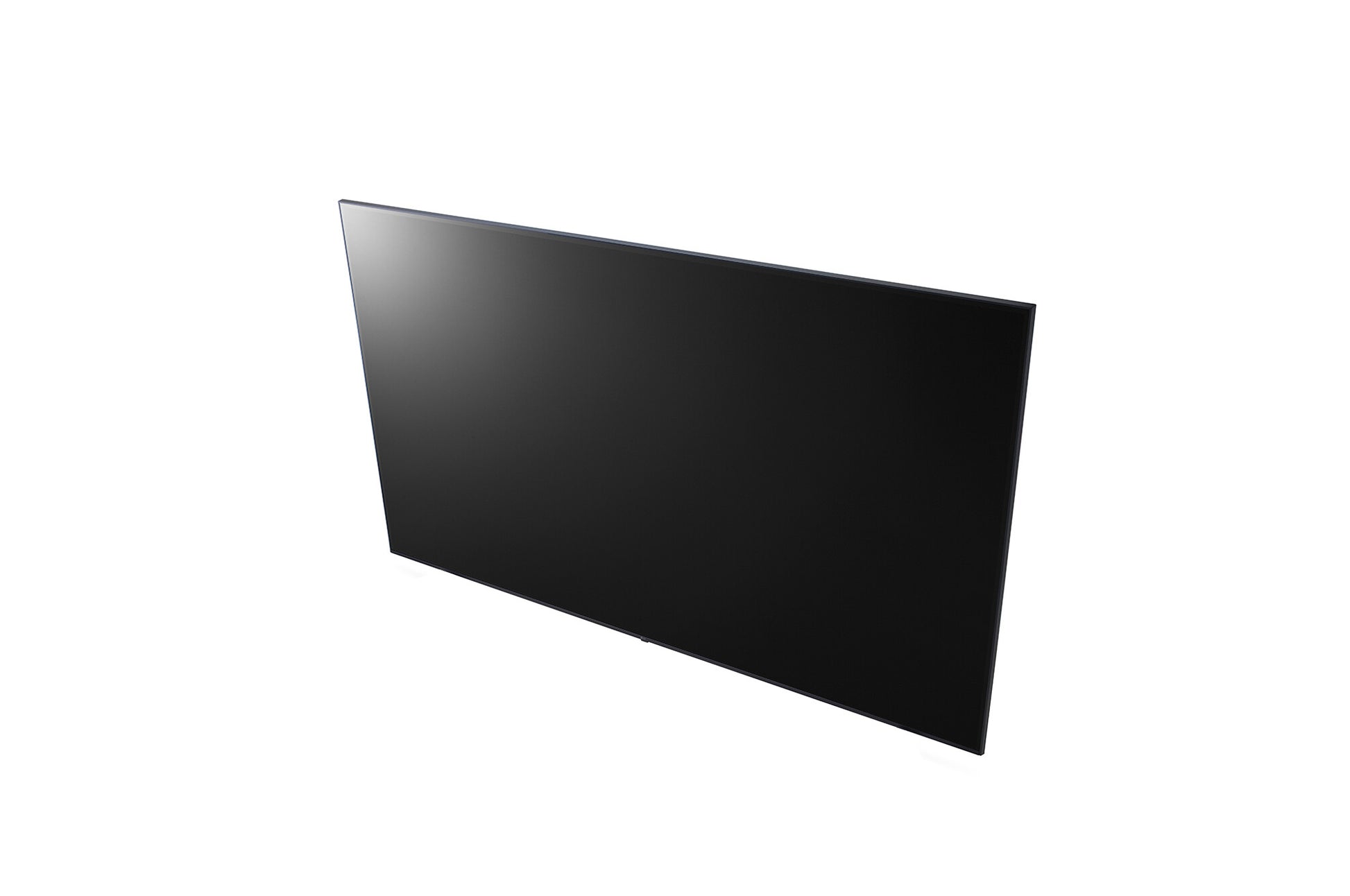

86UL3J-B, LG Signage Display, UL3J Series, 86" UHD 330cd/m2 16/7, webOS, Speaker, wifi

86UL3J-B, LG Signage Display, UL3J Series, 86" UHD 330cd/m2 16/7, webOS, Speaker, wifi

86", 3840x2160, IPS, HDMI, USB, RJ-45, AC 100-240V 50/60Hz, 1927x1104x59.9 mm

  • Brightness(Typ.) : 330 nits
  • Resolution : ULTRA HD (3,840 x 2,160)
  • webOS-based High Performance
  • Built-in Speaker
  • Compatible with LG's One:Quick Share
  • Compatible with AV Control Systems
  • SKU:8806091356673
  • GTIN/EAN:8806091356673
  • MPN:86UL3J-B

You need to login to view the price.

Add To Favorite
View full details

LG 86UL3J-B Digital signage display 2.18 m (86') IPS Wi-Fi 330 cd/m² 4K Ultra HD Blue Built-in processor Web OS 16/7. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 330 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Web OS. Product colour: Blue

Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

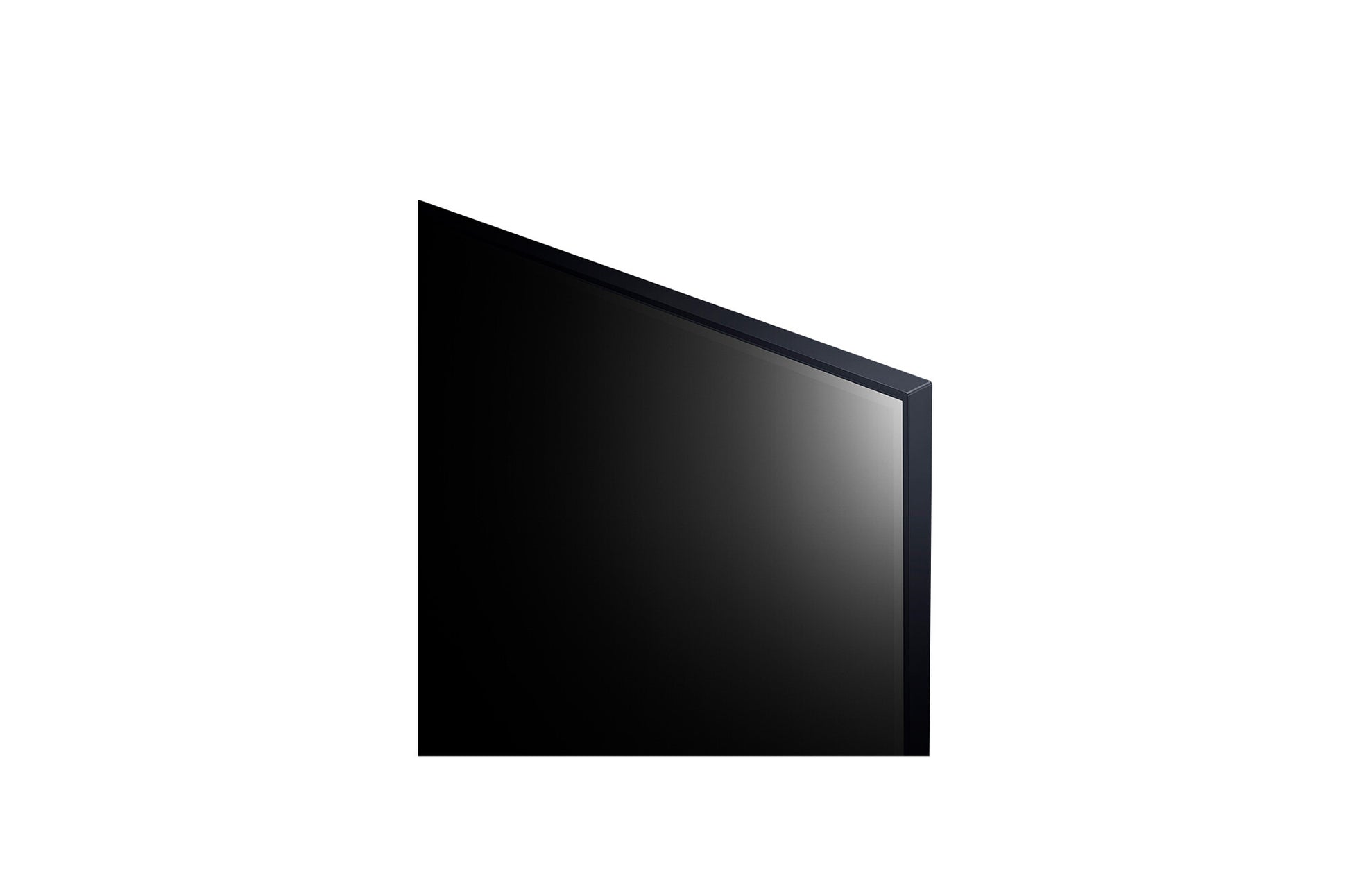

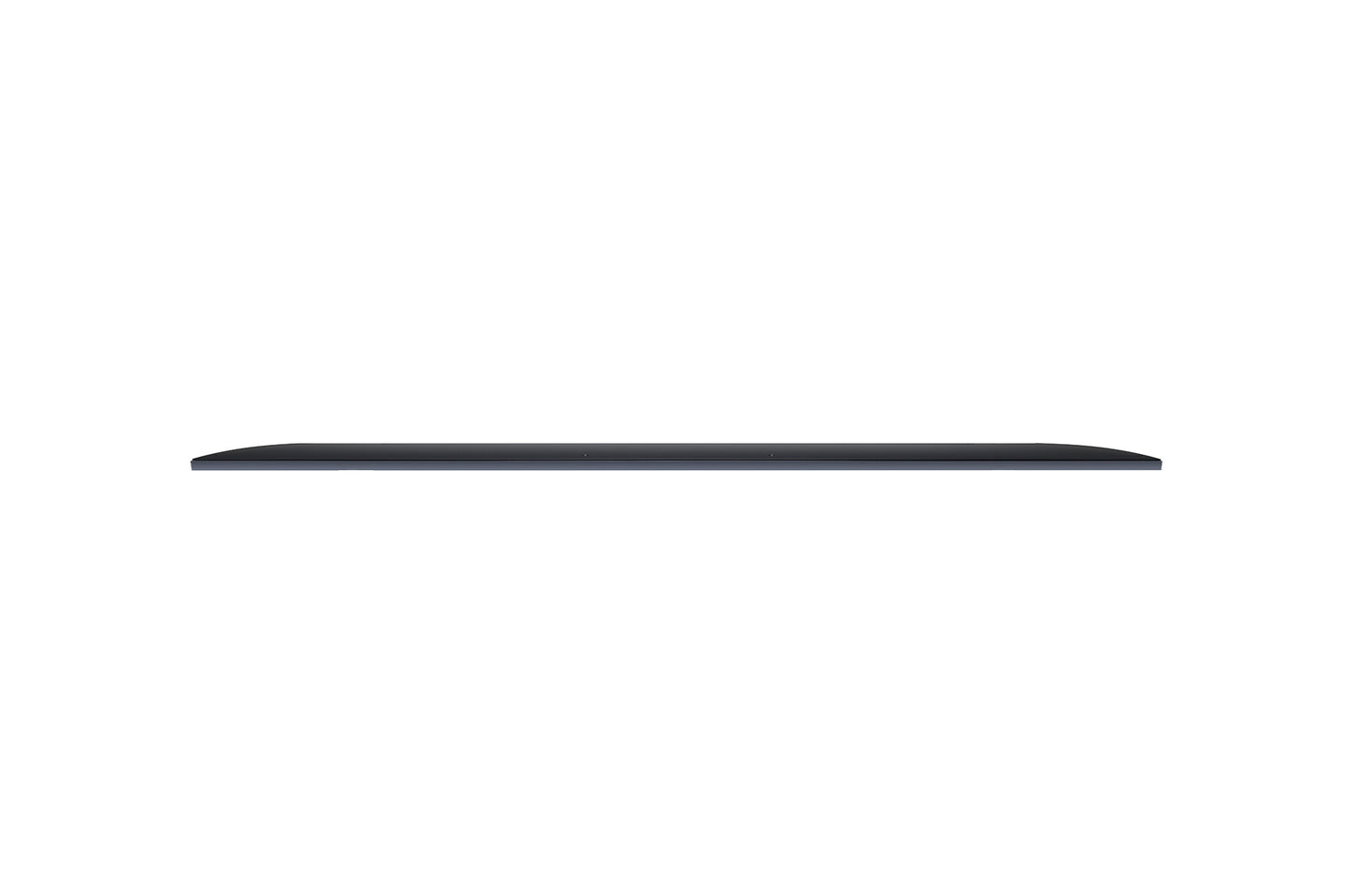

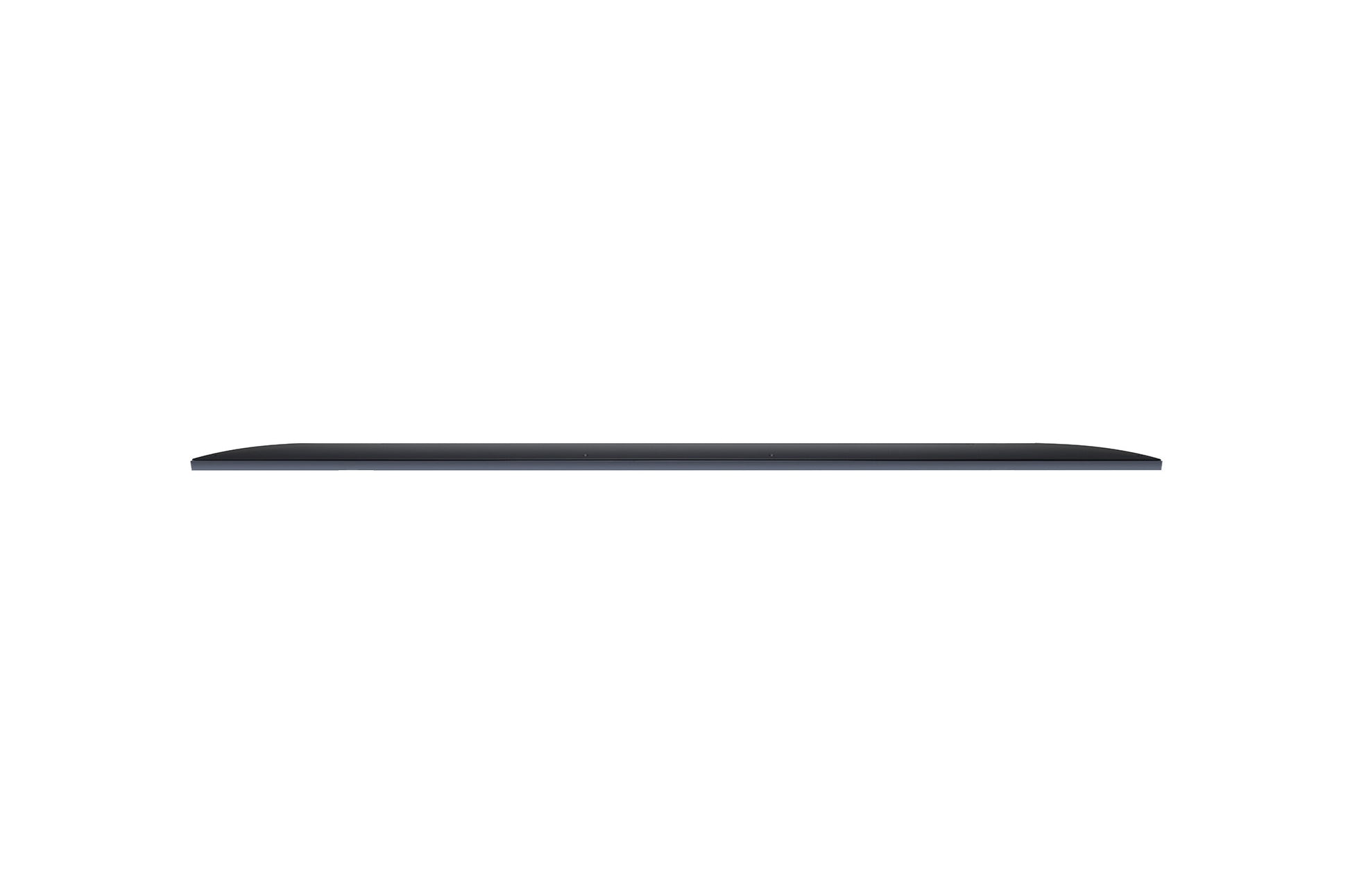

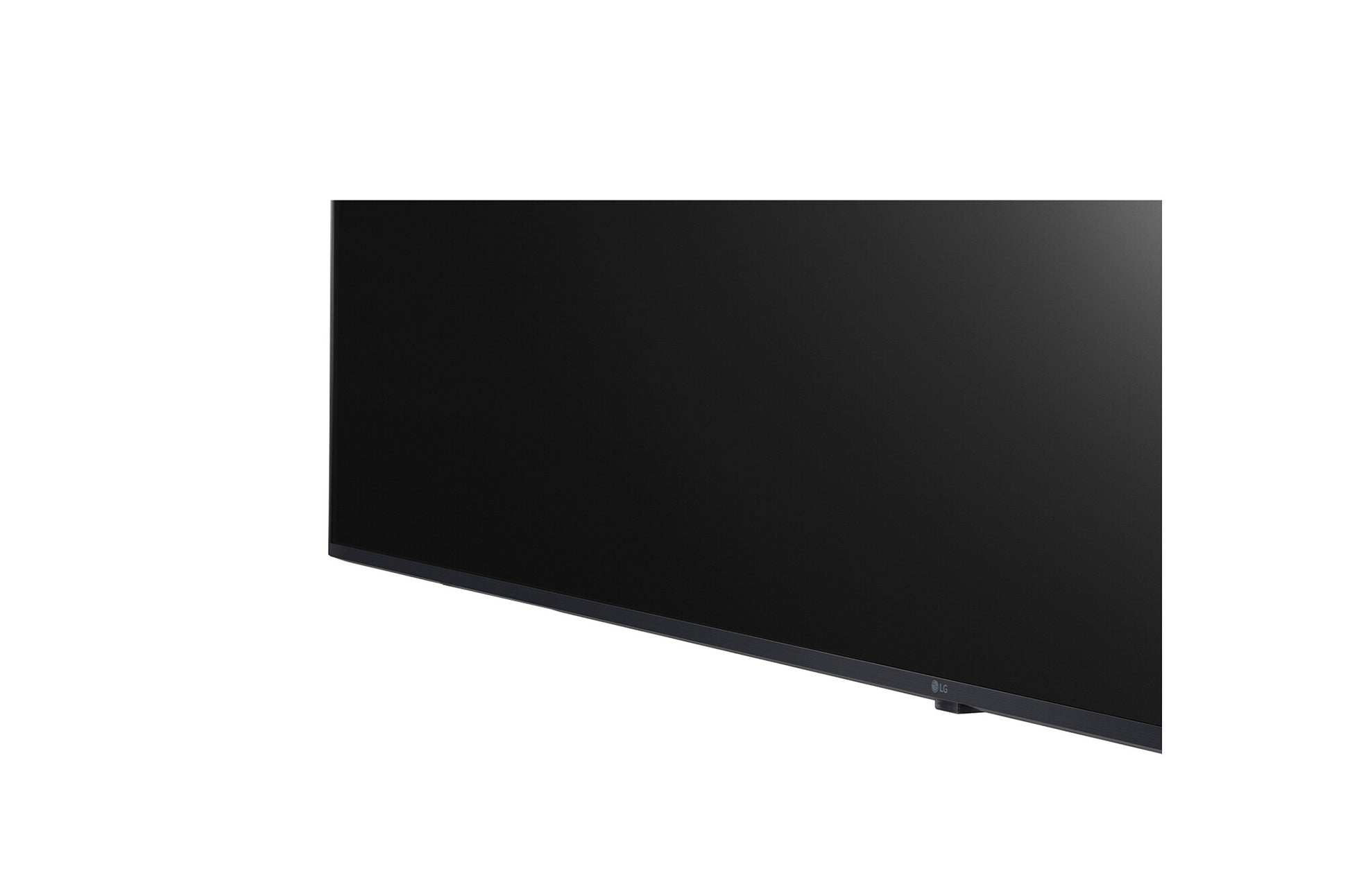

Sophisticated Slim Design
This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
* Compared to LG's UL3G series

High Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**
* SoC : System On Chip
** GUI : Graphical User Interface

Various Sensor Connection
LG webOS smart signage platform helps to easily provide value-added solutions* by supporting simple connections with external sensors** such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.
* e.g. showing specific promotional information according to weather change to store visitors
** External sensors need to be purchased separately and tested for compatibility with webOS platform.

LG's Simple Advertisement Helper, Promota
Using LG's Promota* application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.
* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)

LG’s Wireless Screen Sharing Solution, LG One:Quick Share
LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.

Remote Monitoring and Control
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

Compatible with AV Control Systems
The UL3J series supports Crestron Connected* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.
* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control

Easy Menu Setup for Vertical Needs
UL3J series increases users' convenience by organizing frequently used menus* by industry.
* Pre-set Support Vertical : Corporate / Government / Retail, Meeting room

Easy Content Distribution & SW Update
UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network.

Wireless Access Point
UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

REAL-TIME LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

Warranty: 3 year

Display
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
1000000:1
Contrast ratio (typical)
1200:1
Response time
5 ms
Touchscreen
N
HD type
4K Ultra HD
Display brightness
330 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
IPS
Display diagonal
2.18 m (86")
Ports & interfaces
RS-232C
Y
Wi-Fi
Y
Ethernet LAN
Y
USB version
2.0
USB ports quantity
2
USB port
Y
DVI port
N
HDMI ports quantity
3
Audio
Built-in speaker(s)
Y
Design
Panel mounting interface
600 x 400 mm
VESA mounting
Y
Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Blue
Product design
Digital signage flat panel
Performance
HDCP
Y
HDCP version
1.4/2.2
Operating hours (hours/days)
16/7
Purpose
Universal
Power
Heat dissipation
751 BTU/h
AC input frequency
50/60 Hz
AC input voltage
100-240 V
Power consumption (typical)
220 W
Computer system
Operating system installed
Web OS
Built-in processor
Y
Computer system
Y
Weight & dimensions
Display weight
45.2 kg
Display height
1104 mm
Display depth
59.9 mm
Display width
1927 mm
Packaging data
Package height
1215 mm
Package depth
228 mm
Package width
2115 mm
Packaging content
Cables included
AC
Remote control included
Y
Operational conditions
Operating relative humidity (H-H)
10 - 80%
Operating temperature (T-T)
0 - 40 °C
Features
Harmonized System (HS) code
85285210
