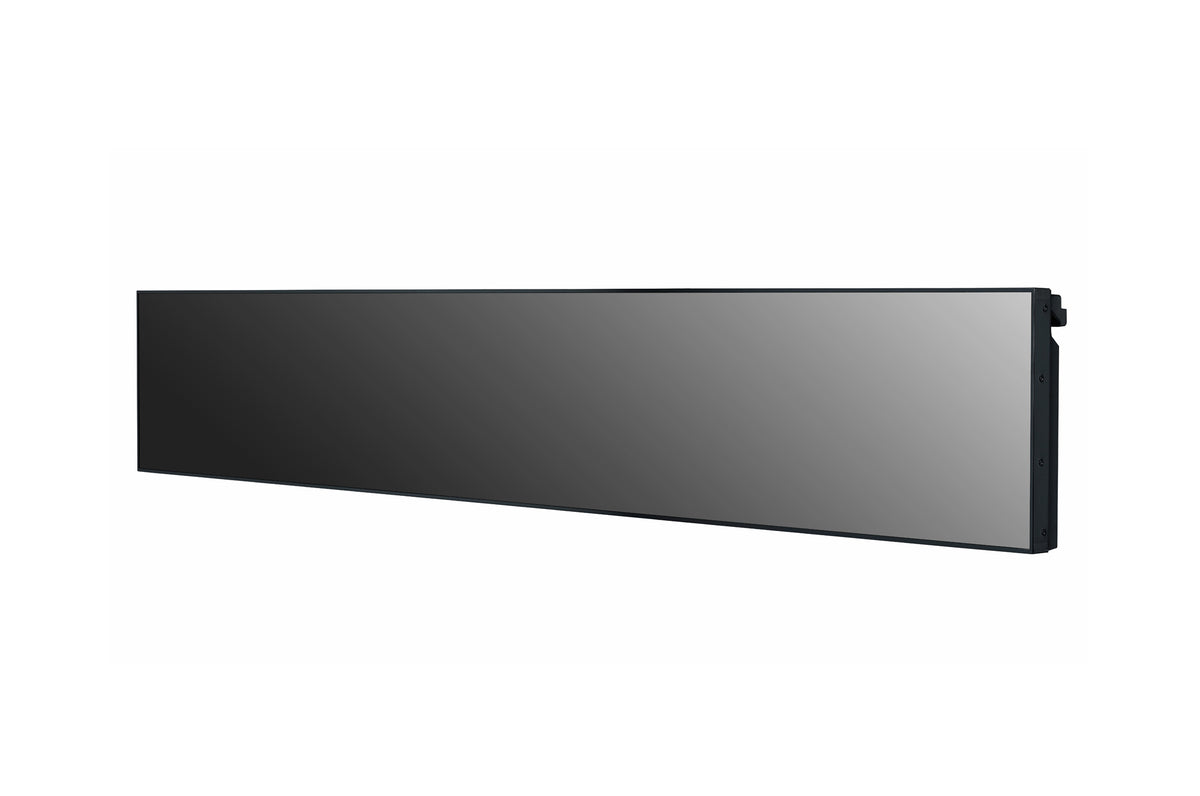

LG 86BH5F-M

The LG 86BH5F-M is an 86-inch Ultra Stretch digital signage display designed for spaces where conventional 16:9 screens simply don't fit. Its unique 58:9 widescreen format makes it ideal for retail shelf edges, airport corridors, hospitality lobbies, and transportation hubs — any environment that demands impact in a narrow footprint. Built on an IPS panel with UHD 3840×600 resolution and a 500-nit brightness rating, it delivers vivid, sharp content around the clock. The integrated webOS 4.0 SoC and built-in Wi-Fi enable standalone operation, while compatibility with LG SuperSign CMS and LG ConnectedCare ensures straightforward content management and remote monitoring at scale.

Unique 58:9 Ultra Stretch Format

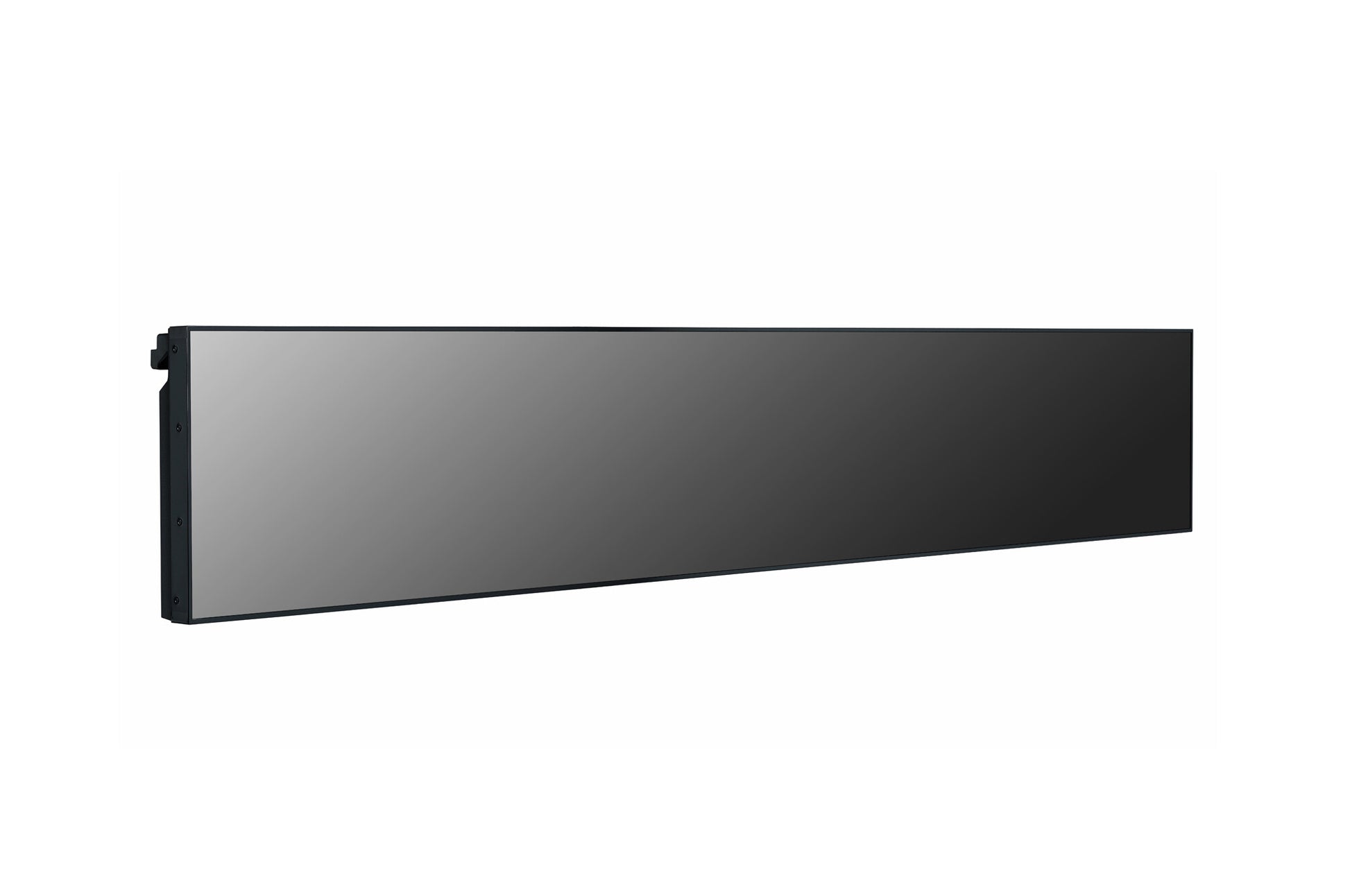

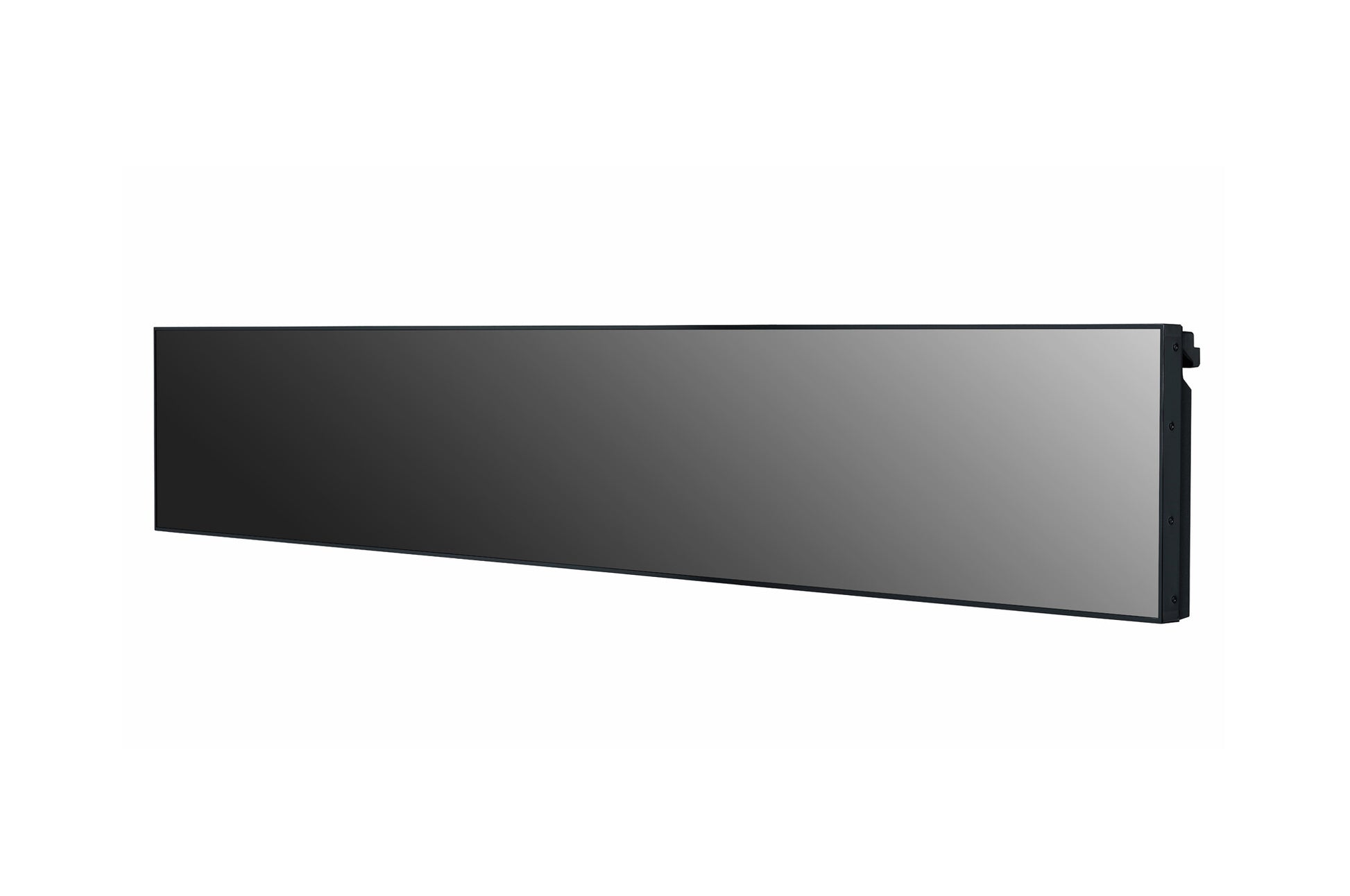

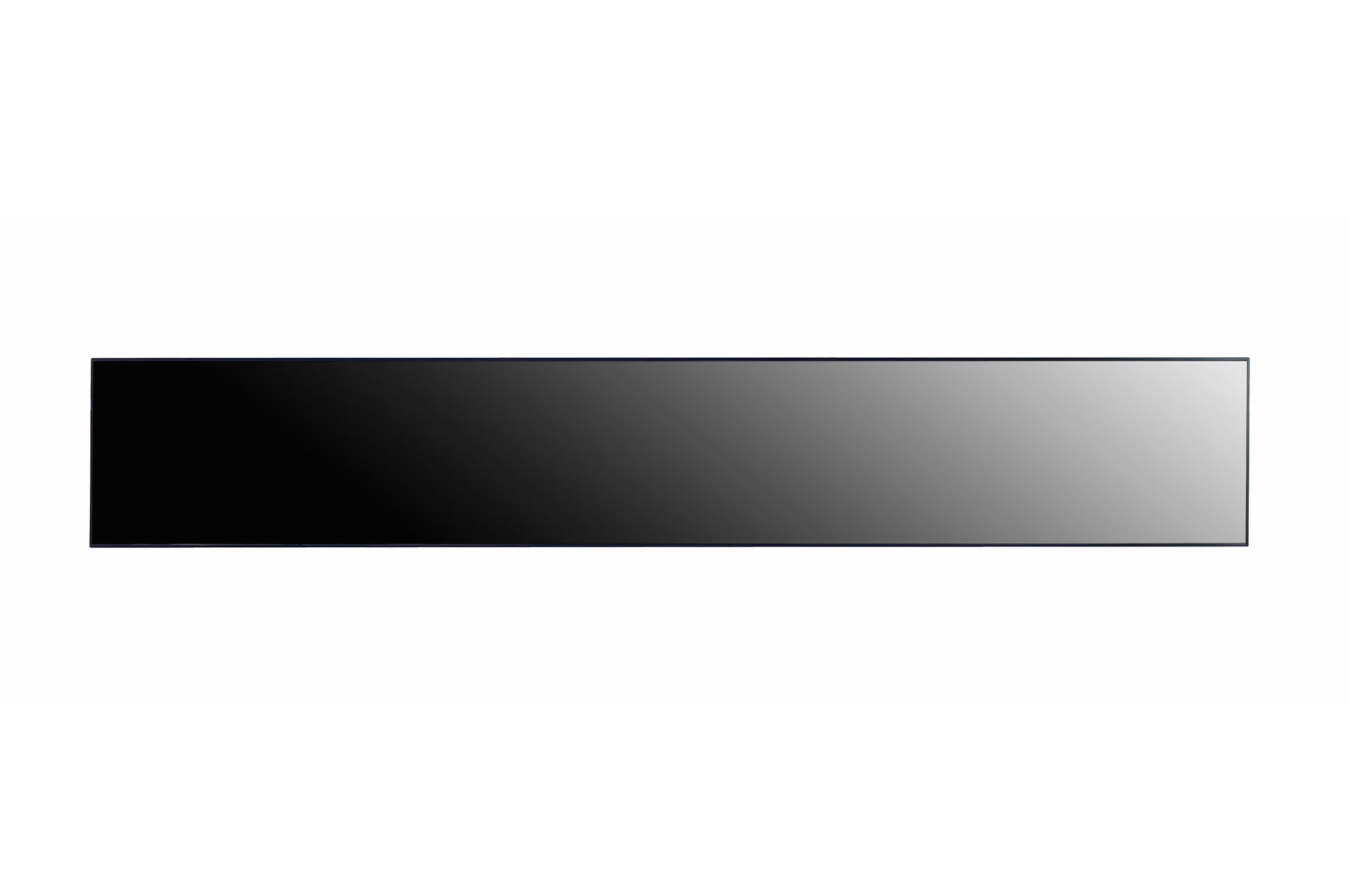

The 86BH5F-M uses a 58:9 bar-type panel — an aspect ratio that fills horizontal spaces completely unserviceable by standard 16:9 displays. At 2,158 mm wide and only 348 mm tall, the screen slots naturally along retail shelf fascias, above checkout counters, inside lift lobbies, along airport boarding corridors, and across the tops of retail fixtures. This format allows content to run continuously across the width of a space, creating an immersive horizontal canvas for promotional messages, wayfinding, or departure information. For end users, it means previously wasted architectural space becomes a working, revenue-generating communication channel — without custom millwork or unusual mounting hardware.

UHD Resolution with Wide-Angle IPS Panel

At 3,840 × 600 pixels across 86 inches, the display achieves a pixel density that keeps text sharp and brand imagery crisp even at short viewing distances. The IPS panel delivers 178° horizontal and vertical viewing angles, meaning content reads accurately whether a customer approaches from directly ahead or from a steep angle at the side — crucial in retail aisles and transit corridors where viewers are rarely standing square-on. The 10-bit colour depth supports 1.07 billion colours at 72% NTSC gamut, ensuring promotional graphics and product shots reproduce with strong fidelity. Anti-glare surface treatment (3% haze) reduces reflections in bright ambient lighting, keeping the image readable without distracting hotspots.

58:9 stretch format. 24-7 rated. Built-in webOS player.

IP5X dust-proof · CB / NRTL / CE / KC certified · ErP compliant (EU)

Built-in webOS 4.0 SoC — No External Player Needed

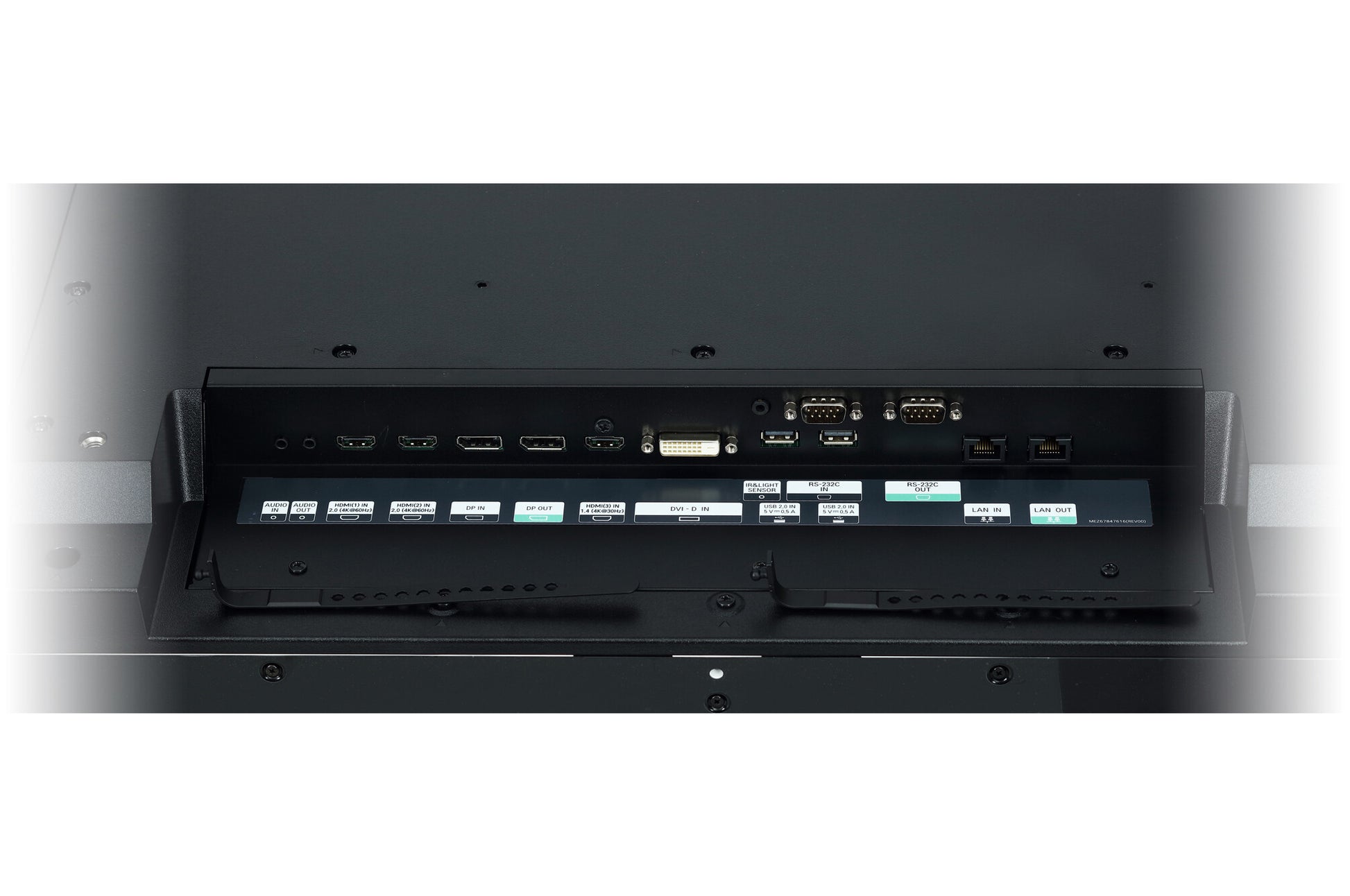

The integrated quad-core SoC running webOS 4.0 means the display operates as a fully self-contained signage player. With 8 GB of internal eMMC storage, content can be loaded directly via USB or delivered over the network — no additional player box, no extra power supply, no extra failure point behind the mount. Built-in Wi-Fi (802.11ac) and dual RJ45 LAN ports (supporting daisy-chain) make network integration straightforward in environments where running dedicated cabling to each screen is impractical. The result for the operator is a simpler installation, a smaller equipment footprint, and one fewer device to maintain or replace during the display's working life.

True 24-7 Operation, 50,000-Hour Panel Life

The 86BH5F-M is factory-rated for continuous 24-hours-a-day, 7-days-a-week operation — the standard demanded by airports, transit hubs, hotel lobbies, and flagship retail environments that cannot tolerate scheduled downtime. The IPS panel carries a typical lifetime rating of 50,000 hours, equating to over five and a half years of non-stop use before expected brightness degradation becomes noticeable. Combined with a built-in power supply and no cooling fan (fanless design confirmed in specs), the display runs silently and eliminates fan-related dust ingestion and mechanical failure as a maintenance concern — directly reducing service call frequency in the field.

IP5X Dust-Proof Certification

The IP5X ingress protection rating certifies that the display's internals are fully protected against dust — not merely resistant, but verified through standardised testing. In practice this matters most in high-traffic retail floors, food courts, transportation terminals, and industrial environments where airborne particles would otherwise settle on internal components and accelerate thermal degradation. For operators managing large networks of displays, IP5X certification is a tangible differentiator that reduces the frequency and cost of preventive cleaning maintenance and extends the reliable service life of each installed unit.

4PBP Multi-Content and 15x15 Tile Mode

The display supports Picture-by-Picture (PBP) with up to four simultaneous independent content zones across the single screen — useful for retailers or venues that need to run promotions, pricing, brand messaging, and live data feeds concurrently without multiple displays. For larger installations, tile mode supports configurations up to 15×15, allowing up to 225 individual screens to be combined into a single massive canvas. Content can daisy-chain through DP Out with no external matrix switcher required for basic tile layouts. This scalability means a single display model can serve both single-screen shelf-edge installations and large-format flagship video walls, simplifying procurement and spare-parts management.

LAN Daisy Chain and Remote Management

Multiple 86BH5F-M units can be interconnected via LAN daisy-chain, enabling centralised control, monitoring, and firmware updates across an entire network of displays from a single connection point — without requiring individual IP addresses for every screen. This integrates directly with LG SuperSign Control and the optional LG ConnectedCare cloud service, which provides real-time fault diagnosis and remote-control capabilities. For large retail or transport deployments spanning multiple sites, this means engineering teams can identify and respond to display faults without dispatching technicians, and can push firmware updates or content changes to all screens simultaneously — substantially reducing ongoing operational costs.

OPS Piggyback Slot for Future-Proof Upgrades

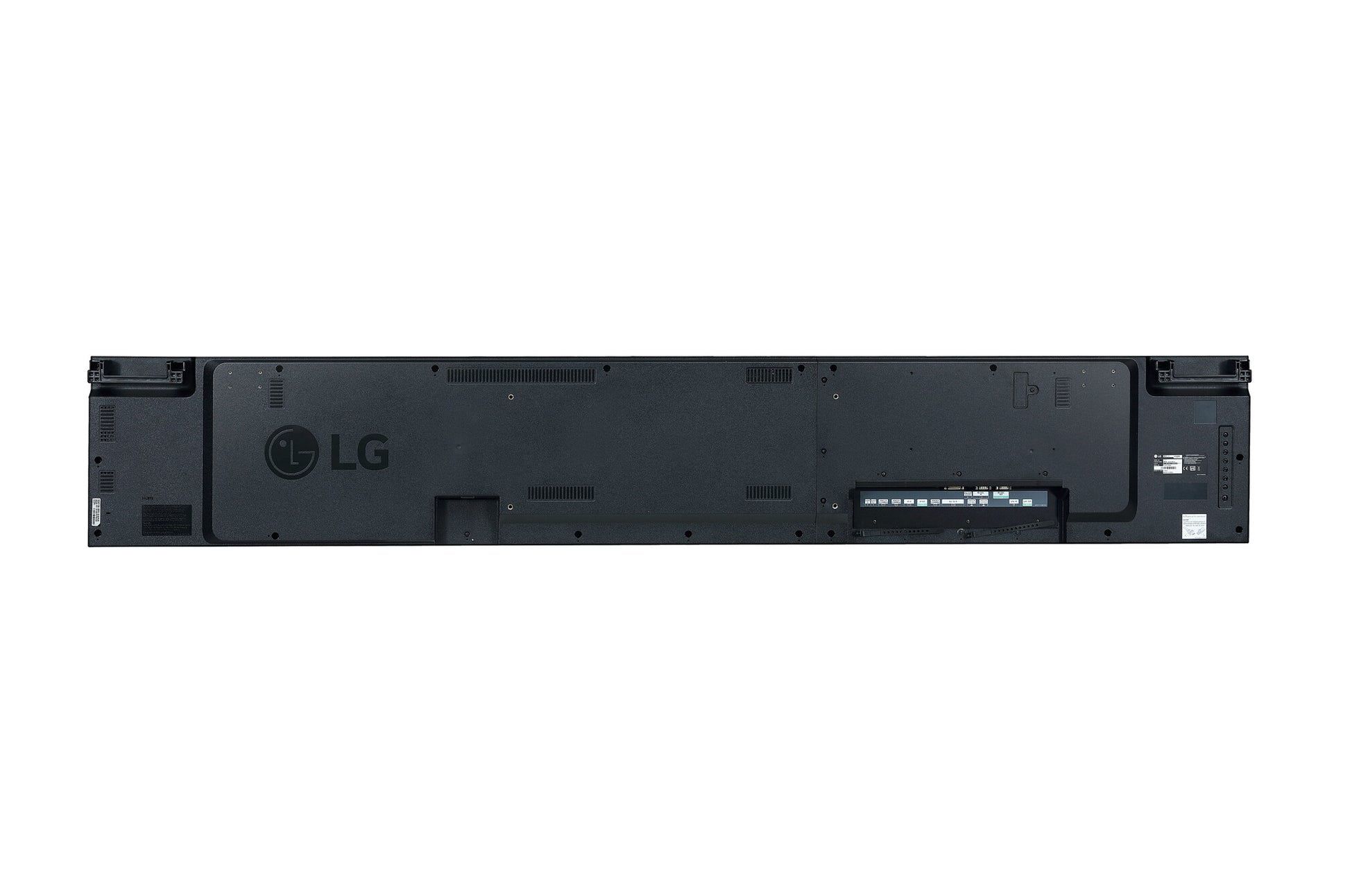

The 86BH5F-M includes an OPS (Open Pluggable Specification) compatible slot in piggyback configuration, allowing an external compute module — such as a Windows or Android OPS PC — to be mounted directly to the rear of the display without protruding cables or a separate mounting bracket. This makes it straightforward to upgrade processing power or switch operating platforms in future without replacing the display itself. For AV integrators deploying in enterprise or flagship retail environments that may need to transition from webOS to a Windows-based player or a more capable graphics engine, this slot removes the risk of hardware lock-in at the point of sale.
