LG 55VSM5J-H

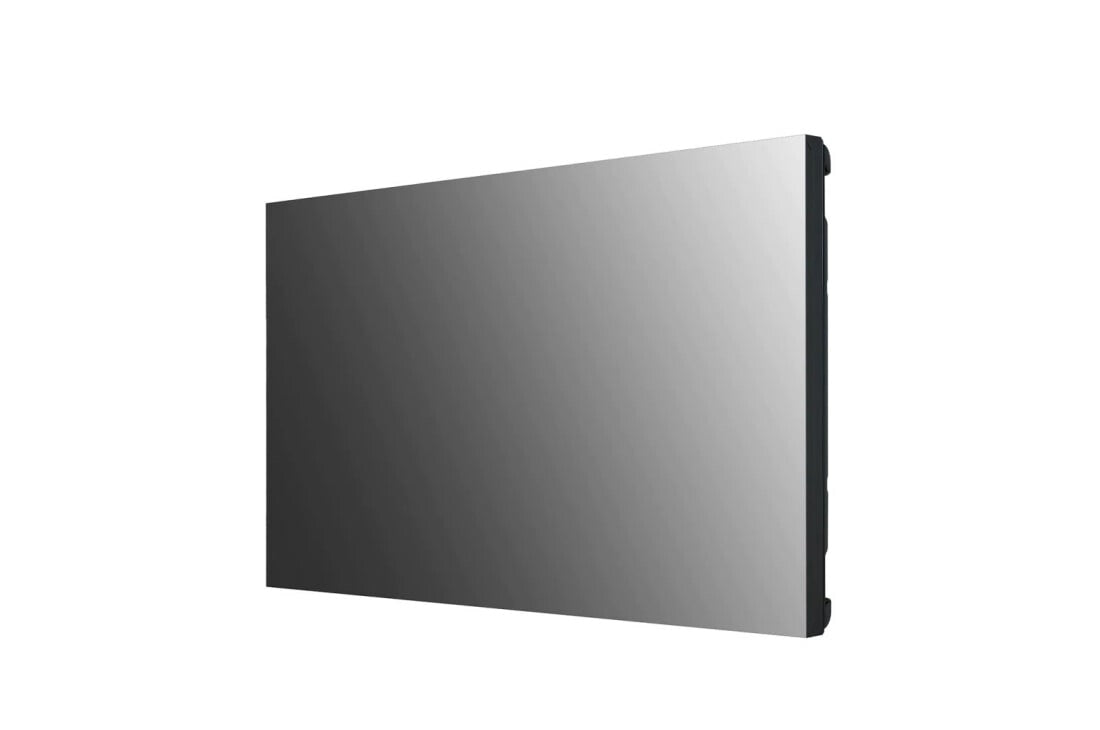

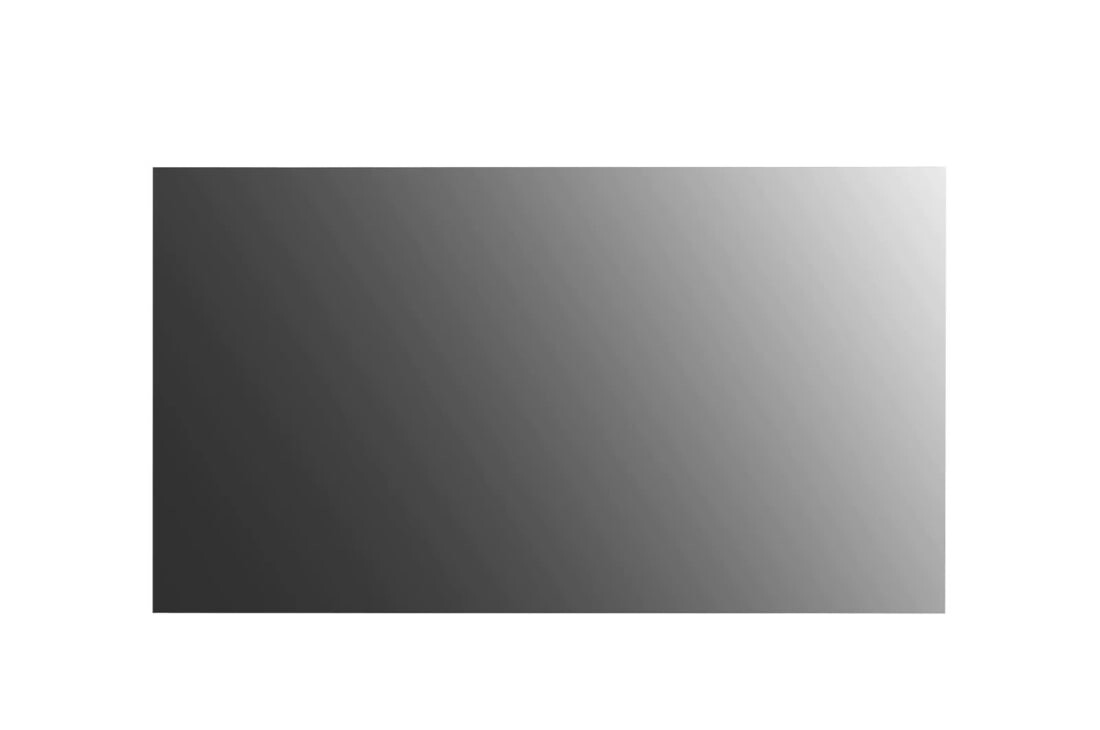

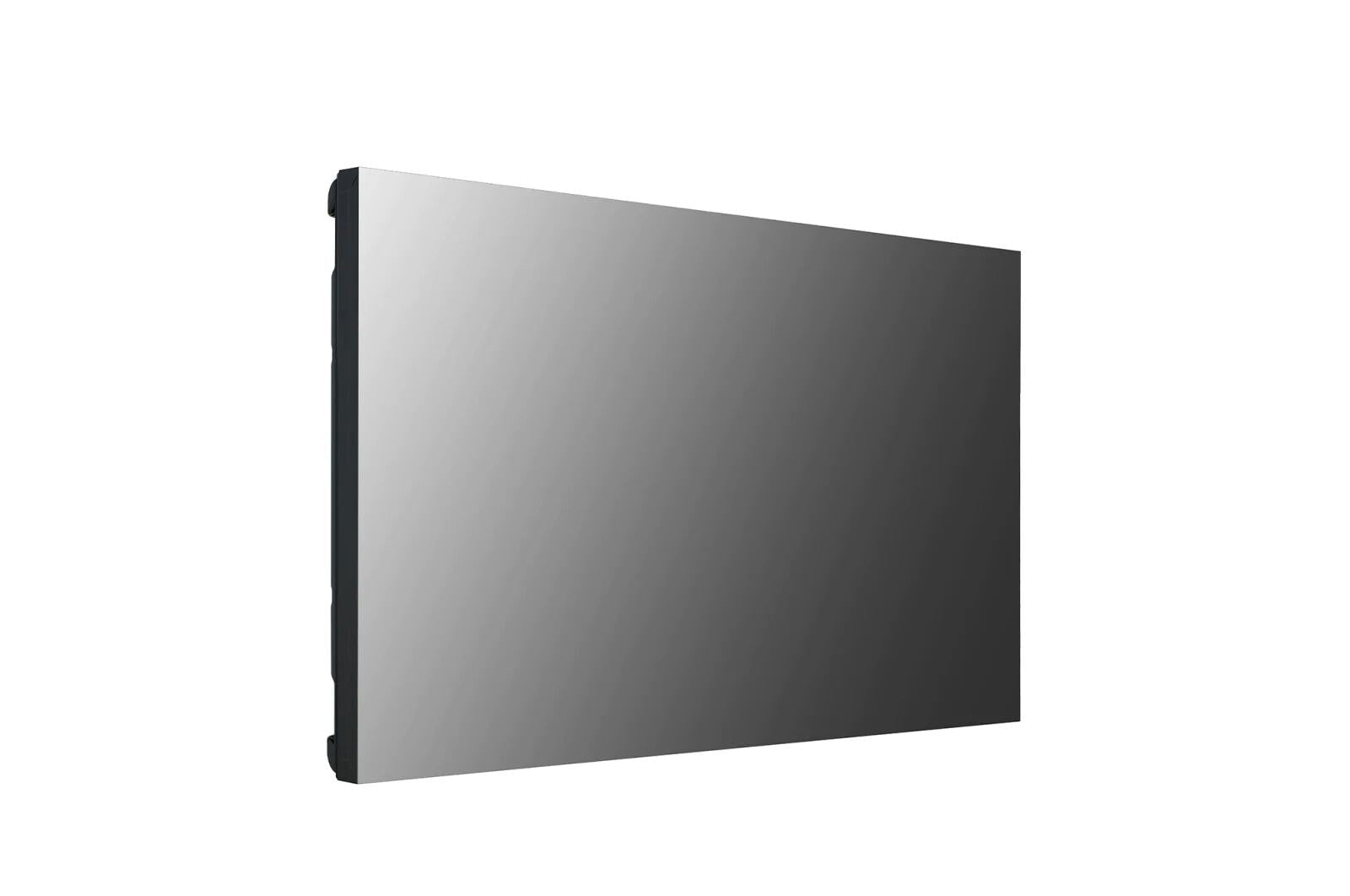

The LG 55VSM5J-H is a 55-inch Full HD IPS video wall display engineered for demanding commercial installations — from control rooms and broadcast studios to retail environments and corporate lobbies. Its defining feature is an industry-leading 0.44mm even bezel, independently verified by Nemko, which creates a virtually seamless canvas across any tile configuration up to 15×15 displays. Rated for continuous 24-7 operation and available in both landscape and portrait orientation, the VSM5J-H is equally at home as a standalone signage display or as one panel in a large-format video wall. The built-in webOS 4.1 SoC eliminates the need for an external media player in most deployments, while LG Smart Calibration and the optional ConnectedCare cloud service make long-term management fast and cost-effective.

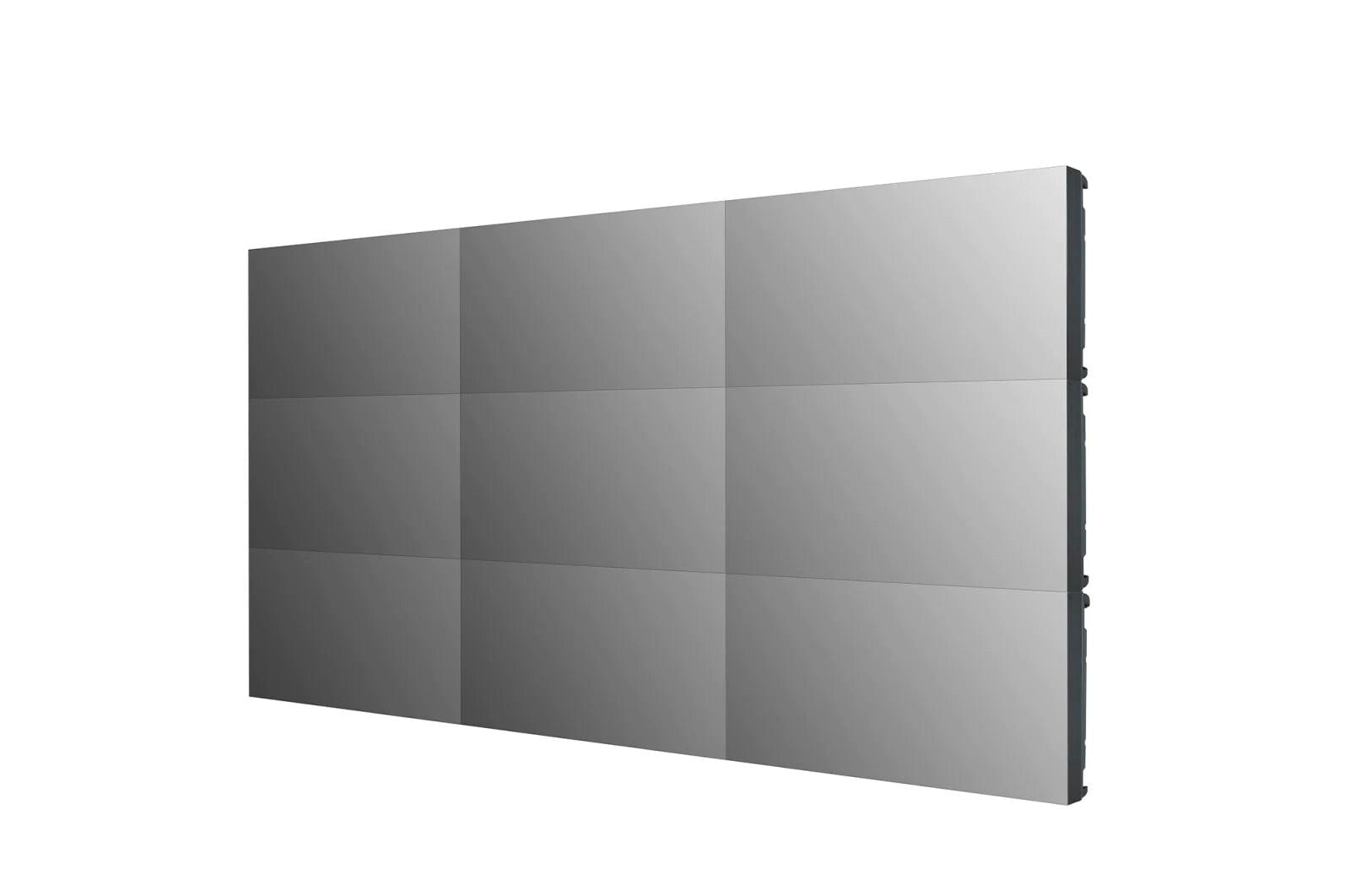

0.44mm Even Bezel — Virtually Seamless at Scale

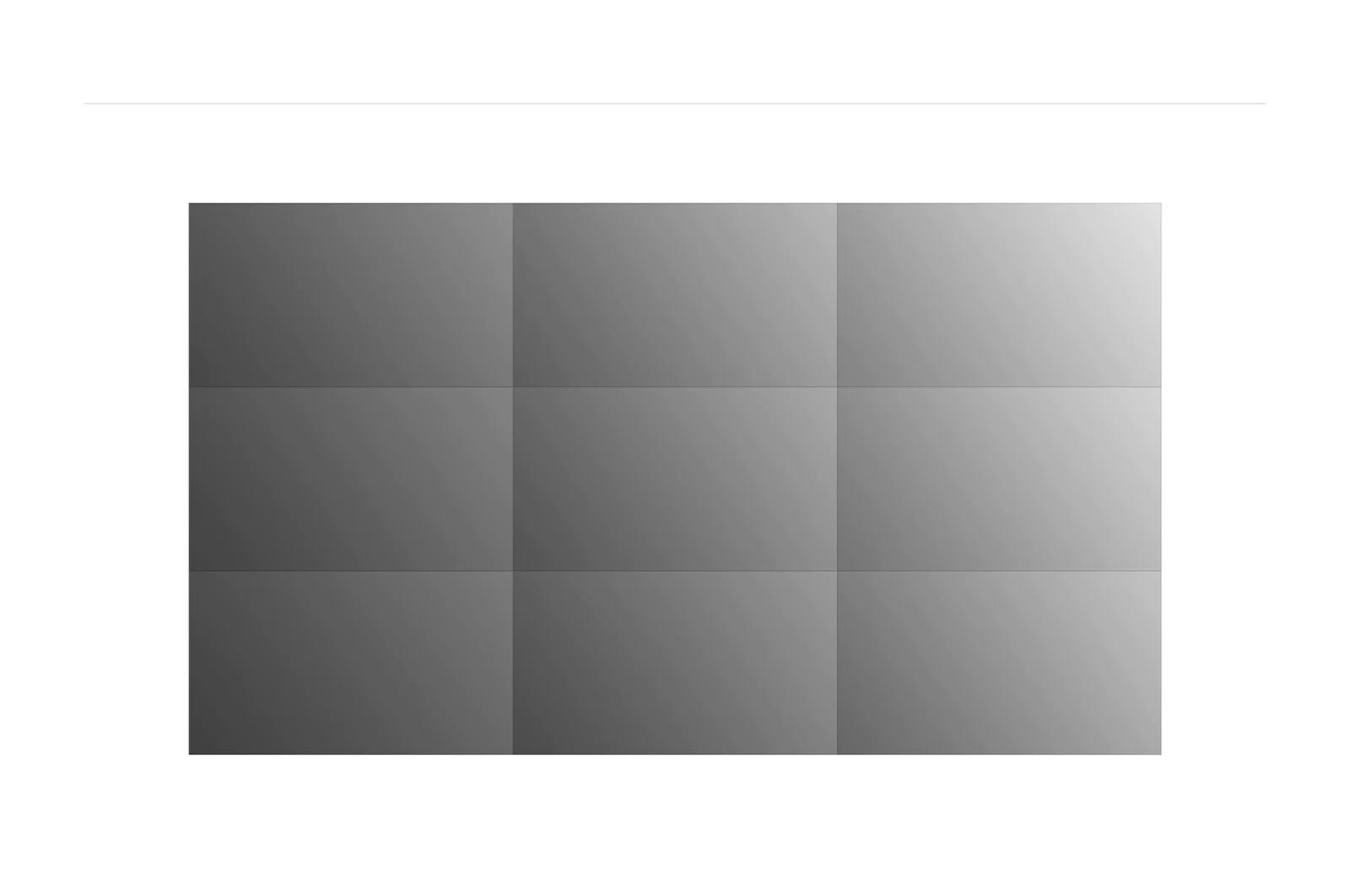

The VSM5J-H carries a 0.44mm even bezel — meaning all four sides of the panel are identical in width — resulting in a bezel-to-bezel gap of just 0.88mm between adjacent tiles. This measurement has been independently verified by Nemko, giving integrators a credible, third-party-backed specification to put in front of clients. In practice, images and video displayed across a tiled wall appear continuous rather than chopped into rectangles: text stays readable, motion stays smooth, and brand content looks exactly as the creative team intended. This makes the display particularly well-suited for broadcast news backdrops, command-and-control video walls, and high-end retail feature walls where visual discontinuity would undermine the installation's purpose.

True 24-7 Operation for Mission-Critical Sites

The 55VSM5J-H is rated for 24 hours a day, 7 days a week continuous operation — the highest commercial duty cycle available. This is not a marketing claim but a design specification reflected in the panel's thermal management, power supply sizing, and component selection. For operators running control rooms, transit hubs, emergency operations centres, or retail flagship stores, this rating means the display can remain on around the clock without risk of premature component failure or warranty complications. Combined with the IP5X dust-resistance rating, the display is well-suited to environments where it cannot easily be shut down for maintenance and where reliability is operationally critical.

0.44mm bezel. 15×15 wall. Zero visible gaps.

Nemko-verified bezel · ENERGY STAR 8.0 certified · 3-year limited warranty

LG Smart Calibration — Fast, Accurate Multi-Panel Colour Matching

Colour drift between individual panels is one of the most common service issues on large video walls. Traditional sensor calibration requires specialist equipment and a technician on a ladder — a process that can take hours per wall. LG Smart Calibration addresses this by analysing both the intra-panel colour properties and the inter-panel differences across the entire tiled array, then applying corrections automatically from a remote control in a matter of minutes. Calibration can also be scheduled to run at regular intervals, so the wall stays consistent over its service life without reactive maintenance visits. This directly reduces ongoing support costs and keeps the customer's content looking exactly as intended months or years after installation.

Built-in webOS 4.1 SoC — No External Player Required

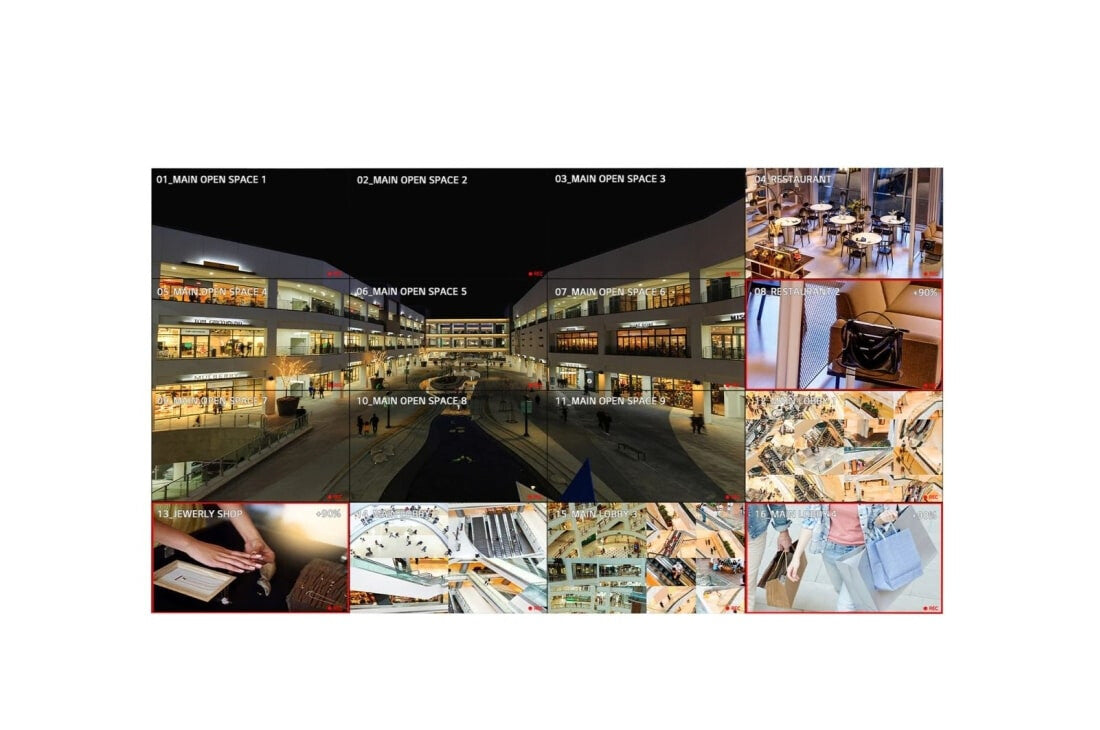

The VSM5J-H houses LG's webOS 4.1 signage platform on-chip, meaning it can run and manage content entirely standalone for many typical use cases. It supports HTML5, CSS transitions, and real-time streaming protocols (RTSP, RTP, HLS, UDP Multicast), enabling up to four simultaneous video streams with animation effects — all without an attached media player box. For system integrators, this simplifies rack design, reduces cabling, eliminates one point of failure per display, and lowers BOM cost. The platform is also compatible with LG SuperSign CMS, SuperSign Control+, and SuperSign WB, giving operators a choice of management tool from day one. An SDK is available for custom web-app development.

LAN Daisy Chain and UHD Tiling — Simplified Infrastructure

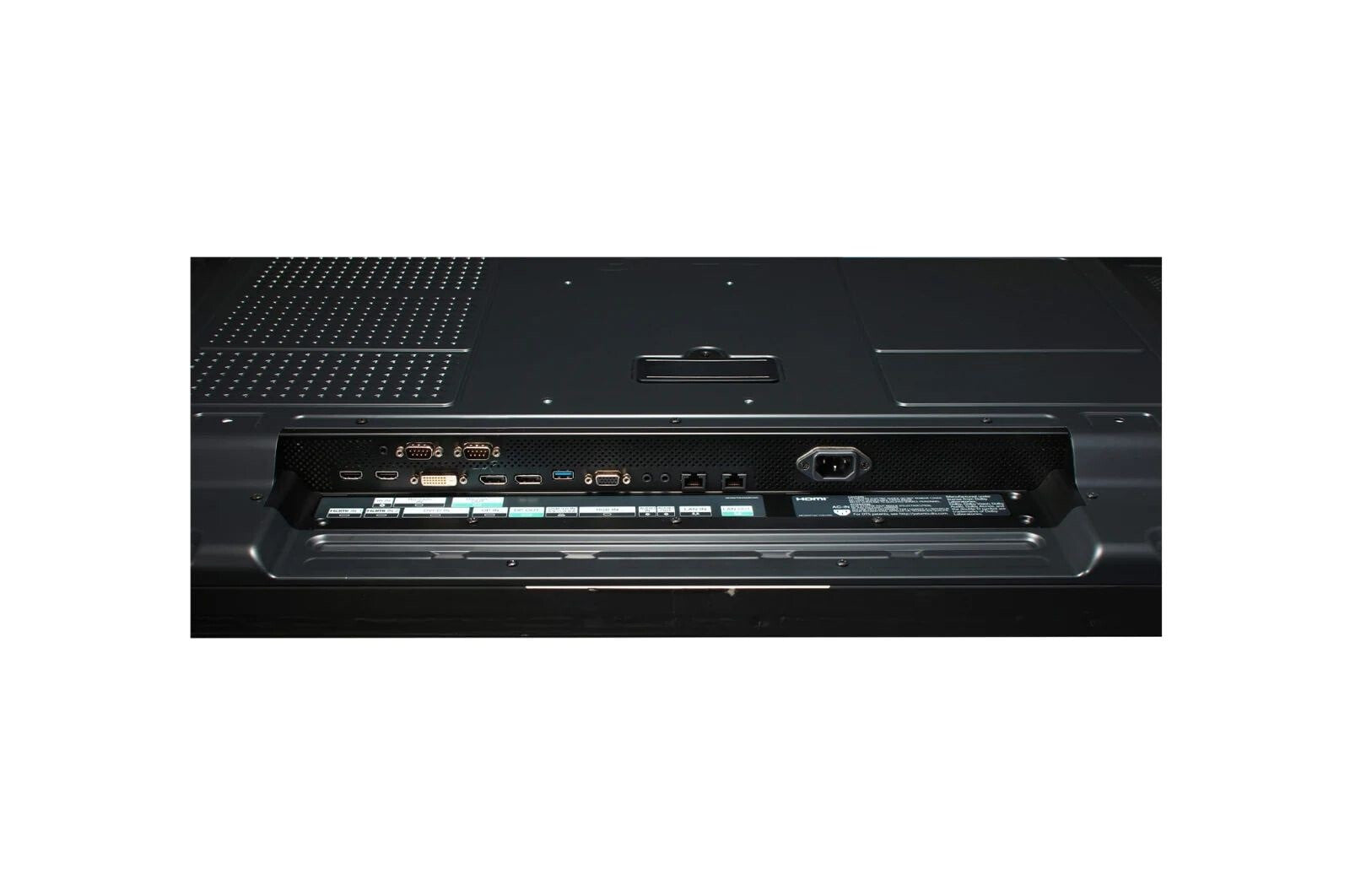

The display supports LAN daisy chaining, which allows the entire video wall to be controlled, monitored, and firmware-updated from a single network connection rather than running individual cables to every panel. For UHD content distribution, an HDMI and DisplayPort daisy chain enables a full 4K video wall without the cost and complexity of a DisplayPort MST hub or a Matrox graphics card. These two capabilities together mean installation infrastructure stays lean: fewer switches, fewer runs, and a simpler topology that is easier to troubleshoot if something goes wrong on site.

IPS Panel with 28% Haze — Consistent Colour in Bright Environments

LG's IPS technology delivers a full 178°×178° viewing angle, so colours remain accurate and contrast stays stable whether the viewer is standing directly in front or at a sharp angle — essential for wide, tiled video wall installations where the audience is spread across a large area. The panel's 28% haze level suppresses ambient light reflections that would otherwise wash out content in brightly lit spaces such as retail floors, airport concourses, or exhibition halls. The enhanced corner uniformity further ensures there is no darkening at bezel boundaries, keeping the overall image consistent all the way to the edges of each tile and across the full wall composite.

Portrait and Landscape Orientation with Dedicated GUI

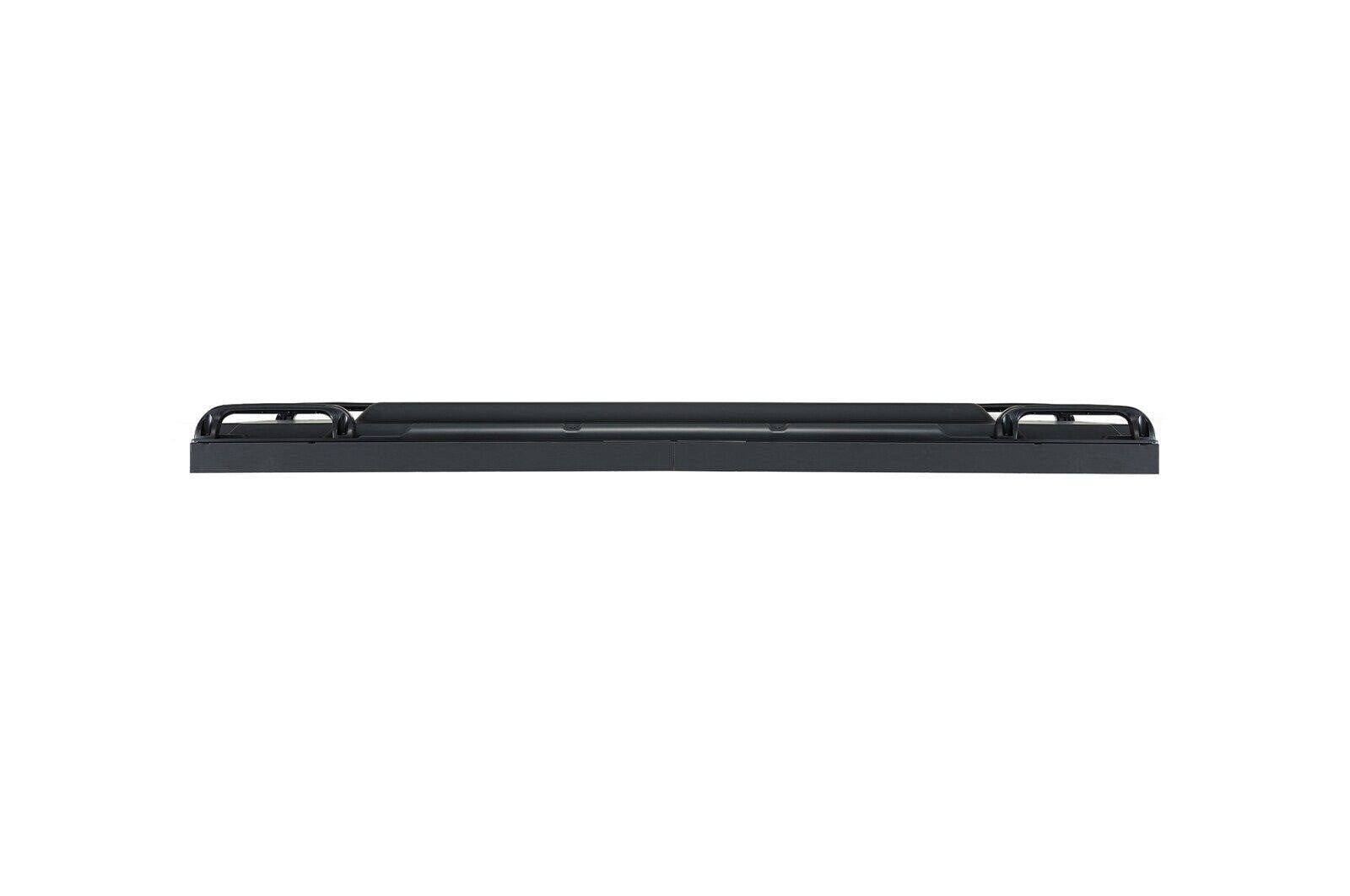

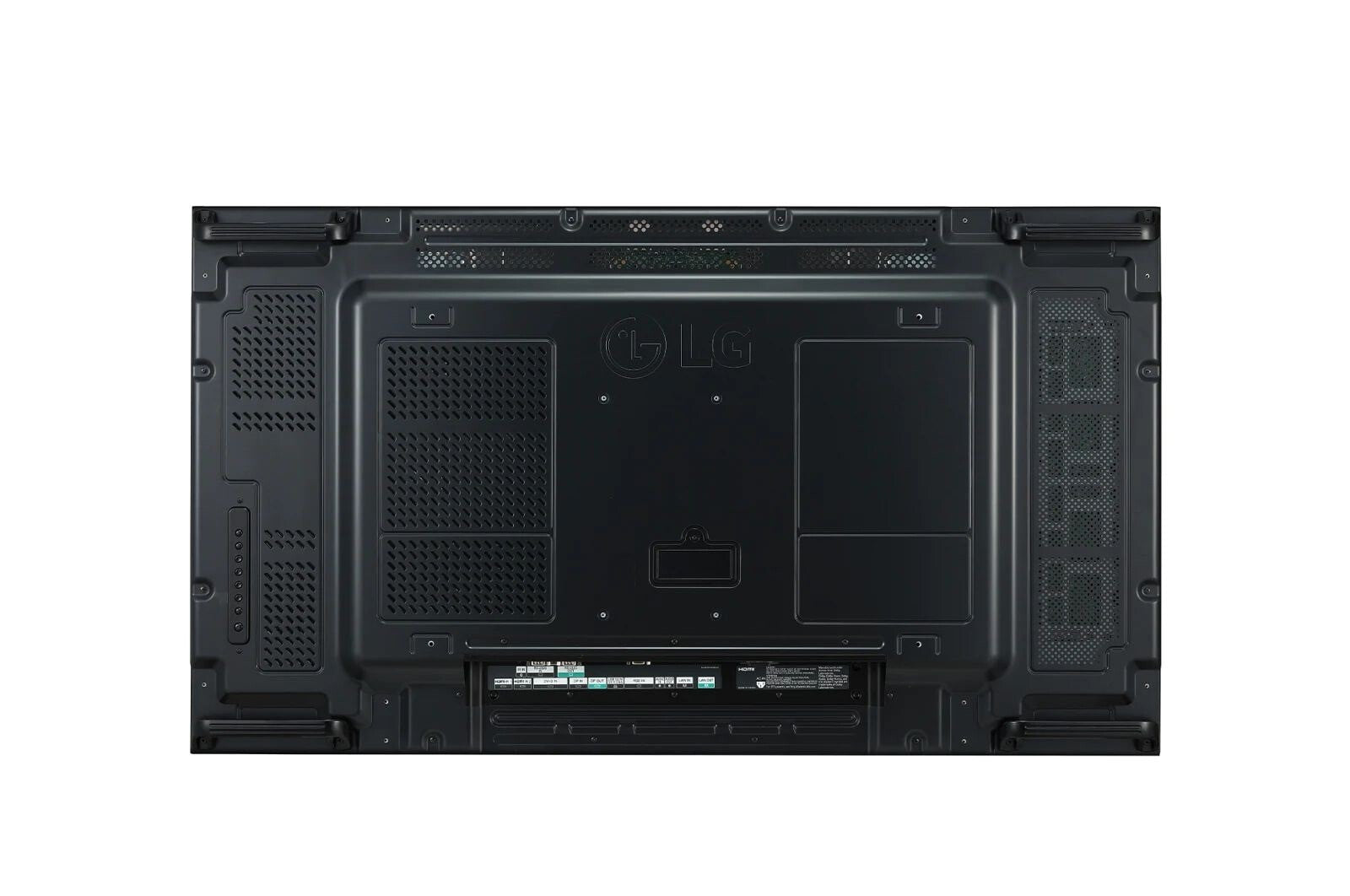

The 55VSM5J-H supports both landscape and portrait mounting, and — importantly — the OSD and GUI adapt accordingly. Portrait mode uses a 9:16 ratio menu layout with larger font sizes, so operators can navigate settings comfortably without rotating their head or squinting at a sideways menu. This dedicated portrait GUI is a practical differentiator for retail column wraps, wayfinding totems, or any vertical installation where staff need to adjust settings on-site. Combined with the 600×400mm VESA mount pattern and the built-in handle for easier installation logistics, the display is genuinely flexible across a wide variety of deployment formats.

Optional LG ConnectedCare — Remote Monitoring and Fault Diagnosis

For operators managing multiple sites or large video wall deployments, LG ConnectedCare (formerly LG Signage365Care) provides a cloud-based remote monitoring layer. It gives facility managers real-time visibility into display status, supports remote fault diagnosis, and enables remote control of individual or grouped displays — all without a site visit. This is directly relevant for reducing support costs on installations where a technician callout is expensive or logistically complex. Availability varies by region, and ConnectedCare is an optional add-on rather than included by default, so this should be factored into project pricing and support planning.
