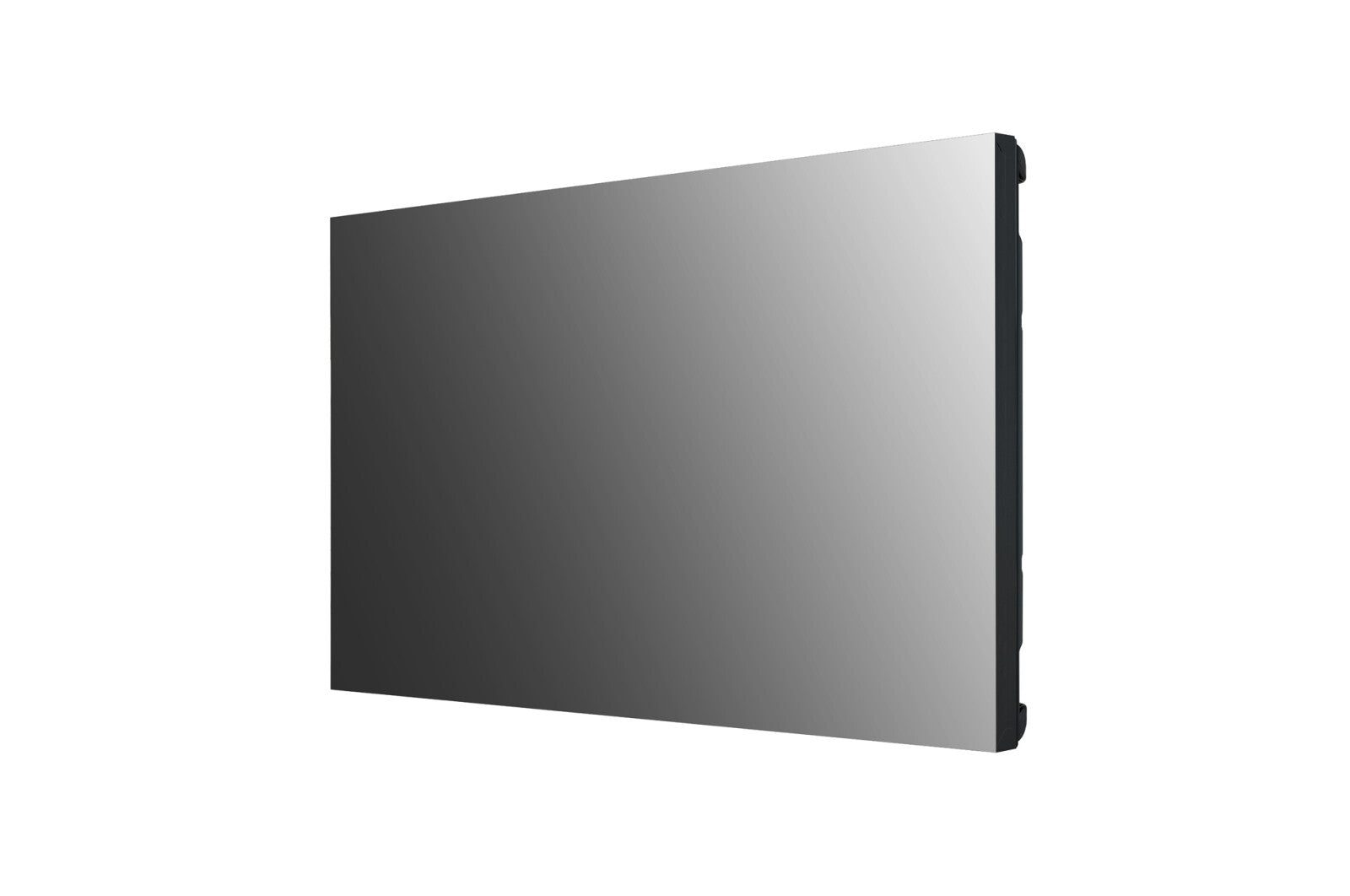

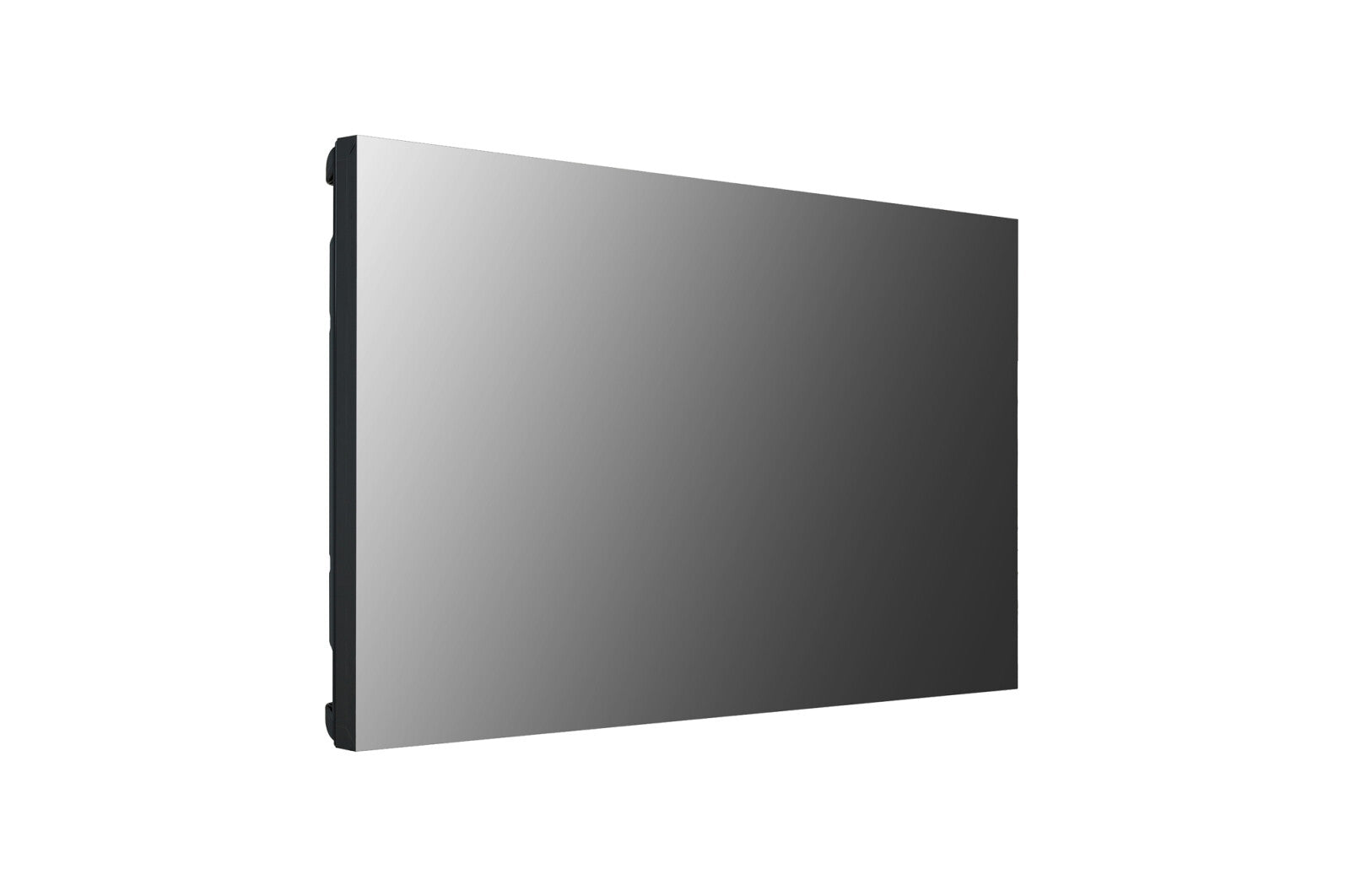

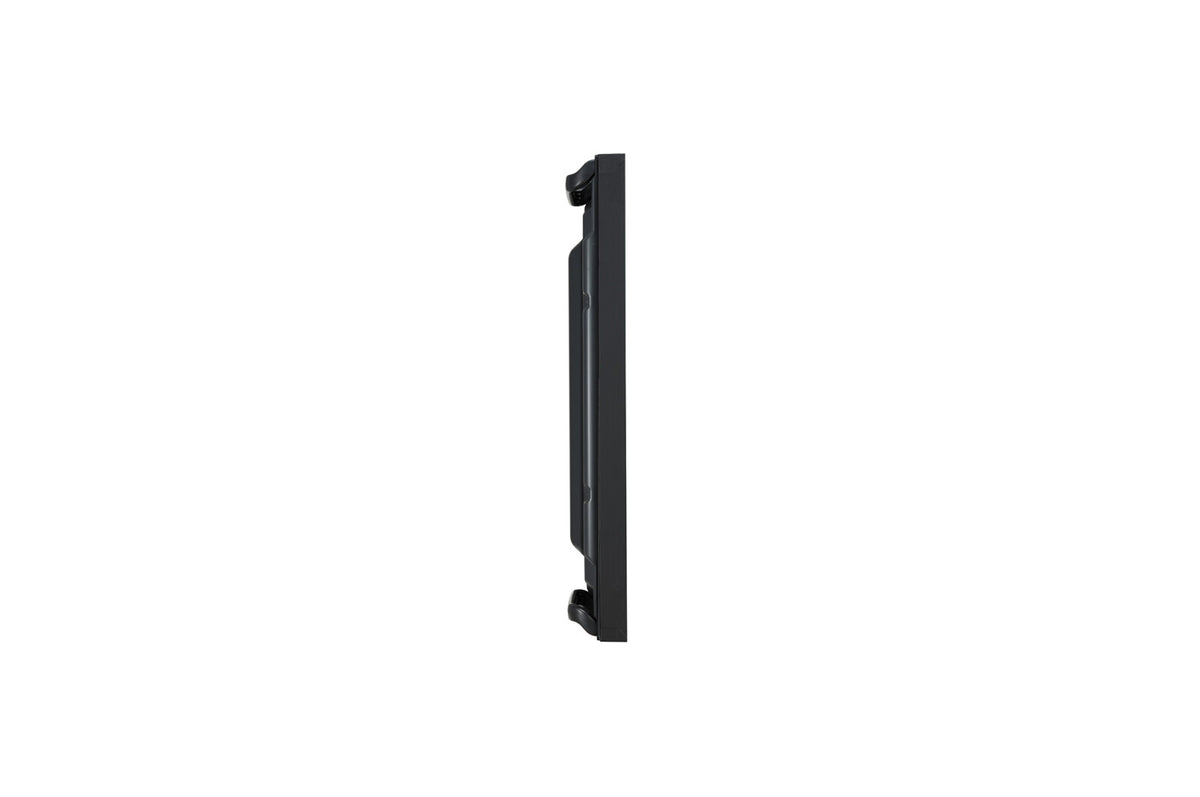

LG 55VSH7J-H

The LG 55VSH7J-H is a 55-inch Full HD IPS video wall panel engineered for demanding commercial environments — control rooms, broadcast studios, retail flagship stores, and corporate lobbies. Its defining feature is the industry-leading 0.44 mm even bezel, verified by Nemko, which creates just a 0.88 mm gap between tiled panels for a near-seamless canvas at any scale. With 700 nits of brightness, a 90% uniformity rating, and built-in Smart Calibration, every panel in the wall delivers consistent, vivid colour from corner to corner. The onboard webOS SoC means the wall can run content independently without an external media player, while LAN daisy chain and LG ConnectedCare make large installations straightforward to manage and maintain remotely.

Groundbreaking 0.44 mm Even Bezel

The 55VSH7J-H features a Nemko-verified 0.44 mm even bezel — the same thickness on all four sides — resulting in a bezel-to-bezel gap of just 0.88 mm when panels are tiled. Unlike asymmetric bezels that require careful orientation planning during installation, the even bezel allows panels to be placed in any configuration without visible frame imbalance. For content spanning a large multi-panel wall, this means near-perfect visual continuity: text, graphics, and video flow naturally across the seam, maintaining the illusion of a single large screen. This is especially critical in broadcast studios, CCTV control rooms, and high-end retail environments where interruptions in the image break immersion and undermine the installation's impact.

Smart Calibration for Fast, Precise Setup

Smart Calibration is an automated colour and brightness balancing system built directly into the display. Using built-in sensors and a simple remote-control interface, the system analyses colour property differences both within each panel and between adjacent panels, then corrects them — a process that previously required a laptop, external sensors, and a technician on a ladder. Calibration completes in minutes and can be scheduled to run at regular intervals automatically, ensuring the wall stays consistent throughout its operational life without recurring service visits. For installations in environments with fluctuating ambient light — retail atriums, transit hubs, mixed-use lobbies — this continuous accuracy is the difference between a wall that looks professional and one that drifts visibly over time.

0.44 mm bezel. 0.88 mm gap. One seamless image.

Bezel width verified by Nemko · ENERGY STAR® Certified · 24-7 rated

Built-in webOS SoC — No External Player Needed

The 55VSH7J-H integrates LG's webOS 4.1 smart signage platform directly on the panel's System-on-a-Chip. The display can run multiple content streams simultaneously, apply CSS animation and transition effects, and handle real-time streaming via RTSP, RTP, HLS, and UDP Multicast — all without any external media player hardware. For system integrators, this eliminates a category of equipment: no player box to mount, cable, configure, or support. The platform supports HTML5 and LG's web app SDK, so custom signage apps built for webOS work natively. 8 GB of onboard eMMC storage provides local content capacity, and compatibility with LG SuperSign CMS, SuperSign Control, and LG ConnectedCare means the deployment fits into standard managed-signage workflows from day one.

IPS Wide Viewing Angle — Critical for Elevated Installations

Video wall panels are frequently mounted above eye level — on raised plinths, high on walls in atriums, or overhead in transit concourses. Standard VA panels shift colour noticeably when viewed from steep vertical angles. The 55VSH7J-H uses LG IPS technology with a 178° × 178° horizontal and vertical viewing angle, maintaining accurate colour and contrast regardless of the observer's position. LG also highlights a specifically enhanced 60° high viewing angle performance, directly addressing the above-eye-level use case. For end users walking through a retail space or standing at varying distances in a control room, this translates to consistent, undistorted images whether they are directly in front of the wall or viewing from an extreme angle.

Image Gap Reduction Algorithm

Even with ultra-narrow bezels, video content spanning multiple panels can show visible object discontinuities at the bezel boundaries — especially in moving footage where edges of objects bisect a seam. The 55VSH7J-H includes a software-based Image Gap Reduction algorithm that analyses and adjusts content at bezel boundaries in real time, smoothing transitions so objects that cross from one panel to the next appear continuous rather than offset. This is particularly useful in CCTV monitoring walls displaying live camera feeds, or in corporate broadcast studios where motion content is the norm. The result is a perceptibly more cohesive wall that looks like a single display rather than a grid of screens.

90% Brightness Uniformity Across the Entire Wall

Poor panel uniformity is one of the most common complaints in video wall deployments: dark corners or uneven backlight make the individual tiles visible even when a single image is displayed. The 55VSH7J-H is engineered to 90% uniformity across 13 measurement points on each panel, including the four corners nearest the bezels. Combined with Smart Calibration to match brightness and colour between adjacent panels, the result is a wall that looks as uniform in the corners as at the centre. For environments where the video wall is a premium brand statement — luxury retail, visitor centres, executive boardrooms — this level of uniformity is the baseline expectation that this panel meets reliably.

Non-Glare Panel for Bright Ambient Environments

The 55VSH7J-H uses a non-glare surface treatment with 28% haze, which scatters ambient light rather than reflecting it as a specular image. In environments with overhead fluorescent or LED lighting, shop windows generating indirect daylight, or mixed-source illumination typical of large public spaces, standard glossy panels produce distracting reflections that wash out content. The higher haze level on this panel suppresses those reflections while preserving text readability and colour saturation. Combined with 700 nits of brightness, the panel maintains adequate contrast ratios even in the bright ambient conditions of retail floors, airports, and corporate reception areas — all common deployment locations for large-format video walls.

LAN Daisy Chain and Remote Management

Managing a large video wall installation — which may involve 9, 16, or more individual panels — over individual point-to-point connections is time-consuming and error-prone. The 55VSH7J-H supports LAN daisy chaining, allowing control signals, monitoring data, and firmware updates to flow through a single network connection shared across all panels in the wall. Administrators can apply settings, check status, or push firmware to the entire installation from a central console without accessing each panel individually. The optional LG ConnectedCare cloud service extends this to remote fault diagnosis and control, enabling proactive monitoring of panel health and rapid response to issues — reducing downtime and on-site service visits for installations in geographically distributed environments.

24-7 Rated with IP5X Dust Resistance

The 55VSH7J-H is rated for continuous 24-hour, 7-day operation — the baseline requirement for control rooms, transport hubs, and any deployment where the wall cannot be switched off outside business hours. The panel is also IP5X tested for dust resistance, backed by conformal coating on the power board, providing a meaningful layer of protection against particulate contamination in industrial or high-traffic environments. The 60,000-hour LED backlight lifespan further supports long-term deployment economics: at 24-7 operation, that equates to approximately 6.8 years of continuous use before the backlight reaches half its original brightness, reducing the frequency of costly panel replacements in large walls.
