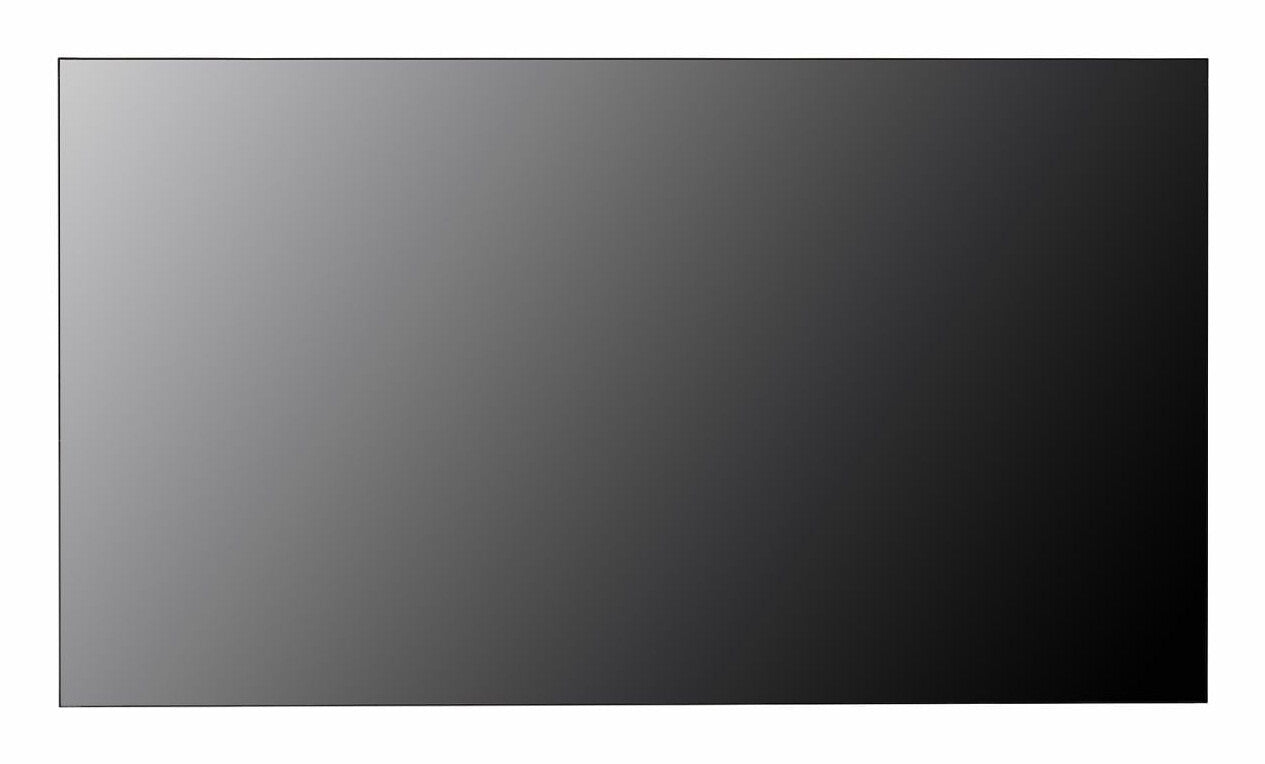

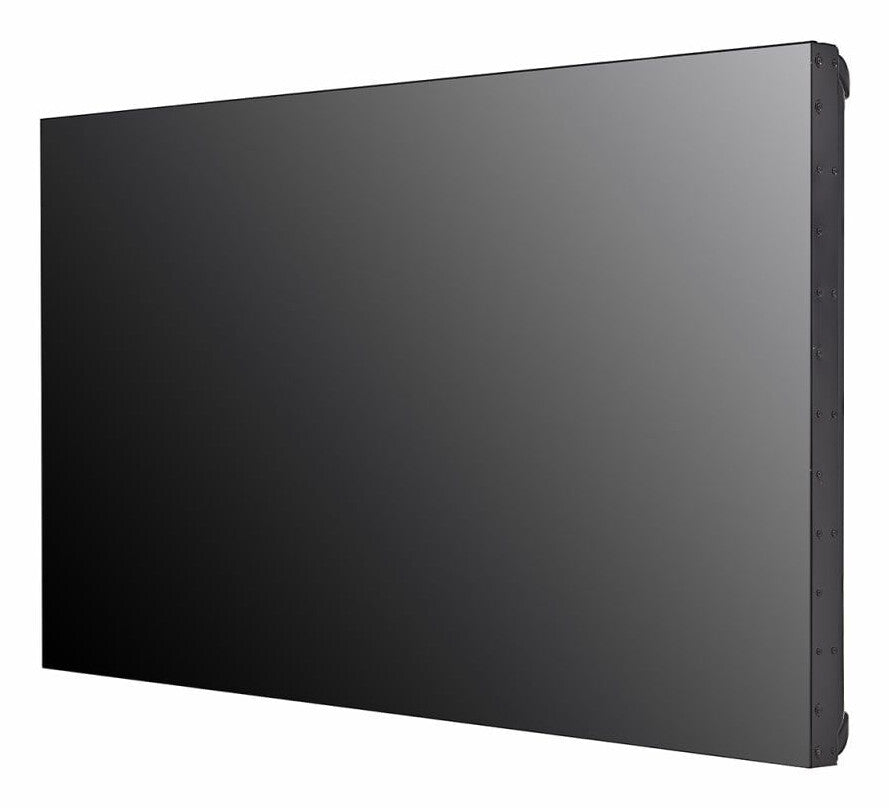

LG 55VH7J-H

The LG 55VH7J-H is a 55-inch Full HD video wall panel engineered for demanding commercial environments where immersive, large-format visual impact is required. Built around an IPS panel with 700 nits brightness and an extreme-narrow 1.74 mm panel-to-panel bezel, it is designed to tile seamlessly into expansive multi-screen configurations for retail, corporate lobbies, control rooms, and public venues. Running on LG's webOS 4.1 signage platform with 8 GB of onboard memory, it operates as a standalone signage player without a separate media device. Rated for continuous 24-7 operation and IP5x dust-certified, the VH7J-H is built to deliver reliable, uninterrupted performance wherever it is deployed.

Extreme-Narrow Bezel for Seamless Video Walls

The 55VH7J-H achieves a 1.74 mm panel-to-panel (B2B) bezel — a measurement independently verified by Nemko, a globally recognised electrical testing and certification body. In practical terms, this means that when tiles are assembled into a 2×2, 3×3 or larger matrix, the seam between panels is nearly invisible, allowing content to flow across the entire surface as a single coherent image. This is critical in high-visibility environments such as retail flagship stores, airport concourses, and corporate boardrooms where bezel lines break the illusion and reduce impact. The combination of the narrow physical frame and LG's image gap reduction algorithm — which intelligently adjusts objects near bezel boundaries during video playback — results in a significantly more immersive experience than conventional video wall panels.

Image Gap Reduction Algorithm

Beyond the physical bezel, the VH7J-H includes a software-based image gap reduction algorithm that actively compensates for the remaining visual seam during video playback. When objects or motion cross bezel boundaries, the algorithm adjusts pixel rendering at those edges to reduce the perceived gap. This is a meaningful advantage over displays that rely on bezel reduction alone: fast-moving content such as video montages, animated infographics, or live feeds look substantially smoother across the tiled surface. For installations displaying dynamic content — rather than static images — this feature directly improves the end-viewer's experience and reduces the need for content authors to work around bezel positions in their creative.

1.74 mm bezel. 700 nits. Seamless walls, 24-7.

IP5x dust-proof certified · EMC Class B certified · Energy Star 8.0

700 nits Brightness for Commercial Visibility

The panel delivers 700 cd/m² typical brightness, placing it comfortably above the 500 nits threshold commonly associated with commercial-grade displays. In practice, this means content remains clearly visible in brightly lit environments — large open-plan offices with extensive daylight, retail floors with strong overhead lighting, or lobbies with floor-to-ceiling glazing — without requiring the display to operate at maximum power draw. The direct LED backlight also allows for even illumination across the full 55-inch surface, avoiding the hot-spot effect sometimes seen on edge-lit panels. For large video walls where multiple panels must appear visually consistent, this uniform output is important for maintaining a homogeneous appearance across the entire installation.

Built-in webOS 4.1 for Standalone Signage

The 55VH7J-H runs LG's webOS 4.1 signage platform on an integrated SoC with 8 GB of onboard memory, eliminating the need for an external media player in most deployments. Out of the box, it supports local content scheduling, group management, USB plug-and-play, and four simultaneous video tags via web apps. For system integrators, webOS 4.1 provides an HTML5 engine, CSS transition effects for animation, real-time RTSP/HLS streaming, and an open SDK for custom app development. Compatibility with SuperSign CMS and LG ConnectedCare means it plugs directly into LG's broader fleet management ecosystem. For environments that require a more powerful player, an OPS module can be added via the optional KT-OPSF kit, giving integrators a clear upgrade path without changing the display hardware.

24-7 Rated with 60,000-Hour Panel Lifetime

The VH7J-H is rated for continuous 24 hours a day, 7 days a week operation — a non-negotiable requirement for video walls in transit hubs, casinos, control rooms, or any environment where scheduled downtime is not viable. The IPS panel carries a typical lifetime rating of 60,000 hours (minimum 50,000 hours), translating to well over six years of uninterrupted operation before reaching half-brightness. This long service life reduces the total cost of ownership and the risk of uneven ageing across a tiled installation, where mismatched panel ages could produce visible brightness differences between adjacent tiles over time.

IPS Panel: Wide 178° Viewing Angle

The IPS (In-Plane Switching) panel maintains accurate colour and contrast at viewing angles up to 178° horizontally and vertically, with a wide half-luminance angle of 40°. Video walls are frequently mounted at height — above eye level in lobbies, along corridor walls, or overhead in transport environments — meaning viewers approach from oblique angles rather than head-on. With an IPS panel, colours remain vivid and whites stay neutral regardless of the viewer's position, avoiding the colour shift and contrast loss that affects TN-type panels at off-axis angles. This is particularly relevant in high-footfall retail or wayfinding installations where the audience is constantly in motion and never stationary in front of the screen.

Daisy Chain for Scalable Wall Control

The VH7J-H supports LAN daisy chaining, allowing an entire video wall installation to be controlled, monitored, and firmware-updated from a single network connection — reducing cabling complexity and simplifying ongoing management. For content distribution, UHD daisy chaining via HDMI and DisplayPort allows a UHD source to be distributed across multiple panels without requiring DisplayPort MST hubs, lowering installation cost and potential failure points. Tile mode supports configurations up to 15×15 panels, giving integrators significant headroom for large-scale deployments. Setting data cloning further reduces commissioning time when configuring multiple identical displays.

IP5x Dust-Proof and Conformal Coating Protection

The VH7J-H holds an IP5x dust-proof certification, meaning the enclosure is tested to prevent dust ingress that could impair performance. In addition, the main power board features conformal coating — a protective layer applied to the PCB that guards against salt, iron particles, and humidity. These protections are particularly relevant for installations in environments with poor air quality, such as manufacturing floors, transit concourses, or coastal venues where salt-laden air can accelerate corrosion. For operators, this translates to reduced risk of premature failure and lower maintenance intervention over the display's service life.

Remote Management via LG ConnectedCare

The VH7J-H is compatible with LG ConnectedCare (formerly LG Signage365Care), an optional cloud-based remote management service. It enables real-time monitoring of display health, remote fault diagnosis, and remote control of deployed units without requiring on-site visits. For large installations spread across multiple locations — retail chains, hotel groups, or enterprise campuses — this capability significantly reduces the cost and response time of maintenance. The display also supports SNMP, Wake on LAN, status mailing, and Crestron Connected compatibility, giving AV system integrators a full suite of control and monitoring options to satisfy enterprise-grade management requirements.

Landscape and Portrait Orientation Support

The VH7J-H supports both landscape and portrait installation orientations, with a dedicated portrait OSD featuring a 9:16 menu layout and larger font sizes — designed specifically for portrait use rather than simply rotating a landscape interface. This makes the display well-suited for vertical video wall configurations, digital menu boards, wayfinding totems, or retail shelf-edge towers where portrait framing fits the content and space better. Screen rotation and external input rotation are both supported, and the dedicated GUI removes the awkwardness that portrait users often encounter on displays that only rotate the image without adapting the menu system.
