55VM5J-H

55-inch Full HD IPS video wall panel rated for 24-7 operation with 500 nits brightness, a 1.74mm bezel-to-bezel gap, built-in webOS 4.1, and IP5X dust protection.

  • Ultra-narrow 1.74mm bezel-to-bezel gap for virtually seamless multi-screen video walls
  • 500 nits IPS panel with 178° x 178° wide viewing angle and NTSC 72% colour gamut
  • Built-in webOS 4.1 for standalone scheduling, USB playback, and remote CMS management
  • Rated for 24-7 continuous operation with a 60,000-hour typical panel lifespan
  • IP5X dust-certified with conformal-coated power board for long-term reliability
  • DisplayPort daisy-chain supports up to 15x15 tile matrices over a single cable run
  • SKU:8806091407696
  • GTIN:8806091407696
  • MPN:55VM5J-H

You need to login to view the price.

View full details
BRIGHTNESS500 nitsTypical
RUNTIME24-724 h x 7 days
VESA MOUNT600 × 400 mmVESA
ORIENTAIONLands./PortraitMounting
BEZEL WIDTH1.3 / 0.44 mmTop·left / bottom·right

55-inch FHD slim bezel video wall display

LG 55VM5J-H

The LG 55VM5J-H is a 55-inch Full HD IPS video wall panel engineered for mission-critical, always-on deployments in retail, corporate, hospitality, and command-centre environments. Its ultra-narrow 1.74mm bezel-to-bezel design minimises the visual seam between tiles, delivering an immersive large-canvas experience across any array configuration up to 15×15 screens. The built-in webOS 4.1 Smart Signage platform enables standalone content scheduling, USB playback, and remote management without requiring an external media player, while IP5X dust certification and conformal-coated power boards add long-term reliability in demanding venues.

Extreme-Narrow Bezel for Immersive Video Walls

Extreme-Narrow Bezel for Immersive Video Walls

The 55VM5J-H achieves a panel bezel-to-bezel gap of just 1.74mm — 1.3mm on the top and left edges, 0.44mm on the bottom and right — making the physical seam between tiles virtually invisible at normal viewing distances. This is a decisive spec for any video wall project: the narrower the gap, the more convincingly the assembled screens read as a single large canvas. At 1.74mm BtB the VM5J-H sits at the slim end of the market, making it the right choice for impression-critical installations such as retail flagship stores, corporate lobbies, broadcast studios, and operations centres where the image must not be interrupted by a visible grid of bezels.

Image Gap Reduction for Seamless Video Playback

Image Gap Reduction for Seamless Video Playback

Even with the narrowest physical bezel, a small optical gap remains where the active areas of adjacent panels meet. LG's Image Gap Reduction algorithm addresses this directly: it analyses objects that cross a tile boundary and adjusts their rendering so they appear continuous rather than shifted or cut. The result is that motion content — scrolling text, video sequences, animated brand assets — flows smoothly across the full wall without the jump artefacts that are common on conventional tiled displays. For installations where dynamic content is the centrepiece, this software correction meaningfully raises the perceived quality of the entire wall.

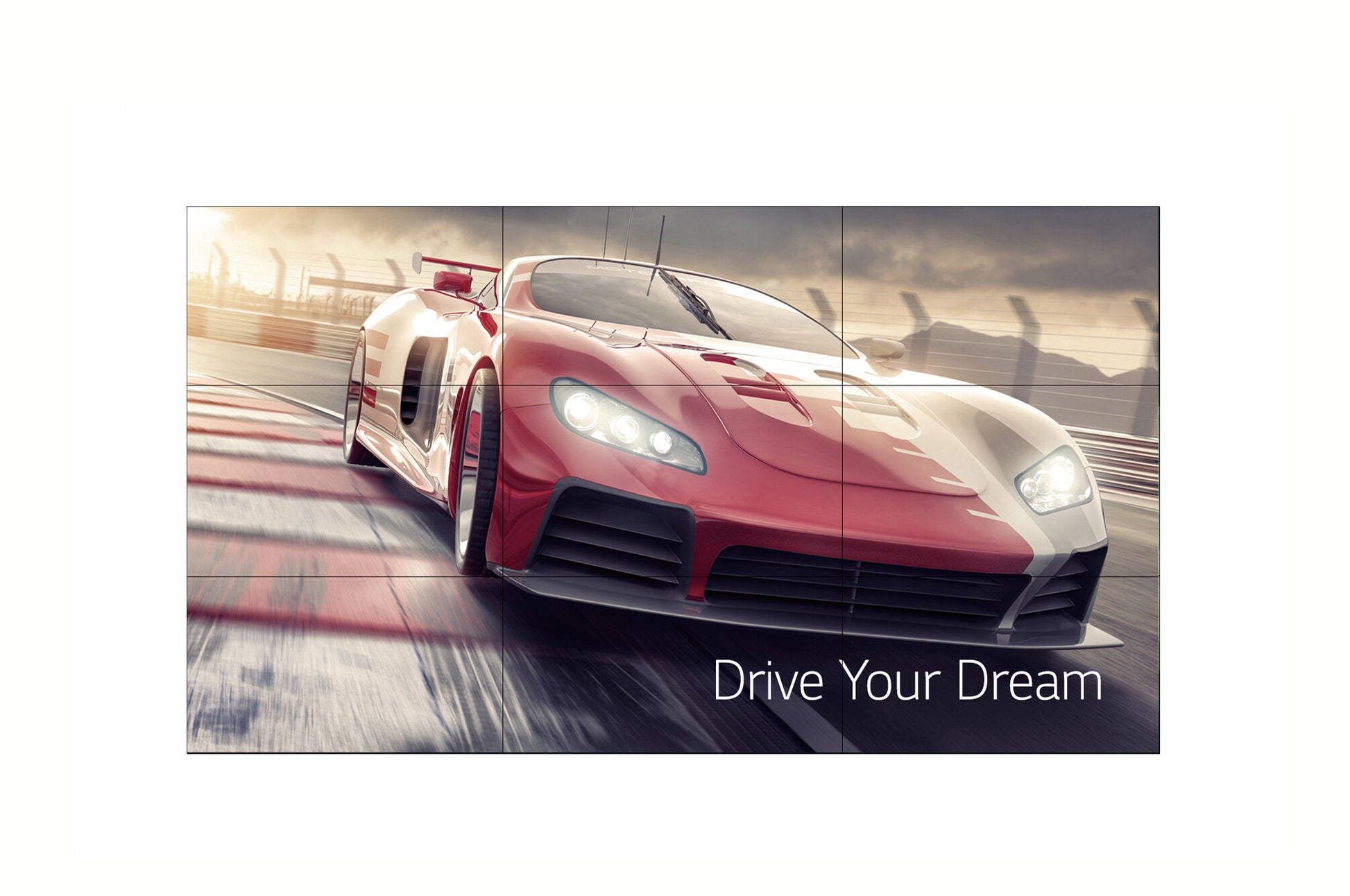

1.74mm seam. 15×15 matrix. One coherent canvas.

IP5X certified · Conformal-coated power board · 60,000 hrs panel lifetime

Built-in webOS 4.1 for Standalone Operation

Built-in webOS 4.1 for Standalone Operation

The display runs LG's webOS 4.1 Smart Signage platform on an internal SoC with 8 GB of storage, so it can schedule and play content, manage tile configurations, and handle remote monitoring without any external media player. Features include Local Content Scheduling, Group Manager, USB Plug & Play, Gapless Playback, Screen Rotation, Video Tag (up to four simultaneous video zones via web apps), and Play via URL for live web content. This reduces rack space, cabling, and points of failure on the installation, and cuts total system cost by eliminating the need for a separate player in straightforward signage applications.

24-7 Continuous Operation with Long Panel Life

24-7 Continuous Operation with Long Panel Life

The 55VM5J-H is rated for 24 hours a day, 7 days a week continuous operation — the full commercial duty cycle. LG specifies a typical panel lifetime of 60,000 hours, with a minimum of 50,000 hours, meaning the backlight can be expected to last well over five years at full duty. For operators running always-on video walls in control rooms, transit hubs, or retail environments that never close, this rating is the baseline assurance that the panel will not require premature replacement or scheduled downtime.

IP5X Dust Certification and Conformal Coating

IP5X Dust Certification and Conformal Coating

The 55VM5J-H carries an IP5X dust-resistance rating, meaning the enclosure is tested to prevent dust ingress from interfering with internal components. In addition, the power board is protected with conformal coating — a protective chemical layer applied directly to the PCB that guards against moisture, condensation, and airborne contaminants. Together these measures extend service life in environments where air quality cannot be perfectly controlled, such as manufacturing floors adjacent to a showroom, open-plan retail with high foot traffic, or large atria. Fewer dust-related failures means lower maintenance cost and less reactive support for the operator.

Flexible Connectivity and LAN Daisy-Chain Control

Flexible Connectivity and LAN Daisy-Chain Control

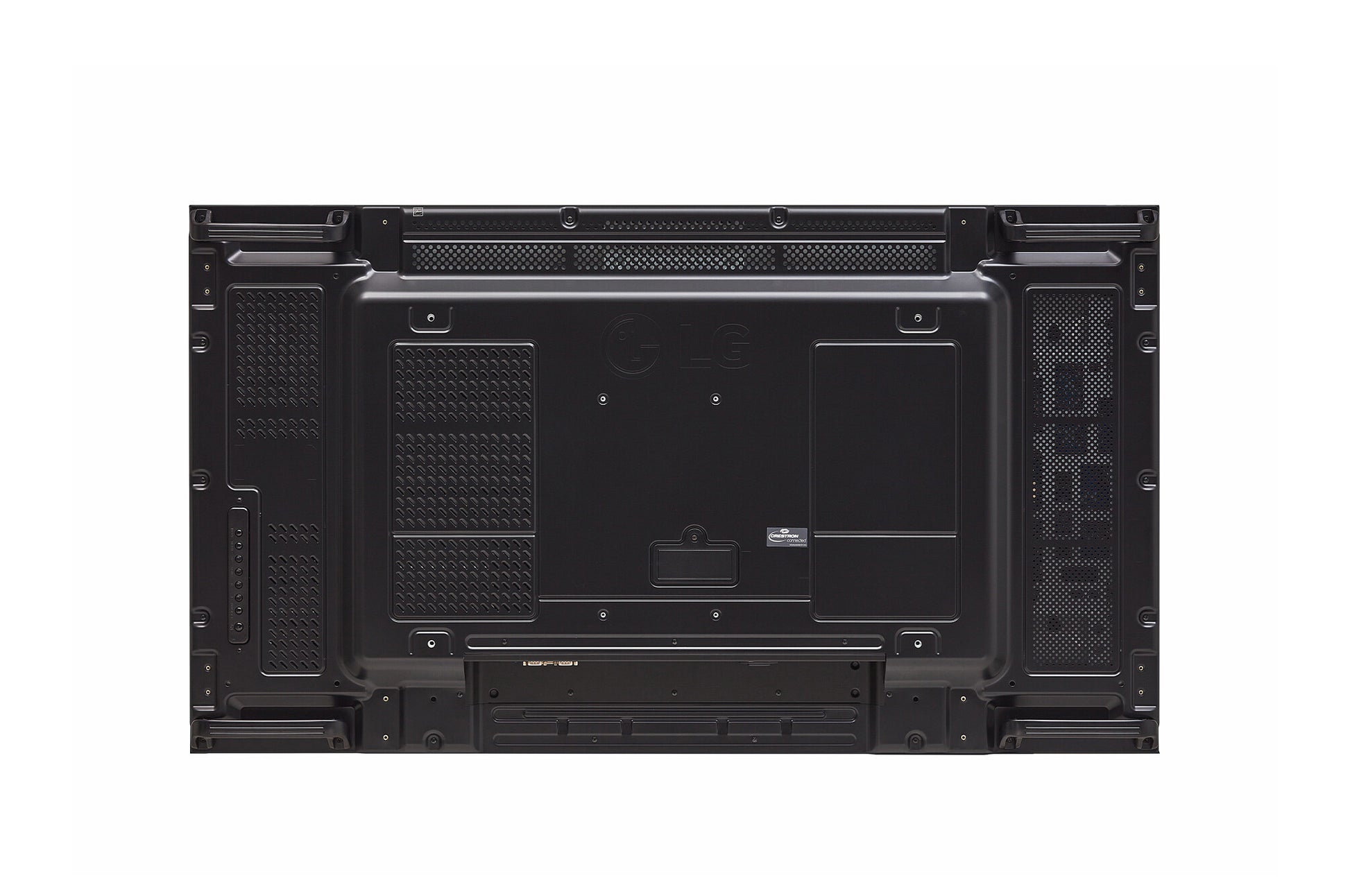

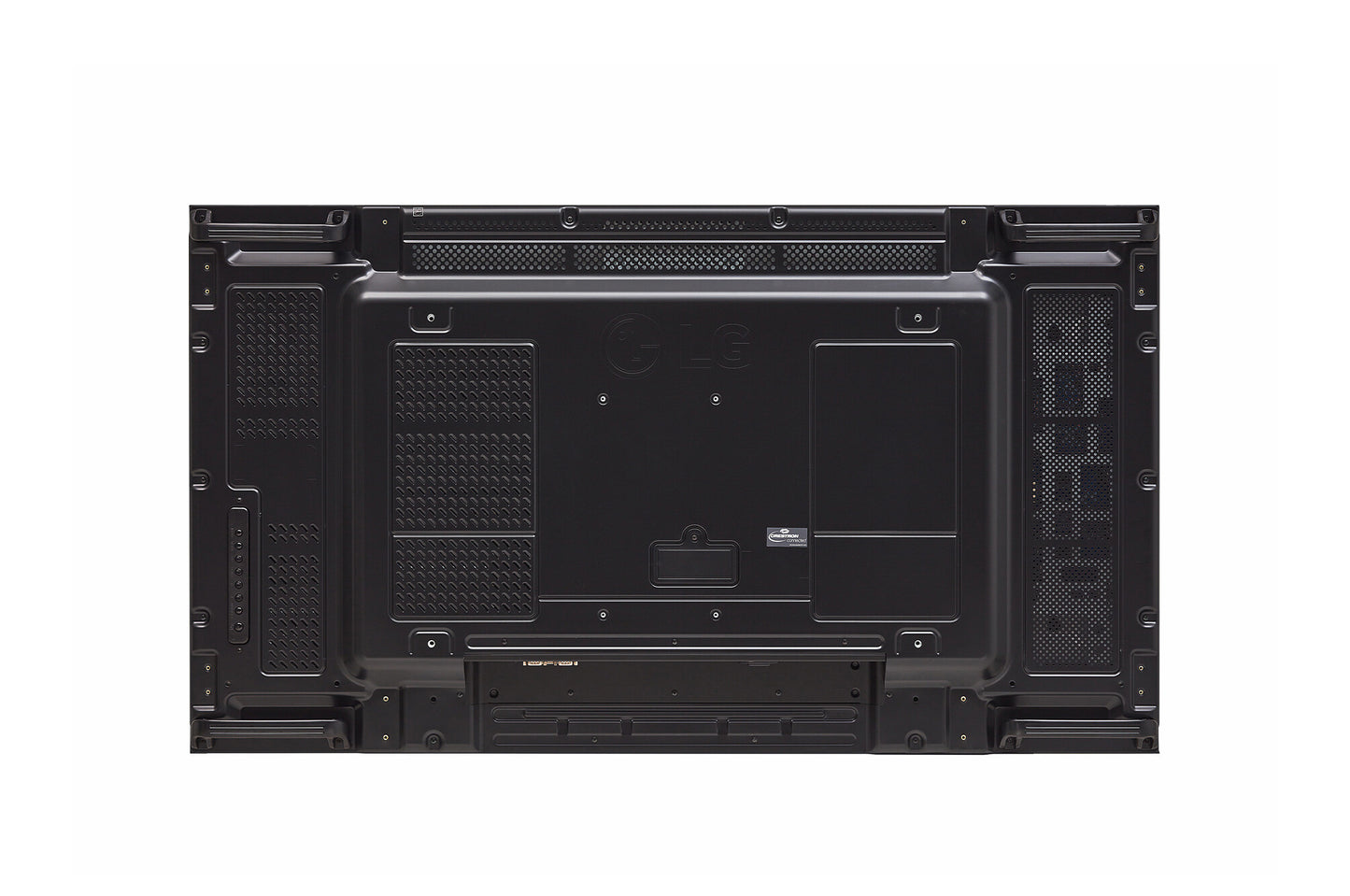

The rear panel provides 2× HDMI 2.2 in, 1× DisplayPort in (HDCP 2.2), 1× DVI-D in, 1× DisplayPort out for daisy-chaining, RS-232C in and out, RJ45 LAN in and out, USB 2.0, audio in and out, and IR input. LAN daisy-chaining means a single network connection to the first panel can control and monitor the entire wall, simplifying cabling and network infrastructure in large matrix installations. RS-232C loop-through provides an additional serial control path for AV matrix systems and room-control processors. The display is Crestron Connected certified, confirming compatibility with Crestron control systems without custom driver development.

Portrait and Landscape Orientation

Portrait and Landscape Orientation

The 55VM5J-H supports both landscape and portrait mounting orientations, confirmed in LG's official specifications. Portrait capability is particularly relevant for video walls used in digital out-of-home, retail column wraps, and elongated architectural installations where a vertical tile layout better fits the space. The display's internal Screen Rotation and External Input Rotation software features handle the signal accordingly, so installers do not need a separate rotation adapter.

Precise White Balance Calibration per Grey Scale

Precise White Balance Calibration per Grey Scale

The 55VM5J-H includes a grey-scale white balance adjustment feature that lets calibrators fine-tune colour temperature across the full range of luminance levels — not just at peak white. This matters in video wall applications because each panel's backlight ages slightly differently, and brightness-matched panels can still show colour cast differences visible as tile-to-tile inconsistency. The ability to adjust white balance per grey-scale step allows a more thorough calibration that keeps the wall looking uniform over time, reducing the visible degradation that would otherwise require panel replacement to correct.

Display17 specifications
Display diagonal139.7 cm (55")
Display resolution1920 x 1080 pixels
Display brightness500 cd/m²
HD typeFull HD
TouchscreenNo
Native aspect ratio16:9
Response time8 ms
Contrast ratio (typical)1000:1
Contrast ratio (dynamic)500000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours1.07 billion colours
Panel life60000 h
Native refresh rate60 Hz
Panel typeIPS
Haze rate28%
RGB colour spaceNTSC
Ports & interfaces16 specifications
HDMI ports quantity3
HDMI version2.2
HDMI input ports quantity2
HDMI output ports quantity1
DVI portYes
DVI-D ports quantity1
DisplayPorts quantity1
USB portYes
USB ports quantity1
USB version2.0
Ethernet LANYes
Ethernet LAN (RJ-45) ports2
Audio (L/R) in1
Audio (L/R) out1
RS-232CYes
Remote (IR) input1
Audio1 specification
Built-in speaker(s)No
Design9 specifications
Product designDigital signage flat panel
Product colourBlack
Placement supportedIndoor
OrientationHorizontal/Vertical
VESA mountingYes
Panel mounting interface600 x 400 mm
Bezel width (top)2.49 mm
Bezel width (side)1.75 mm
Bezel width (bottom)0.74 mm
Performance6 specifications
PurposeUniversal
Operating hours (hours/days)24/7
Open Pluggable Specification (OPS)Yes
International Protection (IP) codeIP5X
HDCP version1.4/2.2
HDCPYes
Computer system4 specifications
Computer systemYes
Built-in processorNo
Internal memory8 GB
Operating system installedWebOS
Power10 specifications
Power consumption (typical)160 W
Power consumption (standby)0.5 W
Power consumption (off)0.5 W
Energy efficiency class (SDR)G
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours112 kWh
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Heat dissipation648 BTU/h
Energy efficiency scaleA to G
Weight & dimensions8 specifications
Display width1212.2 mm
Display depth86.9 mm
Display height683 mm
Display weight18.8 kg
Width1212.2 mm
Depth86.9 mm
Height683 mm
Weight18.8 kg
Packaging data4 specifications
Package width1353 mm
Package depth263 mm
Package height855 mm
Package weight31 kg
Packaging content2 specifications
Remote control includedYes
Cables includedAC, DisplayPort, LAN (RJ-45)
Operational conditions2 specifications
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 80%
Certificates1 specification
CertificationFCC Class "B" / CE / KCErP - EU Only
Other features1 specification
Power supply typeInternal
Features2 specifications
Wall mountableYes
Harmonized System (HS) code85285210
Technical details1 specification
Sustainability certificatesENERGY STAR
