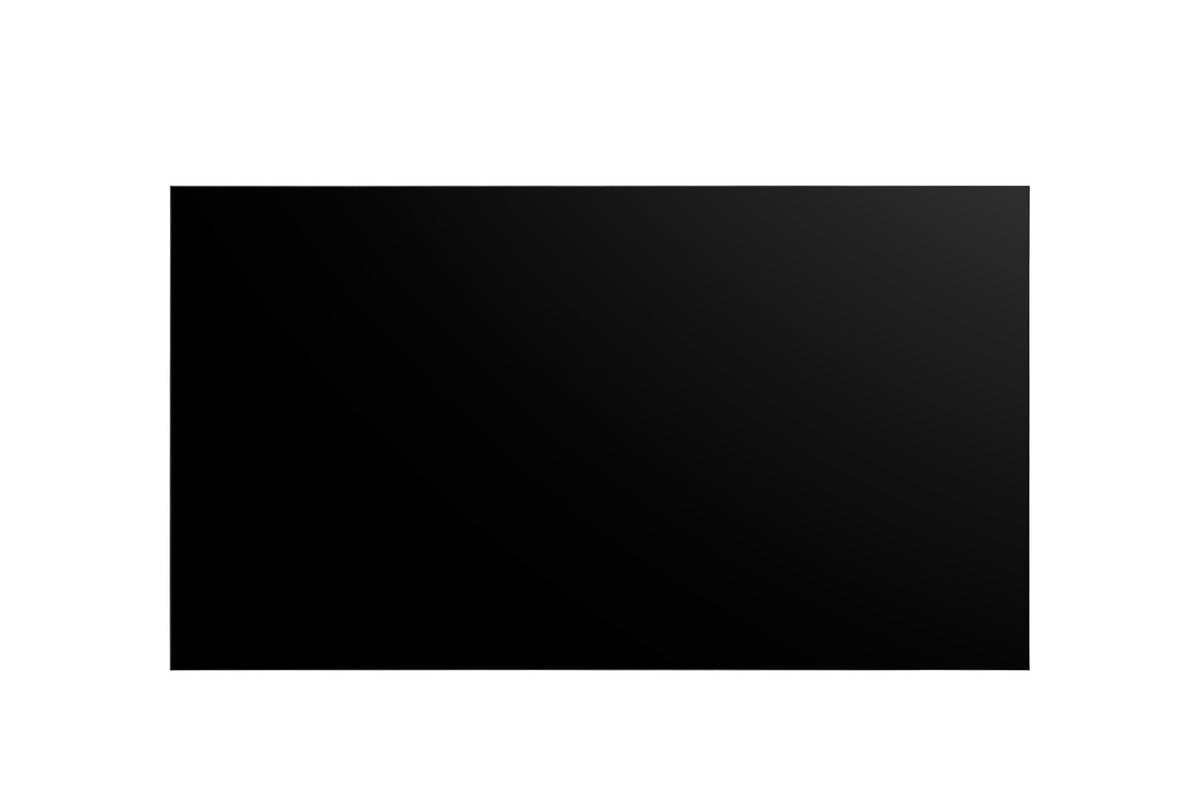

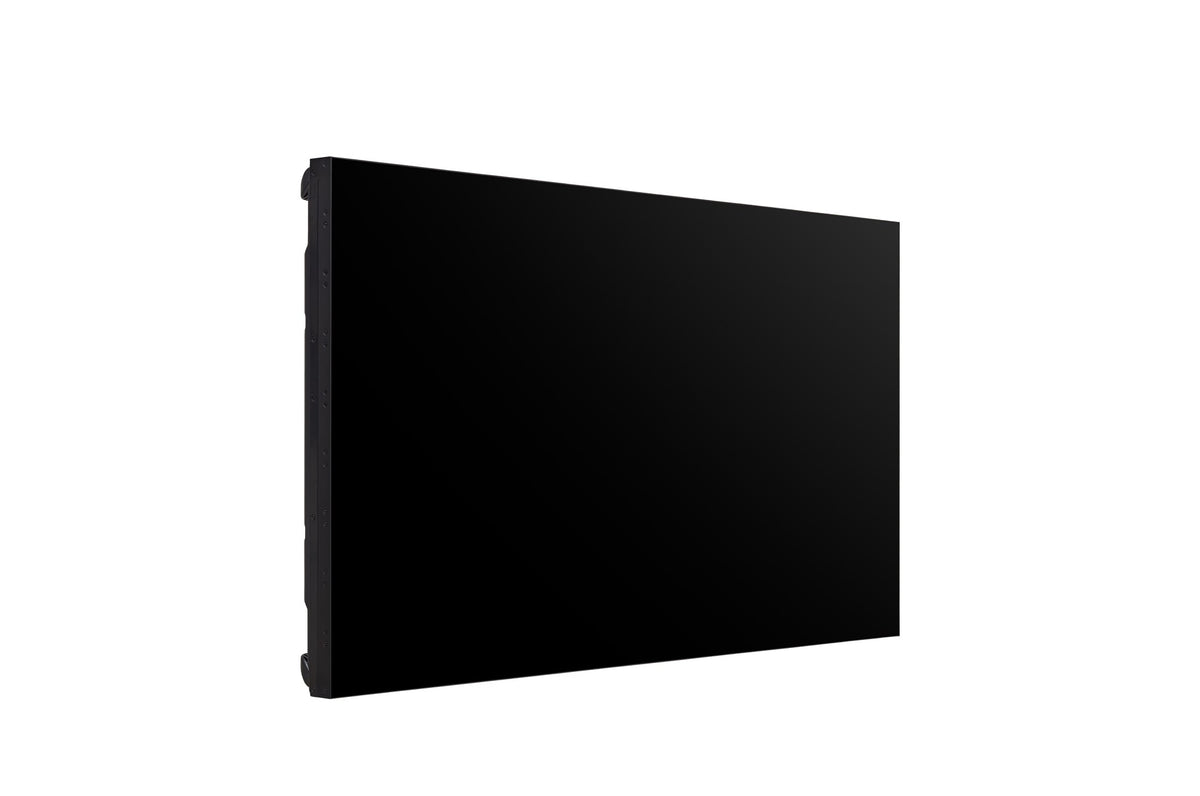

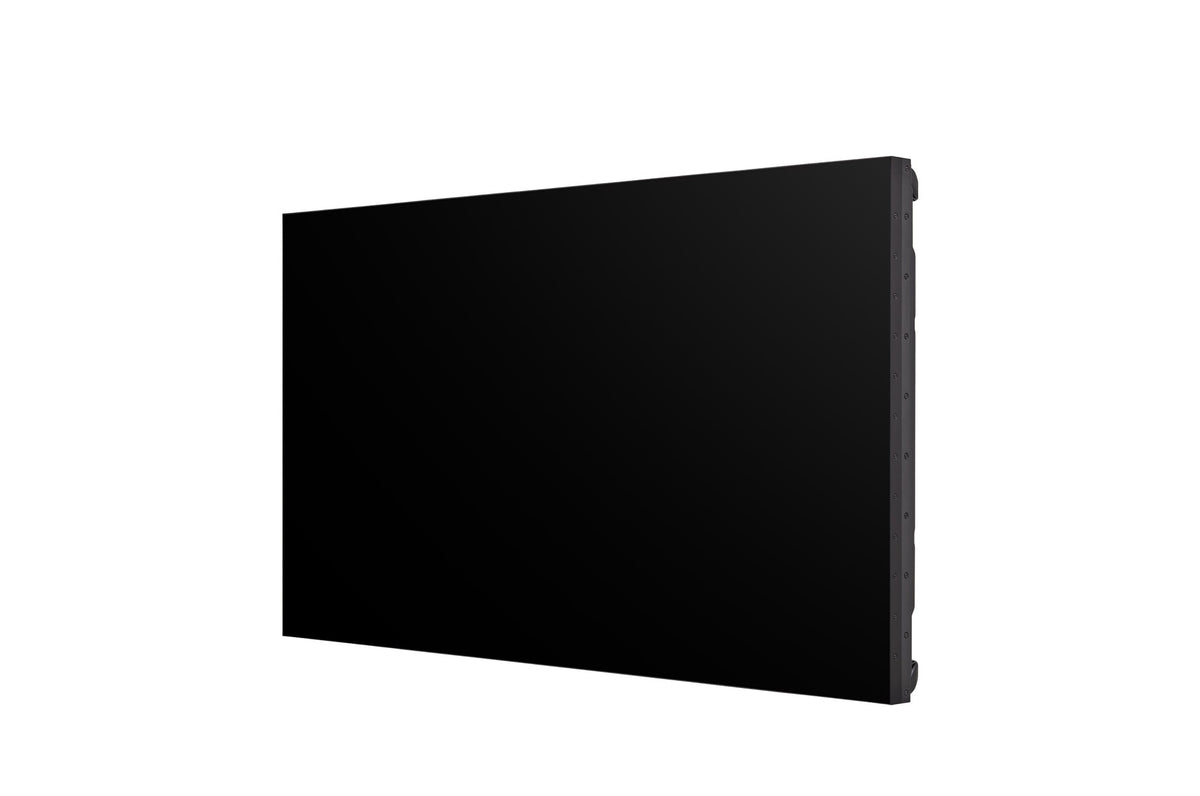

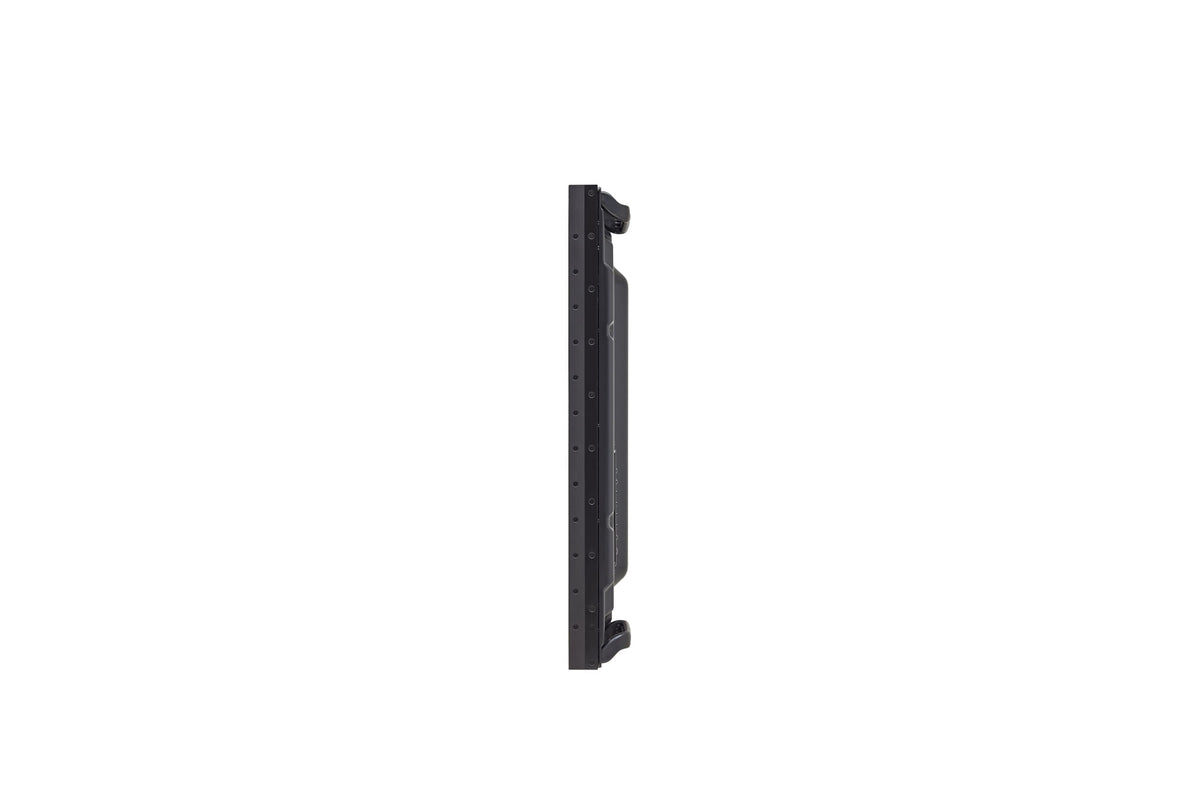

LG 55VM5R-H

The LG 55VM5R-H is a professional 55-inch Full HD video wall panel engineered for demanding commercial environments such as control rooms, corporate lobbies, retail feature walls and broadcast studios. Its ultra-narrow 1.7 mm panel-to-panel bezel creates near-seamless multi-screen arrays that present content as a single, immersive canvas. Running on the LG webOS 6.1 smart signage platform, the display operates reliably around the clock and supports flexible content creation, real-time streaming and daisy-chain connectivity for scalable video wall configurations. With IP5X dust-proof certification, conformal coating on the power board and EMC Class B certification, the 55VM5R-H is built to perform consistently in environments ranging from meeting rooms to industrial-adjacent spaces.

Ultra-Narrow 1.7 mm Bezel for Seamless Arrays

The 55VM5R-H achieves a 1.7 mm panel-to-panel gap — 1.2 mm on the top and left edges, 0.5 mm on the bottom and right — making it one of the slimmest bezel-to-bezel designs in its class. When multiple panels are tiled into a video wall, the boundary between screens almost disappears, so the assembled display reads as a single, continuous image rather than a grid of individual screens. This is decisive for large-format installations in lobbies, control rooms and retail feature walls where visual interruption would undermine the impact of the content.

Image Sync Enhancement Across Tiled Panels

Fast-moving video content naturally risks appearing misaligned where panels meet, because each screen processes its portion of the image independently. The 55VM5R-H includes an on-board image synchronisation algorithm that detects objects crossing bezel boundaries and compensates in real time, keeping motion visually continuous across the full wall. For content-heavy environments — live event feeds, sports broadcasts, dynamic data visualisations in control rooms — this means viewers see a coherent picture rather than a jarring jump at every panel join.

1.7 mm bezel. 24-7 rated. One seamless canvas.

IP5X dust-proof · EMC Class B certified · Energy Star 8.0

178° Super-Wide Viewing Angle

Based on LG's ADS (Advanced Super Dimension Switch) panel technology, the 55VM5R-H maintains accurate colour and contrast across a 178° horizontal and vertical viewing angle. Brightness and colour do not wash out or shift when the display is viewed from the side, from below, or mounted above eye level — a common situation in lobby atriums or elevated wall mounts. This means installations do not need to be carefully optimised for a single viewing position; everyone in the space sees vivid, undistorted images.

Built-in webOS 6.1 Smart Signage Platform

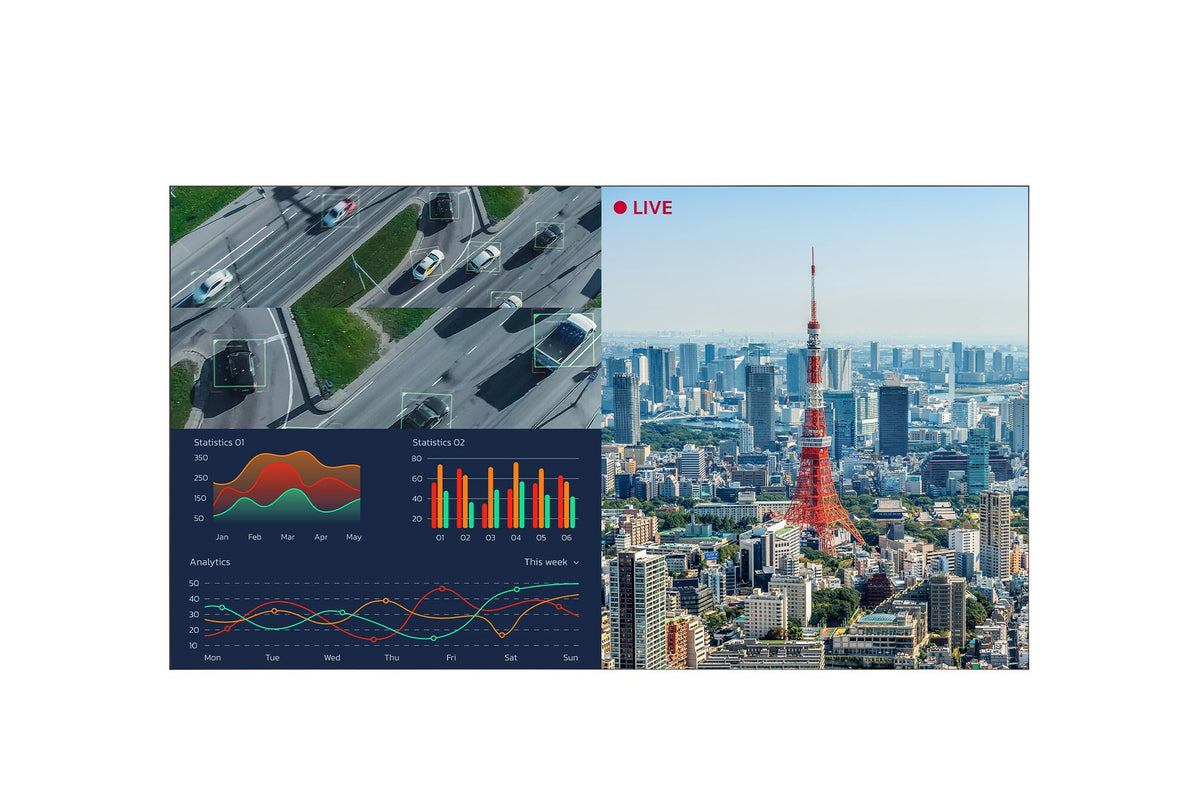

The 55VM5R-H runs LG's webOS 6.1 signage OS directly on the panel, removing the need for an external media player in many deployments. It supports USB plug-and-play media playback, local content scheduling, up to four simultaneous video zones via web apps, and real-time streaming over RTSP, RTP, HLS and UDP Multicast. An intuitive graphical interface simplifies daily operation, and features such as Auto Set ID, Setting Data Cloning and Group Manager reduce the time needed to configure and maintain large multi-panel installations.

Daisy-Chain for Scalable UHD Video Walls

The display supports both LAN daisy-chaining and UHD signal daisy-chaining via HDMI and DisplayPort. LAN daisy-chain lets a single network connection control, monitor and update firmware across an entire video wall simultaneously — critical for keeping large arrays in sync without individually managing each screen. The UHD signal daisy-chain (HDMI in, DP out) allows a 4K source to be distributed across a 2×2 panel configuration without requiring a DisplayPort MST hub or a separate signal distribution device, reducing installation complexity and cost.

IP5X Dust-Proof and Conformal Coating Durability

The 55VM5R-H carries IP5X dust-proof certification, meaning the enclosure is tested to prevent dust ingress that could degrade panel performance over time. In addition, the power board is protected with conformal partial coating, guarding against salt, iron powder and humidity — conditions found in coastal locations, industrial-adjacent sites or environments with heavy air conditioning. These protections extend the operational life of the panel and reduce the risk of unplanned downtime in always-on installations.

Automatic Failover for Continuous Uptime

The 55VM5R-H includes a built-in failover function that automatically switches to a backup input source if the primary signal is lost. For installations where content interruption is not acceptable — control rooms, transportation hubs, critical information displays — this removes a significant single point of failure without requiring additional hardware. The display switches sources seamlessly, keeping the wall active even if the primary player or source device fails.

LG SuperSign and ConnectedCare Remote Management

The 55VM5R-H is fully compatible with LG's SuperSign CMS, SuperSign Cloud, SuperSign Control+ and SuperSign WB content and device management platforms, as well as LG ConnectedCare — a cloud service for remote fault diagnosis and device control. Administrators can schedule and push content, monitor display health, update firmware and respond to faults without visiting the installation site. For resellers managing multiple customer deployments, ConnectedCare provides a single-pane view of all managed displays, turning reactive support into proactive maintenance.

EMC Class B — Suitable for Office and Meeting Rooms

EMC Class B certification means the 55VM5R-H meets the stricter electromagnetic compatibility requirements that apply to residential and close-proximity commercial use, not just the more relaxed Class A industrial standard. In practice, this makes the panel suitable for deployment in corporate meeting rooms, boardrooms and open-plan offices where it will be in close proximity to people and sensitive IT equipment — environments where Class A-only panels would be restricted.
