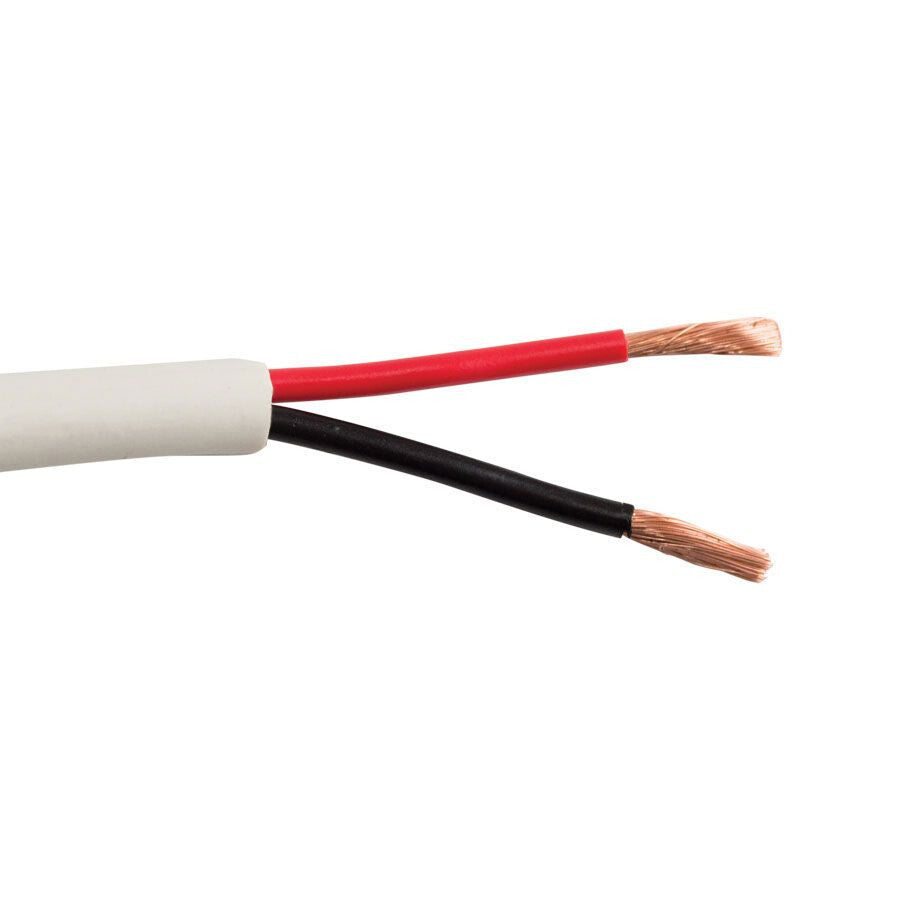

SCP 16/2OFC-LSZH-WT-1000

SCP 16/2OFC-LSZH-WT-1000

16AWG, 300V, LSZH, PVC, 305 m, White

  • 99.97% Oxygen Free bare copper conductors
  • High Strand Count
  • Ultra Flexibility
  • Low Smoke Zero Halogen (LSZH)
  • Easy Pull Coated PVC jacket
  • Easy Strip Construction
  • In-Wall Rated, IEC 60332.1, IEC 60332.3c, IEC 60754.1, IEC 60754.2, IEC 61034.2; RoHS, CE
  • SKU:817777014938
  • GTIN/EAN:817777014938
  • MPN:16/2OFC-LSZH-WT-1000
Add To Favorite

You need to login to view the price.

View full details

SCP 16/2OFC-LSZH-WT-1000. Connector 1 gender: Male, Connector 2 gender: Male, AWG wire size: 16, Cable length: 305 m, Product colour: White

LOW SMOKE ZERO HALOGEN PRO GRADE SPEAKER CABLE- 2C/16 AWG 65 STRAND OXYGEN FREE COPPER, EN50575:2014 Dca-s1,d1,a1 LSZH JKT- WHITE- 1000FT/305M BOX

Applications:
Speaker installations in Public Buildings, Other Installations Requiring LSZH, High End Professional Audio Fixed Installations, Home Theater Grade, Speaker Audio, Power Limited Circuit and Communication.

This cable consists of high strand count insulated oxygen free copper conductors in twisted pair construction (unshielded) with easy strip LSZH jacket. Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.

Sustainability
Doesn't contain
Oxygen
Operational conditions
Operating temperature (T-T)
-20 - 70 °C
Features
AWG wire size
16
Jacket material
Low smoke zero halogen (LSZH)
Product colour
White
Connector 2 form factor
Straight
Connector 1 form factor
Straight
Connector 2 gender
Male
Connector 1 gender
Male
Connector 2
No
Connector 1
No
Cable length
305 m
Packaging data
Package type
Box
Package weight
36 kg
Package height
260 mm
Package depth
350 mm
Package width
350 mm
Quantity per pack
1 pc(s)
Cable diameter
5 mm
Technical details
Compliance certificates
CE, RoHS
