SCP 12/4OFC-LSZH-WT-D

SCP 12/4OFC-LSZH-WT-D

152 m, LSZH, 12 Awg, White

  • 99.97% Oxygen Free bare copper conductors
  • High Strand Count
  • Ultra Flexibility
  • Low Smoke Zero Halogen (LSZH)
  • Easy Pull Coated PVC jacket
  • Easy Strip Construction
  • In-Wall Rated, IEC 60332.1, IEC 60332.3c, IEC 60754.1, IEC 60754.2, IEC 61034.2; RoHS, CE
  • SKU:817777015713
  • GTIN/EAN:817777015713
  • MPN:12/4OFC-LSZH-WT-D

You need to login to view the price.

View full details

SCP 12/4OFC-LSZH-WT-D. AWG wire size: 12, Cable length: 152 m, Product colour: White

Speaker installations in Public Buildings, Other Installations Requiring LSZH, High End Professional Audio Fixed Installations, Home Theater Grade, Speaker Audio, Power Limited Circuit and Communication.

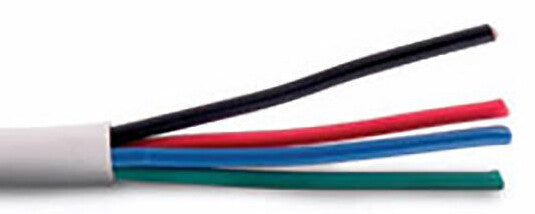

This cable consists of high strand count insulated oxygen free copper conductors in twisted pair construction (unshielded) with easy strip LSZH jacket. Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.

Operational conditions
Operating temperature (T-T)
-20 - 75 °C
Storage temperature (T-T)
0 - 40 °C
Features
Cable length
152 m
Connector 1
No
Connector 2
No
Connector 1 gender
No
Connector 2 gender
No
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Product colour
White
Jacket material
Low smoke zero halogen (LSZH)
AWG wire size
12
Packaging data
Cable diameter
9.4 mm
Quantity per pack
1 pc(s)
Package width
380 mm
Package depth
200 mm
Package height
160 mm
Package weight
30 kg
Package type
Box
