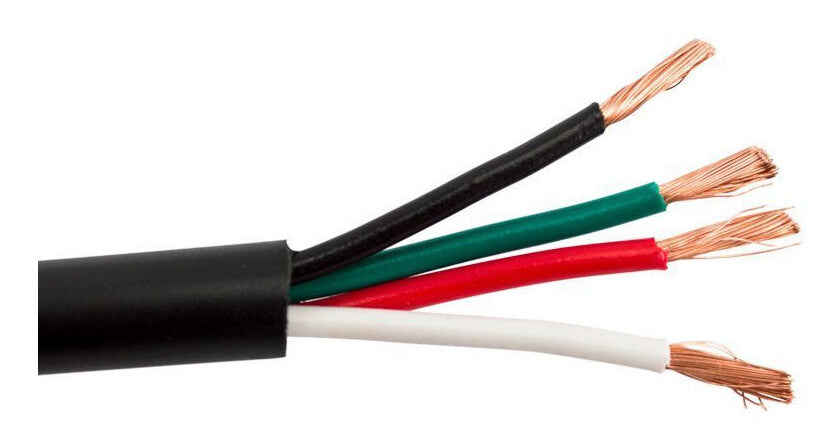

SCP 12/4OFC-LSZH-BK-D

SCP 12/4OFC-LSZH-BK-D

152 m, LSZH, PVC, Black

  • 99.97% Oxygen Free bare copper conductors
  • High Strand Count
  • Ultra Flexibility
  • Low Smoke Zero Halogen (LSZH)
  • Easy Pull Coated PVC jacket
  • Easy Strip Construction
  • In-Wall Rated, IEC 60332.1, IEC 60332.3c, IEC 60754.1, IEC 60754.2, IEC 61034.2; RoHS, CE
  • SKU:817777019421
  • GTIN/EAN:817777019421
  • MPN:12/4OFC-LSZH-BK-D

You need to login to view the price.

View full details

SCP 12/4OFC-LSZH-BK-D. AWG wire size: 12, Cable length: 152 m, Product colour: Black

Speaker installations in Public Buildings, Other Installations Requiring LSZH, High-End Professional Audio Fixed Installations, Home Theater Grade, Speaker Audio, Power Limited Circuit, and Communication.

This cable consists of high strand count insulated oxygen-free copper conductors in twisted-pair construction (unshielded) with easy strip LSZH jacket. The cable includes SCP Cable Labeling System with sequential foot/meter markings and room/zone/outlet designations for easy cable identification.

Operational conditions
Storage temperature (T-T)
0 - 40 °C
Operating temperature (T-T)
-20 - 75 °C
Features
AWG wire size
12
Jacket material
Low smoke zero halogen (LSZH)
Product colour
Black
Connector 2 form factor
Straight
Connector 1 form factor
Straight
Connector 2 gender
No
Connector 1 gender
No
Connector 2
No
Connector 1
No
Cable length
152 m
Packaging data
Package type
Box
Package weight
30 kg
Package height
160 mm
Package depth
200 mm
Package width
380 mm
Quantity per pack
1 pc(s)
Cable diameter
9.4 mm
