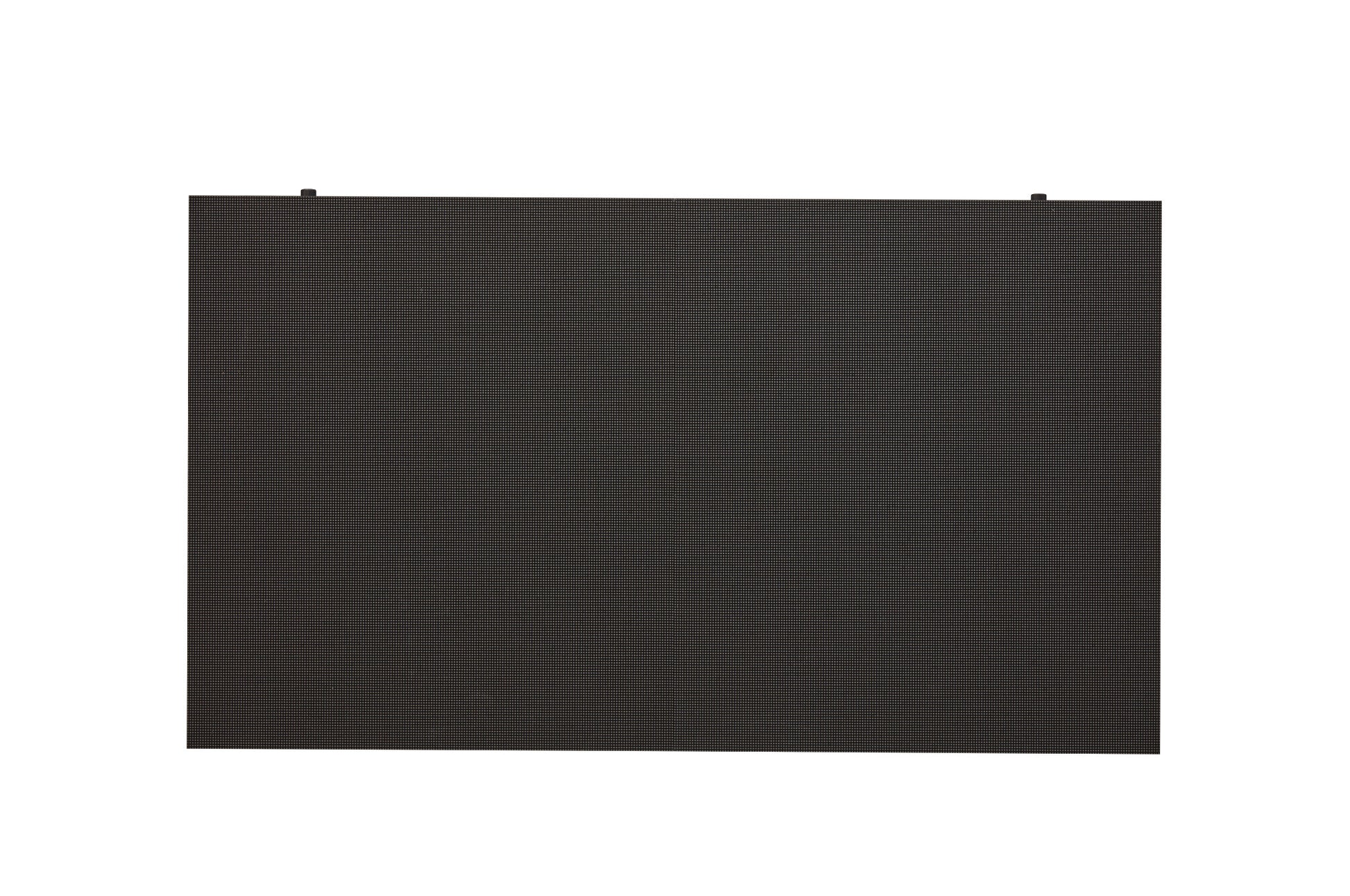

LSBE utilizes two modules to form a single cabinet, which helps minimize the gaps between modules compared to cabinets composed of multiple modules resulting in a smoother screen with fewer visible gaps. Moreover thanks to its structural advantage, LSBE allows for easy maintenance.

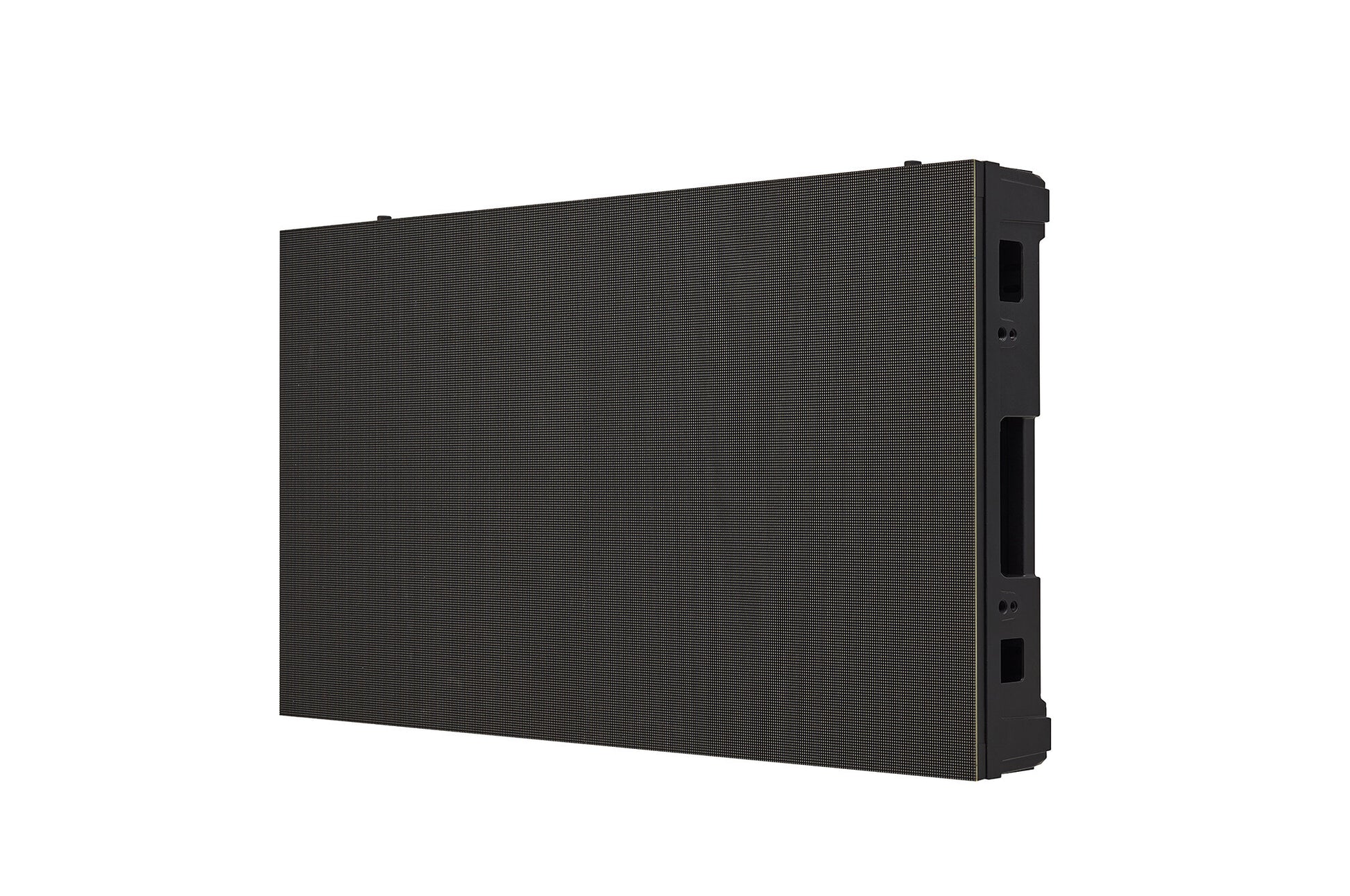

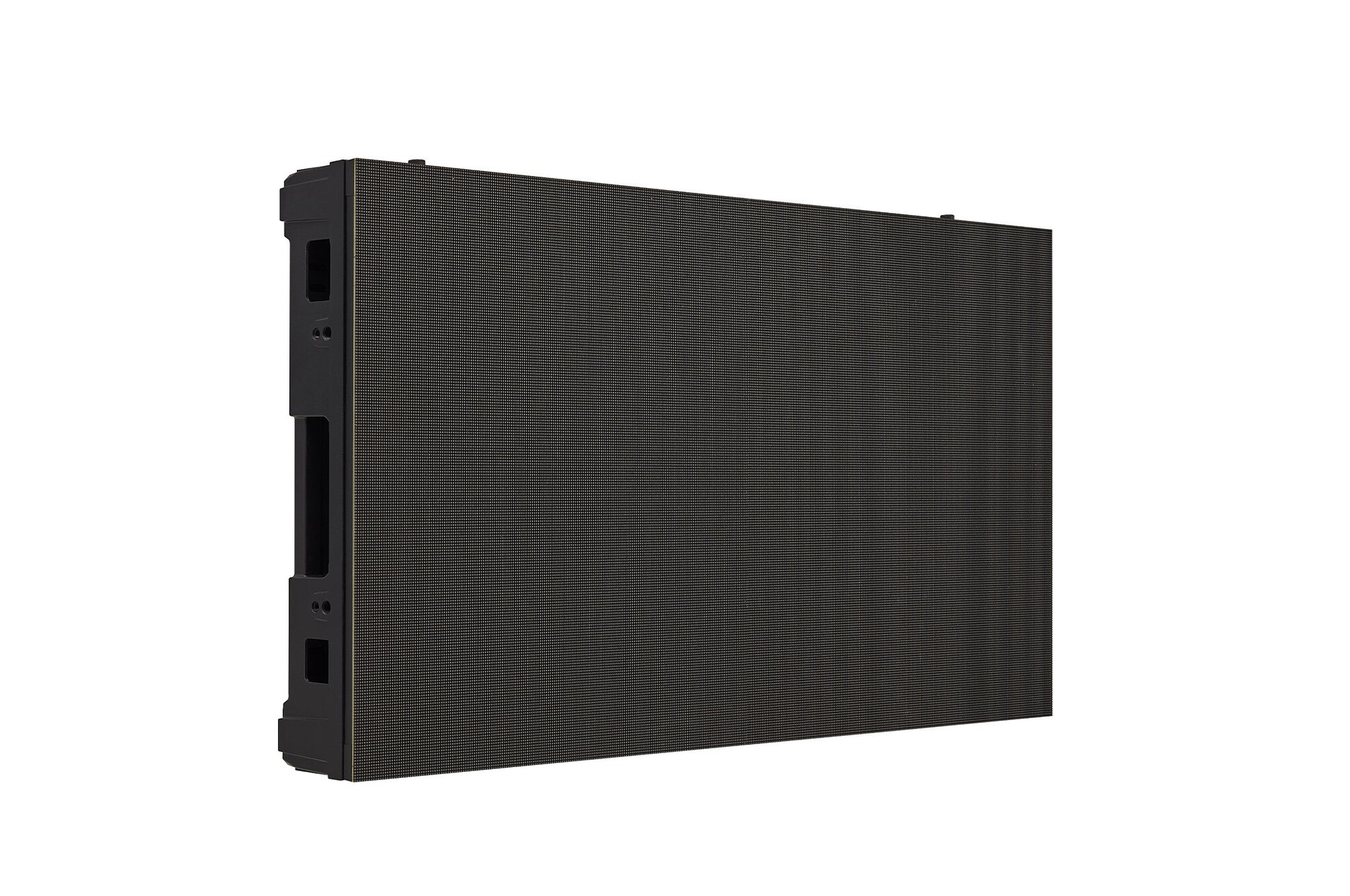

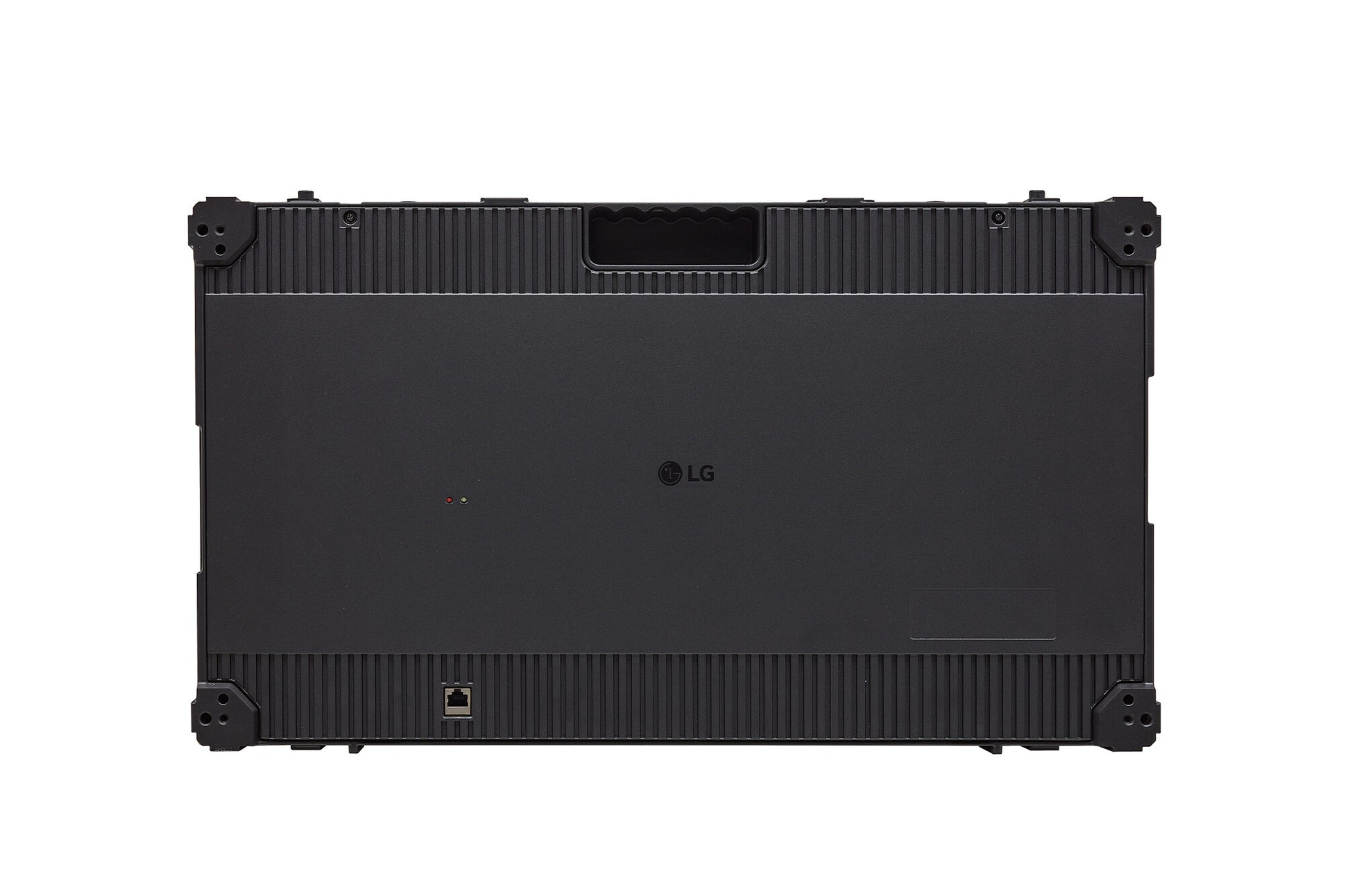

LSBE incorporates an aluminum cabinet that enhances durability, and its high-strength frame, surpassing that of plastic, allows for stable operation.

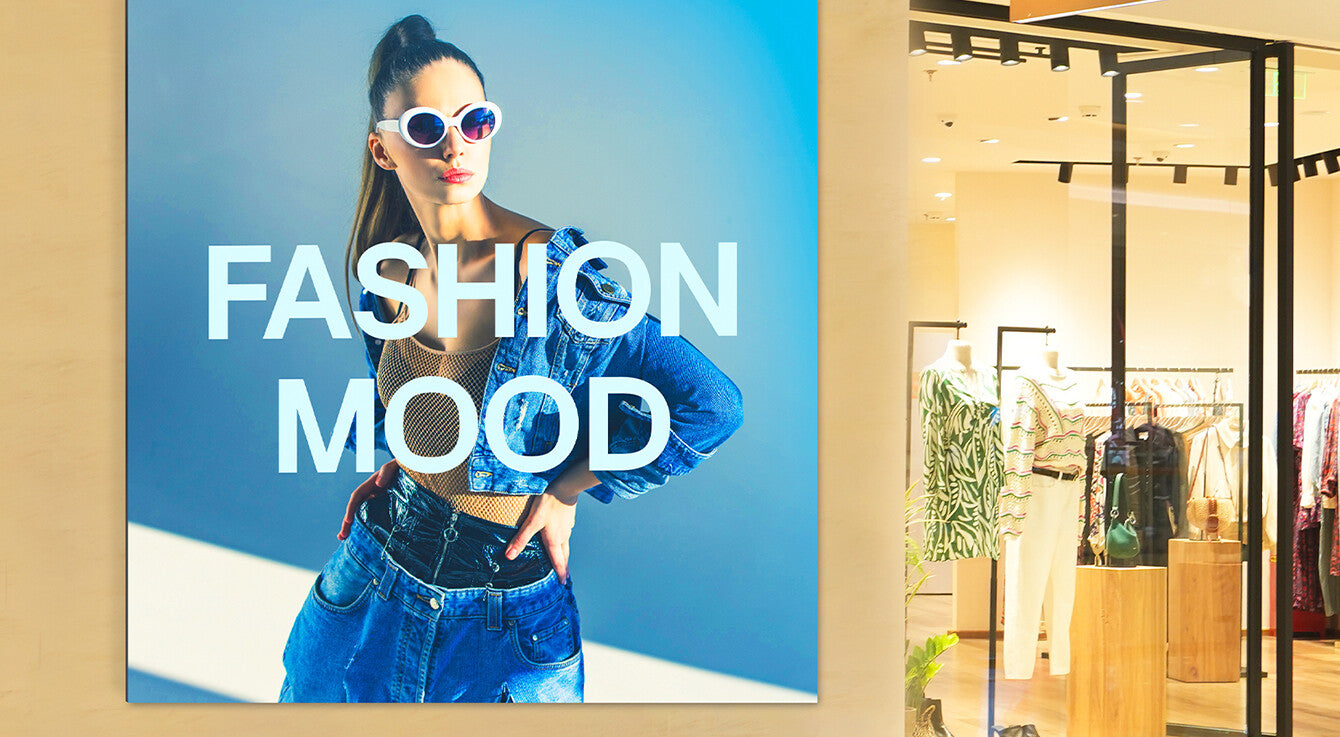

With a great brightness of 600 nits, it clearly delivers content and attracts public attention, making it ideal for achieving bright indoor visibility.
When connected with LG's CVBA system controller, the LSBE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.
Physical Parameter
| Pixel Configuration | Single SMD |
|---|---|
| Pixel Pitch (mm) | 2.50 |
| Module Resolution (W x H) | 120 × 135 |
| Module Dimensions (W x H, mm) | 300 × 337.5 ×13 |
| Weight per Module (kg) | 0.95 |
| No. of Modules per Cabinet (W × H) | 2 × 1 |
| Cabinet Resolution (W × H) | 240 × 135 |
| Cabinet Dimensions (W × H × D, mm) | 600 × 337.5 × 72 |
| Cabinet Surface Area (m²) | 0.203 |
| Weight per Cabinet (kg/cabinet) | 6.5 |
| Weight per Square Meter (kg/m²) | 32.0 |
| Physical Pixel Density (pixels/m²) | 160,000 |
| Flatness of Cabinet | ±0.3 mm |
| Cabinet Material | Die-casting Aluminum |
| Service Access | Front |
Optical Parameter
| Max. Brightness (After Calibration) | 600 |
|---|---|
| Color Temperature (K) | 3,200~9,300 |
| Visual Viewing Angle (Horizontal/Vertical) | 160 × 150 |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.003Cx,Cy |
| Contrast Ratio (10 lux) | 5,000:1 |
| Processing Depth (bit) | 14 |
Electrical Parameter
| Power Consumption (W/Cabinet, Max.) | 93 |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 36 |
| Power Consumption (W/m², Max.) | 460 |
| Heat Dissipation (BTU/h/Cabinet, Max.) | 317 |
| Heat Dissipation (BTU/h/Cabinet, Avg.) | 122 |
| Heat Dissipation (BTU/h/㎡, Max.) | 1,570 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
Operation Conditions
| Lifetime (Hours to Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | -20℃ to +40℃ |
| Operating Humidity | 10-80% RH |
| IP rating Front / Rear | IP50 / IP50 |
Certification
| Certification | CE, FCC, cTUVus, CB, KC, CCC |
|---|
Environment
| Environment | RoHS, REACH |
|---|
Controller
| Controller | CVBA |
|---|
90 Degree Corner Cut
| 90 Degree Corner Cut | Yes |
|---|
