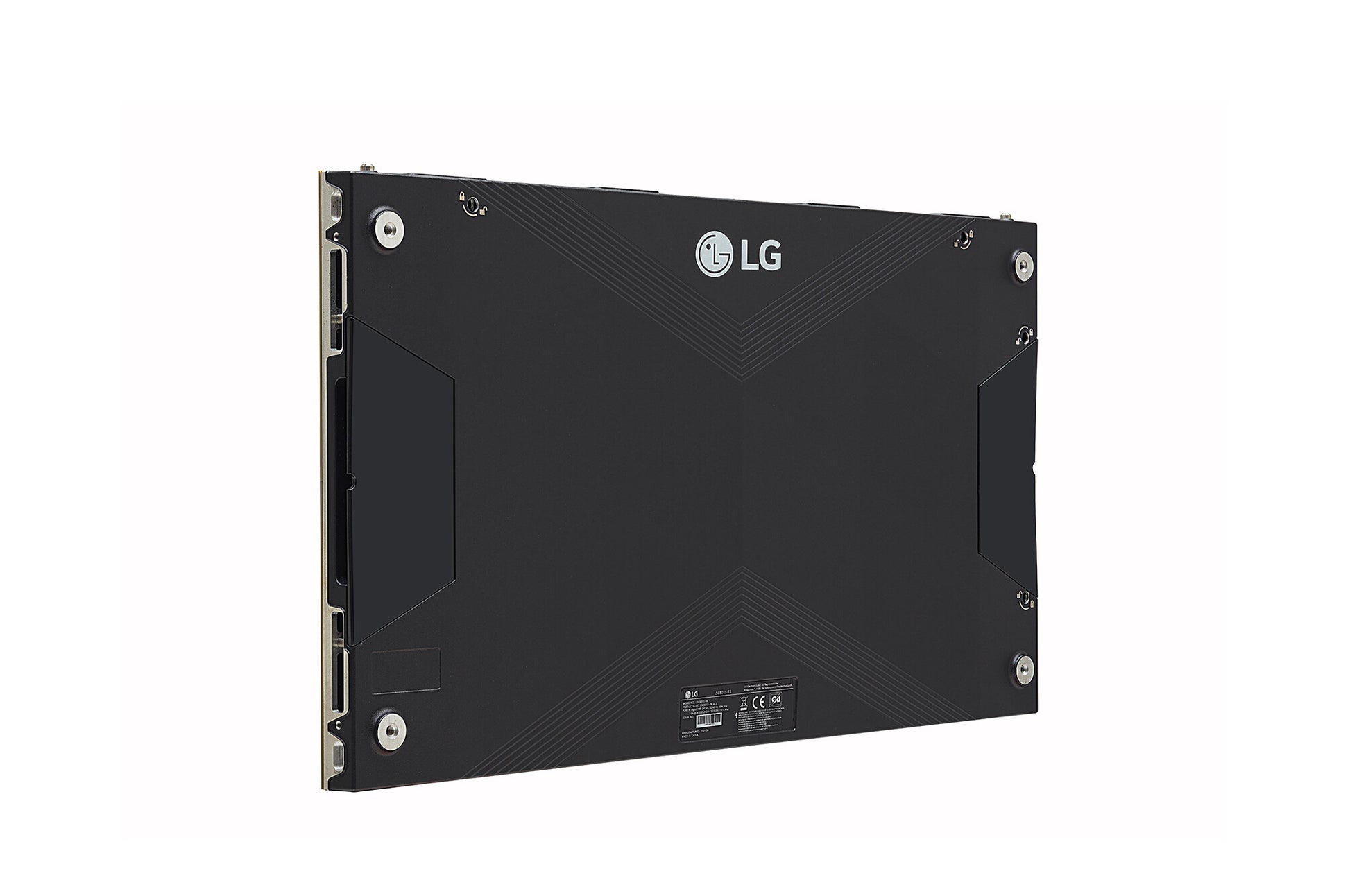

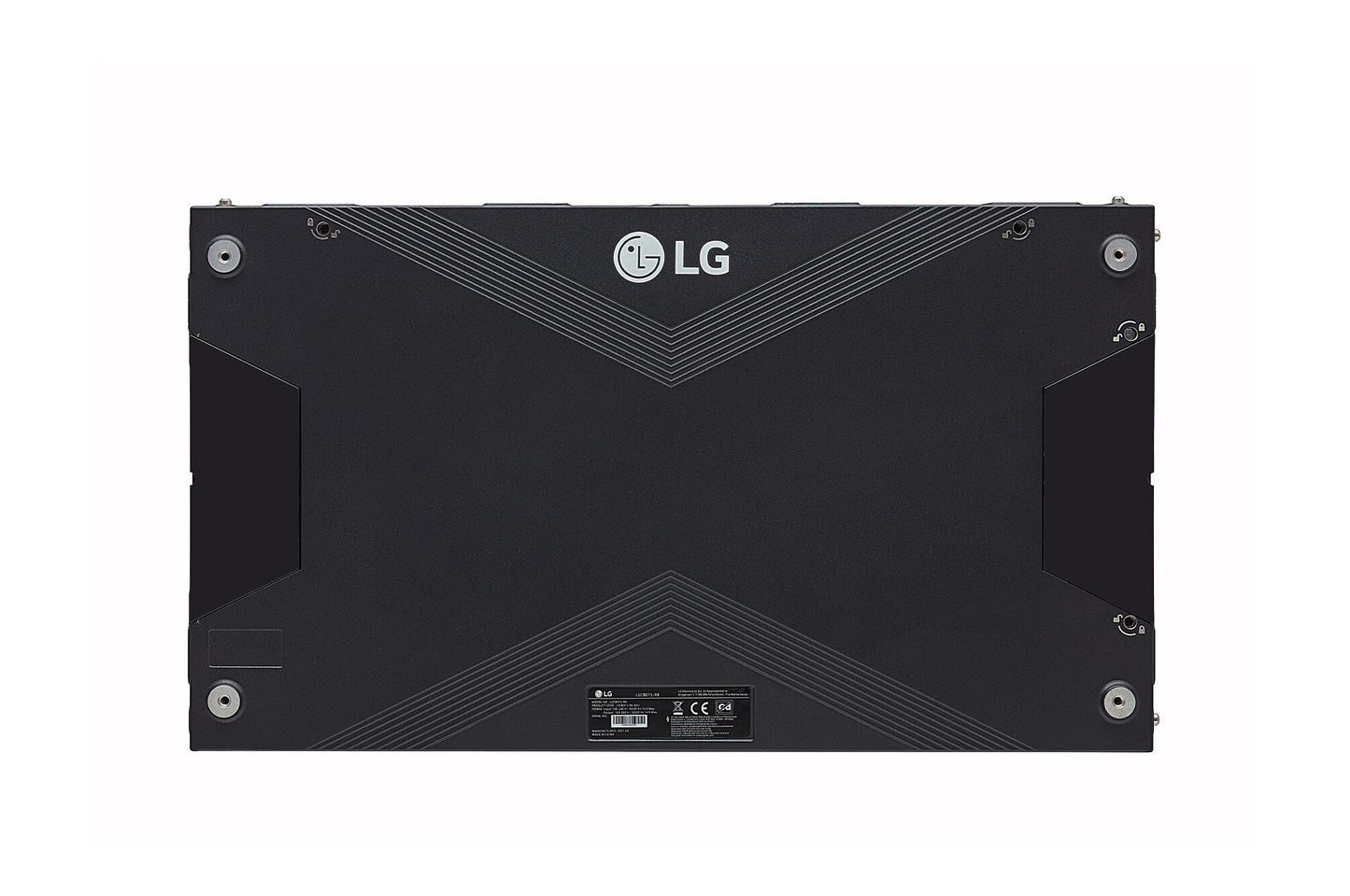

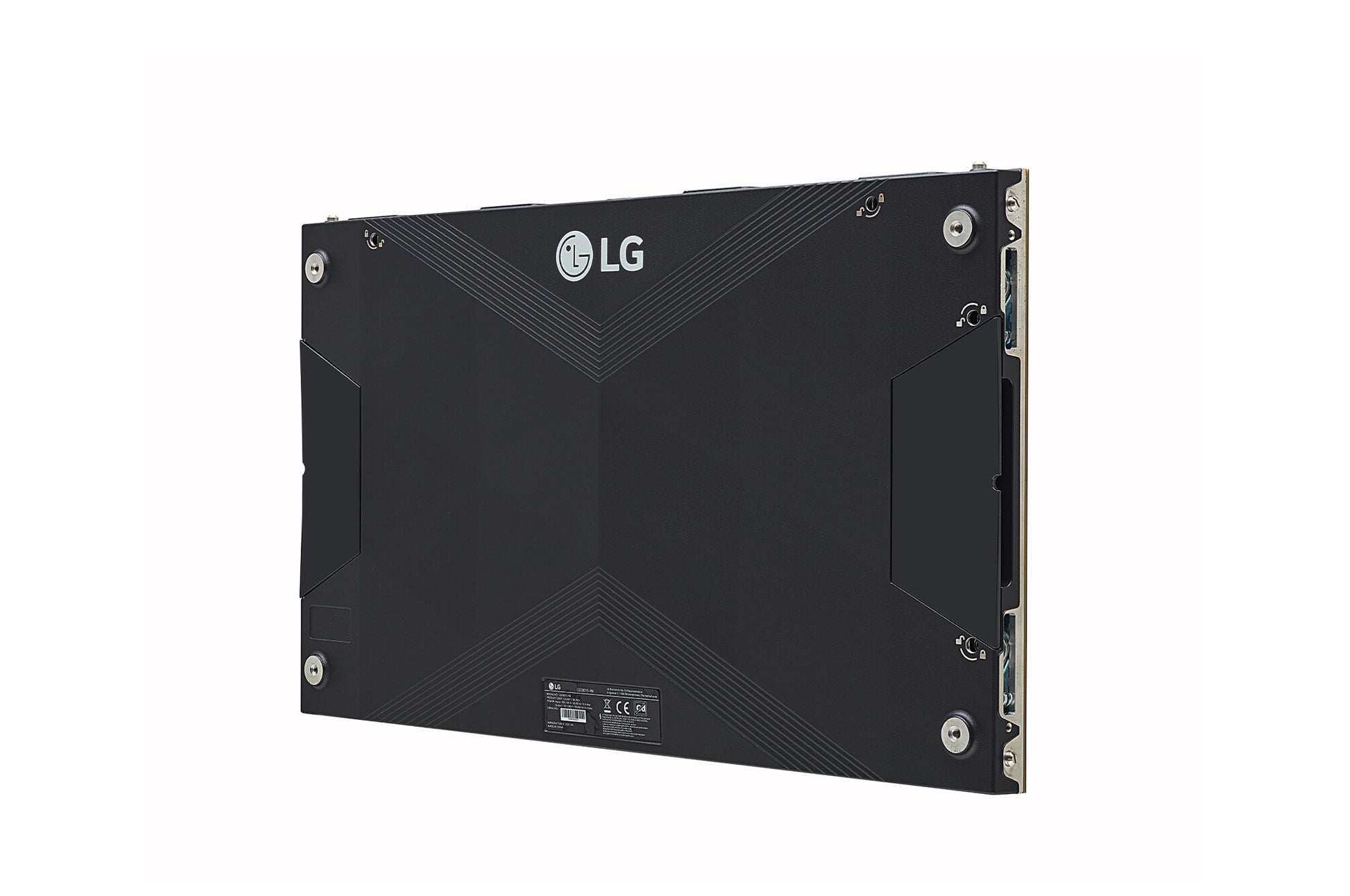

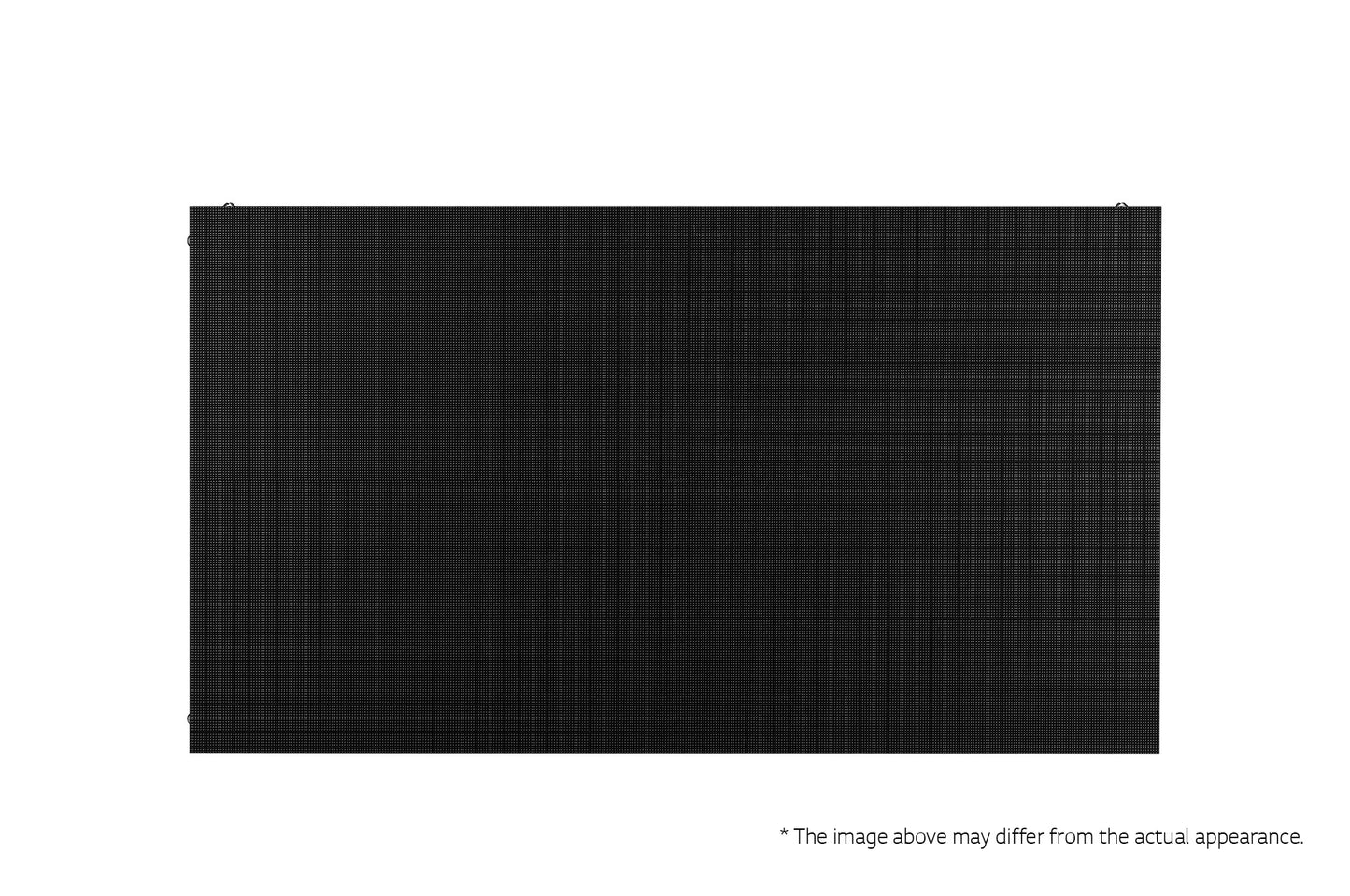

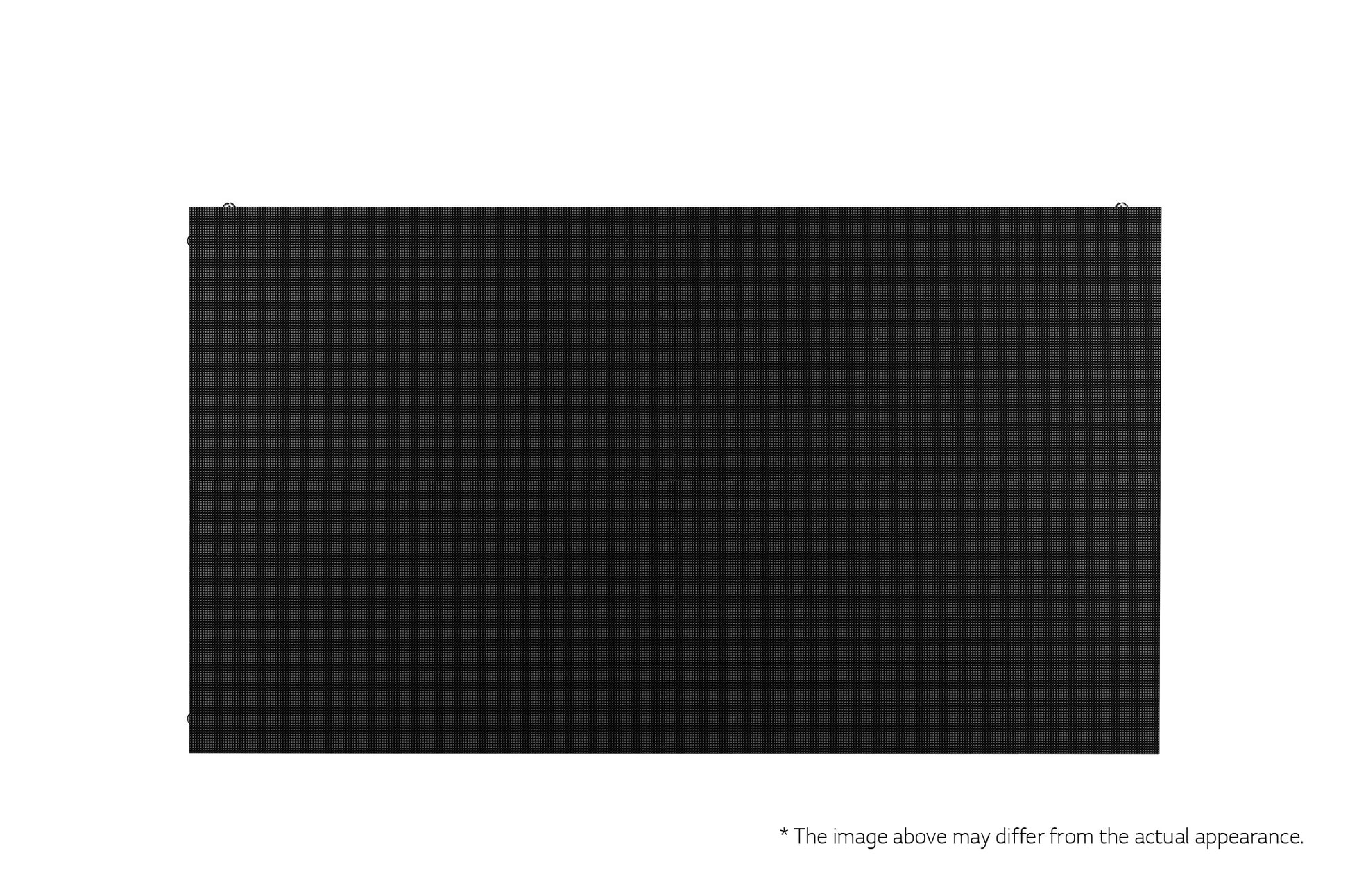

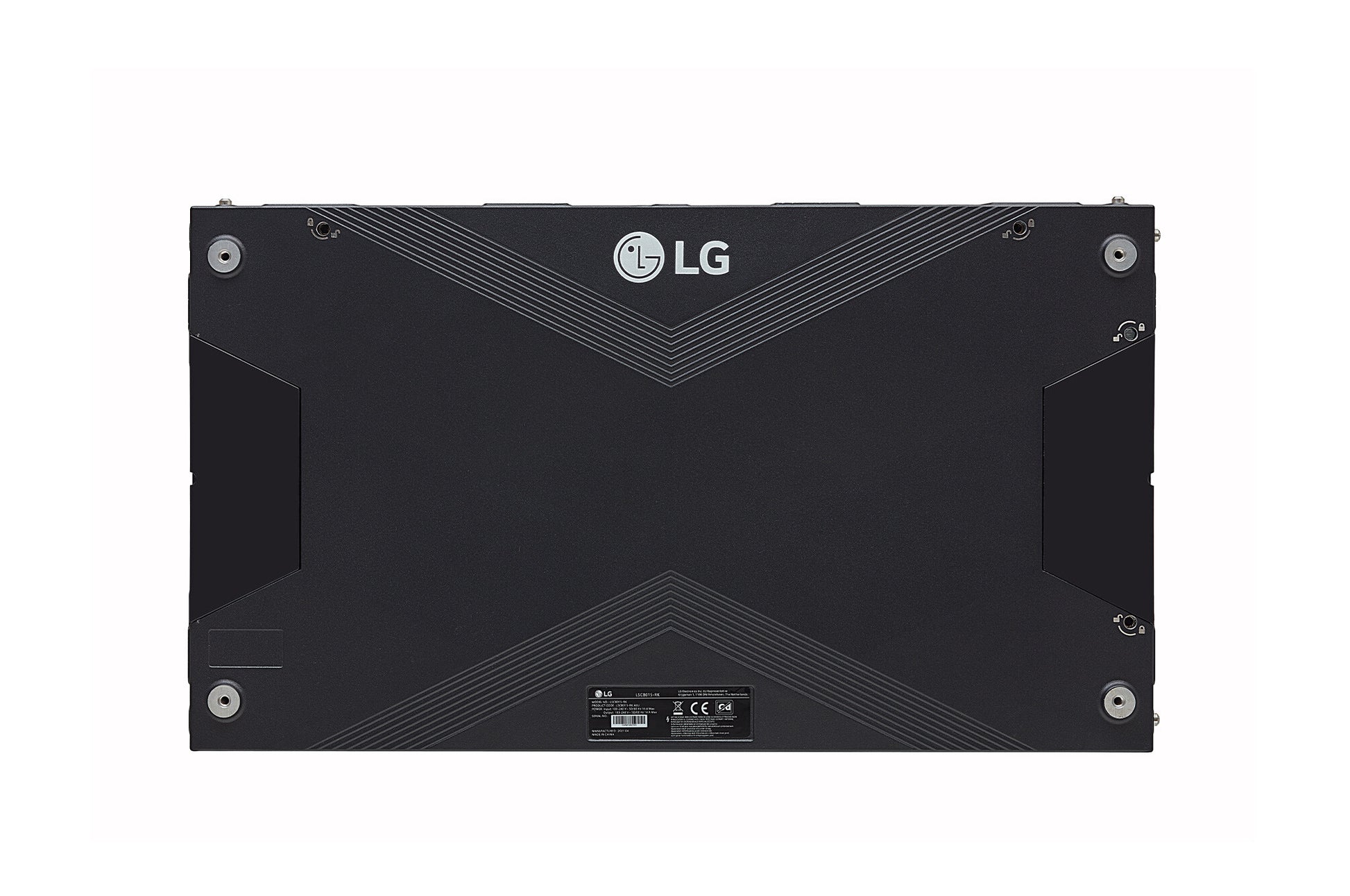

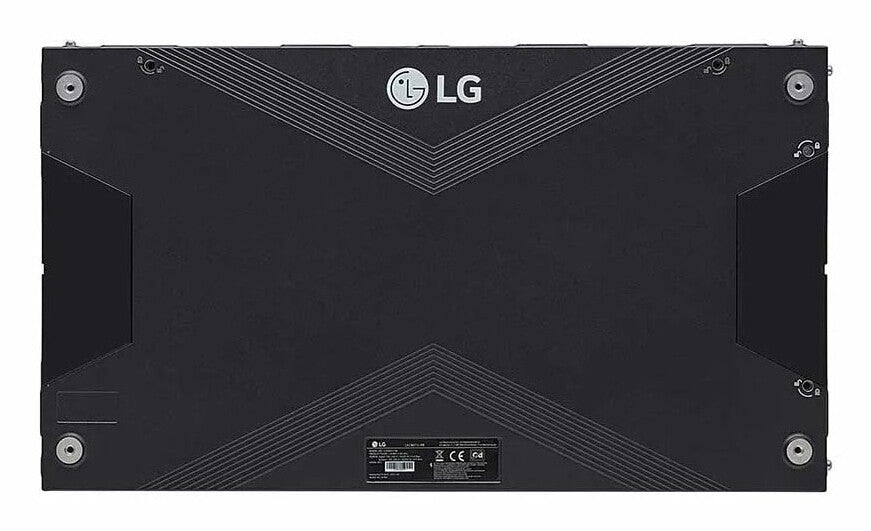

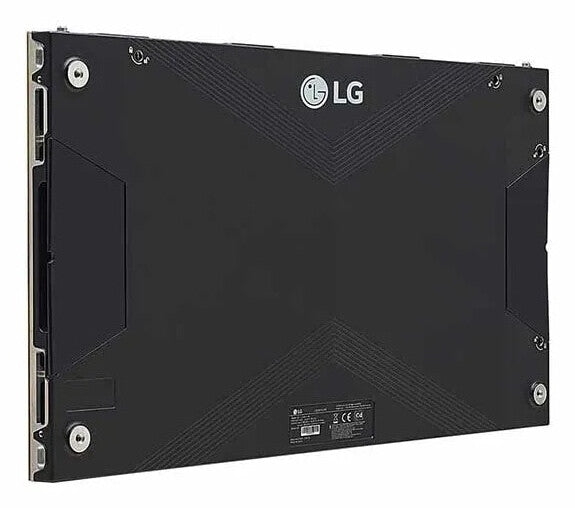

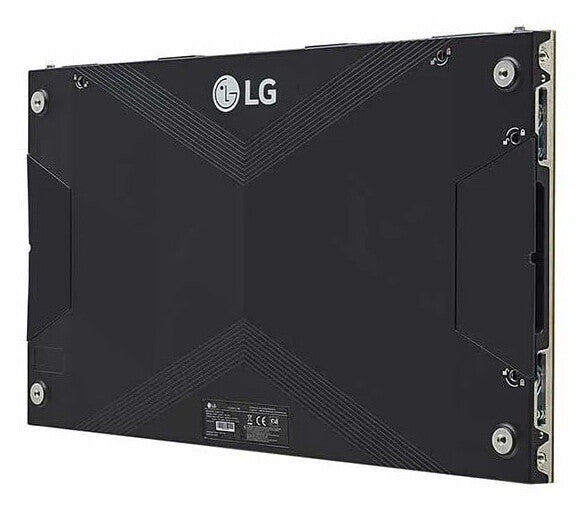

LSCB012 Indoor LED Ultra Slim

LSCB012 Indoor LED Ultra Slim

  • Pixel Pitch: 1.25mm
  • Brightness: 800cd/m²
  • Ultra Slim Depth
  • EMC Class B, BS 476 Part7 Class 1
  • SKU:LSCB012-RK
  • GTIN/EAN:8806084617996
  • MPN:LSCB012-RK

You need to login to view the price.

Add To Favorite
View full details

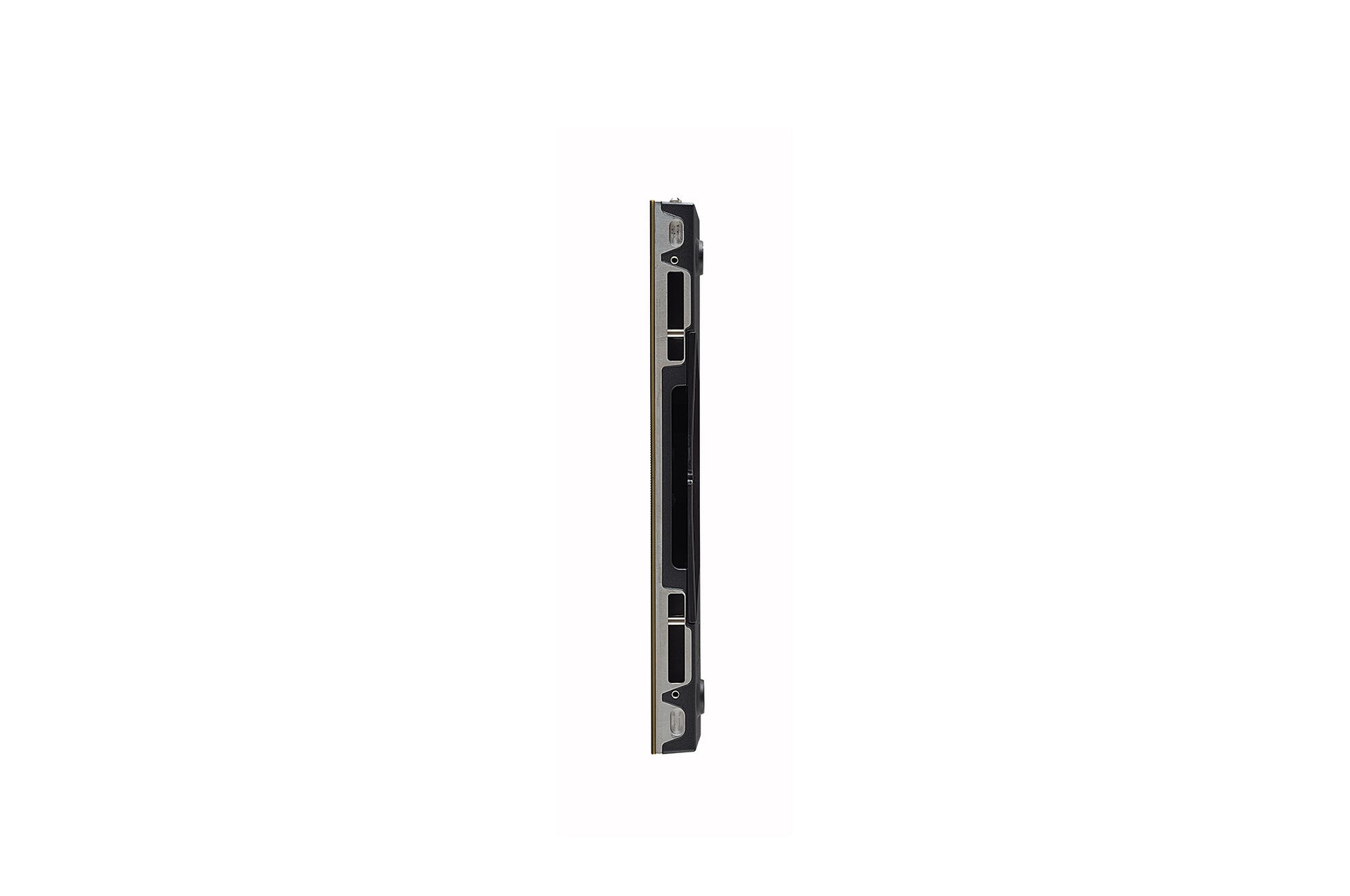

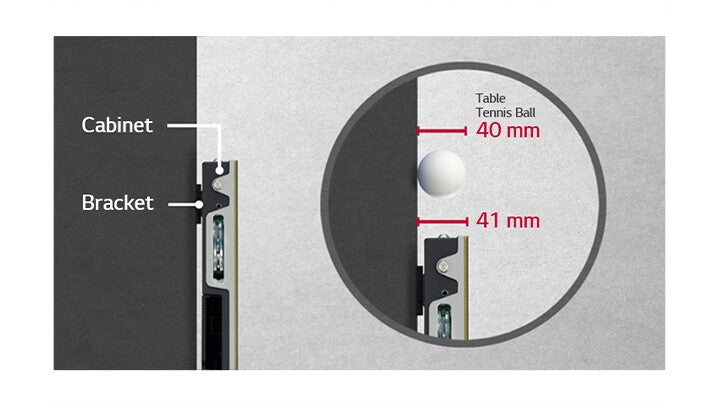

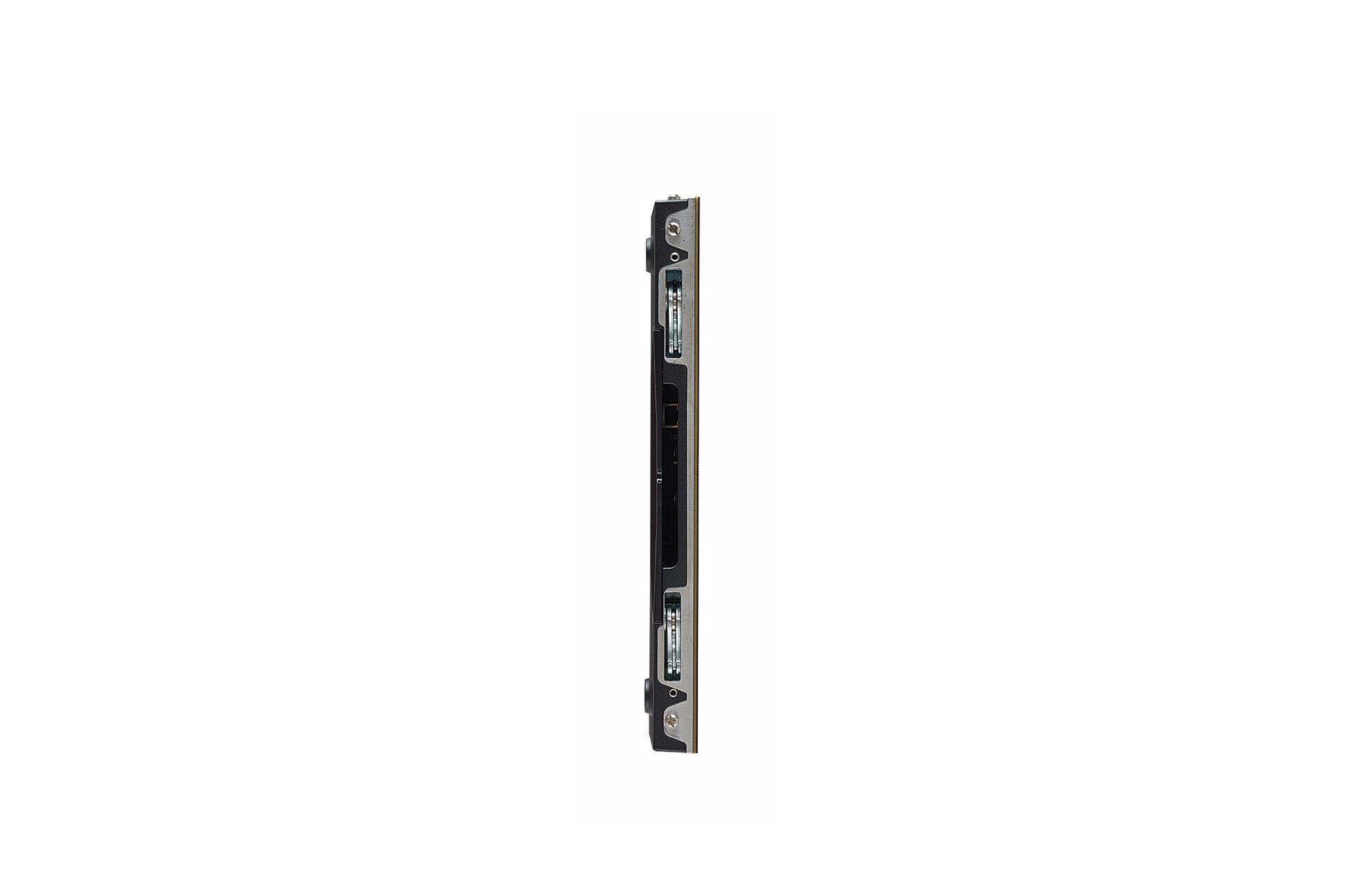

Ultra Slim Depth

Its ultra-slim design with 40.8mm edge thickness is the biggest advantage of the product. This feature enables the LSCB series to be installed in a variety of venues, as its thinness helps it to harmonize with its surroundings.


Easy & Seamless Installation

The LSCB series can be easily installed and managed from the front side for easy operation. Thanks to this feature, no additional space for maintenance behind the product is required. Its LED modules can also be simply attached or detached with a suction tool.


16:9 FHD/UHD Configuration

Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content.
This allows you to keep using existing content without additional cost and time for editing.

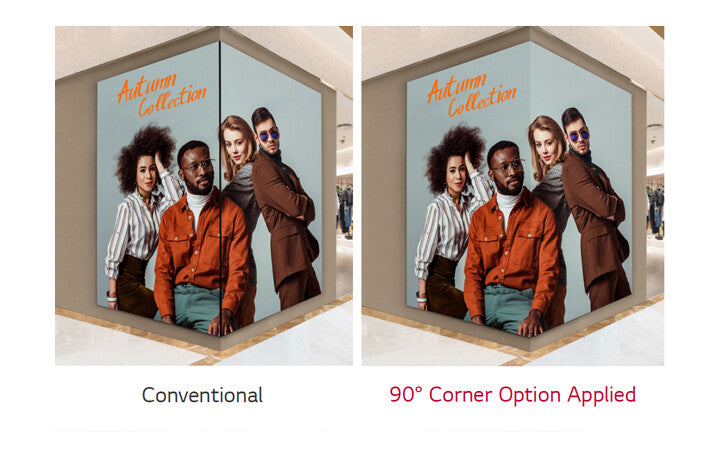

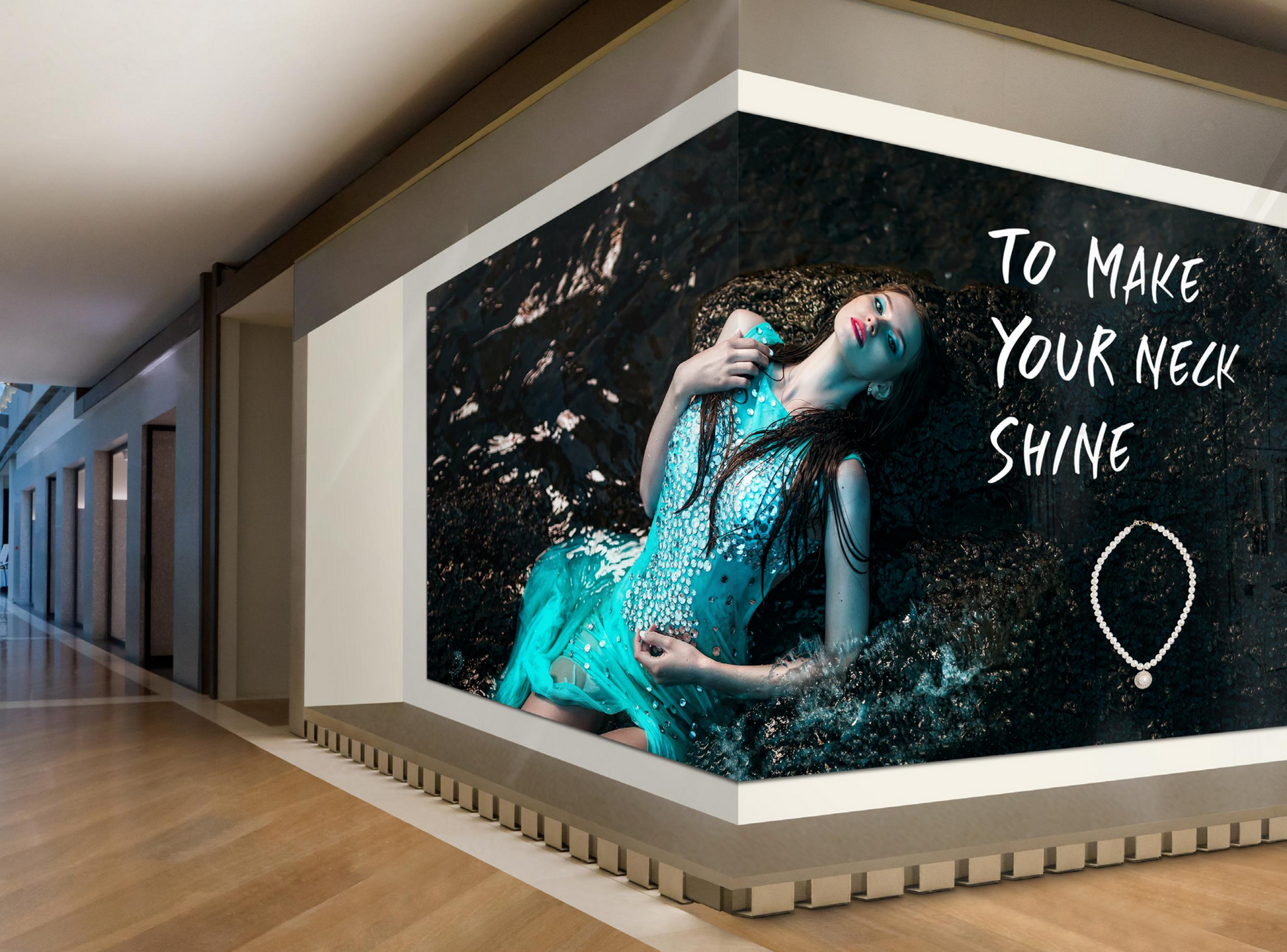

90° Corner Design Available

If you add 90° corner option, the LSCB series fits naturally into the space and delivers smooth content to customers.


EMC Class B Certified & Fire Resistant Design

The LSCB series is safe from electromagnetic waves, which are harmful to the environment and human body, with EMC Class B certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.


Tech Spec

  • Physical Parameter

    Pitch Name 3 in 1
    Pixel Pitch (mm) 1.250
    Module Resolution (W x H) 240 × 135
    Module Dimensions (W x H, mm) 300 × 168.75
    Weight per Module (kg) 0.37 (-RK,-CK)/ 0.67 (-CKF)
    No. of Modules per Cabinet (W × H) 2x2 (-RK)/ 1x2 (-CK,-CKF)
    Cabinet Resolution (W × H) 480x270 (-RK)/ 240x270 (-CK, -CKF)
    Cabinet Dimensions (W × H × D, mm) 600x337.5x34 (-RK)/
    300x337.5x29.7 (-CK)/
    300x337.5x35.6 (-CKF, Cabinet Mounting Depth)
    Cabinet Surface Area (m²) 0.203 (-RK)/ 0.101 (-CK, -CKF)
    Weight per Cabinet (kg / unit) 5.3 (-RK)/ 4.0 (-CK)/
    3.5 (-CKF, Weight Changes for Different Curves)
    Weight per Square Meter (kg/m²) 26.2 (-RK)/ 39.0 (-CK)/ 34.6 (-CKF)
    Physical Pixel Density (pixels/m²) 640,000
    Flatness of Cabinet ± 0.1 mm
    Cabinet Material Die-casting Aluminum (-RK) /
    Aluminum Machine (-CK, CKF)
    Service Access Front
  • Optical Parameter

    Max. Brightness (After Calibration) 800
    Color Temperature 3,200-9,300 (K)
    Visual Viewing Angle (Horizontal/Vertical) 160 × 160
    Brightness Uniformity 97 %
    Color Uniformity ± 0.003 Cx,Cy
    Contrast Ratio 5,000:1
    Processing Depth (bit) 14 (HDR10, HDR10 Pro)
  • Electrical Parameter

    Power Consumption (W/Cabinet, Max.) 150 (-RK)/ 75 (-CK, -CKF)
    Power Consumption (W/Cabinet, Avg.) 50 (-RK)/ 25 (-CK, CKF)
    Power Consumption (W/m², Max.) 740
    Power Supply (V) 100 to 240
    Frame Rate (Hz) 50 / 60
    Refresh Rate (Hz) 3,840
  • Operation Conditions

    Lifetime (Hours to Half Brightness) 100,000
    Operating Temperature (°C) -10 °C to +45 °C
    Operating Humidity 0 - 80 % RH
    IP rating Front / Rear IP30 / IP30
  • Controller

    Controller CVCA, LCIN006, LCIN008 (4K) (Not included)
  • 90 Degree Corner Cut

    90 Degree Corner Cut Yes
