Chief TS318TU

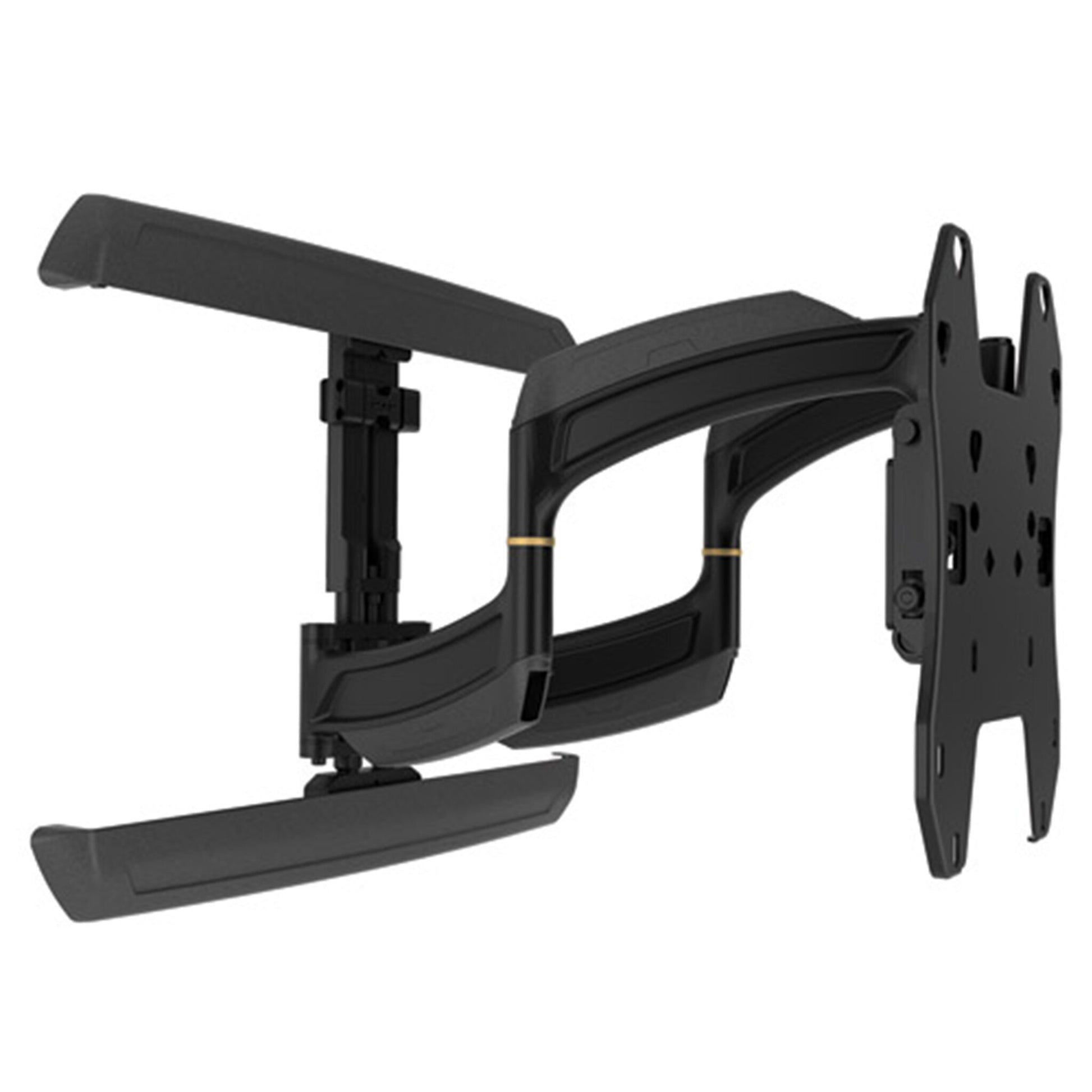

The Chief TS318TU is a medium dual swing arm wall display mount from Chief's Thinstall series, designed for commercial and professional AV installations in corporate, educational, and meeting room environments. It supports flat panel displays from 32 to 65 inches and extends up to 45,7 cm from the wall, while collapsing to an ultra-low profile of just 3,3 cm when retracted. The mount is engineered for single-person installation via a top-rail slide-on system, and includes Centris low-profile tilt, post-installation height and lateral shift adjustment, and tool-free cable management. It is UL listed and VESA-compatible across a wide range of mounting patterns.

Ultra-Low Profile Collapsed Depth

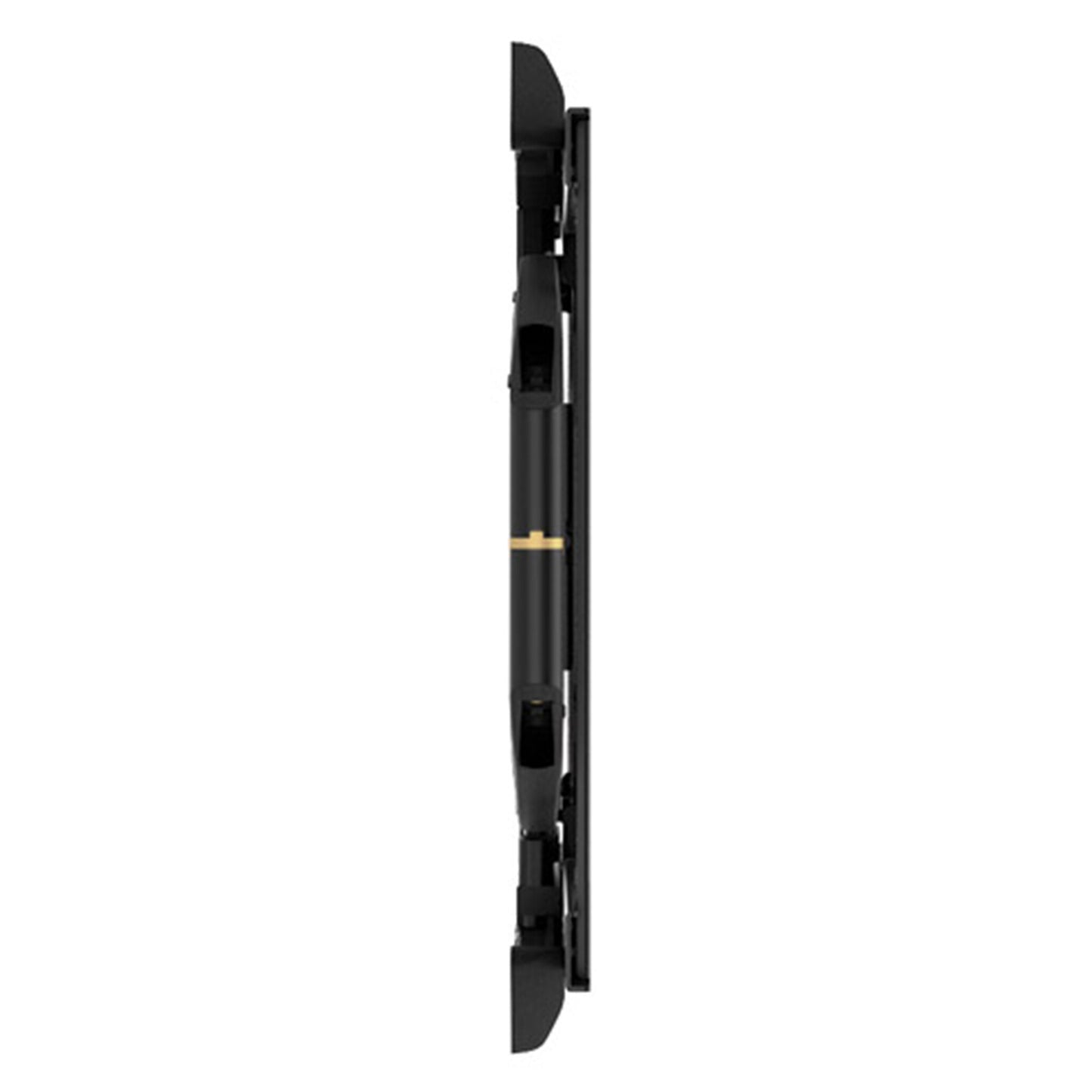

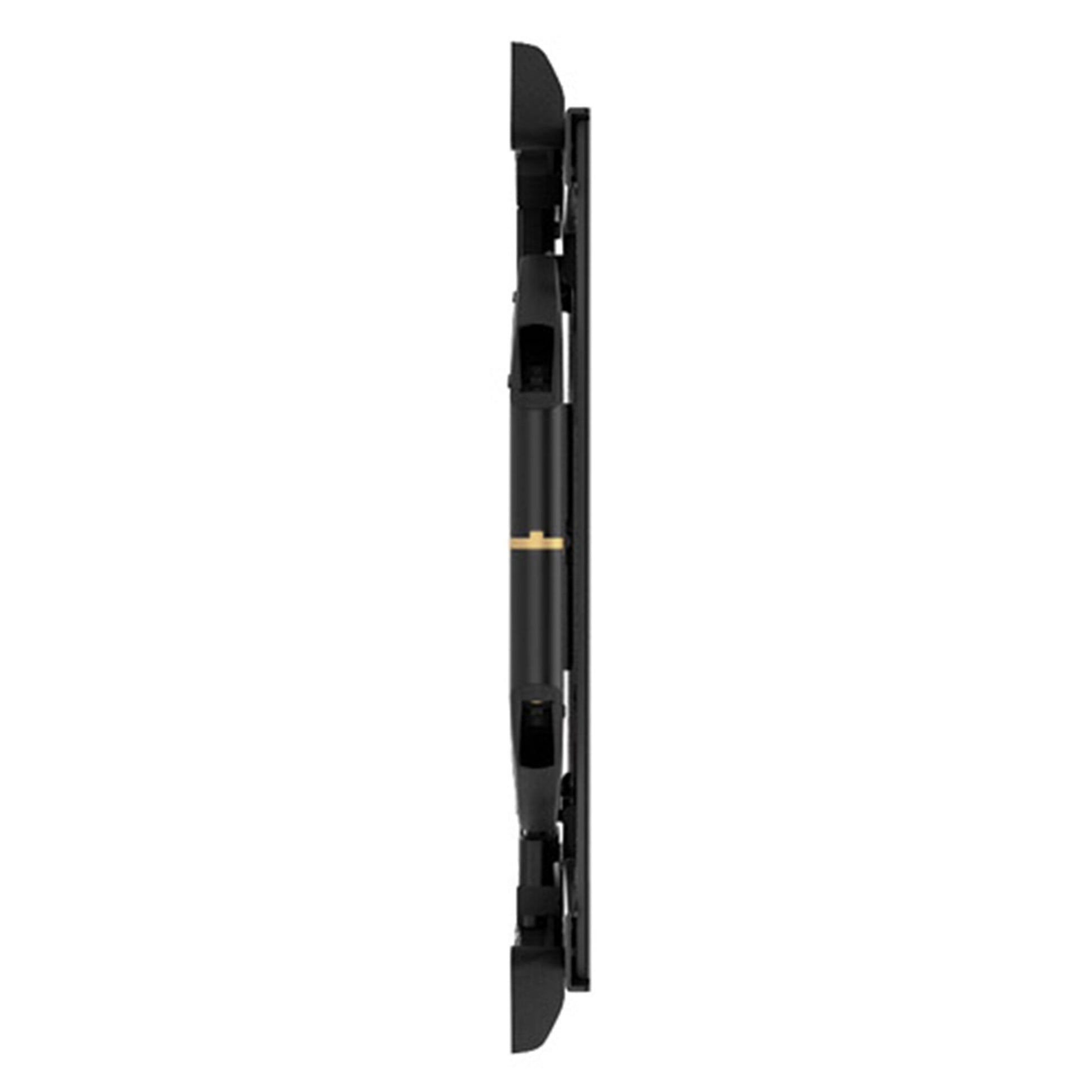

When retracted, the TS318TU collapses to just 3,3 cm from the wall — one of the slimmest profiles in its class. For installations in high-traffic corridors, narrow conference rooms, or lobby areas where protrusion is a concern, this means the mount is virtually invisible when not in use. The display sits flush against the wall, maintaining a clean architectural look that end users and facilities managers appreciate, without sacrificing the full swing-arm reach (up to 45,7 cm) when repositioning is needed.

Centris Tilt for Effortless Viewing Adjustment

The Centris low-profile tilt mechanism delivers up to ±15° of fingertip tilt adjustment, requiring minimal force to reposition the screen. In practice, this matters in rooms where ceiling lighting or windows create glare at certain times of day, or in classrooms and boardrooms where users at different distances and heights need to find their optimal viewing angle. The light touch required means end users can adjust the display without tools or assistance, reducing reliance on IT or facilities staff for routine repositioning.

45,7 cm reach. 3,3 cm collapsed. One installer.

UL listed · Fits VESA 100×100 to 600×400 mm · 34 kg capacity

40,6 cm Centerless Lateral Shift Post-Installation

After the mount is fixed to the wall, up to 40,6 cm of lateral shift can be applied without drilling new holes or repositioning the wall plate. This is particularly useful in environments where the wall stud layout does not align perfectly with the desired display centre — a common challenge in older buildings or when retrofitting. The shift is continuous and centerless, meaning there is no stepped adjustment, so the display can be positioned exactly where it needs to be for the room's layout, furniture arrangement, or accessibility requirements.

Single-Person Installation via Top-Rail System

The TS318TU is designed to be installed by a single technician: the wall rail is mounted first, and then the full display assembly slides onto it. This eliminates the need for a second person to hold the mount in position during installation, reducing labour costs and simplifying scheduling. For integrators running tight crews across multiple simultaneous installations, this design delivers a meaningful efficiency gain on every site visit.

Integrated Tool-Free Cable Management

Enclosed cable covers click into place without tools, and the wide-open wall plate provides a clear routing path for power and signal cables directly into the wall. The result is a finished installation with no exposed cabling visible from the front — important in client-facing environments such as reception areas, showrooms, and executive meeting rooms where cable clutter would undermine the professional appearance. Post-installation access remains straightforward, so service and upgrades do not require dismounting the display.

Wide VESA Compatibility and UL Listing

The mount supports VESA patterns from 100 x 100 mm up to 600 x 400 mm, covering the vast majority of commercial flat panels in the 32–65 inch range, including LED, LCD, and plasma screens. UL listing confirms that the structural and electrical safety of the mount has been independently verified — a requirement for many public-sector, healthcare, and corporate procurement programmes. With a certified 34 kg load capacity, it handles virtually all displays in its supported size range with a clear safety margin.
