Origin Acoustics MOS36BOX

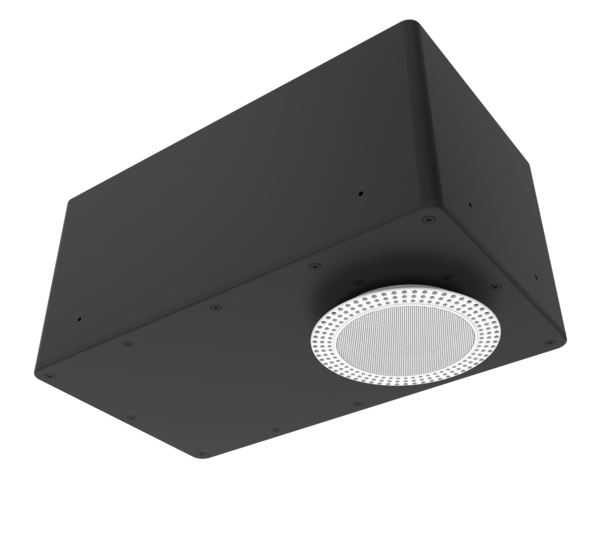

The Origin Acoustics MOS36BOX is the subwoofer enclosure module at the heart of the award-winning MOS36K Minimal Opening System — a revolutionary fully in-ceiling audio solution engineered to mimic the appearance of 4-inch designer lighting. Built around a 6.5-inch composite glass fiber woofer in a Composite UL Resin enclosure, the MOS36BOX delivers deep, clean low-frequency performance while keeping the ceiling opening to an absolute minimum. It is designed for integration-friendly installations in premium residential environments where aesthetics and audio performance are equally critical. The enclosure pairs with the MOS36MRM mid-range module, together forming a two-way full-range system capable of 102 dB continuous SPL. Ideal for custom AV integrators specifying invisible audio for luxury homes, high-end apartments or architecturally sensitive spaces.

Minimal Opening, Maximum Bass

The MOS36BOX achieves what few in-ceiling systems can: genuinely extended low-frequency response through an opening no larger than a standard 4-inch downlight. The 6.5-inch composite glass fiber woofer is housed in a purpose-built Composite UL Resin enclosure that acts as a tuned back-box, allowing the woofer to move air efficiently without the usual compromise of a large cut-out. When paired with the MOS36MRM mid-range module, the complete system reaches down to 35 Hz (–10 dB), covering everything from deep cinematic impact to full musical bass lines. For clients who insist on audiophile performance but refuse a visible speaker grille larger than a recessed light, this is the enabling technology that makes that conversation possible.

Pre-Construction Joist Mounting

The MOS36BOX uses overlapping formed steel strap rails that adjust from 14.5 to 22.5 inches, covering standard 16-inch and 24-inch joist spacing without adapters or extra hardware. The enclosure is set in place before drywall is finished — the rails grip the joists and the assembly locks level with a simple Phillips screwdriver. This pre-construction workflow eliminates the need for cut-in brackets or access panels and dramatically reduces installation time on new-build and renovation projects. Once secured, the matching MOS36MRM module drops in with a twist-and-hex-screw action, meaning no tools are needed for the final driver installation. Integrators running multiple zones in a single project will find the repeatable, predictable process a significant time-saver.

Big bass. 4-inch opening. Zero visual compromise.

Winner – rAVe Best of CEDIA Expo & CE Pro Best Product Award 2022

Design-Neutral Trim Flexibility

While the MOS36BOX itself is the acoustic and structural core of the system, it is designed to accept the full MOS36 Trim-Ring Kit — six different grille and ring configurations in both round and square formats, with flush-mount and surface-mount options plus adjustable spacers for varying ceiling material thickness. This means the same enclosure can be spec'd into a contemporary minimalist interior or a more traditional space without any acoustic compromise. The grille diameter of just 4 inches (102 mm) sits comfortably alongside recessed lighting, maintaining the design-centric ceiling aesthetic that architects and interior designers demand in premium projects.

Award-Winning System Performance

The MOS36K system — of which the MOS36BOX is the core enclosure — won both rAVe's Best of CEDIA Expo Award (Best New In-wall/In-ceiling Speaker) and CE Pro's Best Product Award at CEDIA 2022. These industry recognitions reflect a genuine engineering breakthrough: 102 dB continuous SPL and a 100-degree conical coverage pattern from a two-way passive crossover system at 200 Hz, all within a 4-inch ceiling opening. For integrators, award wins provide a credible third-party validation that makes the specification conversation with high-end clients considerably easier.
