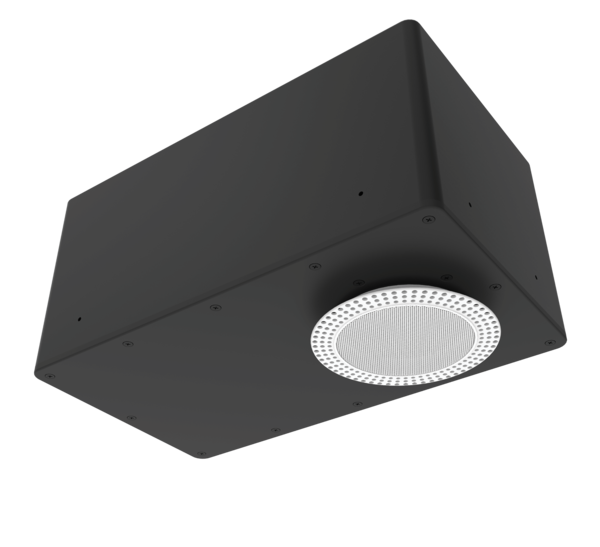

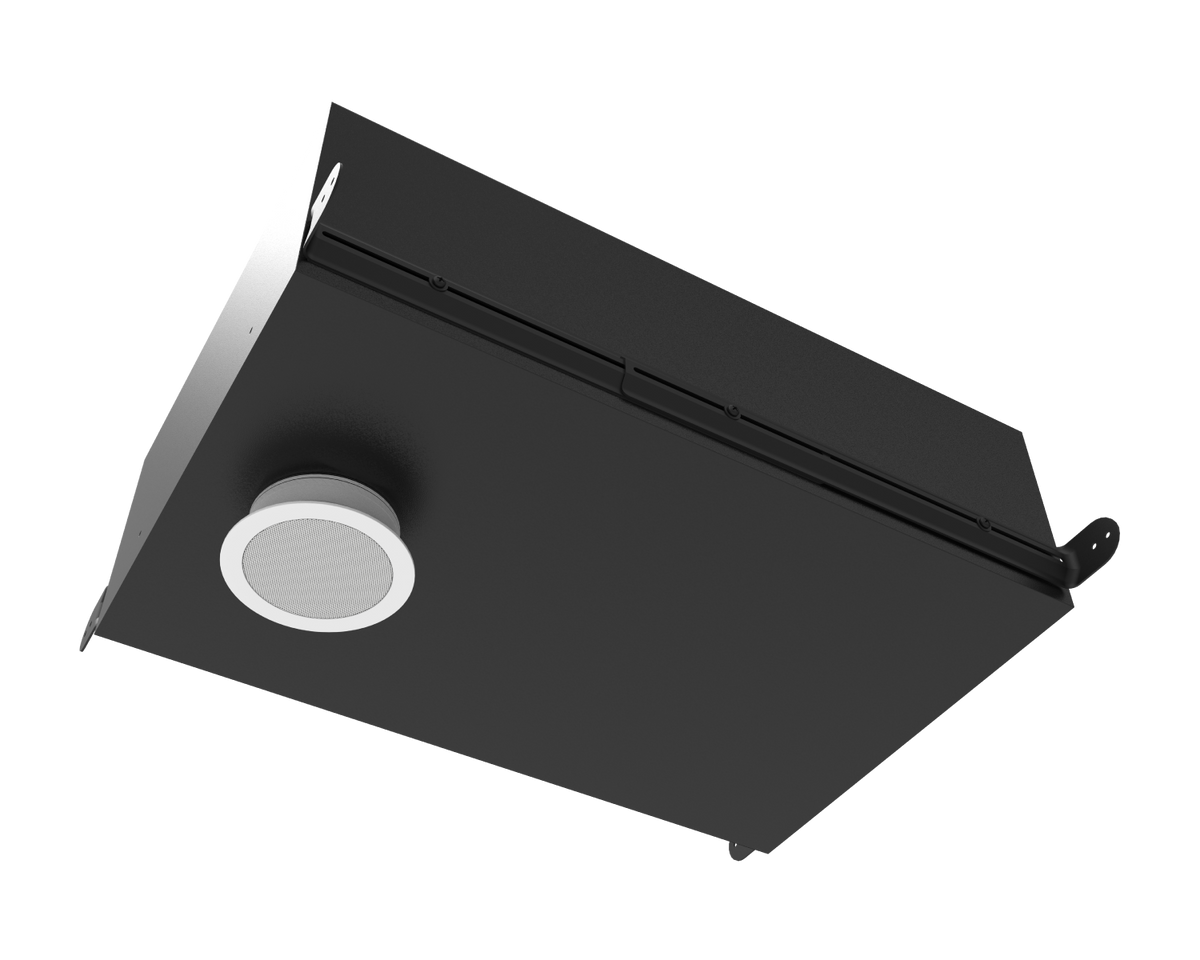

Origin Acoustics MOS36SUB

The Origin Acoustics MOS36SUB is an architectural in-ceiling subwoofer engineered for spaces where visual discretion is non-negotiable. Part of the award-winning Minimal Opening System, it pairs with the MOS36K speaker to deliver full-range sound behind a compact 4-inch grille — indistinguishable from a standard recessed light fixture. Twin 6½-inch poly cone woofers drive powerful, room-filling bass from 42 Hz upward, making the MOS36SUB ideal for residential living rooms, home theatres, and high-end custom installs where both sonic performance and interior aesthetics must be uncompromised. Designed for integrators who demand a clean finish without sacrificing output.

Truly Invisible Bass in Any Room

The MOS36SUB installs behind a standard 4-inch (102 mm) grille — the same diameter as a common recessed downlight — so it disappears completely into the ceiling. Where traditional in-ceiling subwoofers require an oversized, visually disruptive opening, the MOS36SUB lets architects and interior designers maintain a clean, uncluttered ceiling plane. For end users, this means a premium listening environment without any visual trade-off: guests will hear the bass but never see the source. This makes the MOS36SUB particularly compelling in high-end residential projects where the client has paid significant attention to interior design and will not tolerate speaker grilles that stand out.

Dual Woofer Design for Serious Output

Rather than relying on a single driver, the MOS36SUB uses two 6½-inch poly cone subwoofer drivers working in tandem within a single enclosure. This dual-woofer topology allows the unit to move significantly more air than a single equivalent driver, translating to deeper, more authoritative bass from a footprint that would normally limit performance. For end users, particularly in home cinema and music-listening rooms, this means bass extension to 42 Hz — well into the range needed to reproduce movie LFE effects and the lower registers of acoustic instruments — without the need for a separate visible subwoofer cabinet on the floor.

Big bass. 4-inch footprint. Zero visual compromise.

5-year limited warranty · Part of the Minimal Opening System (MOS36K)

Engineered to Match the MOS36K System

The MOS36SUB is purpose-designed as the bass counterpart to the MOS36K full-range speaker within Origin Acoustics' Minimal Opening System. Its upper frequency limit of 170 Hz (-/+3 dB) is tuned to hand off smoothly to the MOS36K's 35 Hz–20 kHz range, creating a coherent, full-spectrum system from ceiling-mounted components that all share the same discreet 4-inch visual signature. For integrators, this means straightforward crossover configuration and a predictable tonal match — no guesswork about driver compatibility. For the end user, the result is a seamless, room-filling soundscape that feels natural rather than artificially boosted in the low end.

Wide Amplifier Compatibility

The MOS36SUB accepts 50–250 watts (FCT) at 4Ω and presents a 6Ω nominal impedance, placing it well within the output range of most residential multi-channel amplifiers and AV receivers with dedicated subwoofer channels. This broad power range means integrators are not locked into a specific amplifier brand or model, giving flexibility when speccing a system around an existing equipment rack or a client's budget. The upper 250W ceiling also means the sub can be properly driven in larger rooms without running an amplifier into clipping, which is the most common cause of driver damage in subwoofer installations.
