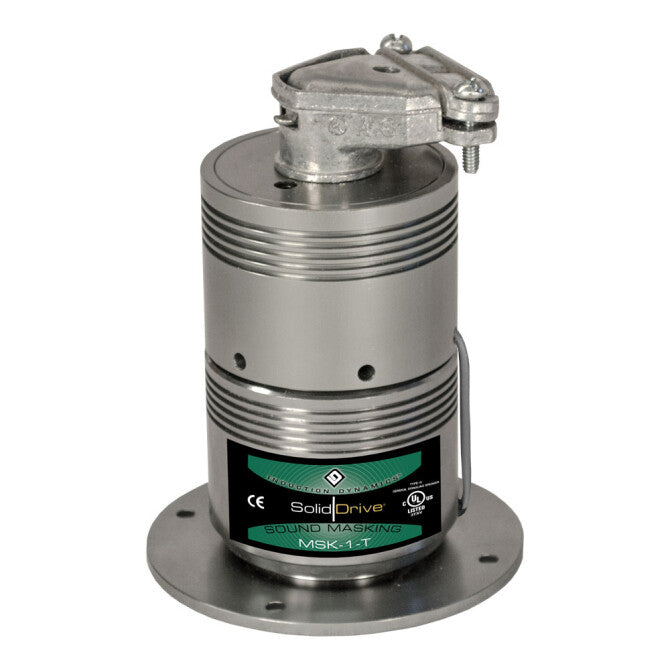

SolidDrive MSK-1-T Actuator and Transformer for Drywall Surface

SolidDrive MSK-1-T Actuator and Transformer for Drywall Surface

  • Hidden planar-source audio technology evenly distributes sound masking signals throughout the listening space
  • Broad and even coverage of up to 15 feet per unit in a drywall installation means a few units cover a large area.
  • Proprietary behind-surface mounting technologies ensure maximum visual appeal.
  • 86 Max SPL (drywall) and 120° dispersion pattern across the upper registers of the frequency spectrum.
  • Drywall optional accessories: self-leveling, constant tension pre-construction bracket to ensure proper alignment & wall contact.
  • SKU:MSK-1-T
  • GTIN/EAN:644216213306
  • MPN:MSK-1-T

You need to login to view the price.

Add To Favorite
View full details

SolidDrive MSK-1-T (Actuator and Transformer) for Drywall Surface

The MSK-1-T is an economical hidden planar-source sound transducer designed for sound masking in glass-mount applications. Featuring a rugged aluminum enclosure with neodymium magnets, the MSK-1-T uses technology similar to our patented SD1 transducers to transfer acoustic energy to the substrate. The result is extremely wide and even audio coverage and acoustical uniformity in the listening space. The unit incorporates a 10 watt transformer for use in 70 V installations. The product must be installed using the SD1 in-wall mounting bracket, sold separately.

Owner's Manual | Tech Sheet | UL Certificate

Color Titanium
UPC 644216213306
Manufacturer SolidDrive
Manufacturer's Category Sound Masking SolidDrive
Height 4.75 in / 120.65 mm
Width/Diameter 2.3 in / 58.42 mm
Shipping Weight 2.15 lbs / 0.98 kg
Carton Height 6.5 in / 165.1 mm
Carton Length 5.5 in / 139.7 mm
Carton Width 5.25 in / 133.35 mm
Certifications CE, RoHS, UL1480, UL2043
Enclosure Properties Anodized Aluminum
Included Accessories Conduit Clamp
Optional Accessories Titanium Heat Sink (SD1-HS-TI)|12" On-Center Bracket Assembly (SD1-BR12)|16" On-Center Rear-Install Drywall Bracket assembly for SolidDrive (SD1-BR16-R)|16" On-Center Bracket Assembly (SD1-BR16)|24" On-Center Bracket Assembly (SD1-BR24)|Passive Equalization Module - Drywall (PEM-DW)
TAA Compliant (Trade America) Yes
BAA Compliant (Made in USA) Yes
Coverage Angle (±6dB @ 2kHz) 120°
Cutout Width/Diameter 2.05 in / 52.07 mm
Frequency Response (± 10 dB) 80 Hz - 15 kHz
Frequency Response (± 3 dB) 90 Hz - 10 kHz
Max. Continuous Power RMS 30 W
Max. Program Power 50 W
Transformer Options 10 W Transformer
RMS rated power
30 W
