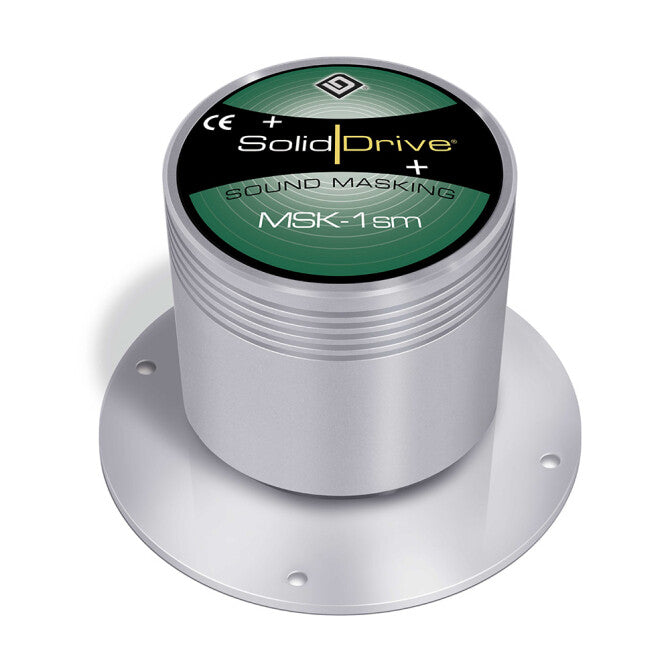

SolidDrive MSK-1 Surface Mount Actuator for Wood Surfaces
- Hidden planar-source audio technology evenly distributes sound masking signals throughout the listening space.
- Broad and even coverage of up to 15 feet per unit in a drywall installation means a few units cover a large area.
- Proprietary behind-surface mounting technologies ensure maximum visual appeal.
- 86 Max SPL (drywall) and 120° dispersion pattern across the upper registers of the frequency spectrum.
- Drywall optional accessories: self-leveling, constant tension pre-construction bracket to ensure proper alignment & wall contact.
- Optional accessories include passive EQ module for drywall, glass and wood; 20 Watt metal junction box for 25, 70.7 & 100 Volt applications (AC-JB20- XFMR) and Heat Sink Fins.
- SolidDrives operate in a virtually friction-free environment and are engineered for infinite life. SolidDrives come with an industry-leading 7-year warranty.
- SKU:MSK-1SM
- GTIN/EAN:644216213108
- MPN:MSK-1SM
SolidDrive MSK-1SM (Surface Mount Actuator) for Wood Surface
The MSK-1sm by SolidDrive is an economical hidden planar-source sound transducer designed for sound masking in wood-mount or other rigid-surface applications. . Featuring a rugged aluminum enclosure with neodymium magnets, the MSK-1sm uses technology similar to our patented SD1 transducers to transfer acoustic energy to the substrate. The result is extremely wide and even audio coverage and acoustical uniformity in the listening space. The MSK-1sm is mounted directly to the surface using wood screws (or other screws suitable for the surface).
Owner's Manual | Tech Sheet | UL Certificate
| Color | Titanium |
|---|---|
| UPC | 644216213108 |
| Manufacturer | SolidDrive |
| Manufacturer's Category | Sound Masking SolidDrive |
| Shipping Weight | 1.4 lbs / 0.635 kg |
| Carton Height | 5.5 in / 139.7 mm |
| Carton Length | 5.5 in / 139.7 mm |
| Carton Width | 5.25 in / 133.35 mm |
| Enclosure Properties | Anodized Aluminum |
| Included Accessories | Conduit Clamp |
| Optional Accessories | Titanium Heat Sink (SD1-HS-TI)|Passive Equalization Module - Wood/Surface Mount (PEM-W)|Junction Box (AC-JB10-XFMR or AC-JB20-XFMR) |
| TAA Compliant (Trade America) | Yes |
| BAA Compliant (Made in USA) | Yes |
| Coverage Angle (±6dB @ 2kHz) | 120° |
| Frequency Response (± 10 dB) | 70 Hz - 15 kHz |
| Frequency Response (± 3 dB) | 80 Hz - 10 kHz |
| Max. Continuous Power RMS | 30 W |
| Max. Program Power | 50 W |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Sensitivity dB @ 1W/1M | 69 dB |
| Sensitivity dB @ 2.83V/1M | 69 dB |
Impedance
8 Ω
RMS rated power
30 W
