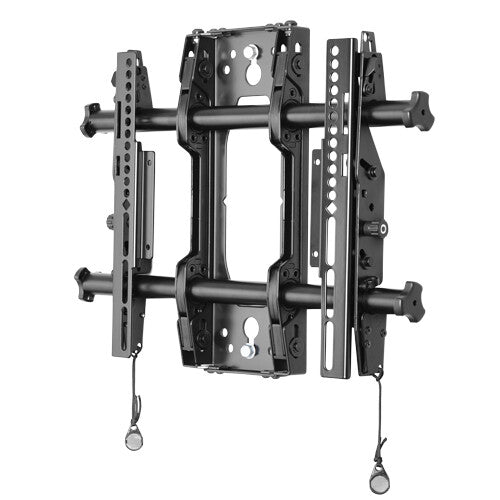

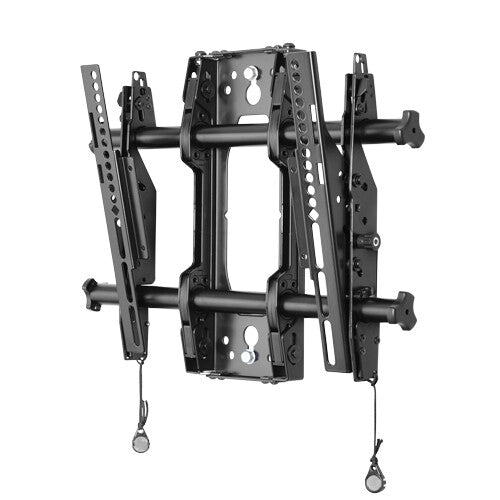

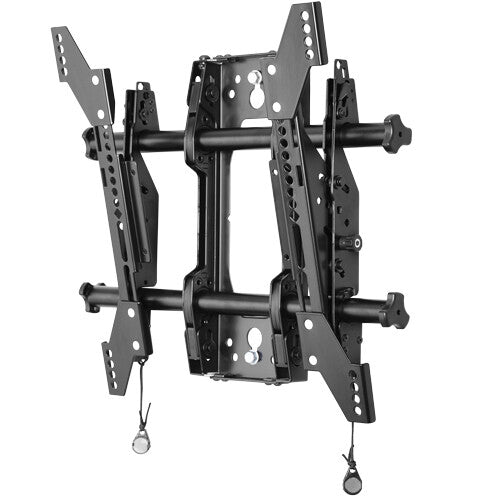

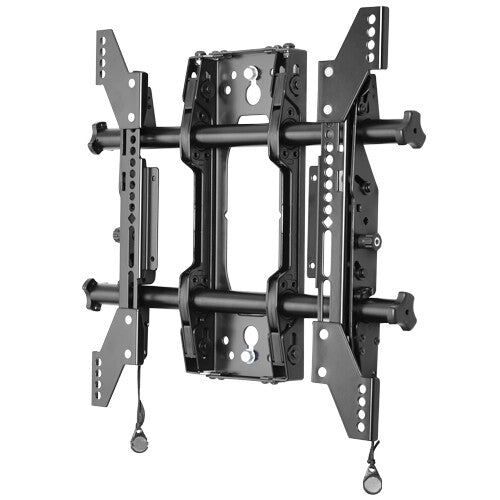

Chief Medium Fusion Micro-Adjustable Tilt Wall Mount, Single Stud

Chief Medium Fusion Micro-Adjustable Tilt Wall Mount, Single Stud

Medium Fusion Micro-Adjustable Tilt Wall Mount, Single Stud, max 34kg, 32-65", Black

  • Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
  • Tilt can be locked at 0°, -6° or -12°
  • ControlZone leveling allows post-installation fine-tuning of height and leveling
  • ClickConnect offers an audible click when the display safely engages with the mount
  • Post-installation lateral positioning
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away
  • SKU:841872167756
  • GTIN/EAN:841872167756
  • MPN:MTMS1U

You need to login to view the price.

View full details

Chief Medium Fusion Micro-Adjustable Tilt Wall Mount, Single Stud. Maximum weight capacity: 34 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 450 x 400 mm. Height adjustment range: 0 - 25 mm, Tilt angle range: -12 - 2°. Product colour: Black

Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for medium displays with a low-profile display mounting solution.

This single stud Fusion mount hides better behind smaller narrow bezel displays in the 32-65" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.

The mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.

Mounting
Maximum weight capacity
34 kg
Minimum screen size
81.3 cm (32")
Maximum screen size
165.1 cm (65")
Mounting type
Wall
Minimum VESA mount
200 x 200 mm
Maximum VESA mount
450 x 400 mm
Number of displays supported
1
Ergonomics
Height adjustment
Yes
Height adjustment range
0 - 25 mm
Tilt angle range
-12 - 2°
Design
Product colour
Black
Certification
UL Listed
Weight & dimensions
Width
463 mm
Depth
51 mm
Height
359 mm
Logistics data
Harmonized System (HS) code
85299097
