20 Hz - 20 kHz, 2x MIC, XLR, RCA, 8x RJ-45, 3-pin, RS-232, 482 x 88 x 335 mm, 4840 g

  • Signal-to-Noise Ratio (SNR): 80 dB
  • 4.84 kg
  • Black
  • SKU:MTX88
  • MPN:MTX88

You need to login to view the price.

Add To Favorite
View full details

AUDAC MTX88. Signal-to-Noise Ratio (SNR): 80 dB, Crosstalk (1kHz): -85 dB, Frequency range: 20 - 20000 Hz. AC input voltage: 100-240 V, AC input frequency: 50-60 Hz, DC input voltage: 24 V. Width: 482 mm, Depth: 335 mm, Height: 88 mm

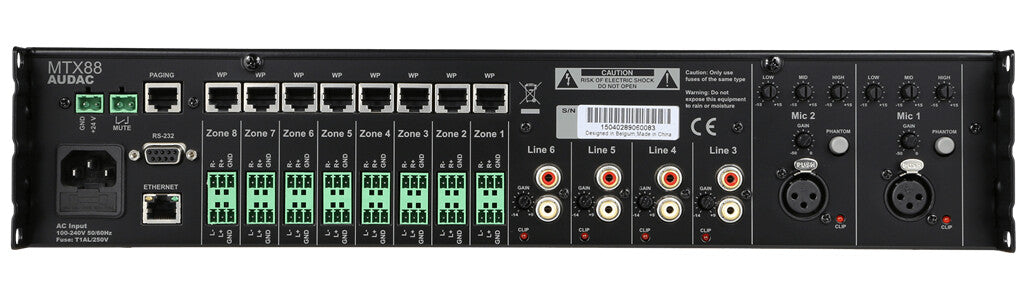

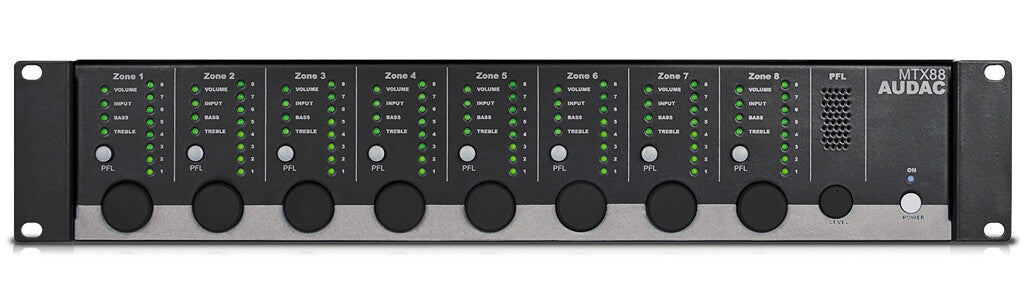

The MTX88 is the eight-zone version of the MTX series, containing two balanced microphone inputs with priority function, phantom power possibility and three-band tone control. Four stereo line-level inputs are provided where to any line-level music source such as a CD-player, Tuner or MP3 player can be connected. The other two inputs of the matrix are the additional wall panel inputs for both line and microphone signals. The MTX can be controlled by means of additional control panels, its fully functional web based interface or the iPhone/ iPad Remote app. The RS232 port makes the MTX compatible with any home & industrial automation systems supporting RS232. The front panel of the MTX shows a rotary button per zone with indication LEDs for accessing controls and settings. A built-in PFL loudspeaker makes it possible to pre-listen every channel without the need for a headphone. The balanced line-level zone output connections are performed using 3-pin Euro-terminal block connectors, each of them accompanied with an RJ45 connector for connecting additional wall panels for that zone. A 24 volts power connection makes it possible to keep the MTX running on emergency power, even if the main power is shut down.

Frequency range
20 - 20000 Hz
Crosstalk (1kHz)
-85 dB
Signal-to-Noise Ratio (SNR)
80 dB
Ports & interfaces
Ethernet LAN (RJ-45) ports
AC (power) in
Technical details
Product colour
Connectivity technology
Power consumption (typical)
12 W
DC input voltage
24 V
AC input frequency
50-60 Hz
AC input voltage
100-240 V
Weight & dimensions
4.84 kg
88 mm
335 mm
482 mm
