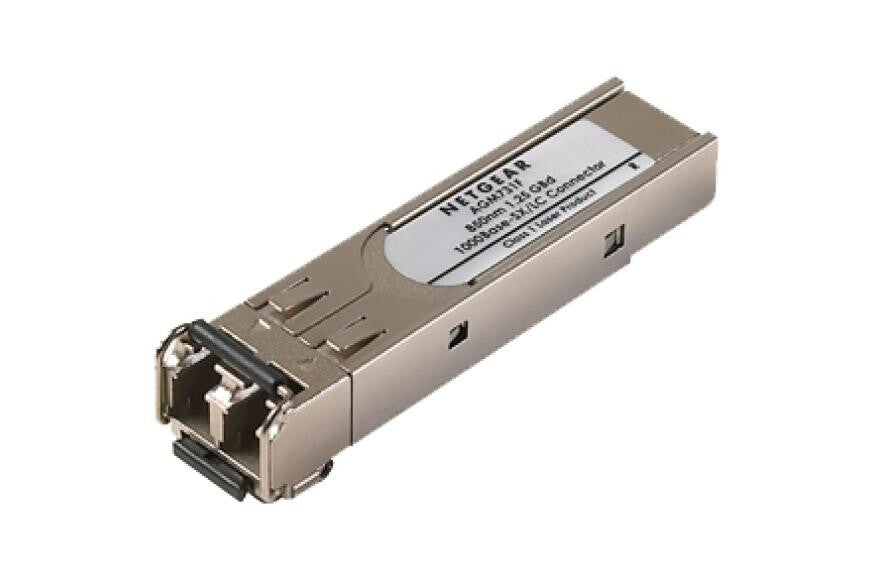

Netgear SFP 1G Ethernet Fiber Module for Managed Switches

Netgear SFP 1G Ethernet Fiber Module for Managed Switches

LC, SFP, 1000Base-SX, 1000m, 850nm, 500 mW, RoHS

  • Gigabit Ethernet “short-reach” fiber connectivity
  • LC duplex connector
  • Fits into SFP interfaces of all Fully Managed Switches
  • Fits into SFP interfaces of all Smart Switches
  • Fits into SFP interfaces of JGS524F
  • Drives Gigabit Ethernet up to 1,000 m distances with 50/125µm laser-optimized OM4 multimode fiber cables
  • Drives Gigabit Ethernet up to 550 m distances with 50/125µm laser-optimized OM3 multimode fiber cables
  • Drives Gigabit Ethernet up to 275 m distances with 62.5/125ìm OM1 multimode fiber cables
  • SKU:606449029734
  • GTIN/EAN:606449029734
  • MPN:AGM731F

You need to login to view the price.

View full details

NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Metal, Mean time between failures (MTBF): 87658 h. Input voltage: 3.3 V, Power consumption (typical): 0.5 W. Compliance certificates: CE, RoHS, Safety: UL 1950, CSA 22.2 No.60 950. Width: 57 mm, Depth: 13.8 mm, Height: 8.5 mm

The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.

5 years limited

Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
SFP transceiver standard
SX
Maximum transfer distance
1000 m
Wavelength
850 nm
Ethernet LAN
Yes
Networking standards
IEEE 802.3z
Fiber ethernet cabling technology
1000BASE
Duplex system
Full
Features
Product colour
Silver
Housing material
Metal
Mean time between failures (MTBF)
87658 h
Power
Input voltage
3.3 V
Power consumption (typical)
0.5 W
Certificates
Compliance certificates
CE, RoHS
Safety
UL 1950, CSA 22.2 No.60 950
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
57 mm
Depth
13.8 mm
Height
8.5 mm
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Harmonized System (HS) code
85369010
